Watering valve-Water level

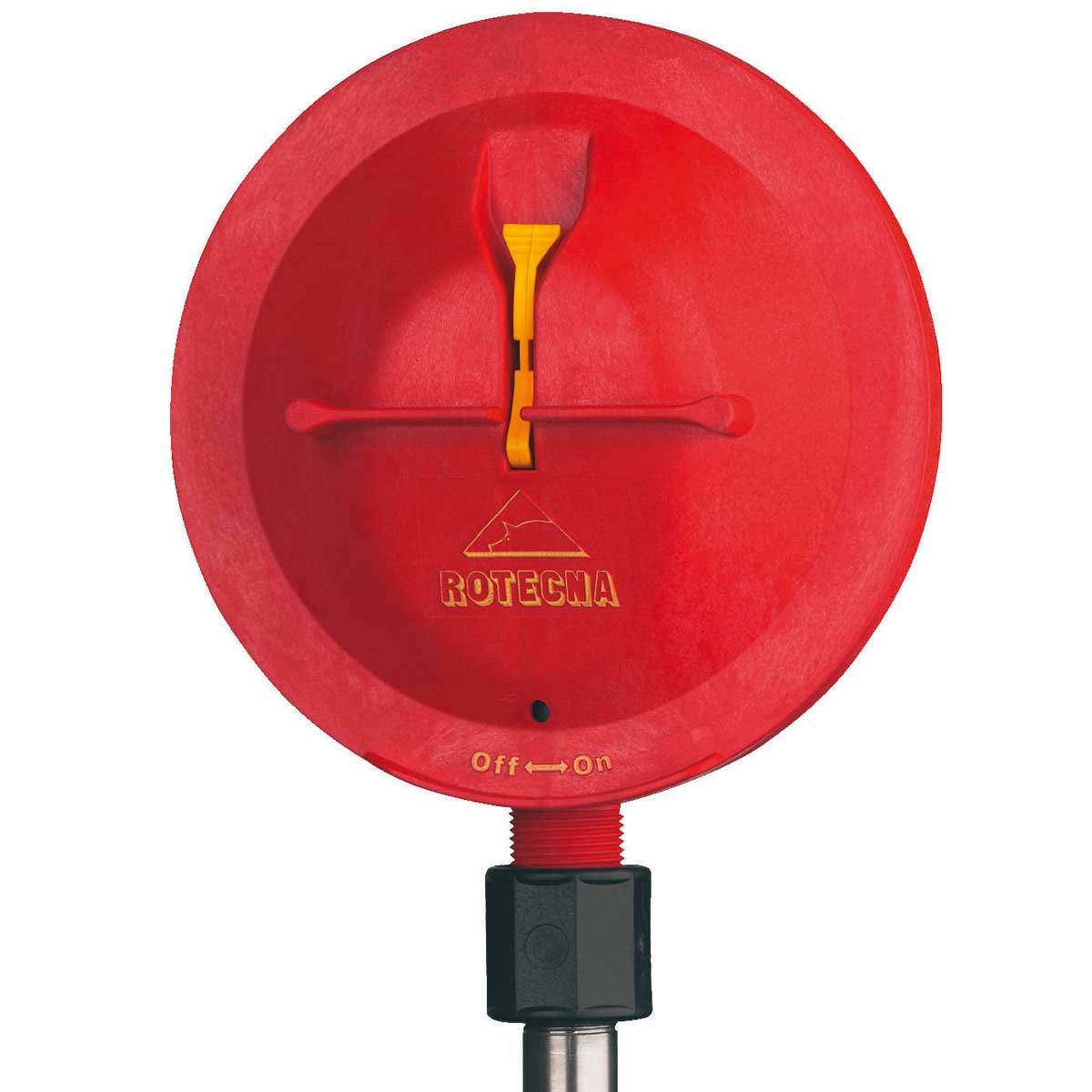

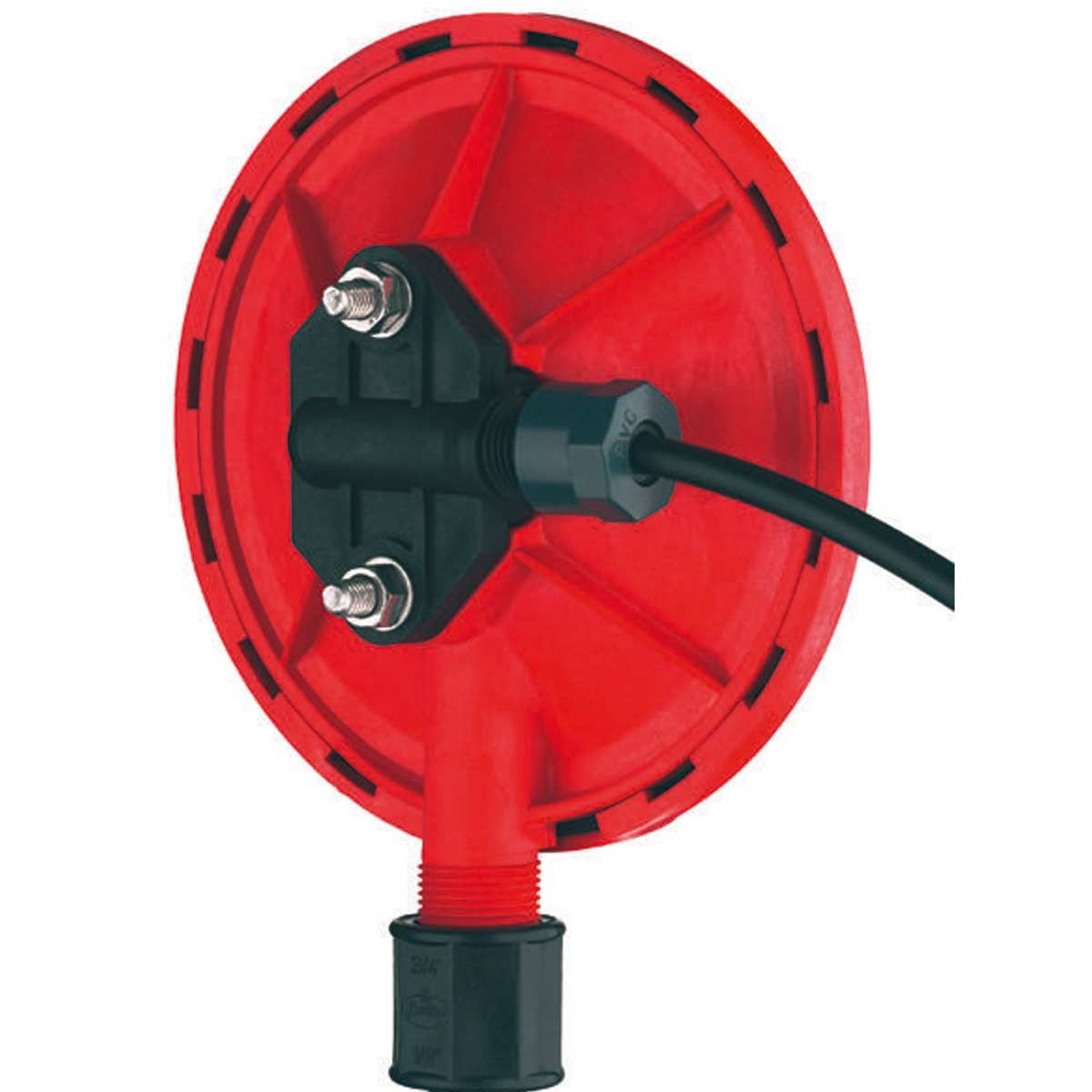

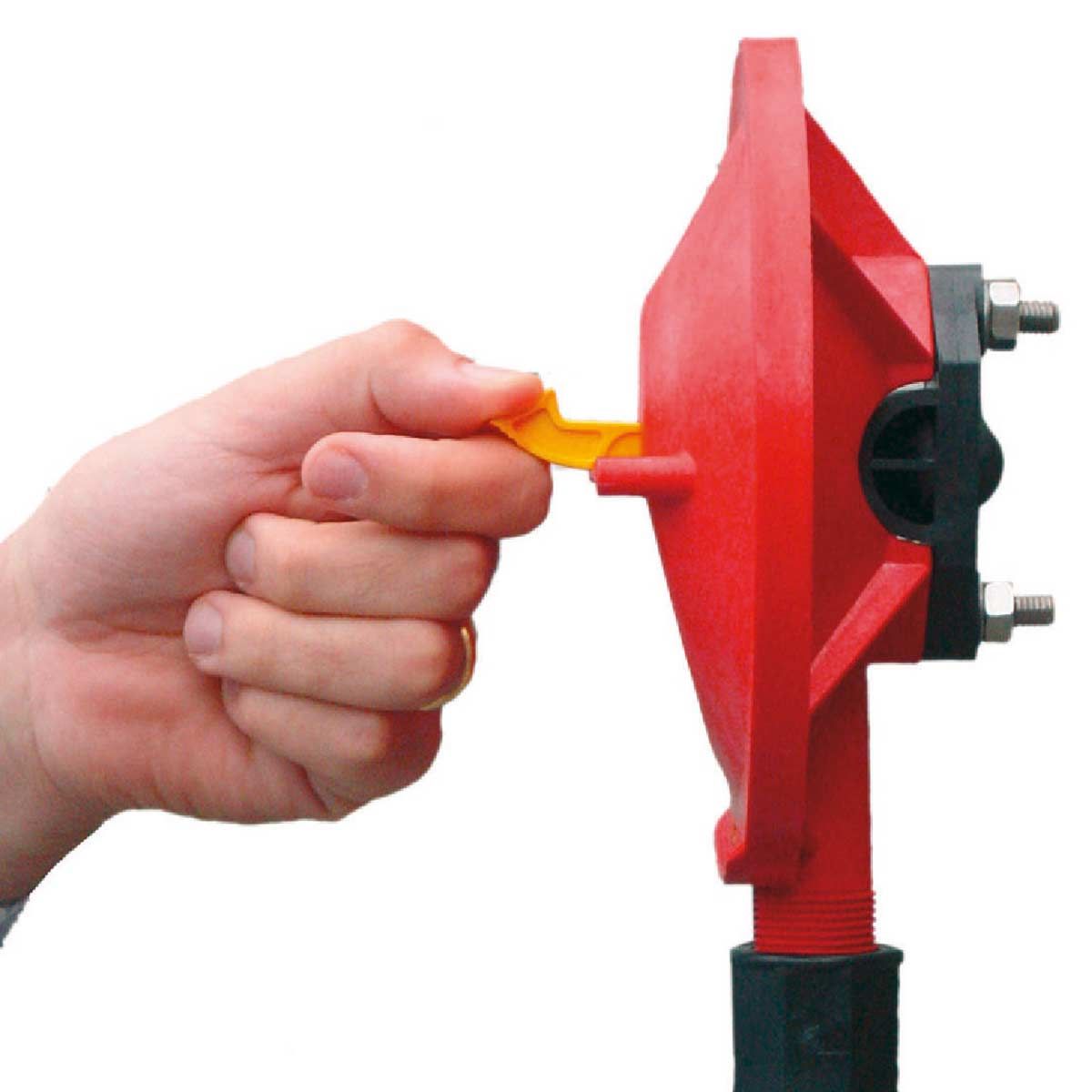

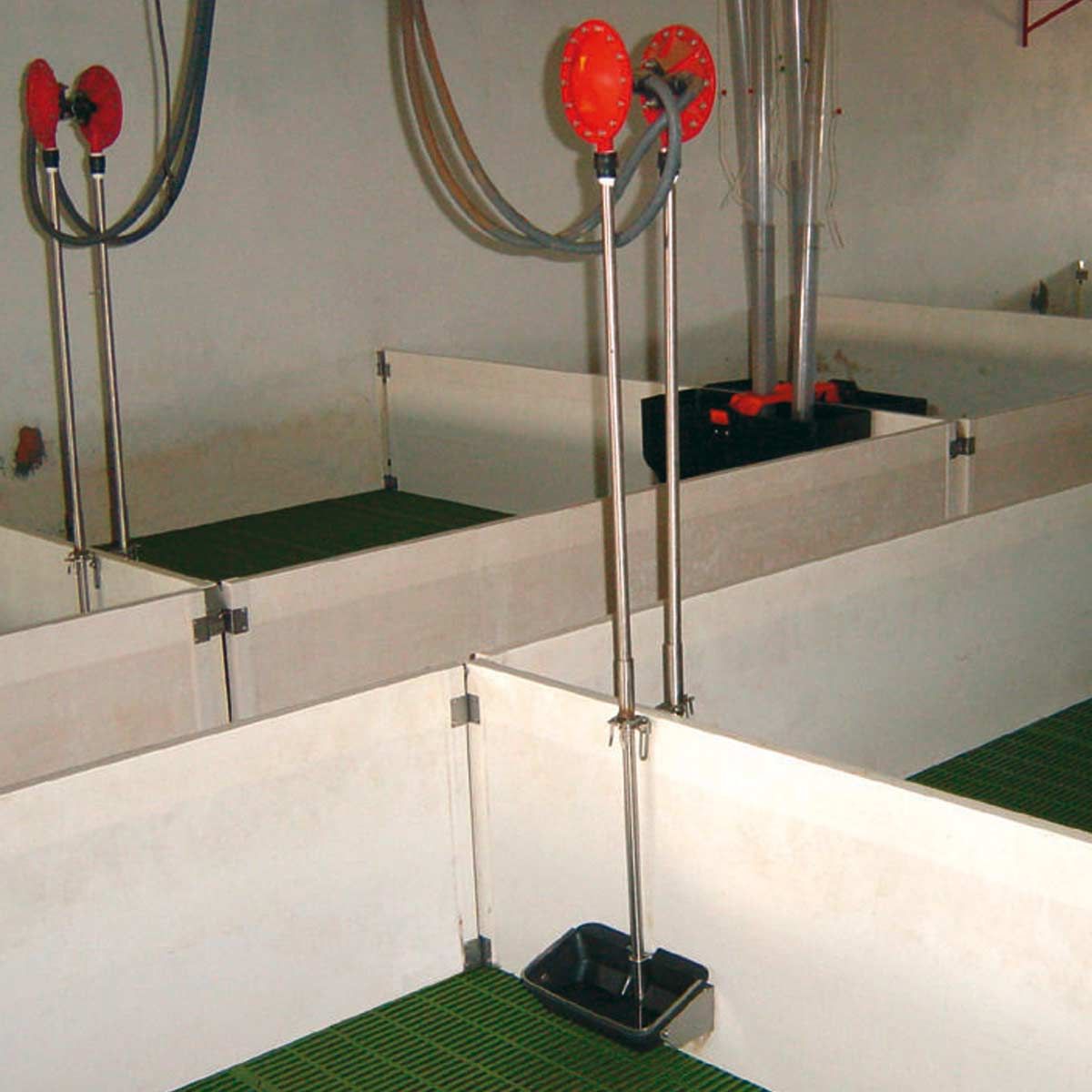

Watering Valve Water Level is the optimal valve to control a certain water level in a potion, a water tank or similar. to keep constant Especially suitable for newly weaned piglets who learn to drink more easily when they are offered a water level and farrowing pens where there must always be water in the trough Advantage: The valve holds, like a float valve, a constant water level, however, the cleaning of the water level is much easier, as the valve housing is mounted approx. 1.0 m above the water level Function: Water Level works by means of vacuum, which acts on a rubber membrane and thus blocks the water flow. The valve is equipped with an integrated closing mechanism so that each valve can close individually For mounting on horizontal pipes The valve can also be closed with a simple handle Double the service life of the novel, double-walled membrane Application Tips: Use constant pressure of 1 to 3 bar or pressure reducer. • Clean water or filter to prevent Water Level from clogging. • Seal the connection / exit from the pipe (with PTFE and sealing cord), avoiding false air. • Water capacity must be high be enough (pipe) • Cleaning / replacement of the membrane by turning the bayonet lock • Water level in the trough for sows 4-5 cm high, which feed in the tube is avoided Number of animals: 1 - 30Pressure: 0,5 - 3 barWater flow: 2.5 - 7 liters / min.
