Electric Fence Insulators: Current on the Conductor, Not the Post

Electric Fence Insulators: Small Parts, Big Impact

Electric fence insulators connect the conductor to the post without the current jumping across. This is crucial with timber and metal posts in particular, because wet wood and metal carry the current into the ground. A good insulator holds polywire, rope, tape or wire securely in position while still letting it move enough to expand and contract in heat and cold. That keeps the fence voltage stable.

The Right Insulator for Your Post

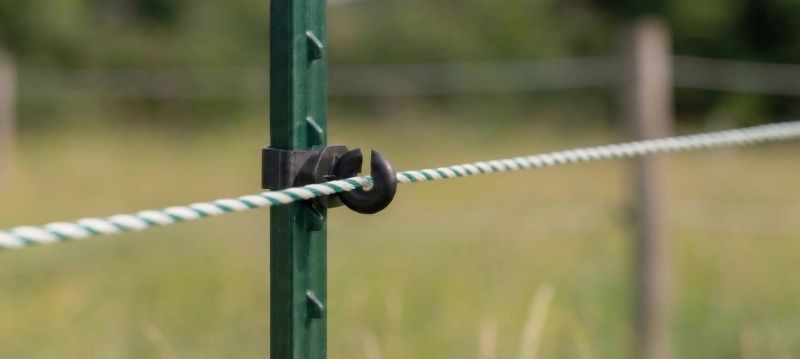

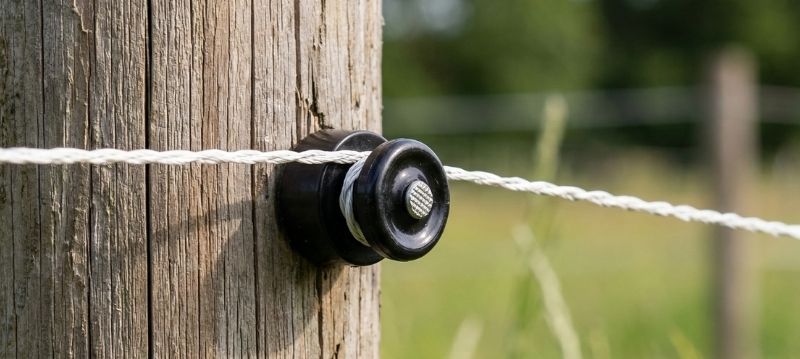

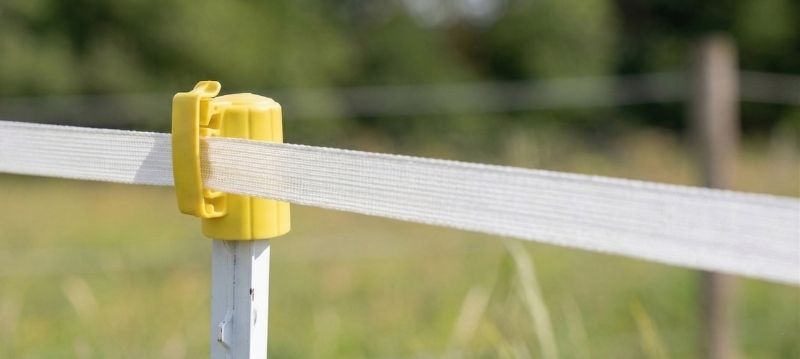

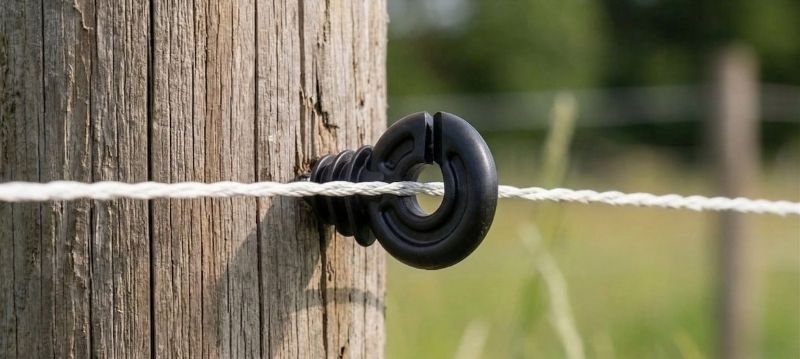

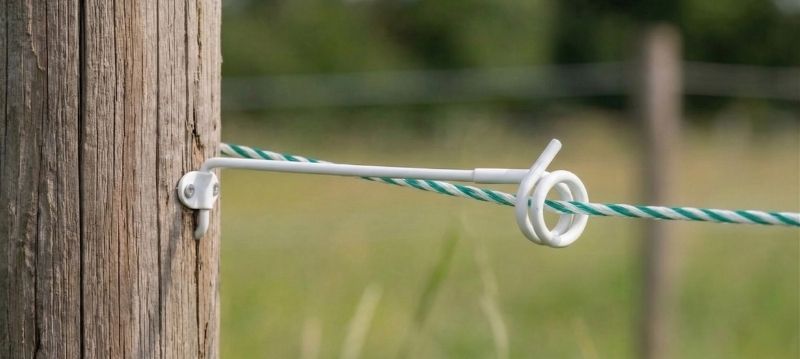

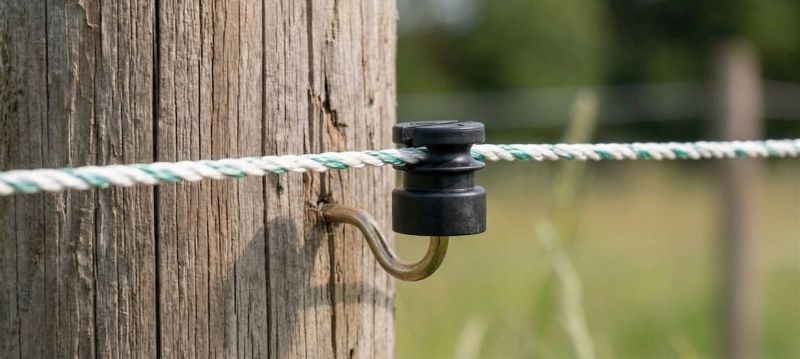

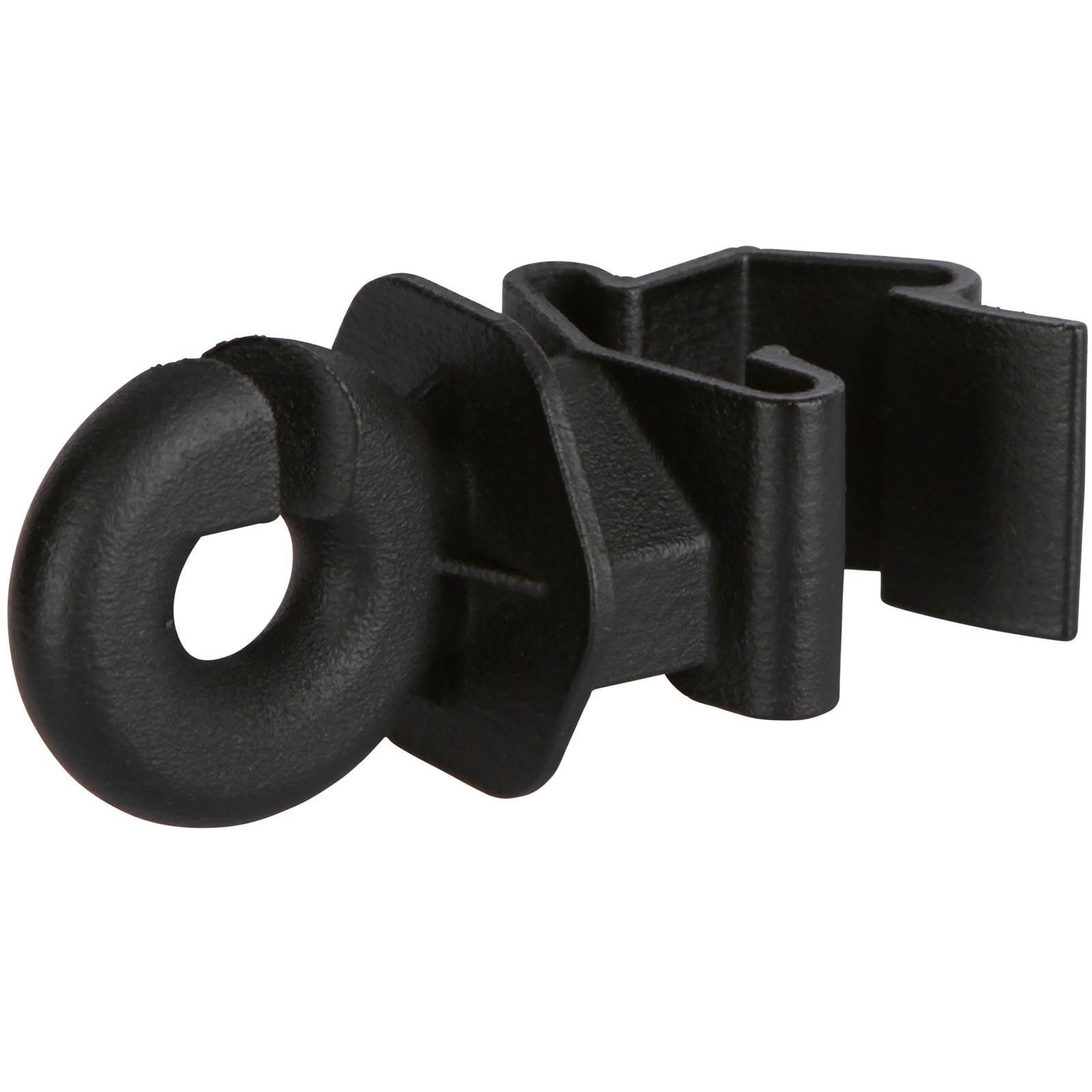

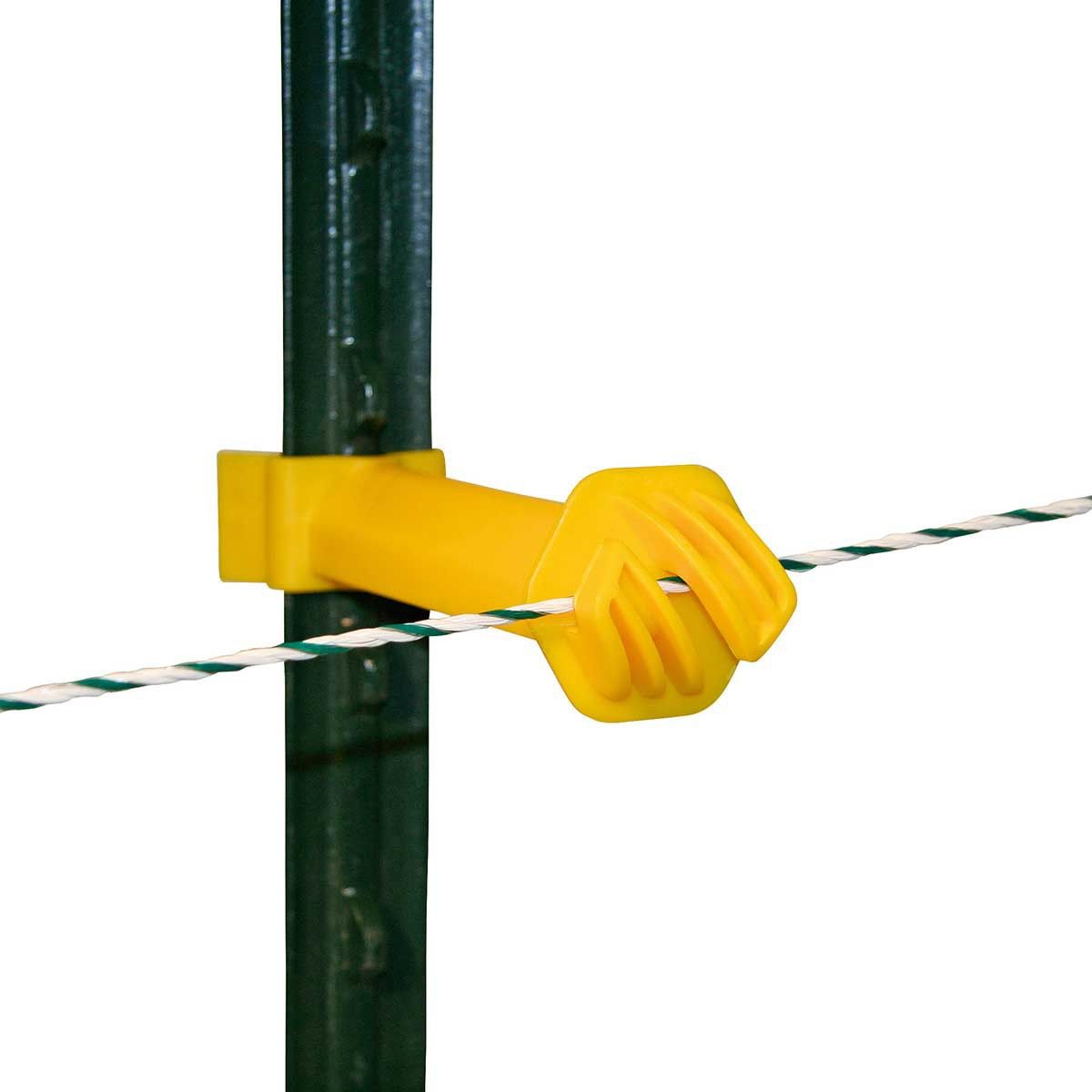

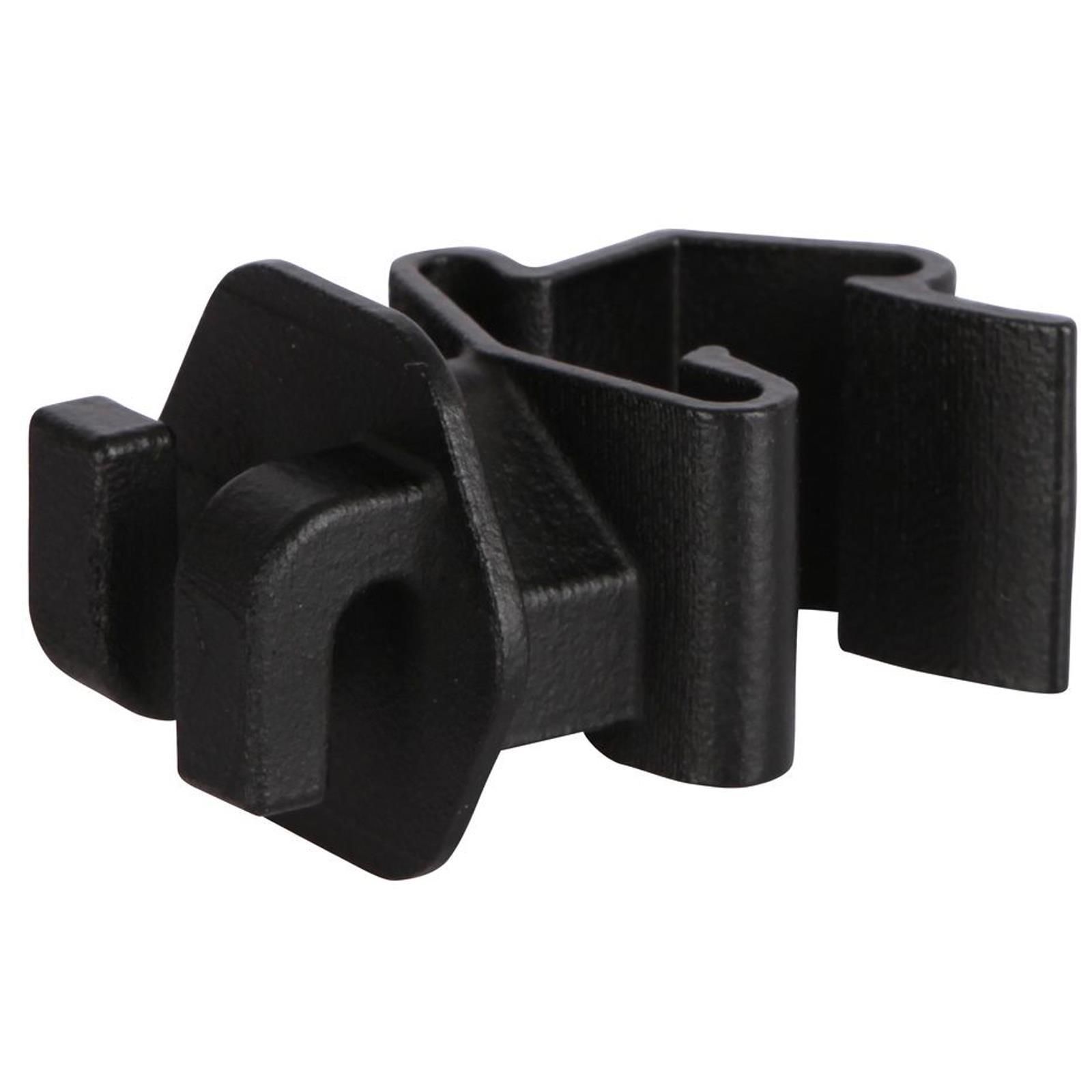

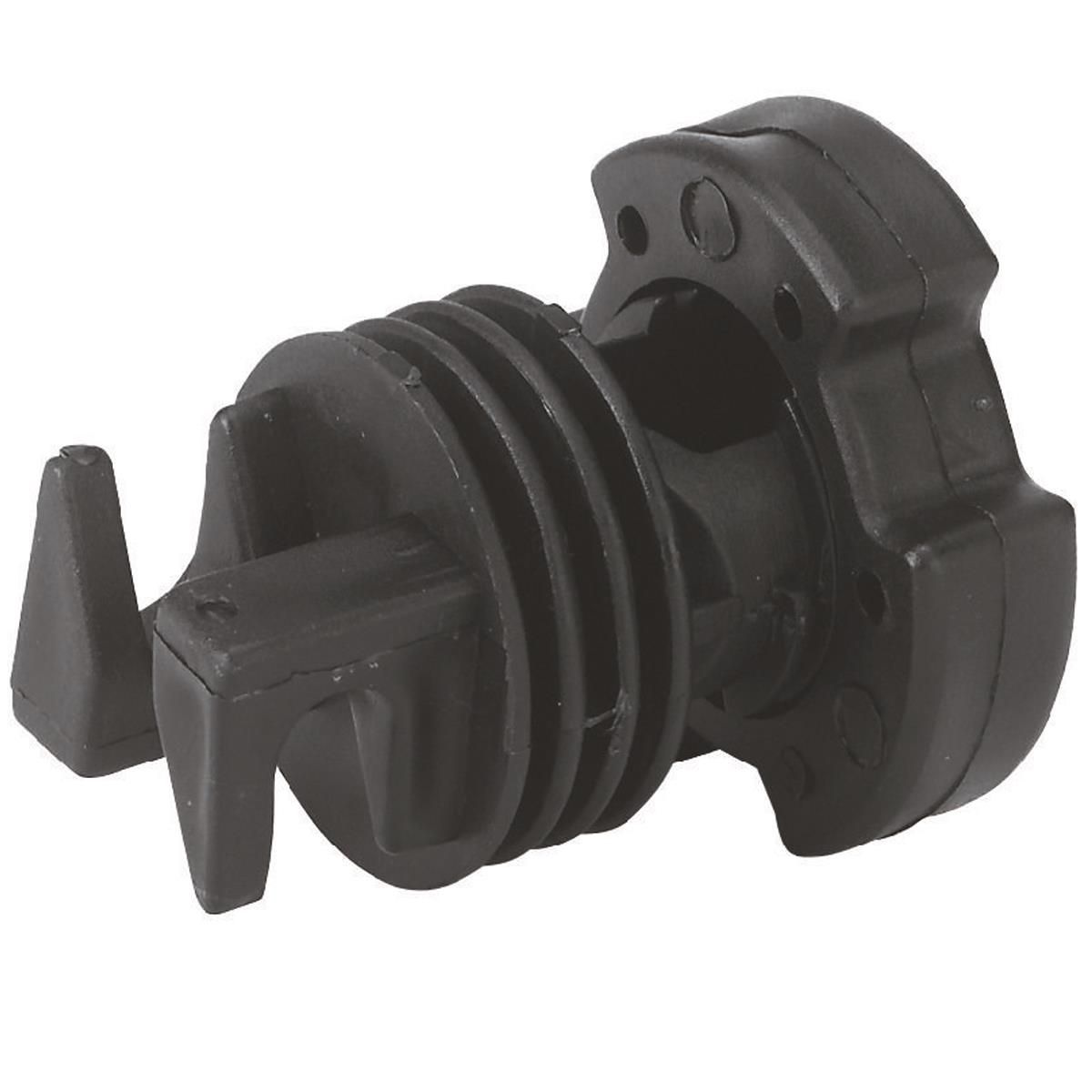

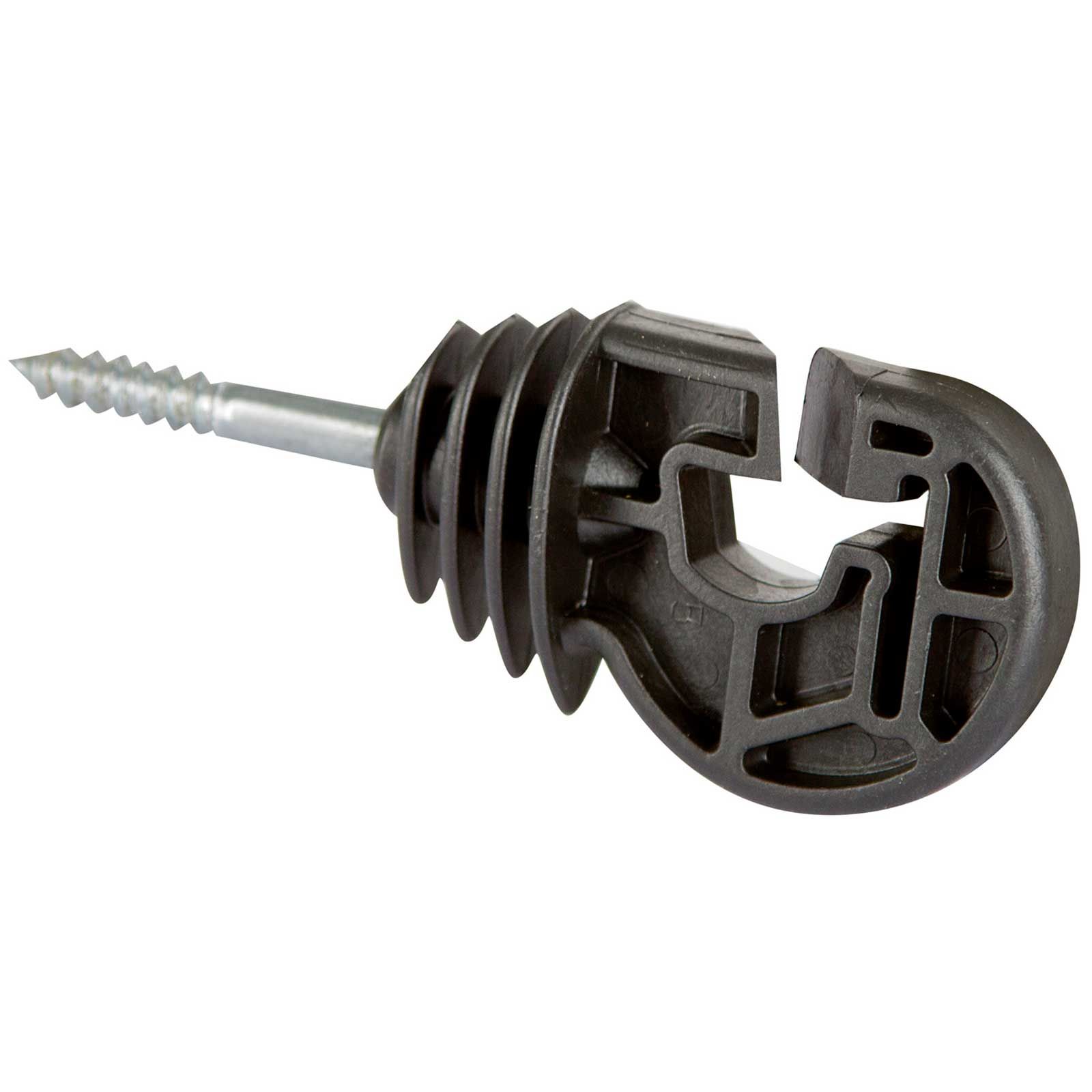

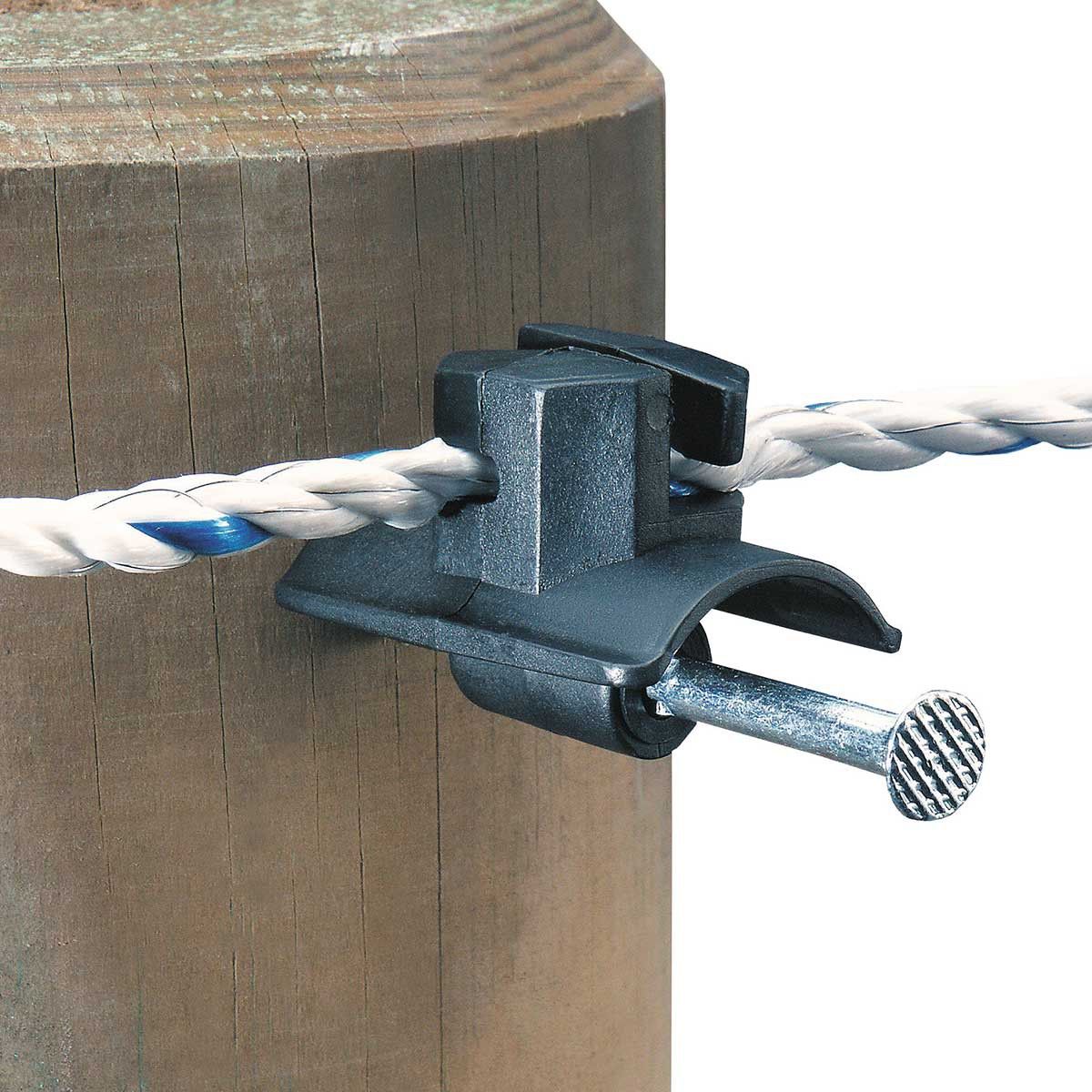

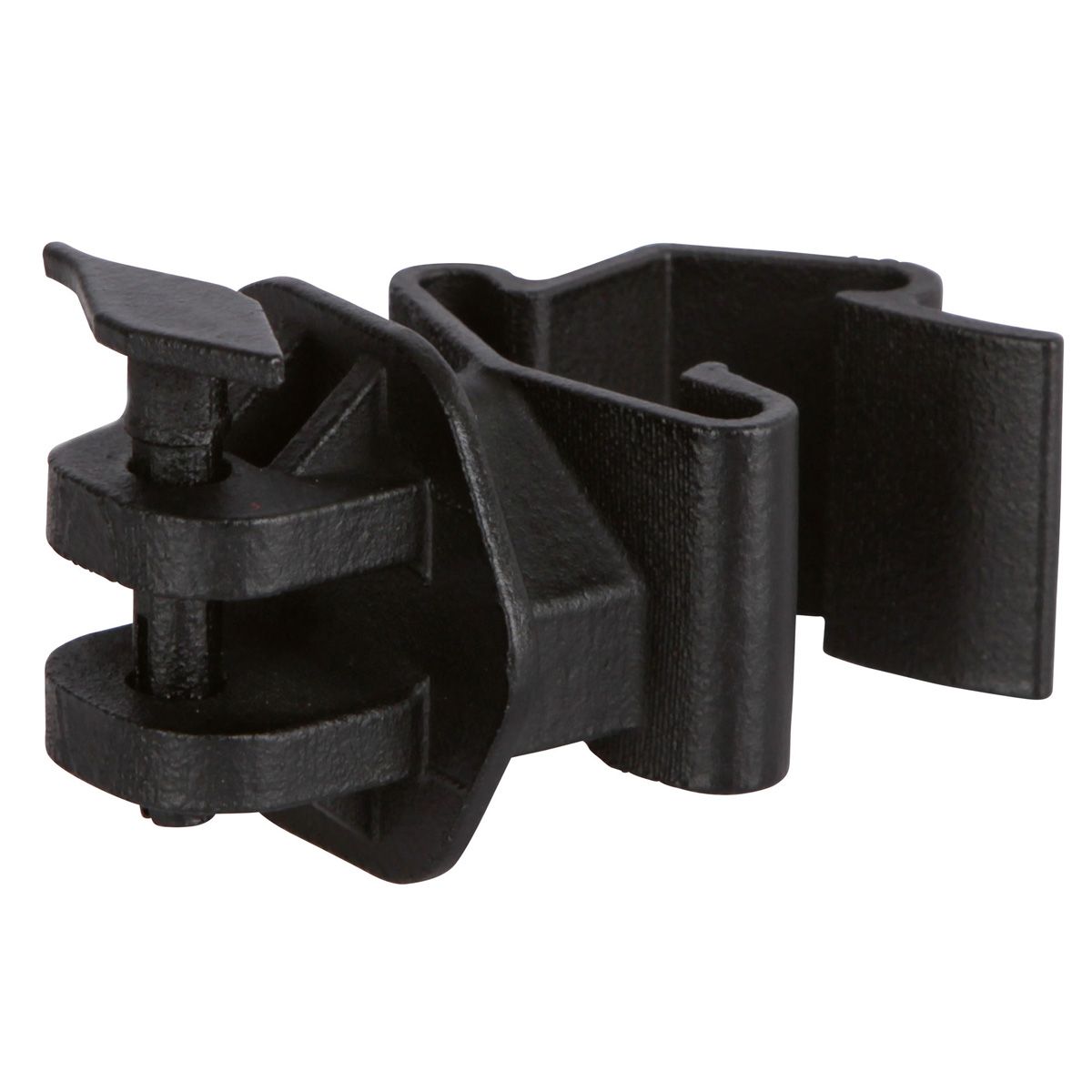

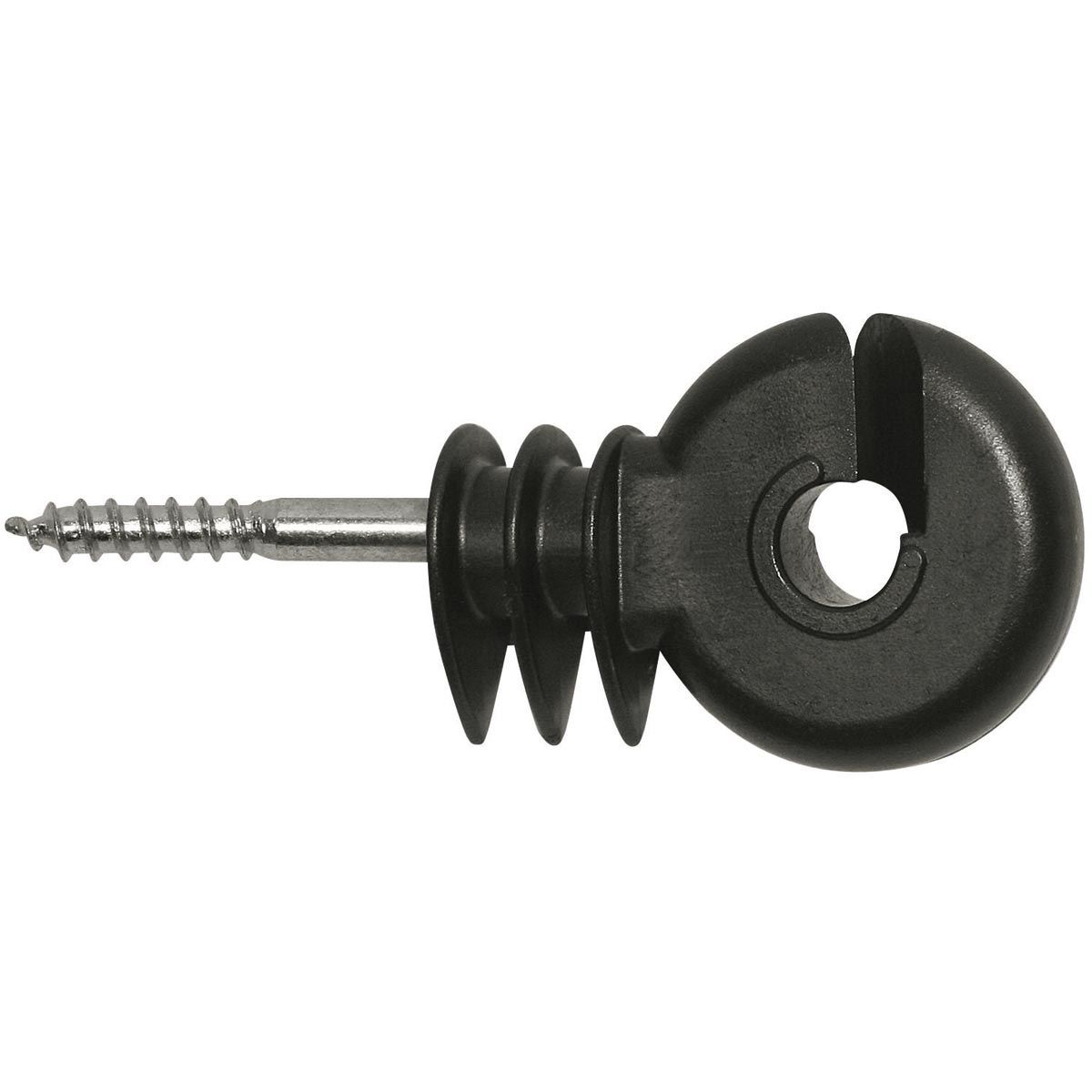

The first question is always the type of post. For timber posts there are ring, nail and slot insulators that you screw or hammer in. On metal posts and T-posts, insulators with clips or brackets do the job, and on round posts between 35 and 70 mm, mounting brackets with a rubber insert hold firm. Where the conductor needs to stand off from an existing fence or a wall, long shank and offset insulators help.

The Right Insulator for Your Conductor

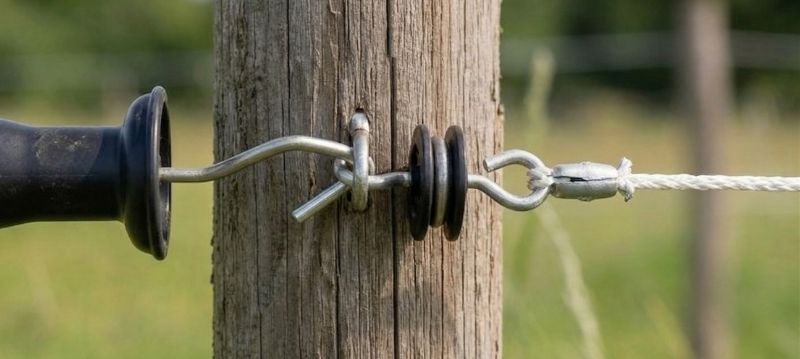

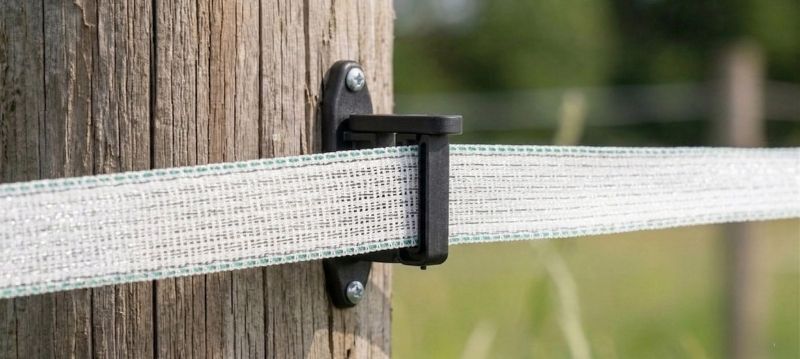

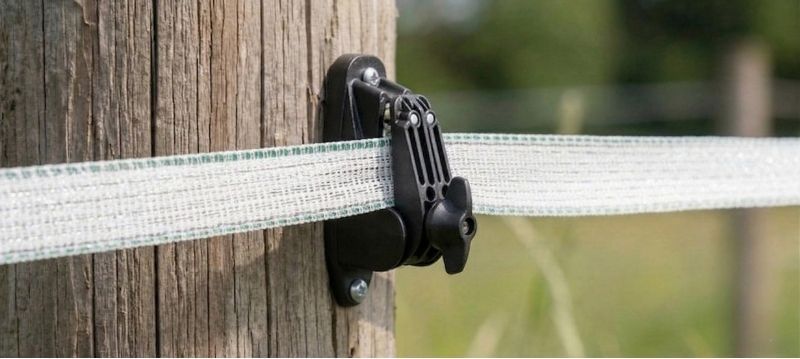

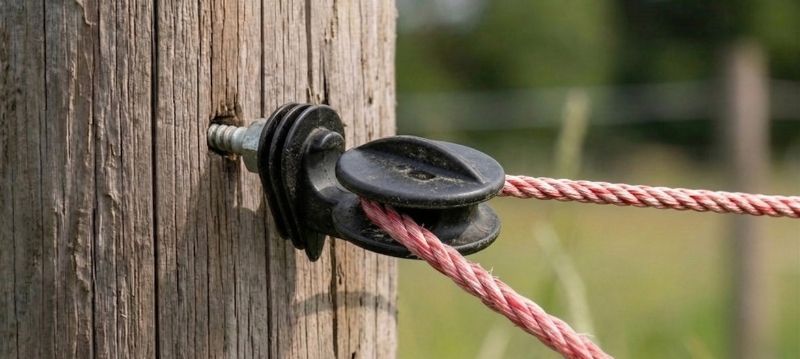

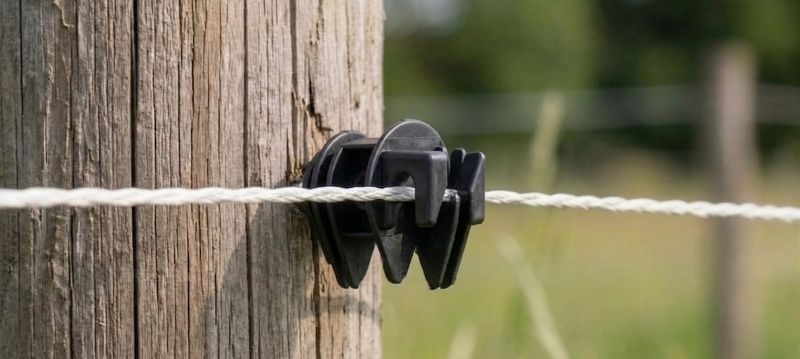

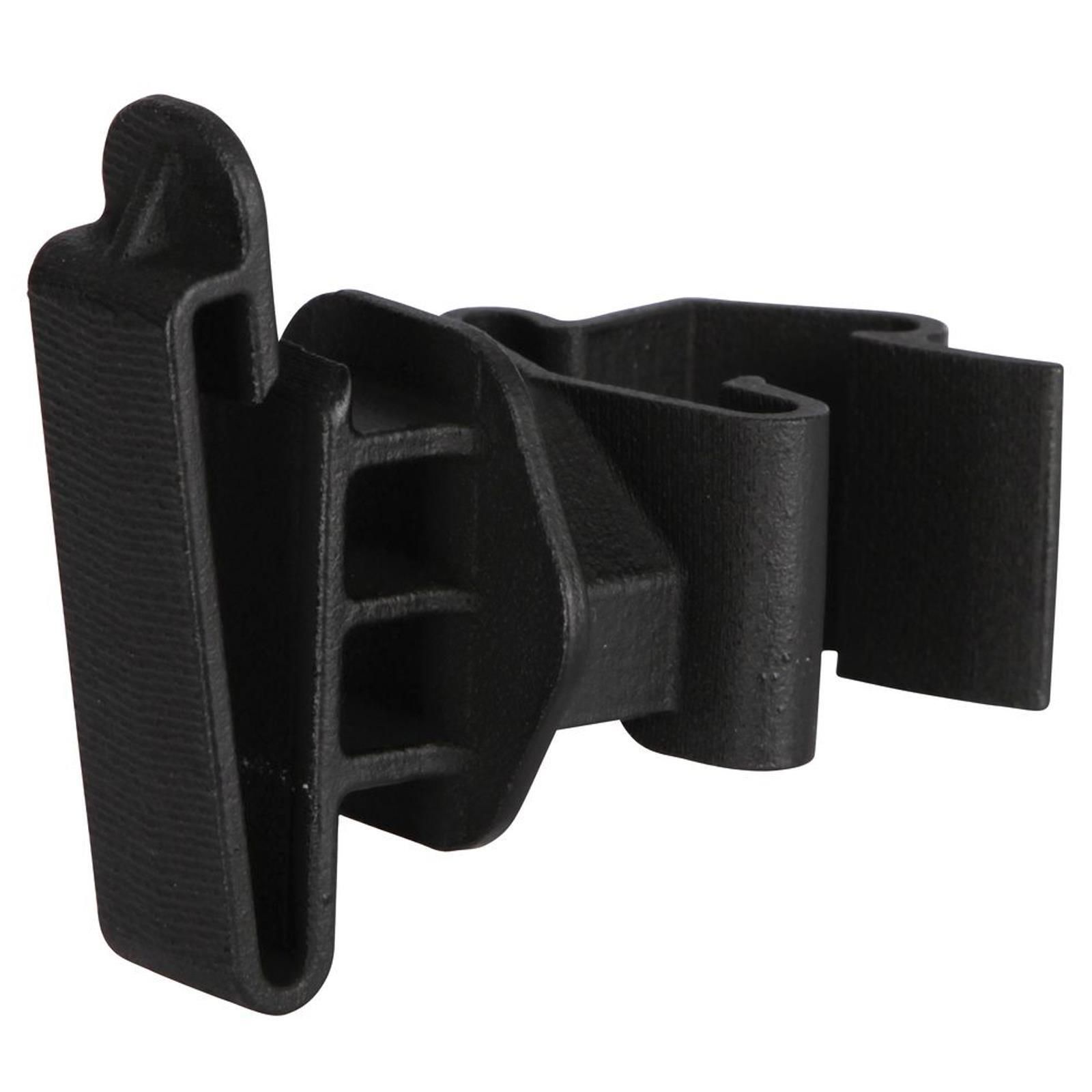

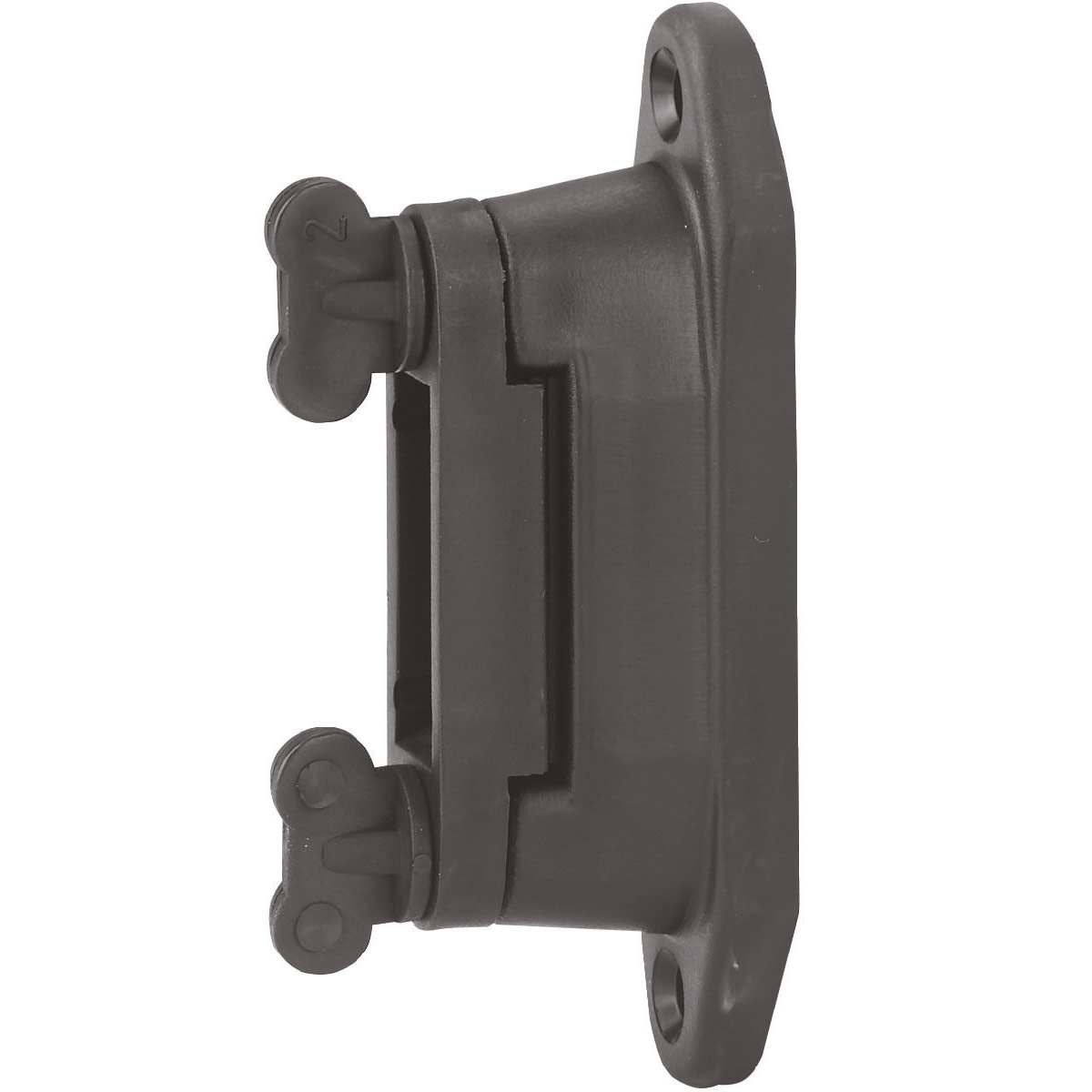

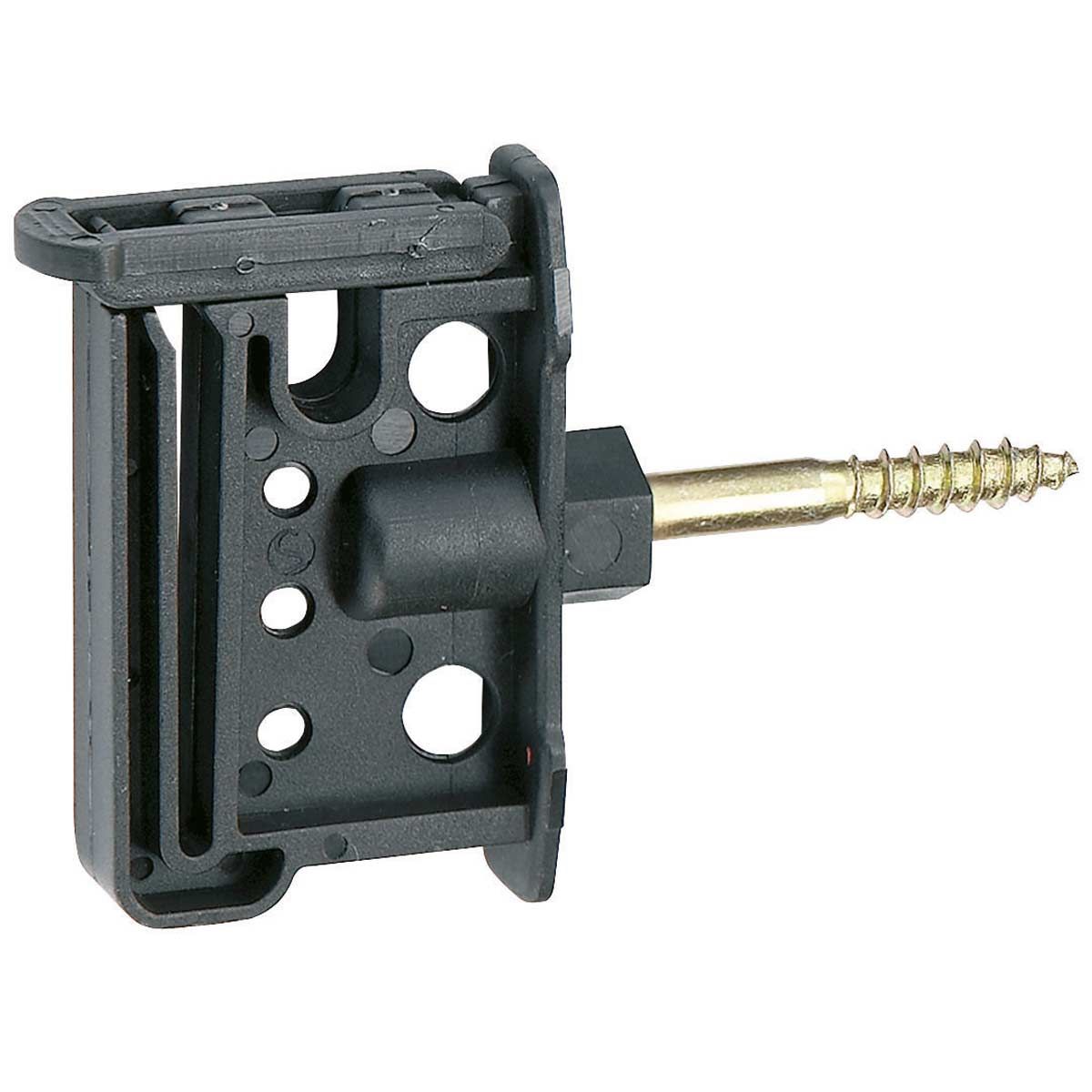

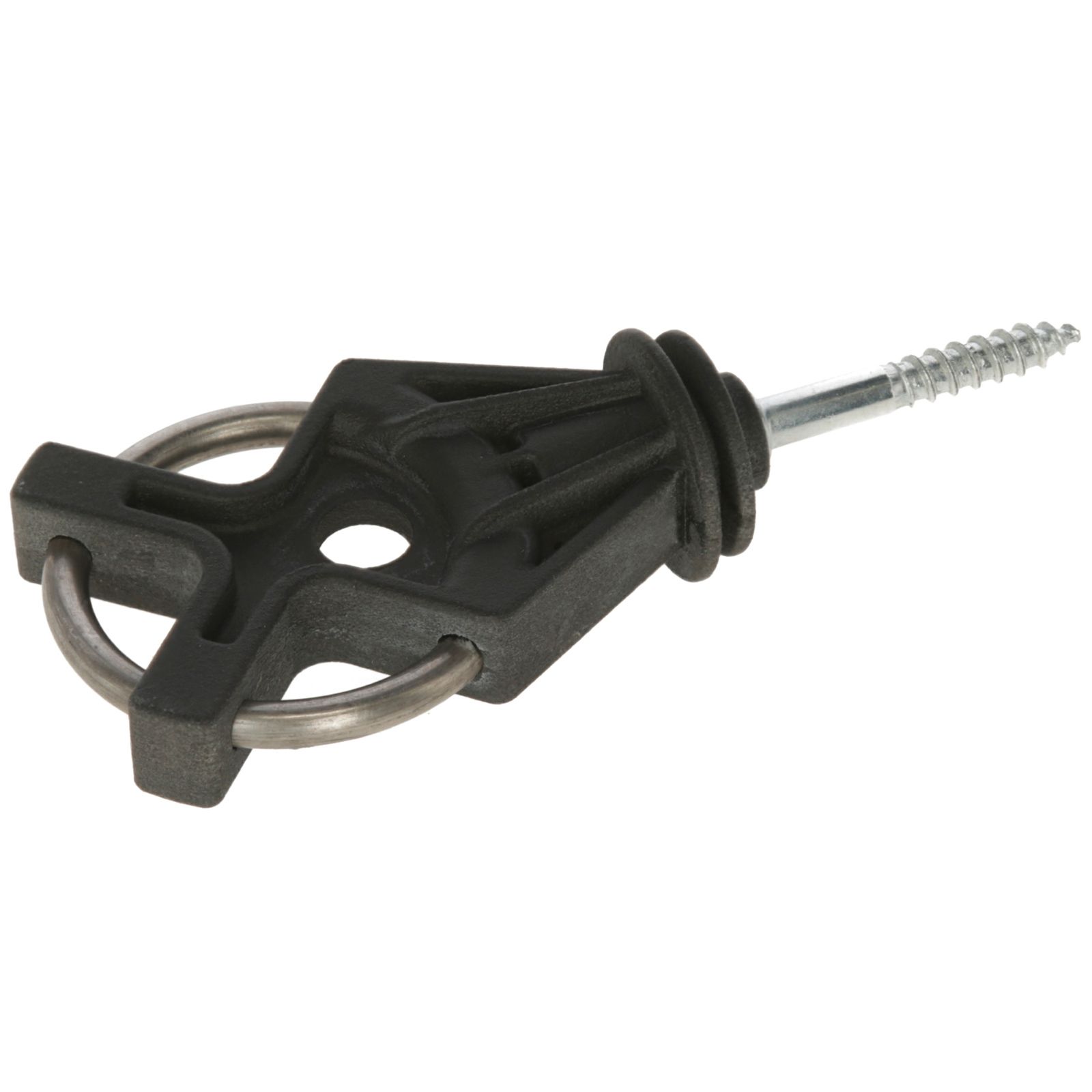

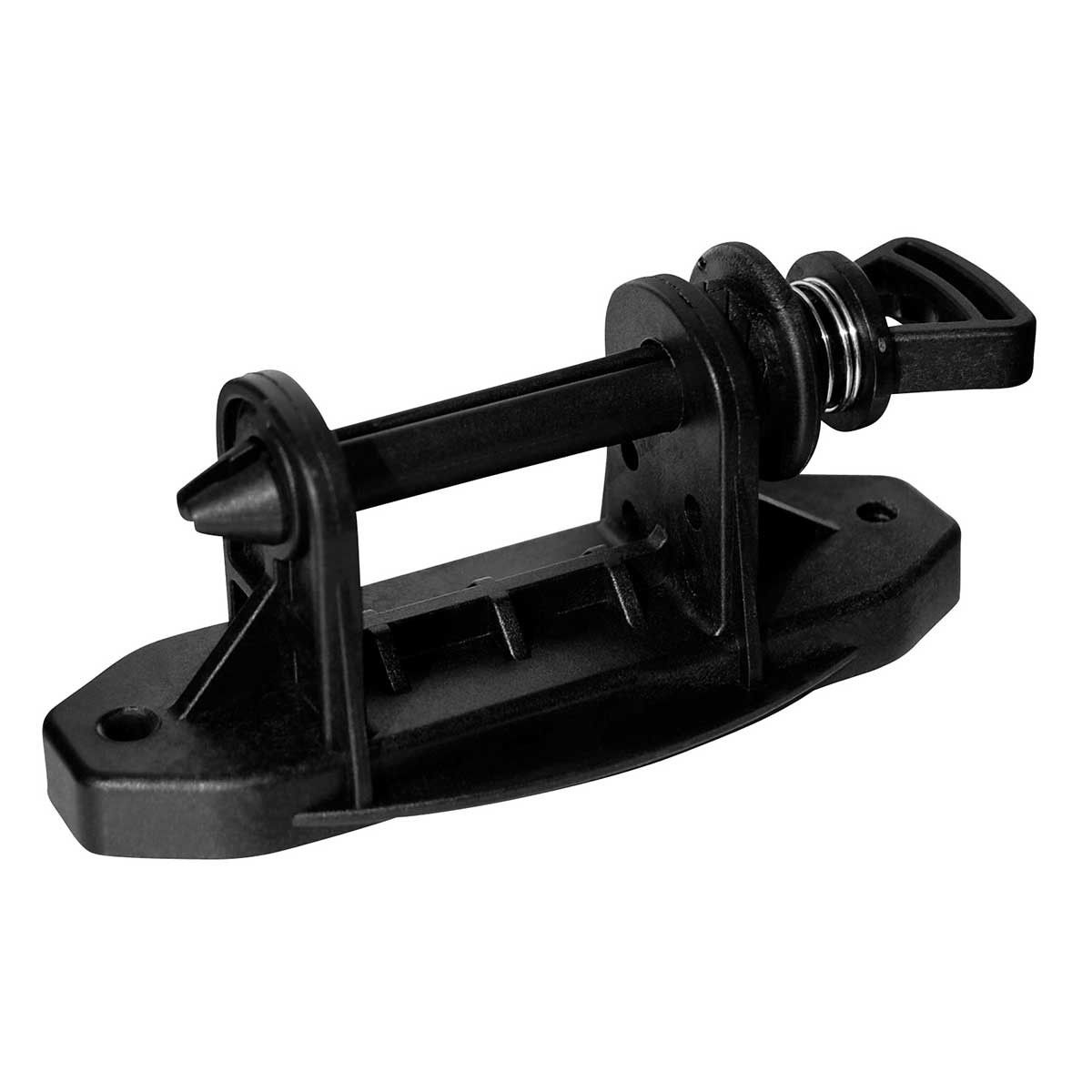

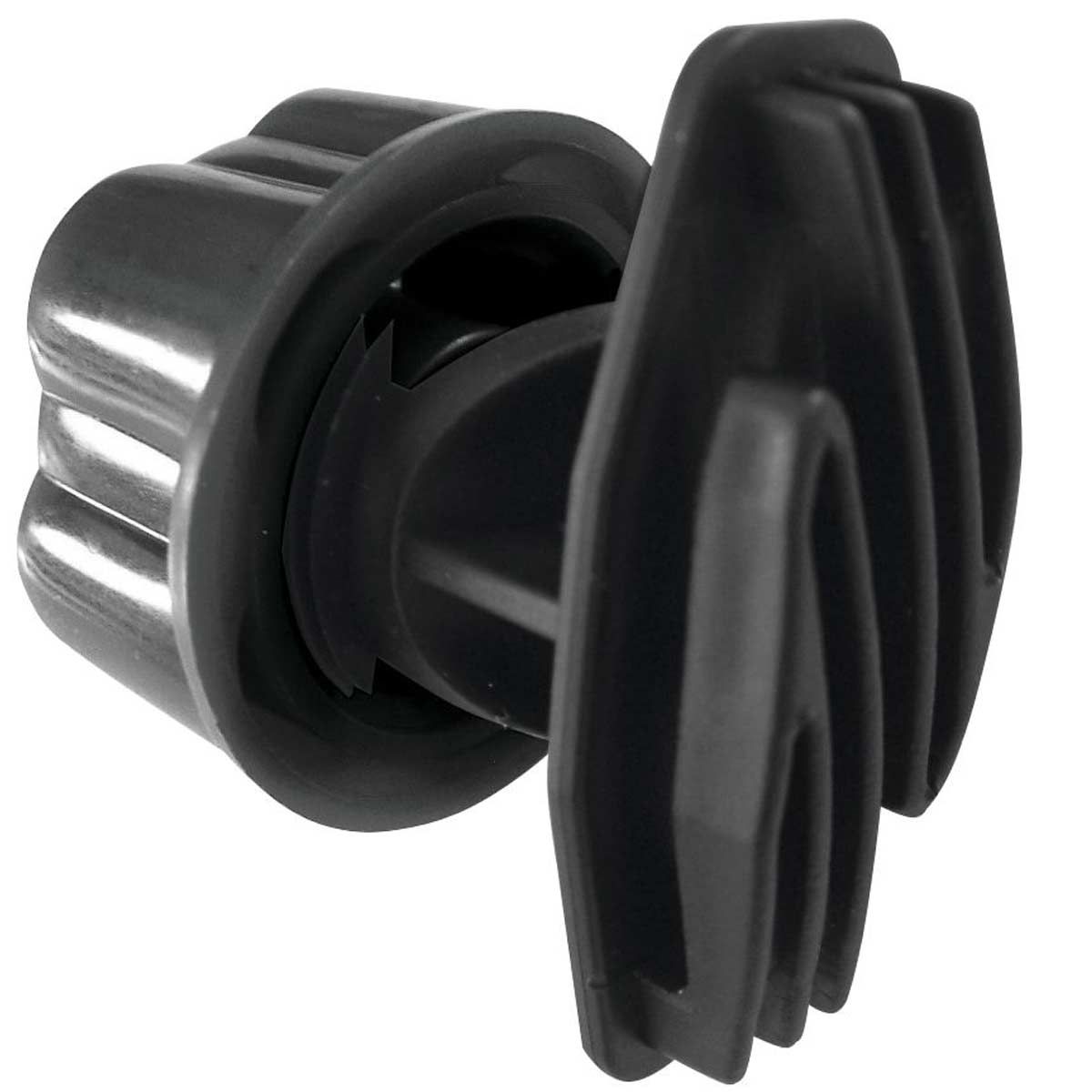

The conductor is just as important. Polywire and wire run well in ring and nail insulators, while rope needs larger openings. Wide tape calls for tape or clamp insulators that guide it flat without creasing. At corners, ends and gates, corner and gate handle insulators take up the pull. For gateways or places where animals might touch the conductor, a tube insulator protects the rope over a few centimetres.

Frequently asked questions

How many insulators do I need per 100 m of fence?
That depends on the post spacing and the number of strands. With a post roughly every five metres and three strands, it is around 60 insulators plus corner insulators for every corner.

How can I tell if an insulator is faulty?
Cracks, scorch marks or a faint crackling at night are clear signs. Measurements often show a voltage drop in a particular section, and then it is worth checking every insulator there.

Do I need insulators on plastic posts at all?
Plastic posts usually have built in loops and do not conduct themselves, so you can often manage without extra insulators there. At corners and ends, corner insulators still make sense.
