Watering Valve Water Level is the optimal valve to control a certain water level in a potion, a water tank or similar. to keep constant

  • especially suitable for newly weaned piglets who learn to drink more easily when they are offered a water level and farrowing pens where there must always be water in the trough
  • Advantage: The valve holds, like a float valve, a constant water level, however, the cleaning of the water level is much easier, as the valve housing is mounted approx. 1.0 m above the water level
  • Function: Water Level works by means of vacuum, which acts on a rubber membrane and thus blocks the water flow. The valve is equipped with an integrated closing mechanism so that each valve can close individually
  • for mounting on horizontal pipes

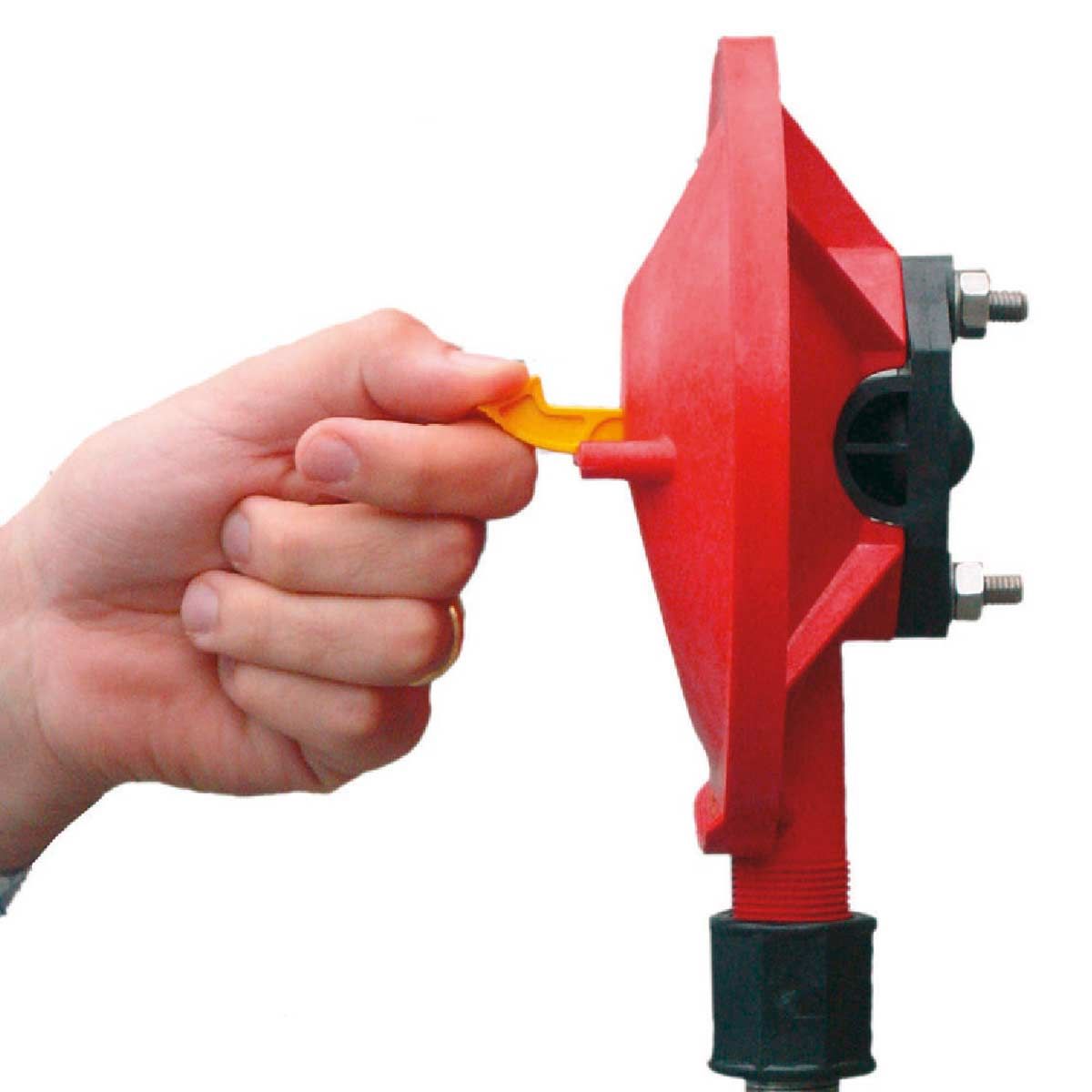

  • The valve can also be closed with a simple handle
  • twice the service life of the novel, double-walled membrane

Application Tips: Use constant pressure of 1 to 3 bar or pressure reducer. • Clean water or filter to prevent Water Level from clogging. • Seal the connection / exit from the pipe (with PTFE and sealing cord), avoiding false air. • Water capacity must be high be enough (pipe) • Cleaning / replacement of the membrane by turning the bayonet lock • Water level in the trough for sows 4-5 cm high, which feed in the tube is avoided

Number of animals: 1 - 30
Pressure: 0,5 - 3 bar
Water flow: 2.5 - 7 liters / min.

Country of origin: EU
Data according to manufacturer. Errors and changes reserved.
