AKO Sun Power S 1000 Electric Fence Energiser 8 watt 12v, 1.40 joules

AKO Sun Power S 1000 Electric Fence Solar & Battery

This solar device is ideal for use on normal fences with little vegetation. It is ideal for horse and cattle pastures as well as poultry nets and has been optimized for maintenance-free continuous operation over the main grazing season. With a High/low/off switch the unit's performance can be adjusted as needed, while the power-saving circuit ensures that power consumption is reduced when battery voltage drops.

The solar unit has an integrated lightning protection and an intelligent, modern Battery management with deep discharge protectionwhich ensures that the device will function properly even during extended periods of bad weather. The excellent efficiency of the device ensures a longer battery life and the very robust, weatherproof and waterproof housing with with carrying handle allows for quick and easy installation.

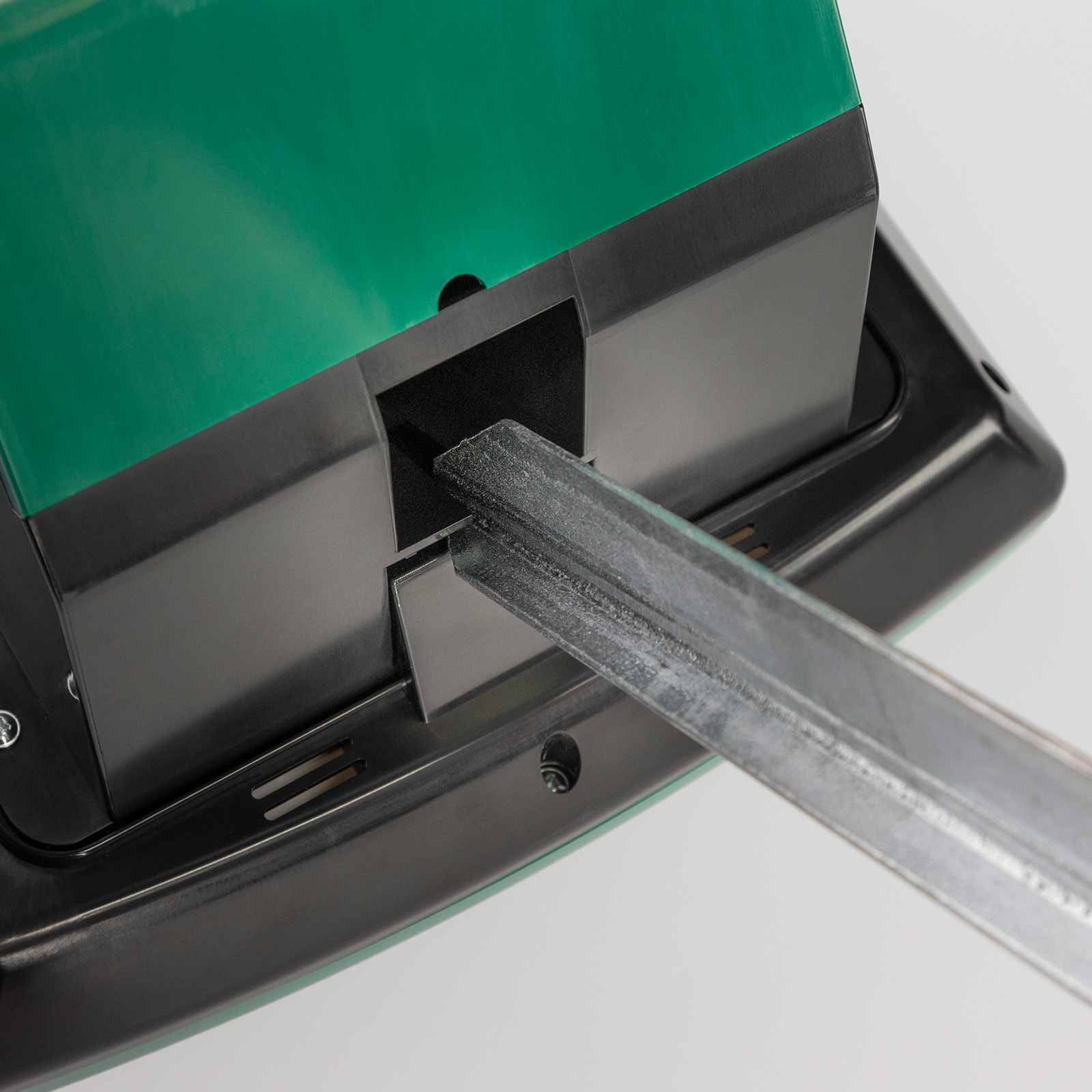

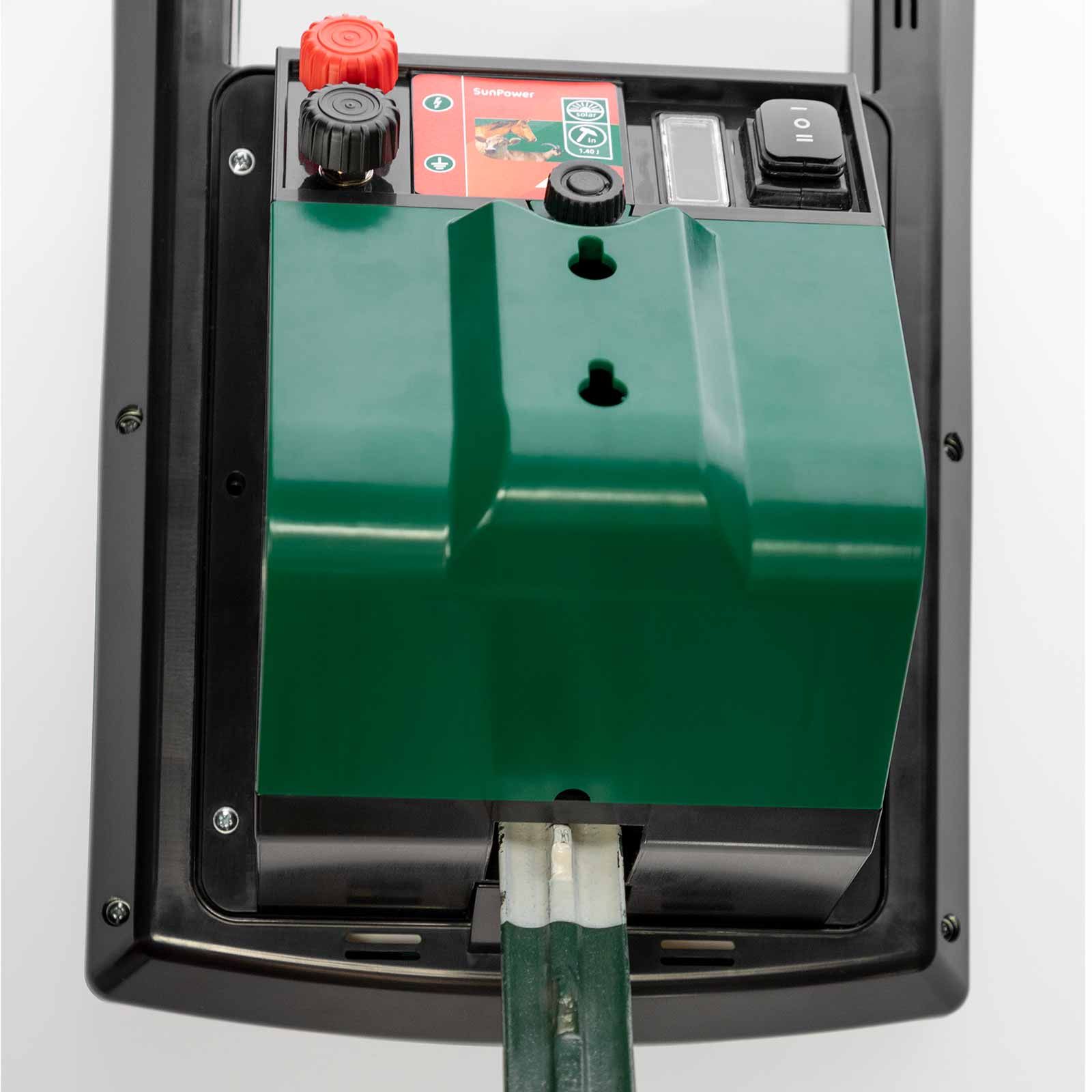

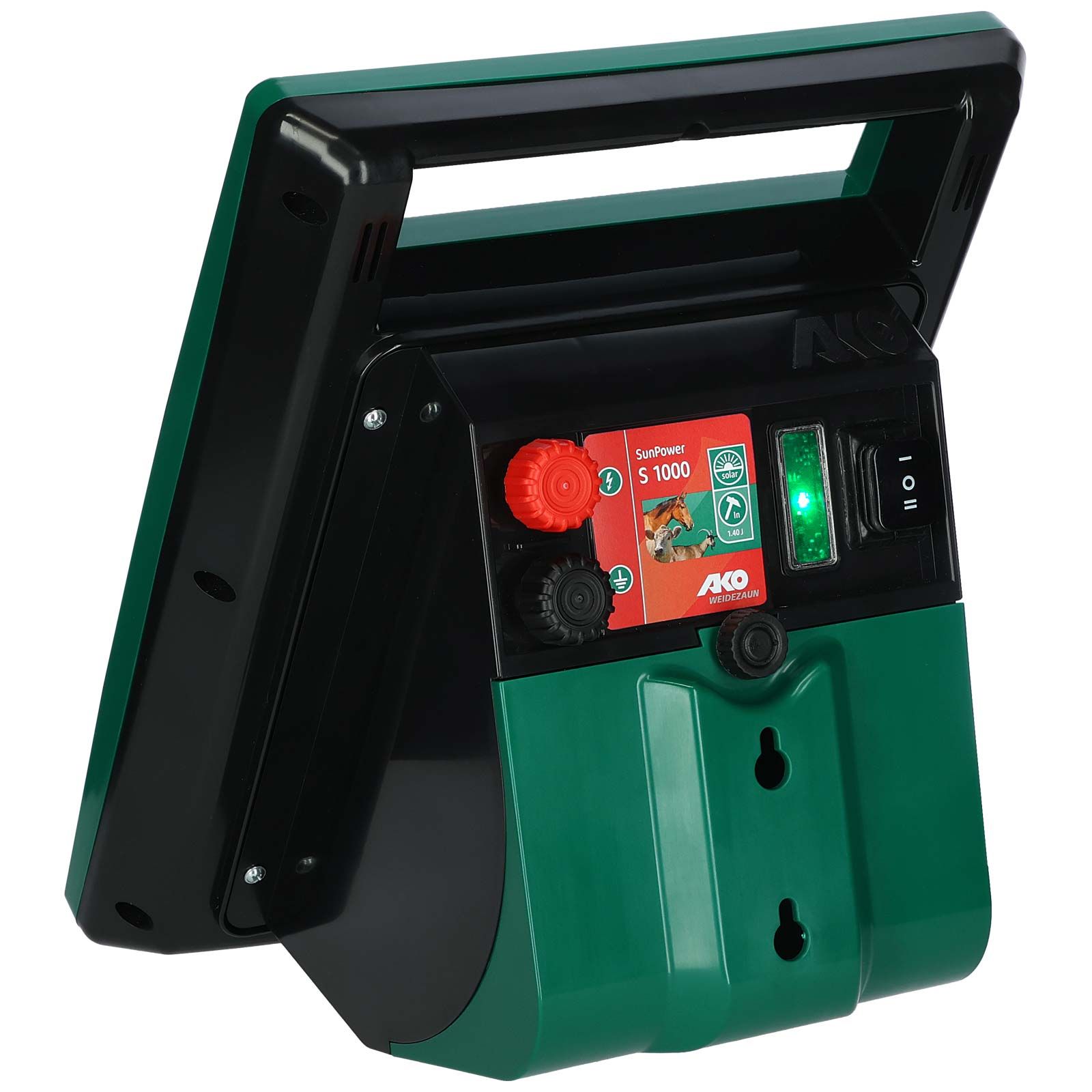

Another feature of the device is the channel for pile mounting integrated channel for pile mountingwhich allows easy and safe installation. The solar device is microprocessor controlled and has very bright, highly visible LED lights. It complies with current EU safety standards and has a function control LED (green), a solar operation LED (blue) and a battery warning LED (red), which inform the user about the current status of the device.

Overall, this solar pasture fencer provides a reliable and powerful solution for pasture and fencing applications and is ideal for long-term use throughout the grazing season thanks to its robust construction and smart features.

Notice: For dry soils, be sure to use multiple ground rods in addition.

overview:

• Powerful pasture fence solar for normal fence systems with little vegetation
• Ideal for horse and cattle pastures and poultry nets
• Optimized for maintenance-free continuous operation over the main grazing season
• High/Low/Off switch to adjust the power output
• power saving circuit when battery voltage drops
• Integrated lightning protection and deep discharge protection for longer battery life
• very robust, weatherproof, waterproof housing with carrying handle
• quick and easy to install with pile mounting channel
• Microprocessor controlled and complies with current EU safety standards
• Function control LED (green), solar operation LED (blue) and battery warning LED (red)

Technical data:

• Charging energy: 1.4 J
• Max. Discharge energy:1 J
• Max. voltage: 11500 V
• Open circuit voltage: 10000 V
• voltage at 500 Ohm: 5000 V
• Theoretical fence length acc. to vde: 35 km
• Max. Fence length without vegetation: 10 km
• Max. fence length Fence length with medium vegetation: 2.5 km
• Max. fence length Fence length with high vegetation: 1 km
• Number of nets: 4
• Number of 1 m grounding stakes: 1
• current consumption: 59 mA - 87 mA
• 5 years power warranty for the solar module
• 6 months warranty on the 12 V battery

Scope of delivery:

1x High-Power compact solar unit sun Power s 1000 (completely assembled) *
1x AGM battery, 12 Volt, 12 Ah (441124) *
1x Permanently mounted, crystalline solar module, 12 Volt, 8 Watt *
1x 230 Volt battery charger (371032)
1x Fence connection cable
1x ground connection cable
1x Earth/mounting spike in two parts (442385)
1x warning sign
