  • 12 V / 230 V DUO device with high output
  • for normal fence systems with low vegetation
  • fence monitoring indicator
  • separate battery monitoring indicator
  • recommended solar module: item no. 375251 – 25 Watts

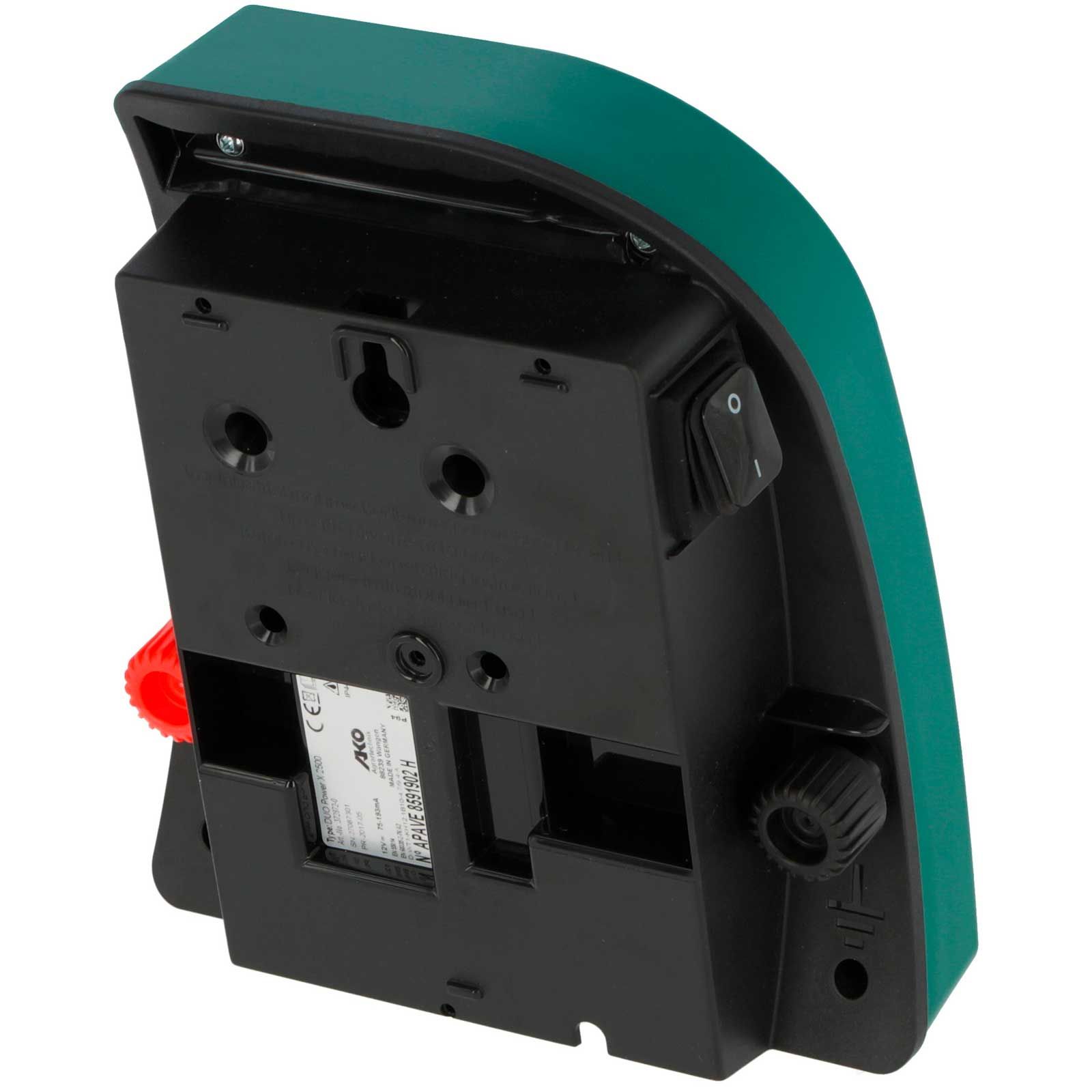

  • with side ON/OFF switch
  • Suitable for pasture fences with tape, strand, rope and for willow nets

Technical data:

  • Max. Voltage: 9,600 V
  • Voltage at no-load: 8,300 V
  • Voltage at 500 Ohm: 6,100 V
  • Max. Charging energy: 3.2 J
  • Max. Discharge energy: 2 J
  • Theoretical fence length: 70 km
  • Max. fence length Fence length without vegetation: 18 km
  • Max. fence length Fence length with medium vegetation: 4 km
  • Max. fence length Max. fence length with high vegetation: 1.7 km
  • Current consumption: 75 mA - 193 mA
  • Required number of 1 m ground stakes: 2 pieces
  • Suitable for willow nets up to: 0.4 km
  • For these species: horse, cattle, sheep, goat, pig

Delivery:

1x AKO Duo Power X 2500 Pasture Fence Device 12V / 230V, 3,2 Joule

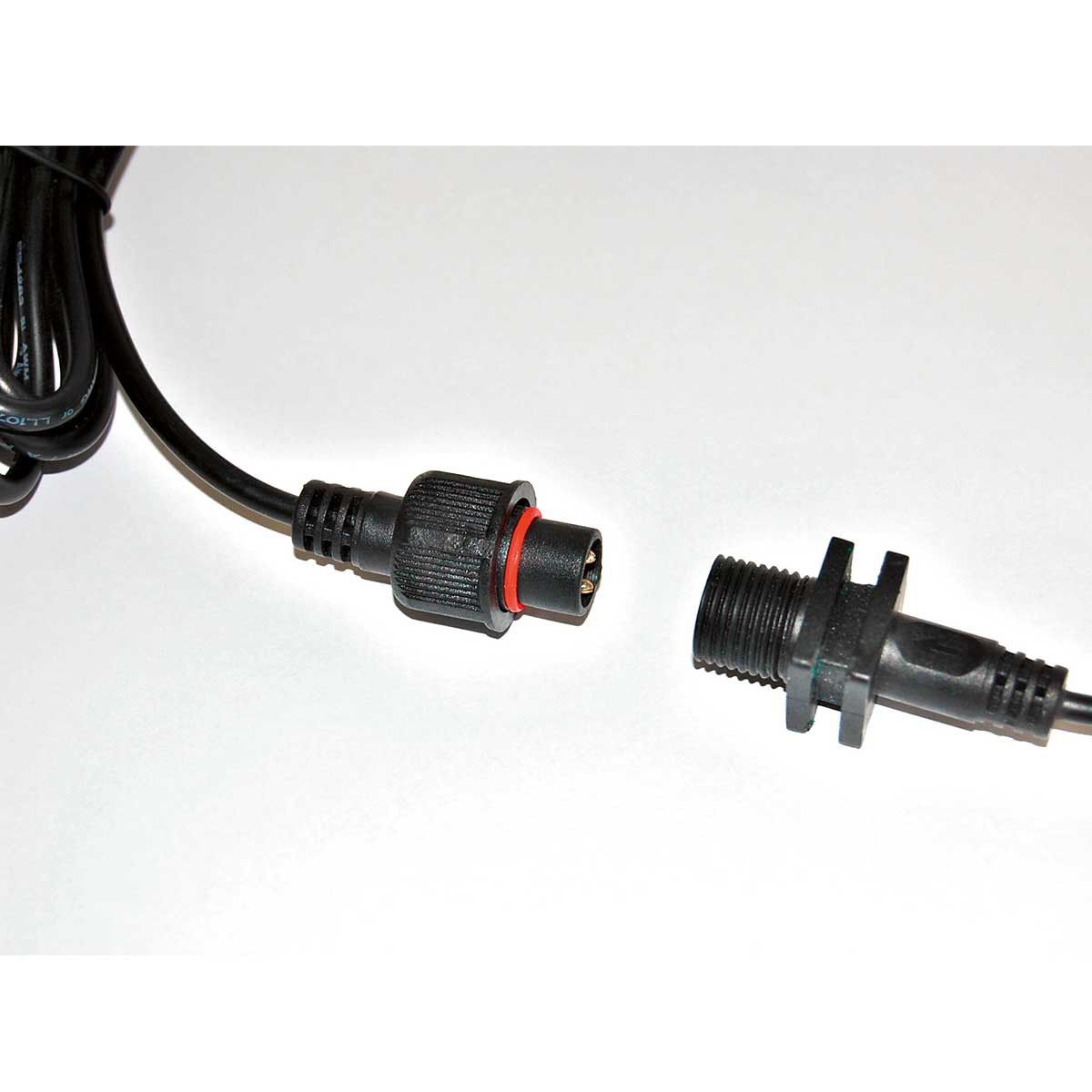

1x Fence connection cable
1x Earth connection cable

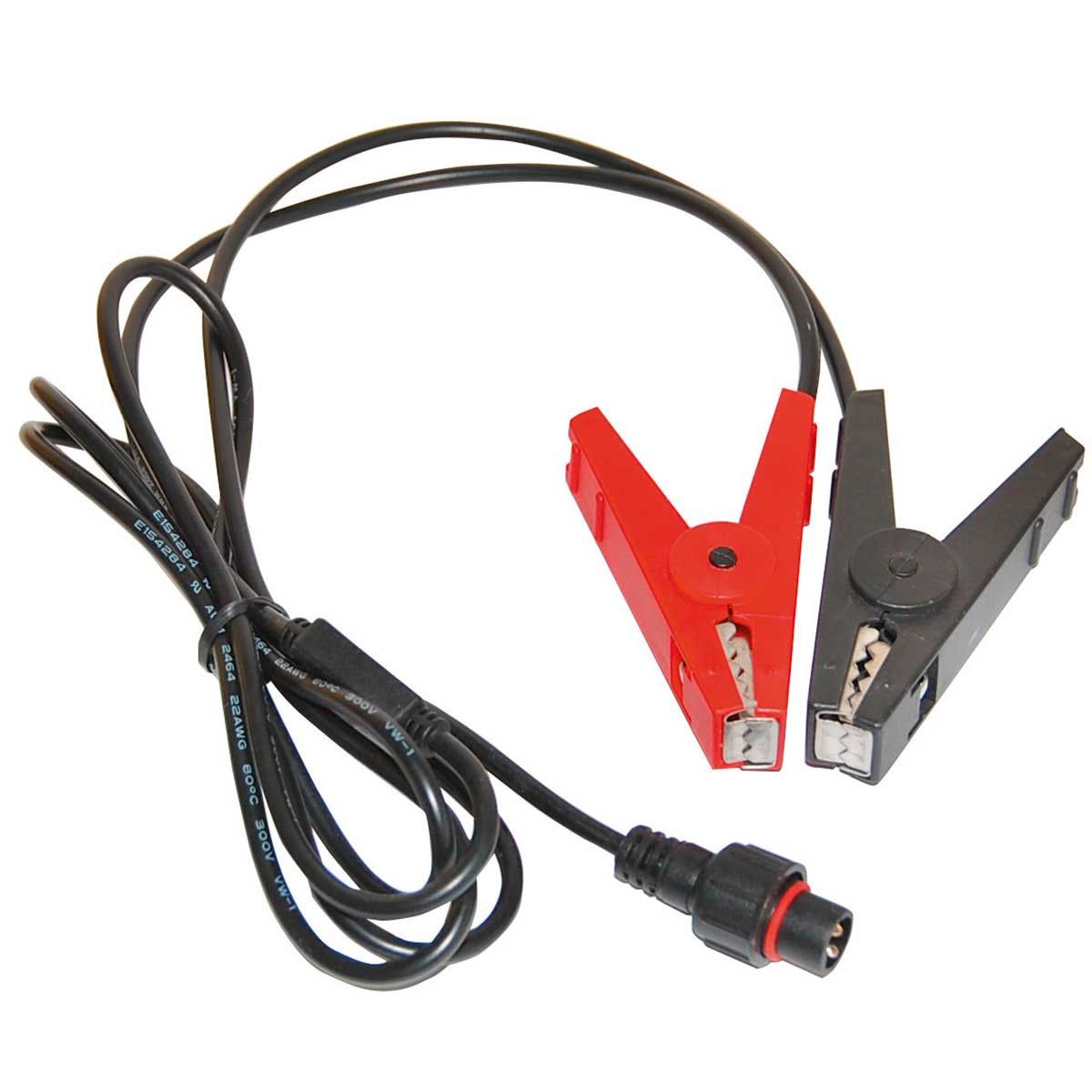

1x Connection cable 12V

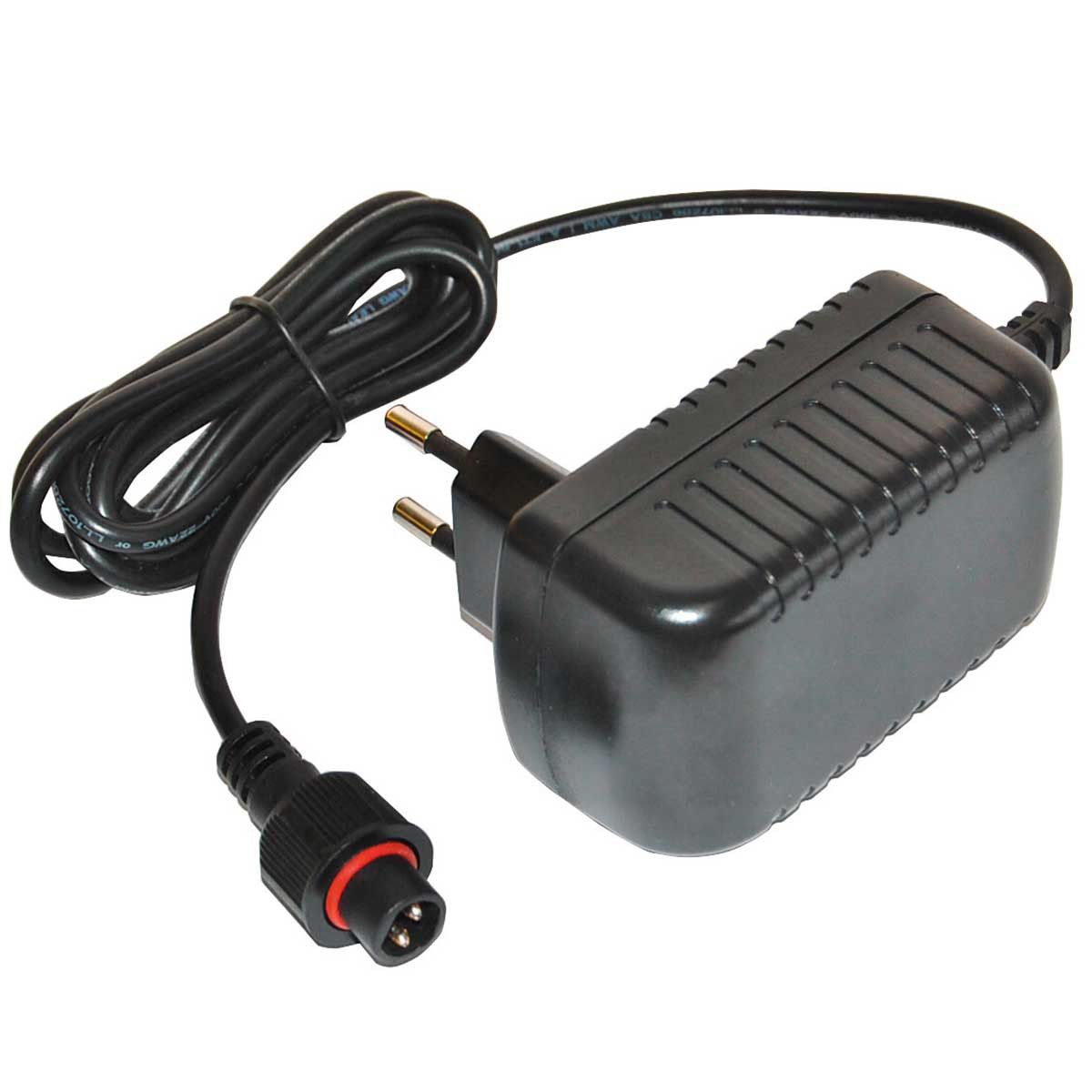

1x Power adapter 230V
1x Instruction manual

Output Energy: 2,00 Joule
Charge energie: 3,20 Joule
Voltage: 9.600 V
Power source: Cord, Rechargeable battery, Solar power
Animal species: Horse, Cattle, Sheep, Pig, Goat
Fence length no plant cover: 18 km
Fence length strong plant cover: 1,7 km
Fence length light plant cover: 4 km
Manufacturer warranty: 3 years
Data according to manufacturer. Errors and changes reserved.
