Agrarzone B 17 - 9 V Fence energizer

Ideal energizer for small paddocks and pastures without Vegetation!

An electric fence device is fundamentally responsible for ensuring that animals respect their fenced area and that they always observe this boundary. For this reason, a reliable fence energizer is the heart of every electric fence. Depending on the animal species, the length of the fence or the vegetation, the fence energizer must be adapted to the corresponding requirements.

With the 9 V pasture fence device Agrarzone B 17, mobile fence systems can be easily constructed. Whether for small horse and cattle pastures or for small animals such as dogs and cats - the universal device guarantees easy operation for everyone thanks to the LED battery control light. The inexpensive battery device, which is ideal for mobile use, includes a connection cable and an earth rod. The unit can be connected to a 12 V battery via an adapter cable (optional, not included).

This device is not suitable for pasture nets. For this we recommend devices with a higher output power, from 2 joules for sensitive small animals and from 4 joules for robust animal species.

Overview:

  • Universal 9 V fence energizer
  • Battery device with effective output power
  • Incl. LED battery indicator light
  • Country of origin: "Made in Germany" - 3 years guarantee

Application area:

  • Battery device for mobile use
  • Can be used for small paddocks without vegetation
  • Ideally suited for keeping small animals such as pigs, small dogs and cats

Technical data:

  • Max. Voltage: 9.400 V
  • Voltage at no-load: 9,400 V
  • Voltage at 500 Ohm: 2,600 V
  • Max. Charging energy: 0.25 J
  • Max. Discharge energy: 0.17 J
  • Theoretical fence length: 7 km
  • Max. fence length Fence length without vegetation: 3 km
  • Max. fence length Fence length with medium vegetation: 1 km
  • Max. fence length Max. fence length with high vegetation: 0.3 km
  • Current consumption: 13 mA - 19 mA
  • Required number of 1 m ground stakes: 1 piece
  • For these species: horse, pig, dog, cat

Delivery:

1x Agrarzone electric fence device B17
1x Fence connection cable
1x Earthing cable
1x Earth rod
1x Instruction manual

Note: No battery and cable for 12 V Connection included in the scope of delivery!

Output Energy: 0,17 Joule
Charge energie: 0,25 Joule
Voltage: 9.400 V
Power source: Battery, Rechargeable battery
Animal species: Dog, Cat, Horse, Pig
Fence length no plant cover: 3 km
Fence length strong plant cover: 0,3 km
Fence length light plant cover: 1 km
Manufacturer warranty: 3 years
Data according to manufacturer. Errors and changes reserved.
Available downloads

    0 of 0 reviews

    Average rating of 0 out of 5 stars

    Leave a review!

    Share your experiences with other customers.


    Agrarzone offers you a wide selection of high-quality products that are specifically tailored to the needs of farmers and animal owners. From long-lasting pasture fences to practical accessories for animal husbandry and robust stable equipment – ​​at Agrarzone you will find everything that supports your business and makes your everyday life easier. Our products are characterized by quality and reliability, so that your animals are safe and sound. Trust Agrarzone as a strong partner who shares and understands your passion for agriculture and take your business to the next level.

    Manufacturer information

    Responsible person

    Rehrl Handels GmbH

      Choose accessories

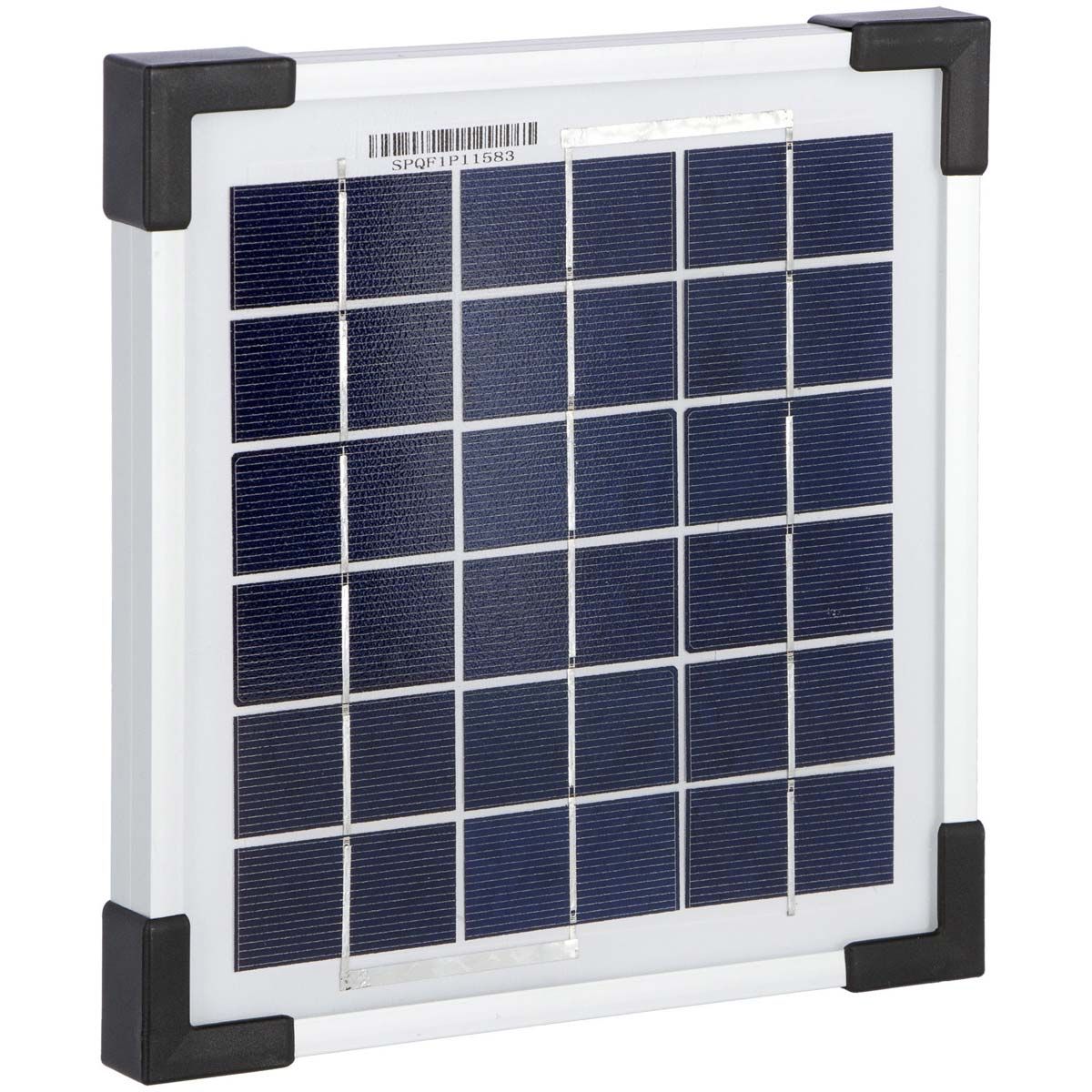

      Solar Panel 4 W for 9 V devices
      Solar Panel 4 W for 9 V devices
      Solarpanel 4 Watt with holder - for all 9 V pasture fence devices The 4 watt solar panel with bracket is the perfect addition to all 9 volt pasture fencing equipment. With this solar module you can extend the life of your battery and relieve it during daylight hours. It supports your electric fencer by drawing the power it needs from sunlight, thus reducing the use of the battery. Thanks to its compatibility with all 9-volt electric fencers, this solar panel is extremely versatile. No matter which model you own, you can reap the benefits of longer battery life. Simply attach the solar panel with the included bracket and it's ready to do its job. Take advantage of solar energy and optimise the efficiency of your pasture fence system with the 4 Watt solar panel. Extend the life of your battery and ensure that your electric fence works reliably to protect your pasture and your animals. With the solar module, you will experience the benefits of an environmentally friendly and cost-saving energy source. With the 4 watt solar module, maintenance-free operation is possible from spring to autumn. Attention: The solar module cannot be used to charge the 9 or 12 volt battery. Overview: 4 watt solar module including bracket The solar module supports the battery and extends the battery life Cannot be used to charge the 9V or 12V battery Can be used for all 9 volt devices Environmentally friendly,cost-effective energy Maintenance-free operation from spring to autumn Dimensions: width: 21 cm height: 20 cm depth: 2 cm Delivery: 1x solar module 4 watts 1x mount for electric fence devices Note: The energizer is not included in the scope of delivery.

      €69.99*

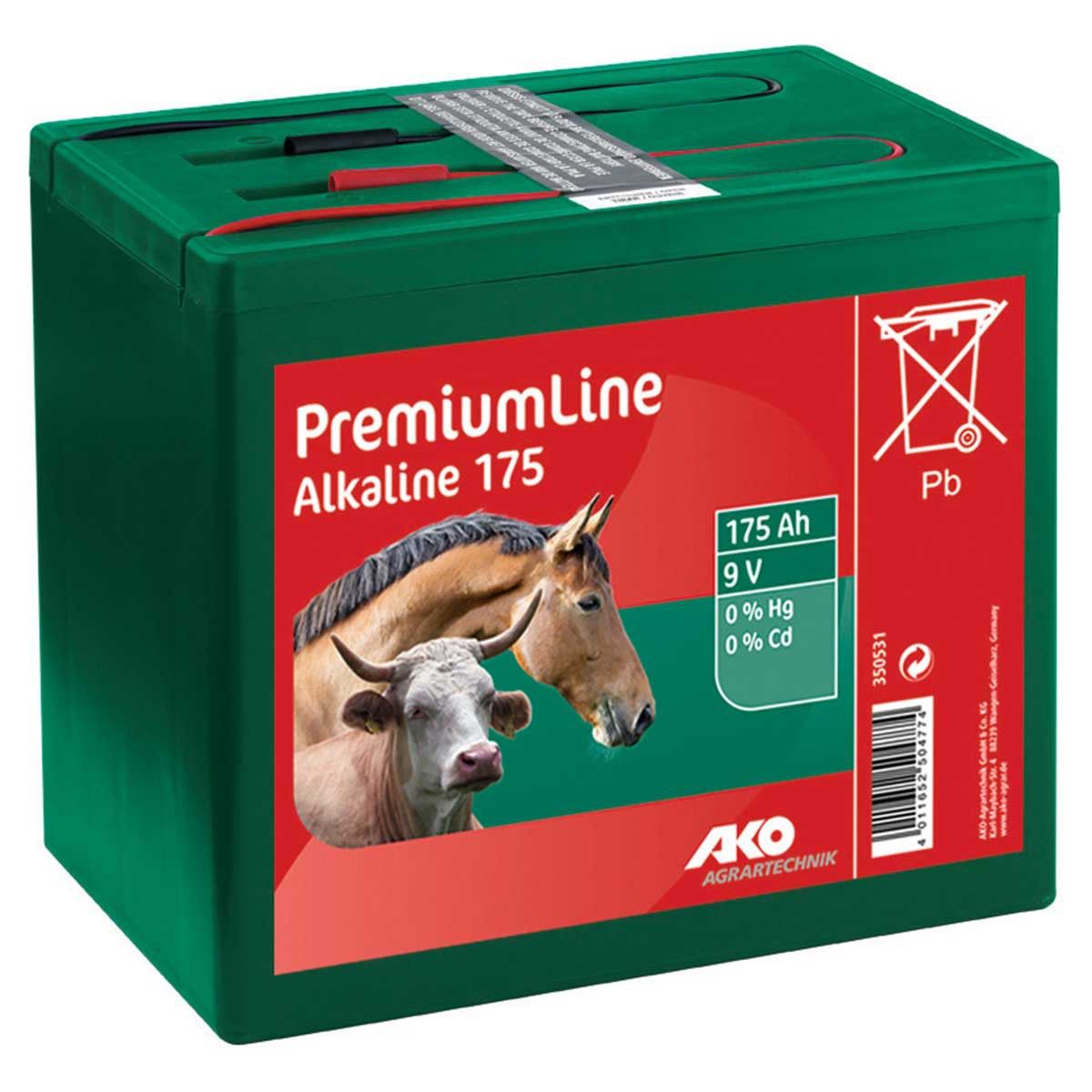

      AKO Alkaline 9V dry battery 55-210Ah
