Picture similar to product

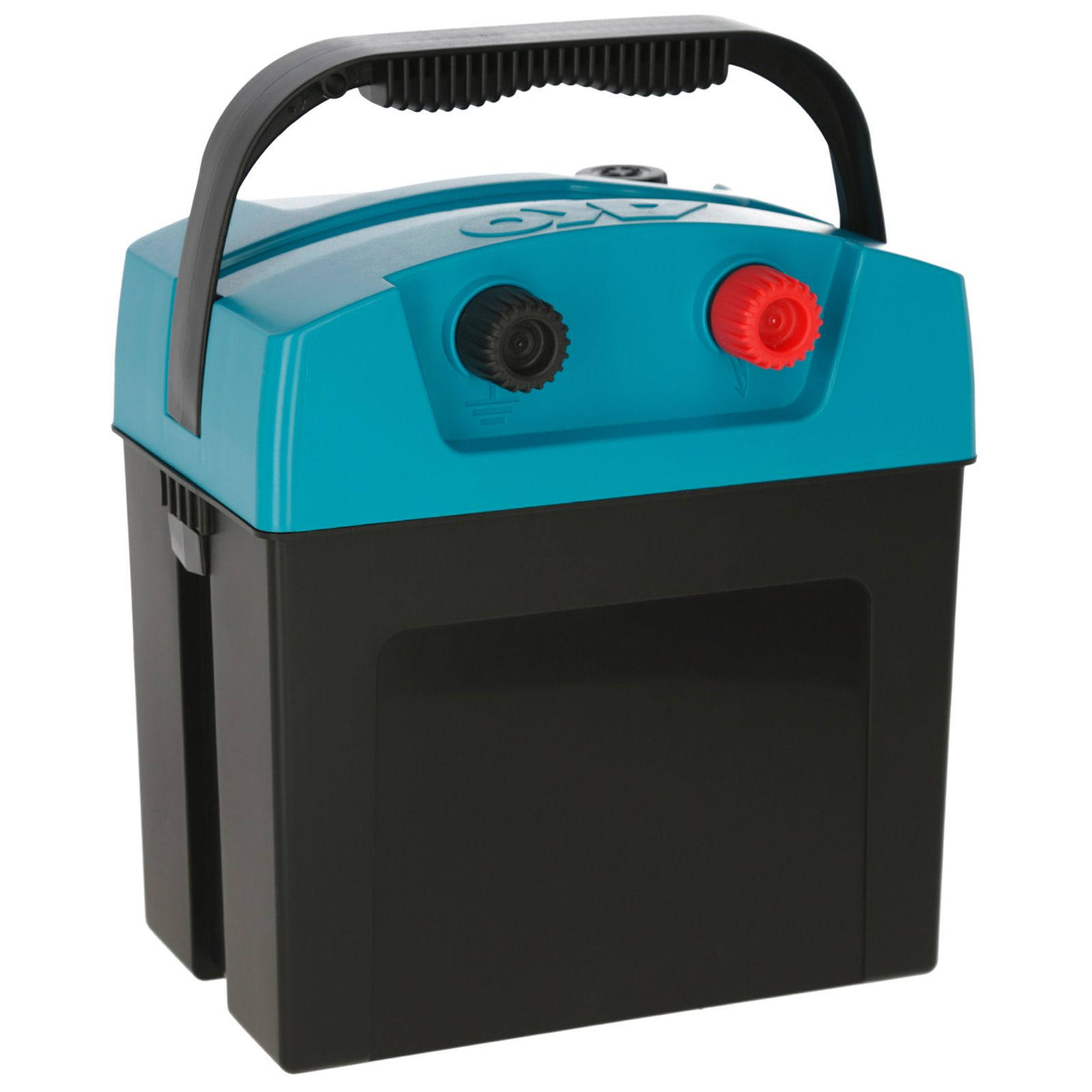

AKO Compact Power B 180 Electric fence energiser 9V, 0.26 Joule, blue
Product number: 27538
EAN: 4035738013042
Highlights
- Suitable for small pastures without vegetation
- Safely fence in horses, cattle and small animals such as dogs and cats
- Inexpensive 9 V battery energiser for mobile use
- LED bargraph display for visual fence and battery control
- Premium electric fence device "Made in Germany"
Electric fence Ako Compact Power B180 - 9 Volt Battery energiser
9 V Electric fence energiser in modern design for mobile use on small horse & cattle pastures. Also suitable for small animals thanks to low impact strength.
The Compact Power B180 is a low-cost 9 V battery fence for mobile use on small paddocks without vegetation. The device is ideal for smaller horse and cattle pastures, but due to the low amperage, the device is also not too strong for small animals such as dogs or cats.
The battery-operated universal device guarantees easy operation for everyone thanks to an integrated on/off rotary switch. 6 day-bright LEDs provide visual control of the fence and battery performance. The robust housing was specially developed for use in the field, is extremely break-resistant and has a high resistance to weathering. The robust carrying handle makes it easy to transport the electric fence to its intended place of use.
You can operate the electric fence device with any conventional 9 V battery. With a suitable 12 V Adapter cable for the 12 V connection (not included in the scope of delivery), it is also possible to operate a 12 V wet battery. Please note that this device is not suitable for willow nets. For this, we recommend devices with a higher output power, from 2 joules for sensitive small animals and from 4 joules for robust animal species.
At a glance:
- Effective 9 V electric fence energiser for mobile use
- Suitable for small pastures without vegetation
- Safely fence in horses, cattle and small animals, e.g. dogs and cats
- 6 day-bright LEDs (bargraph display) for fence & battery control
- Robust carrying handle for comfortable transport
- Microprocessor controlled
- Weatherproof plastic housing
- 12 V operation possible (12 V adapter cable recommended for connection to wet battery)
- With 12 V deep discharge protection
- Produced according to the latest EU safety standards
- Modern design in blue
- Premium electric fence unit "Made in Germany"
Technical data:
- Power supply: 9 V
- Mode of operation: Battery
- Charge energy: 0,26 J
- Min. discharge energy: 0,18 J
- Max. Voltage: 8.800 V
- Idle Voltage: 8.400 V
- Voltage at 500 Ohm: 2.700 V
- Theoretical fence length: 6 km
- Max. Fence length with light vegetation: 3 km
- Max. Fence length with heavy vegetation: 0,5 km
- Current consumption: 23 mA
- Required number of 1 m ground stakes: 1 piece
- For these species: horse, cattle, dog, cat
Scope of delivery:
1x Ako Compact Power B180 Electric fence energiser, blue
1x Fence/Earth connection cable
1x Ground spike
1x Warning sign
The battery is not included in the scope of delivery
| Output Energy: | 0,18 Joule |
|---|---|
| Charge energie: | 0,26 Joule |
| Voltage: | 8.800 V |
| Power source: | Battery |
| Animal species: | Dog, Cat, Horse, Cattle |
| Fence length strong plant cover: | 0,5 km |
| Fence length light plant cover: | 3 km |
| Manufacturer warranty: | 3 years |
Data according to manufacturer. Errors and changes reserved.
