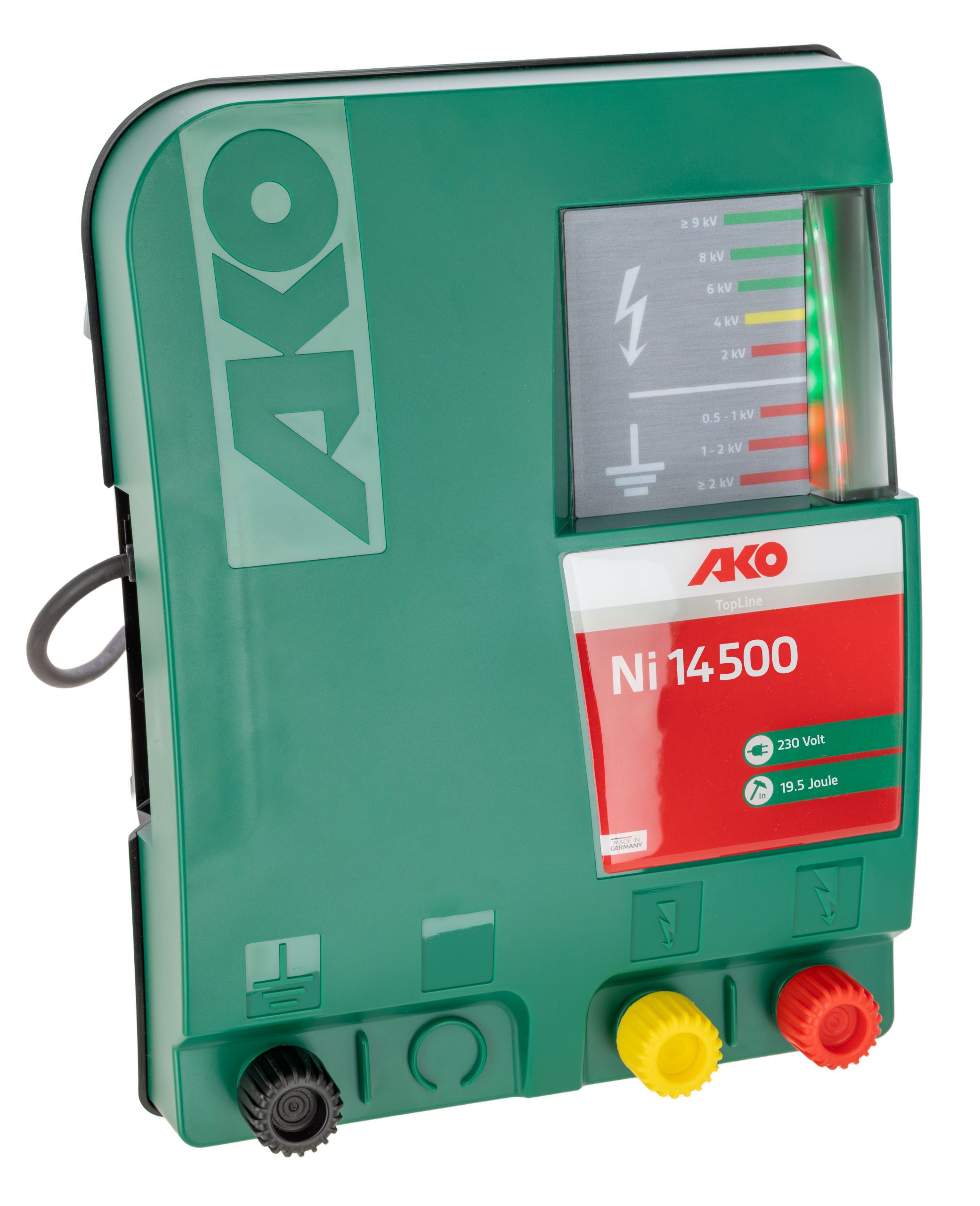

AKO Ni 14500 Pasture Fence Energizer 230 V

AKO Ni 14500 Pasture Fence Energizer 230 V – Maximum herd security for demanding fence systems

With the AKO Ni 14500 Pasture Fence Energizer 230 V, you're getting an extremely powerful mains unit specifically developed for very long fences and robust animal species such as bulls, sheep, or for wolf defense. Thanks to the enormous shock power of 14.5 Joules of discharge energy, it provides reliable herding security even with heavy vegetation over distances of up to 80 kilometers without growth. This way, you can rest assured that your animals stay safely fenced in and uninvited wildlife is effectively kept away.

Operation is particularly convenient and safe for you, as the device automatically adjusts to the current fence condition thanks to modern microprocessor control, always delivering the most efficient performance. A special safety feature is the integrated alarm function with delayed shock strength adjustment, which not only gives a visual and acoustic warning in the event of continuous contact with the fence but also slows down the pulse sequence to protect both humans and animals.

To ensure you can keep an eye on your system's status at all times, the device features a multi-color LED bar graph display with 11 LEDs, showing you the fence and ground voltage as well as battery control precisely. The robust, UV-resistant, and weatherproof housing is ready for wall mounting and, together with the 5-year warranty, ensures a long-term investment in the safety of your pastures.

Overview

• Ultra-powerful 230 Volt mains unit for the highest demands
• Specifically suitable for robust animal species such as horses, cattle, sheep, goats, and for wildlife defense
• Two fence outputs (high/low) for flexible power adjustment
• Intelligent adjustment to fence conditions via microprocessor control
• Integrated alarm function for continuous fence contact
• 5-year warranty for long-term reliability

Technical Data

• Model: Ni 14500
• Item No.: 372814
• Charging energy: 19.5 J
• Max. discharge energy: 14.5 J
• Max. voltage: 11200 V
• Open circuit voltage: 10200 V
• Voltage at 500 Ohm: 8800 V
• Theoretical fence length according to VDE: 440 km
• Max. fence length without vegetation: 80 km
• Max. fence length with medium vegetation: 22 km
• Max. fence length with heavy vegetation: 14 km
• Number of nets: 40
• Number of required 1 m grounding stakes: 6
• Power consumption: 16.4 W

Scope of delivery

1 x Pasture Fence Energizer
1 x Warning sign

FAQ

Which animal species can I use the device for?
The device is ideal for horses, bulls, cattle, sheep, goats, as well as for deterring wild boar and wolves.

How does the alarm function work?
The alarm function permanently monitors the fence, triggers an alarm in case of continuous contact, and simultaneously slows down the pulse sequence to increase safety.

What do the LEDs on the device indicate?
The lower red LED is for battery control, while the 10 LEDs above it in red, yellow, and green visualize the output voltage (red below 2,000 V, yellow/green above 2,000 V).

Can the device be mounted outdoors?
While the housing is weatherproof and UV-resistant, the device must be additionally protected from direct rain and extreme sunlight when mounted outside.

What does the automatic adjustment to the fence condition do?
The AKO Ni-series devices automatically adjust their power, which increases herding safety and makes work easier by withering vegetation to a certain extent.
