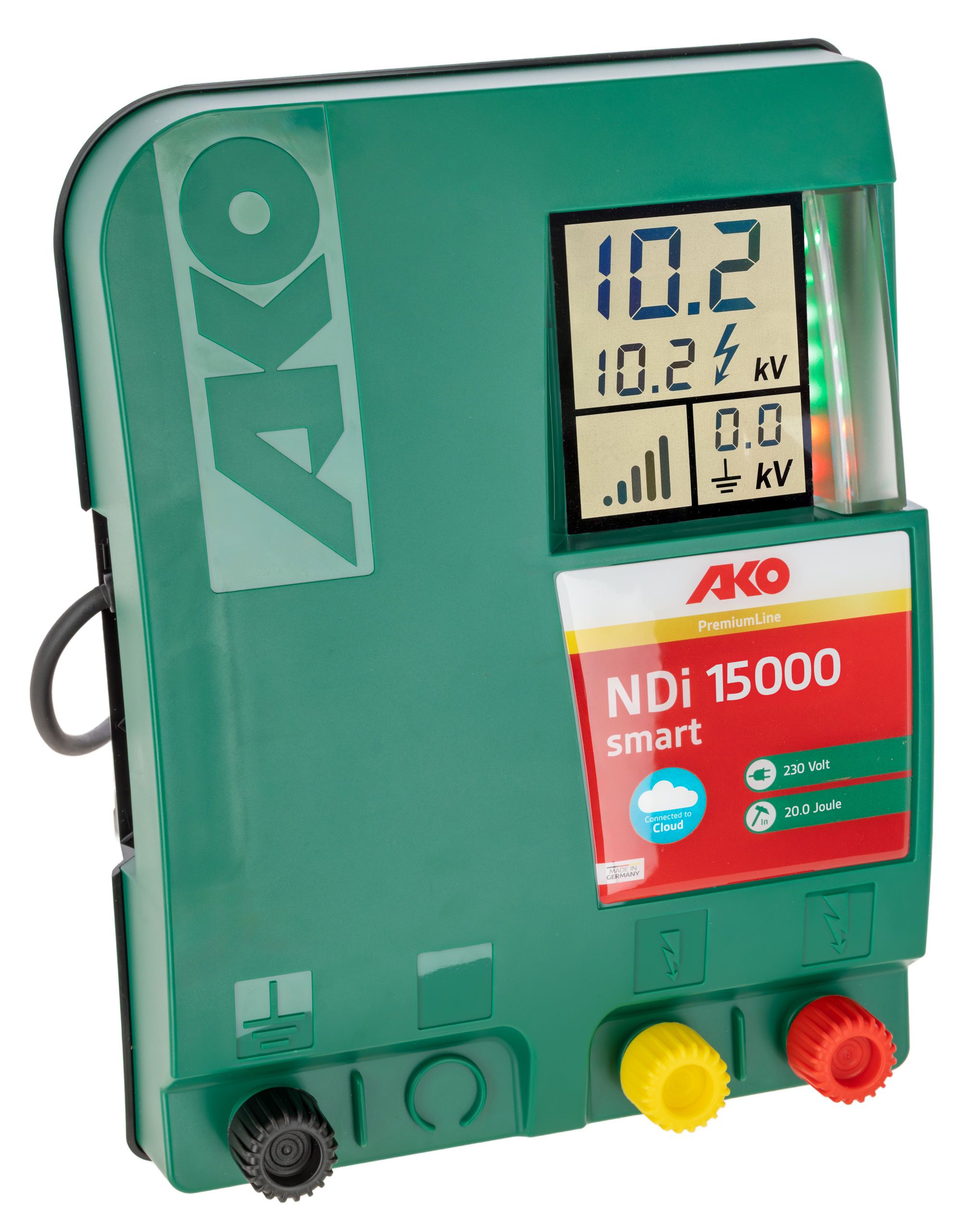

AKO NDi 15000 SMART Power Supply Unit 230 V, 20 J

AKO NDi 15000 SMART Power Supply Unit 230 V – Smart monitoring and maximum power for large fence systems

With the AKO NDi 15000 SMART Power Supply Unit 230 V, you're bringing state-of-the-art technology right to your fence. Thanks to the integrated cloud connection and free mobile data transmission, you have full control over your system, whether you're using your smartphone or your computer. This makes monitoring and controlling your pasture possible from anywhere, giving you maximum flexibility in your daily routine.

This ultra-powerful 230-volt power supply unit was specially developed for extremely long fences and challenging conditions. Thanks to the automatic adjustment to the fence's condition, the device ensures efficient herding security by even burning off heavy vegetation to a certain extent. The time-delayed adjustment of the shock strength provides extra safety for both humans and animals in case of accidental contact with the fence.

You also benefit from an intelligent alarm function that permanently monitors the fence; in the event of continuous contact, it immediately slows down the pulse sequence and triggers an alarm. The robust and UV-resistant housing made of high-quality plastic guarantees a long service life for outdoor use, while the extra-large, permanently backlit display keeps you precisely informed about the current fence and ground voltage.

Overview

• Smart Energizer with control via app or computer browser
• Ideal for robust animal species such as bulls, sheep, goats, as well as for wild boar and wolf defense
• Extra-large, permanently backlit digital display
• Multi-colored LED bar graph for quick recognition of the fence status
• Two fence outputs (strong/weak) for different requirements
• 5-year warranty for long-term reliability
• Microprocessor-controlled for efficient energy output

Technical Data

• Charging energy: 20 J
• Max. discharge energy: 15 J
• Max. voltage: 11,200 V
• Open circuit voltage: 10,200 V
• Voltage at 500 Ohms: 8,800 V
• Theoretical fence length (VDE): 450 km
• Max. fence length (no vegetation): 80 km
• Max. fence length (medium vegetation): 22 km
• Max. fence length (heavy vegetation): 14 km
• Number of nets: 40
• Power consumption: 16.4 W

Scope of delivery

1 x Energizer
1 x Warning sign

FAQ

Which animals can be safely herded with the AKO NDi 15000 SMART Power Supply Unit 230 V?
The device is ideal for horses, bulls, cattle, sheep, goats, as well as for deterring wild boars and wolves.

How does the control via the internet work?
The Smart Energizer features a cloud connection, allowing you to control and monitor the fence system regardless of your distance using a smartphone app or a web browser.

How does the device react to permanent fence contact?
An integrated alarm function permanently monitors the fence; in the event of continuous contact, an alarm is triggered and the pulse sequence is slowed down.

What do the colors on the LED display mean?
The bottom red LED indicates the battery control. The 10 LEDs above it show the output voltage: Red means less than 2,000 V, while yellow and green signal a voltage of over 2,000 V.

Can the device be mounted outdoors?
Yes, the housing is weatherproof. However, for outdoor installation, the device should be additionally protected from direct rain and extreme sunlight.
