Tape Connectors: Secure Connections for Polytape

Tape Connectors – Full Current Flow Without Interruption

One of the most common mistakes when building an electric fence is tying knots in polytape. When a tape breaks or a new roll needs to be attached, many people simply tie a knot out of convenience. The problem: the fine metal wires inside break off or no longer touch each other. The current drops drastically at this point, and herding safety is no longer guaranteed. With a professional tape connector, conductivity is fully maintained.

A tape connector not only ensures a clean contact of the conductor wires but also holds the material firmly together mechanically, even when strong winds or snow pull on the fence.

The most important designs at a glance:

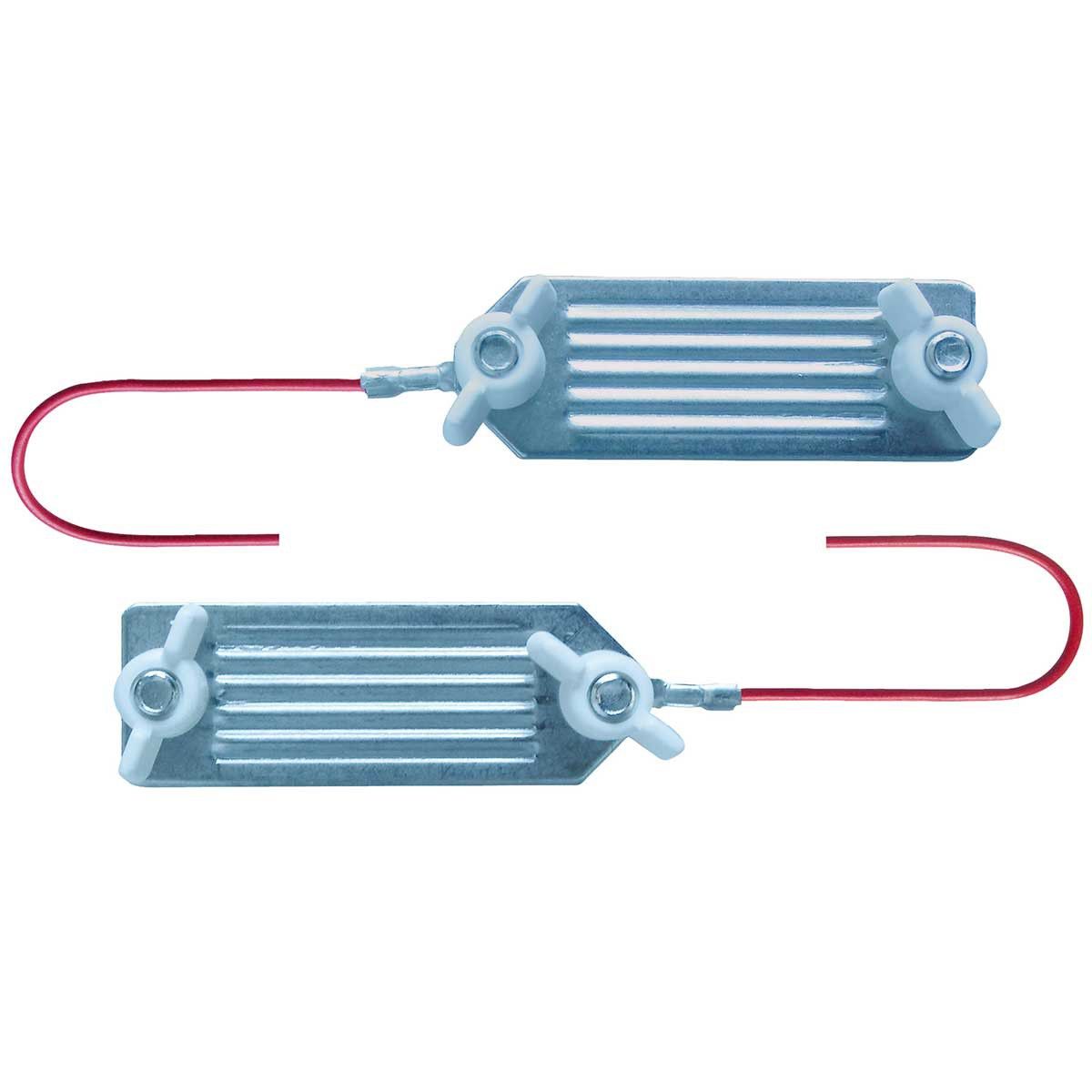

• Screwable tape couplings: Two metal plates between which the tape is placed and screwed tightly. Ideal for high tensile forces.

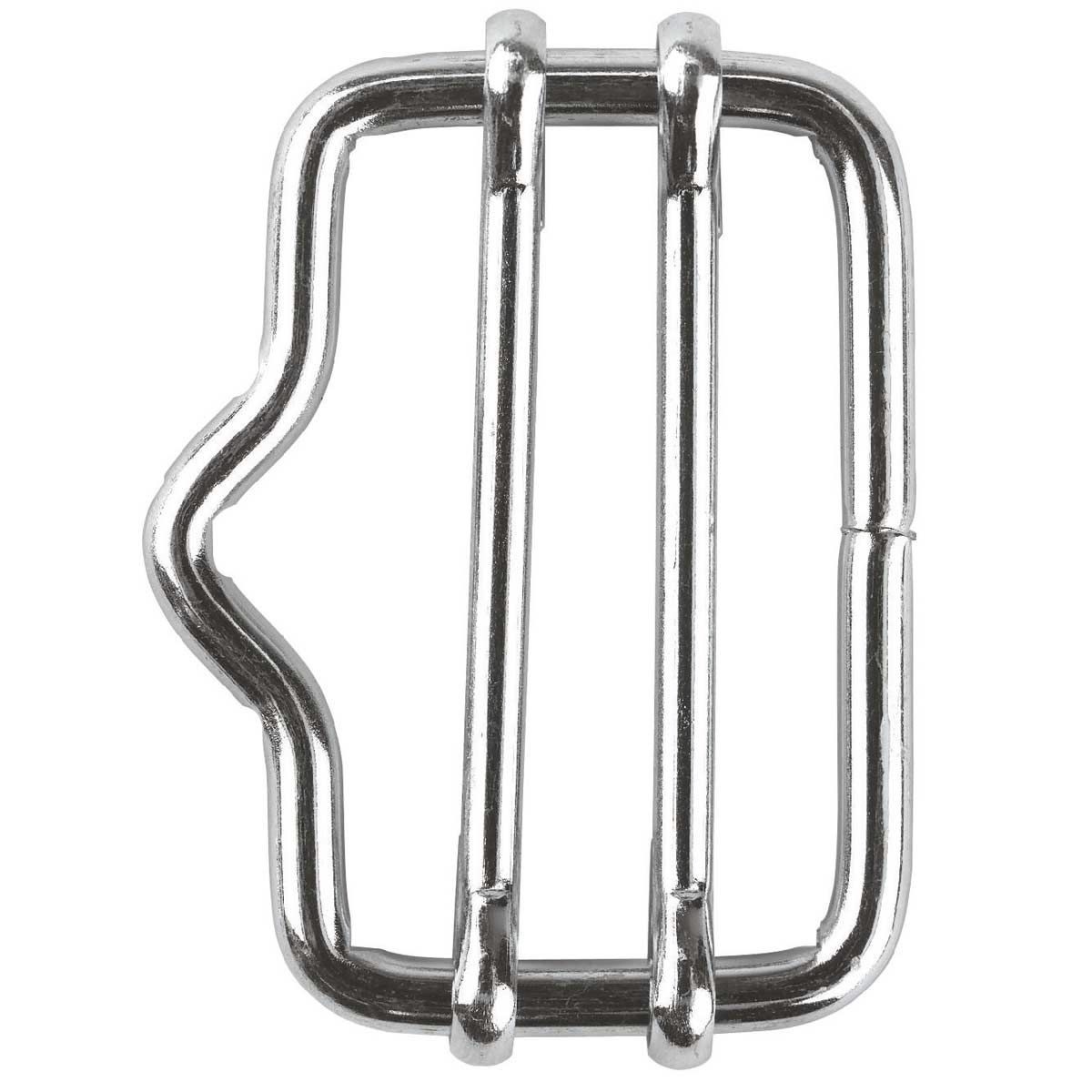

• Connectors with a nose: Allow the tape to be threaded and tensioned particularly quickly without the need for tools.
• Quick connectors (Litzclip): Very practical clamps that can be used to patch torn areas in the pasture in seconds and without the need for tools.
• Tape connection cables: Special cables with alligator clips or plates to optimally feed the power from the energizer into the wide tape.

Choosing the Right Material

Tape connectors are usually made of galvanized metal or stainless steel. Stainless steel (Niro) absolutely does not rust and is extremely durable, making it the best choice for permanent fences. Galvanized connectors are an inexpensive and very robust alternative that is also protected against corrosion for many years.

FAQs about Tape Connectors

What tape widths are connectors available for?
The connectors are precisely matched to the common tape widths. You will find models for narrow tapes (10 mm to 13 mm), medium tapes (20 mm), and wide tapes (40 mm). Always choose the exact matching size so that the tape cannot slip out of the connector or crumple in it.

Can I also connect tape to polywire?
Yes, there are special connectors or connection cables for this purpose, which have a plate for the tape on one side and a clamp for polywire or rope on the other. This allows you to bridge power between different fence materials.

How tight can I tension the tape in the connector?
You should pull the tape tight enough so that it does not flutter in the wind. However, do not over-tension it, otherwise the plastic weave of the tape could tear at the edges of the connector. Screw plates should be tightened firmly, but with care.
