Agrarzone A 5000 energizer 12V, 7.5 joules
€209.00
Available, delivery time: 1-3 days
- High herding security for cattle, horses, sheep and goats
- For long, mobile pastures with a lot of vegetation
- 12 V battery operation for maximum flexibility
- Two powerful output levels
- Premium quality, made in Germany

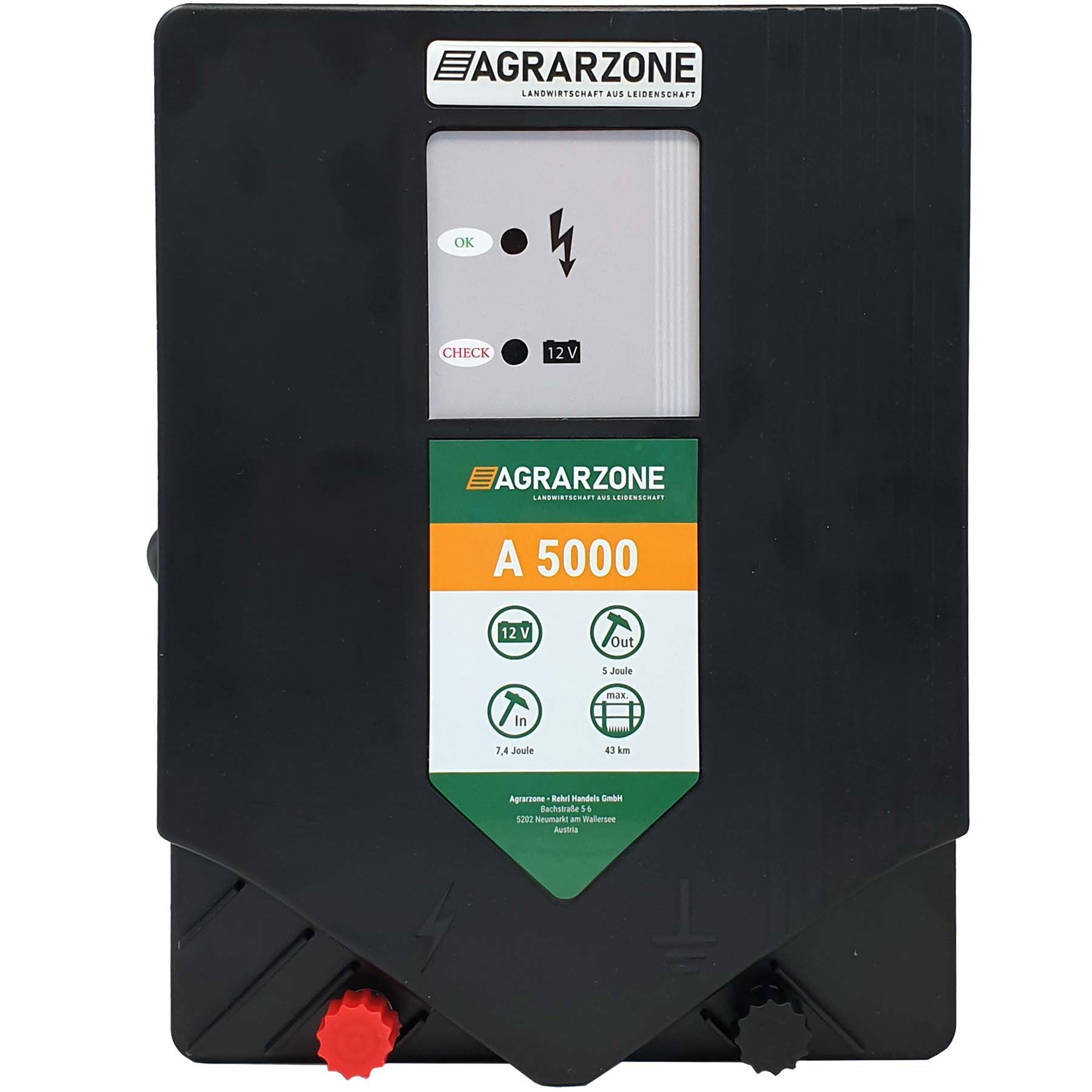

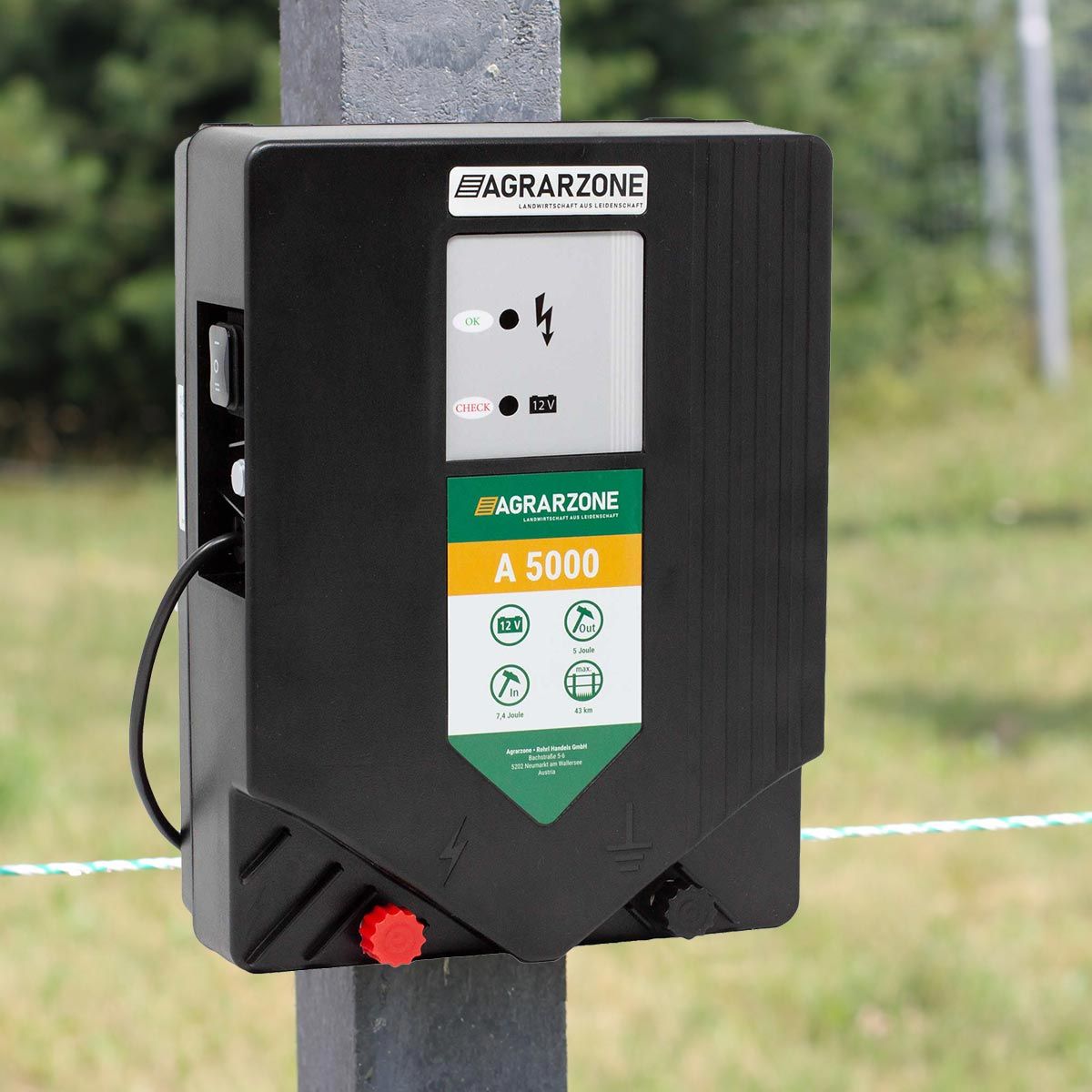

Agrarzone A 5000 12V Electric Fence Energizer - 7.4 Joule Battery-Powered Unit for Robust Animals
This electric fence energizer from Agrarzone is powerful, compact, and perfect for large fenced areas with heavy vegetation!
An energizer's fundamental job is to make sure animals respect their fenced-in area and always keep their distance from the boundary. That's why a reliable fence energizer is the heart of every electric fence. Depending on the animal species, fence length, or vegetation, the energizer needs to be matched to the corresponding requirements.
The Agrarzone A 5000 battery-powered energizer for electric fences impresses with a max. stored energy of 7.4 Joule (max. output energy 5 Joule) and is ideal for long pasture fences with or without vegetation. This extremely powerful, battery-operated 12 volt fence energizer is ideal for mobile use and can also be used for robust animals such as sheep, cattle, etc. The perfect battery-powered fence energizer for mobile animal enclosures!
Two separate LED indicator lights always show the current fence status, so you always have full control over fence voltage and battery.
The unit should be started up without the fence and earth connected. When connecting the 12 volt battery, be sure to observe the correct polarity. As soon as the fence indicator light blinks green, the unit is fully operational. If the fence light does not blink, check the polarity of the 12 volt connection cable to the battery. When operating with a mains adapter (matching item no. 2947), first remove the protective cap from the socket located centrally on the side.
This unit has three switch settings:
- O = OFF
- I = reduced current draw and output energy (=50%)
- II = maximum output energy and current draw (=100%)
With the switch on the side, you can choose between two power levels. Setting the unit to I reduces the current draw and output energy by 50 percent, running the fence at 2.5 Joule, allowing you to save on electricity costs. When the switch is set to II, the fence energizer runs at full power, delivering 5 Joule of output energy.
Agrarzone A 5000 at a glance:
- 12 volt fence energizer with powerful battery
- 7.4 Joule impact power
- Stainless steel battery terminals
- Optimized fence connections, easily accessible and protected
- Durable and safe
- High-quality workmanship
- UV-protected & fully insulated
- Made in Germany - 3-year warranty
- Suitable for pasture fences with tape, wire, rope, and for pasture netting
Range of use:
- For pasture & electric fences up to 43 km with or without vegetation
- Mobile pasture fences
- For robust animals such as sheep, cattle, goats, wild boar, and more!
Technical data:
- Max. voltage: 10,300 V
- No-load voltage: 8,400 V
- Voltage at 500 Ohm: 6,500 V
- Max. stored energy: 7.4 J
- Max. output energy: 5 J
- Theoretical fence length: 150 km
- Max. fence length without vegetation: 43 km
- Max. fence length with medium vegetation: 17 km
- Max. fence length with heavy vegetation: 7 km
- Current consumption: 12 mA – 440 mA
- Required number of 1 m earth stakes: 3
- Suitable for pasture netting up to: 1.05 km
- Suitable for these animal types: cattle, horses, sheep, goats, wild boar deterrent
Scope of delivery:
1x Agrarzone A 5000 fence energizer
1x fence connection cable
1x earth cable
1x 12V connection cable
1x instruction manual
Please note: battery not included!
| Max. pulse energy: | 5,00 Joule |
|---|---|
| Charge energie: | 7,40 Joule |
| Voltage: | 10.300 V |
| Power source: | Cord, Rechargeable battery |
| Animal species: | Horse, Cattle, Sheep, Wild boar, Goat |
| Fence length no plant cover: | 7 km |
| Fence length strong plant cover: | 43 km |
| Fence length light plant cover: | 17 km |
| Manufacturer warranty: | 3 years |
Agrarzone offers you a wide selection of high-quality products that are specifically tailored to the needs of farmers and animal owners. From long-lasting pasture fences to practical accessories for animal husbandry and robust stable equipment – at Agrarzone you will find everything that supports your business and makes your everyday life easier. Our products are characterized by quality and reliability, so that your animals are safe and sound. Trust Agrarzone as a strong partner who shares and understands your passion for agriculture and take your business to the next level.
Manufacturer information
Responsible person
Choose accessories

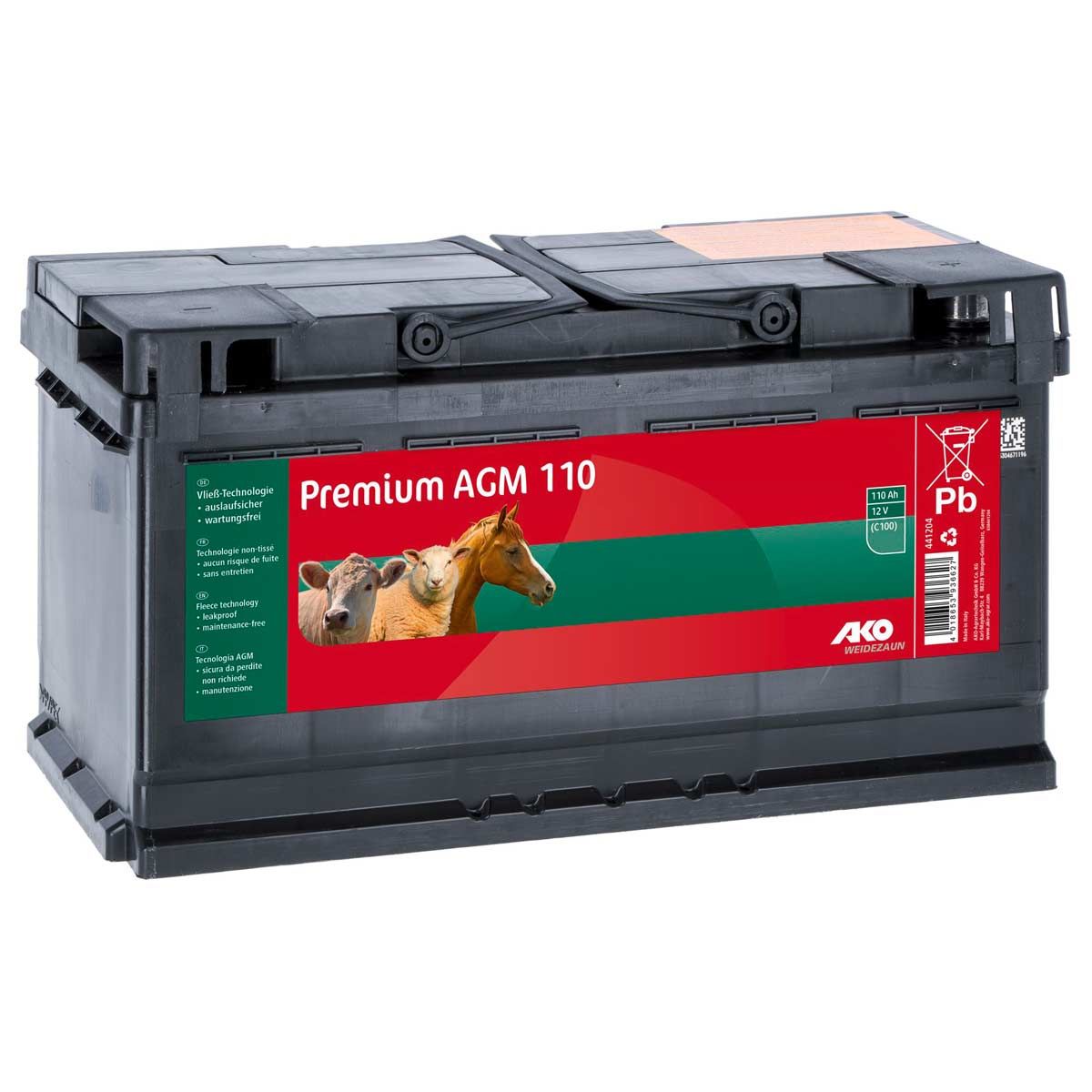

AGM Battery 12V 110Ah – reliable power for electric fences The AKO Premium AGM battery is a powerful 12 volt battery for mobile use on electric fences – ideal for horse, cattle and sheep fencing. Thanks to modern AGM fleece technology, handling battery acid is a thing of the past. The battery is filled, charged and ready for immediate use – simply connect and go. Its low self-discharge keeps your electric fence reliably powered even after longer standstill periods. Compared to conventional lead-acid and AGM batteries, it shows better charging behaviour, for example when charged via solar panel, and copes better with short charge/discharge cycles. Overview: Rechargeable AGM fleece battery in OEM quality Ready for immediate use – filled and charged Absolutely leak-proof thanks to double lid with safety valve Gas recombination and flashback protection for safe operation Maintenance-free and micro-cycle resistant Storable for at least 9 months Capacity rating based on 100-hour standard discharge (C100) Technical Data: Voltage: 12 V Capacity: 110Ah (C100) Dimensions: 35 x 19 x 17.5 cm (L x W x H) Weight: 26.5 kg Type: AGM fleece battery, sealed system Scope of delivery: 1x AKO Premium AGM battery 12V 110Ah1x Note: The battery is a sealed system – no warranty claim if the casing is opened. Questions & Answers: Is the battery ready to use straight away?Yes, it is already filled and charged and can be connected directly to your fence energiser. Can I charge the battery via a solar panel?Yes, the AGM technology shows good charging behaviour even when charged via solar panels. Is the battery maintenance-free?Yes, thanks to the AGM fleece technology, no topping up with battery acid is required.
