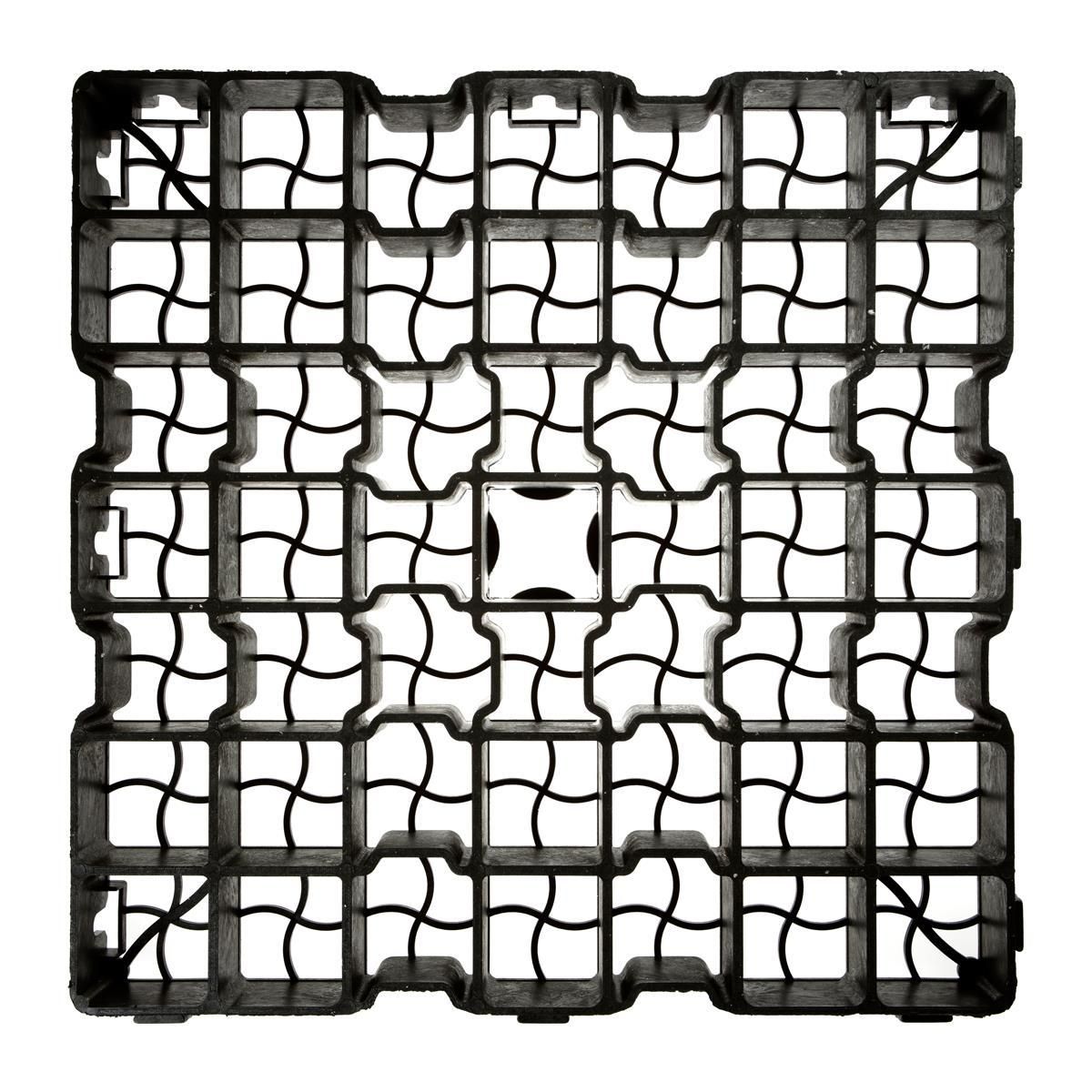

Paddock and riding arena grid 50 x 50 cm - Sustainable paddock substructure, gentle on the horse and the environment

Premium paddock grid made of ECO plastic for mud-free horse paddocks and paddocks!

The square paddock, universal & riding arena grid made of 100% recycled material is ideally suited for direct installation on the existing subsurface without having to build a substructure beforehand. It almost doesn't matter whether the paddock grid is laid on sand, gravel, lawn or meadow. The mat adapts to the substrate and makes laying super easy. Then the laid out area only needs to be filled. Earth, sand, round gravel, grit or wood chips come into question. Thus, it is possible to stabilize an existing soil with a high load capacity and load-bearing capacity in the shortest possible time and without complex earthworks.

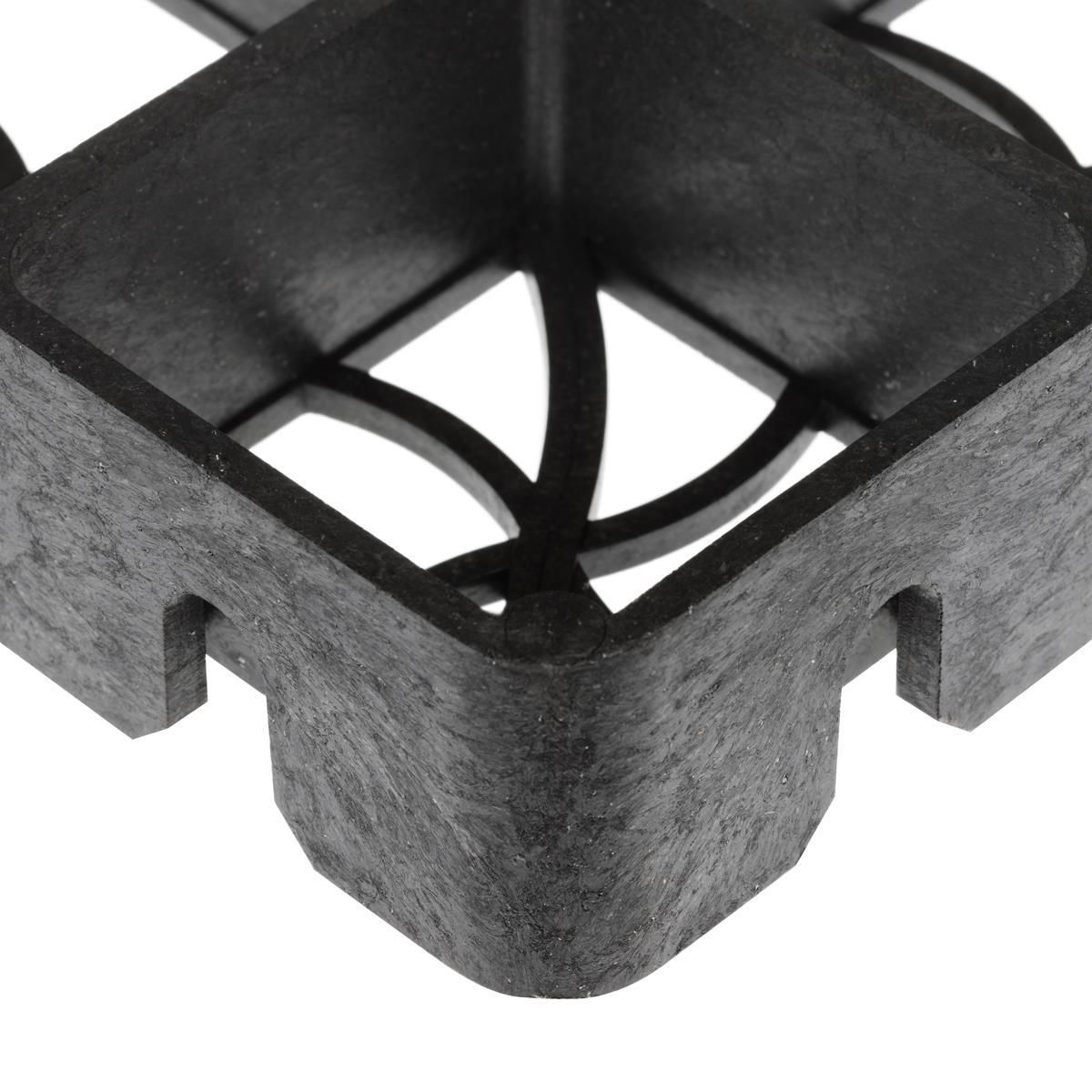

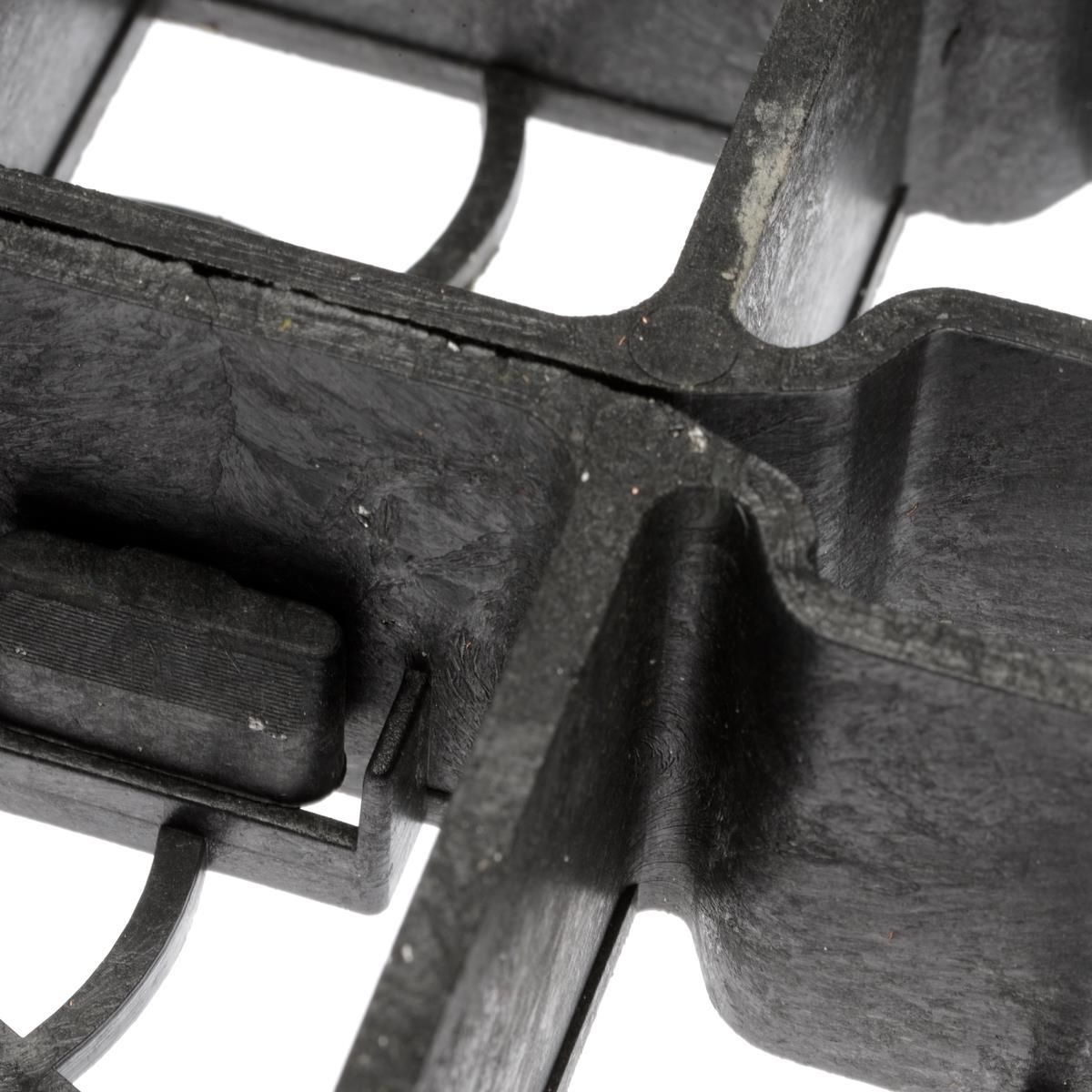

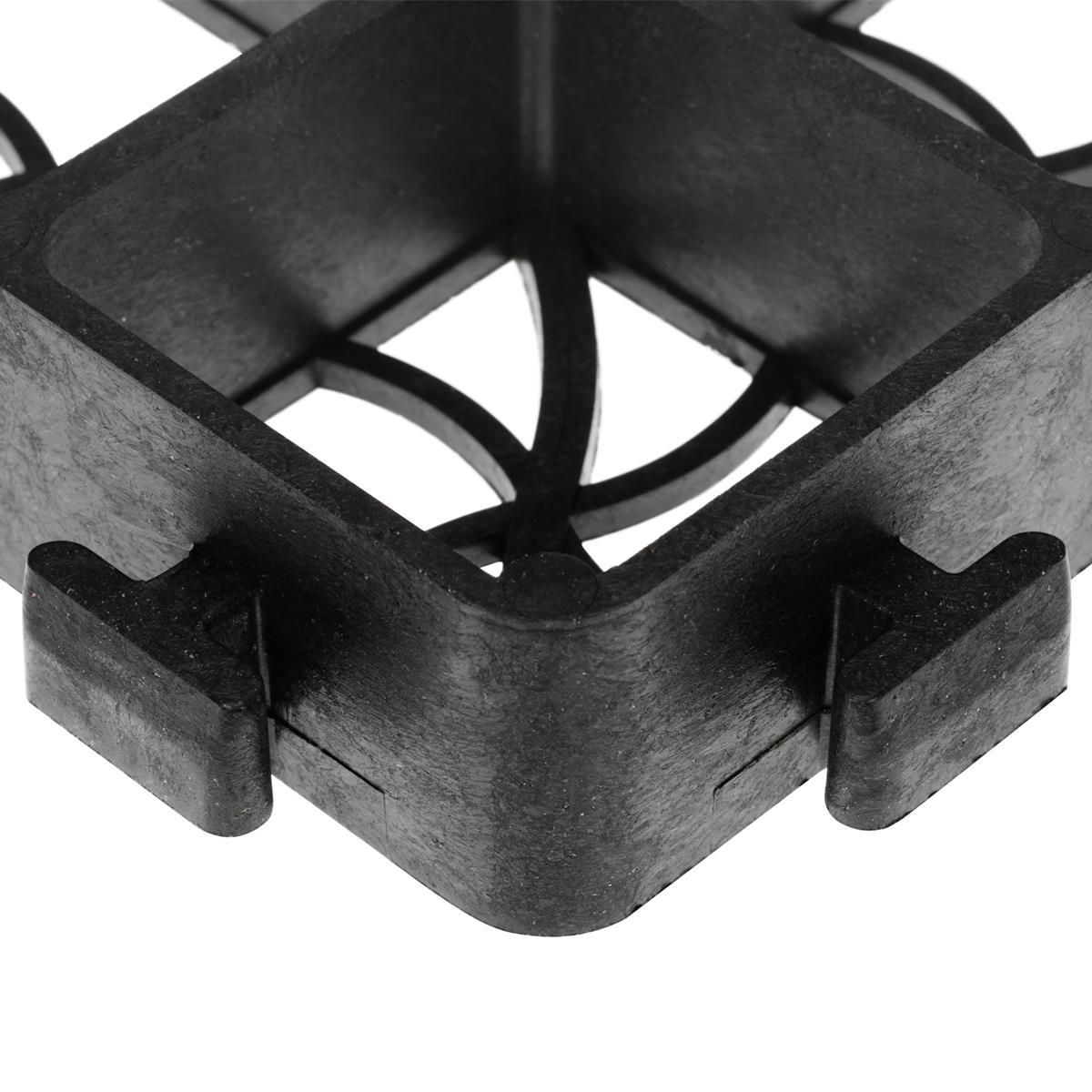

Robust connecting hooks and 5 mm thick bars create a single large, coherent area - All of the individual mats are firmly connected to one another. Due to the special material mix, the plate is more slip-resistant than comparable products, which are mostly made of hard plastic.

The grid is ideal for outlets, parking spaces, lunging circles, drinking and feeding areas. The lattice mat has a shock-absorbing effect, preserves the life of the floor, lets rainstorms seep away quickly and prevents the formation of mud and mud.

Overview of the paddock mat:

  • Universal & robust floor covering
  • Made from 100% recycled material
  • Pedestrian-friendly & passable
  • Quick & easy to lay
  • No need to create a substructure
  • Fire protection tested and heat insulating
  • Particularly non-slip
  • Relief of the Joints
  • Resistant to acids, alkalis (road salt, ammonia, etc.) and alcohols
  • Neutral for groundwater and the Environment
  • Can be laid in sand, gravel, lawn, meadow or in the mud

Application:

Cover mat, paving protection mat, event floor, pit mat, stable mat, workplace mat, events / event, paving protection, paddock / stable, temporary pedestrian paths, workshop floor, boxes, stable aisles, washing areas, paths

Details:

  • Weight: 1 kg
  • Size: 50 × 50 × 5.0 cm
  • Covering size (gross): 0.25 m²
  • Pieces per m²: 4
  • Connection / type: Knotting system with hooks
  • Inner grid: 49 x 6.2 x 6.2 cm (per grid)
  • Weight: approx. 3.5 kg / piece - approx. 13.8 kg / m² (± 5%)
  • Dimensional stability: +/- 3% (-30 ° C to + 50 ° C)
  • Durability: At least 15 years
  • Material: 100% Recycled material
  • "Bioactive" surface: Open area 86%, material 14%
  • Pressure resistance: 450 tons / m² (without filling)
  • Permissible axle load: 360 kN
  • Color: Dark gray - black

Scope of delivery:

1x riding arena grid / paddock grid ECO 50 x 50 x 5 cm

Country of origin: Austria
Animal species: Horse
Material: Recycled plastic
Manufacturer warranty: 20 years
Data according to manufacturer. Errors and changes reserved.
