Energizer Connection Cables: Secure Links to Fence and Earth
Good connection cables carry voltage from the energizer to the fence and back to earth without loss. We offer cables for polywire, polyrope and polytape.
%
Kerbl Connector Cable for Car Battery / Electric Fence Battery, 12V
Sale price: €14.84 Regular price: €14.99 (1% saved)
NEW

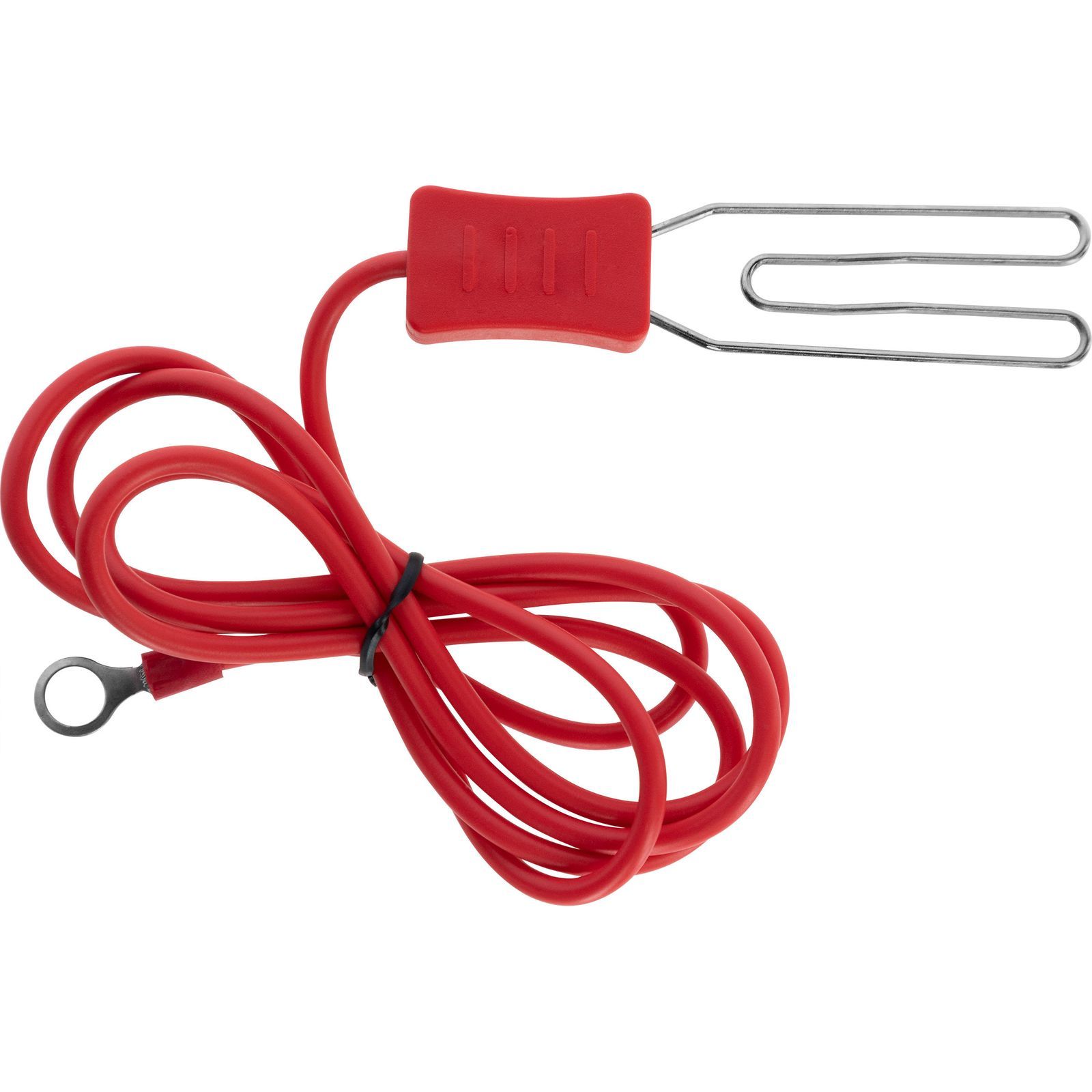

AKO Electric Fence Connection Lead with Heart Clamp and M8 Eyelet, 125 cm
Regular price: €5.49
Energizer Connection Cables: Short Distance, Big Difference

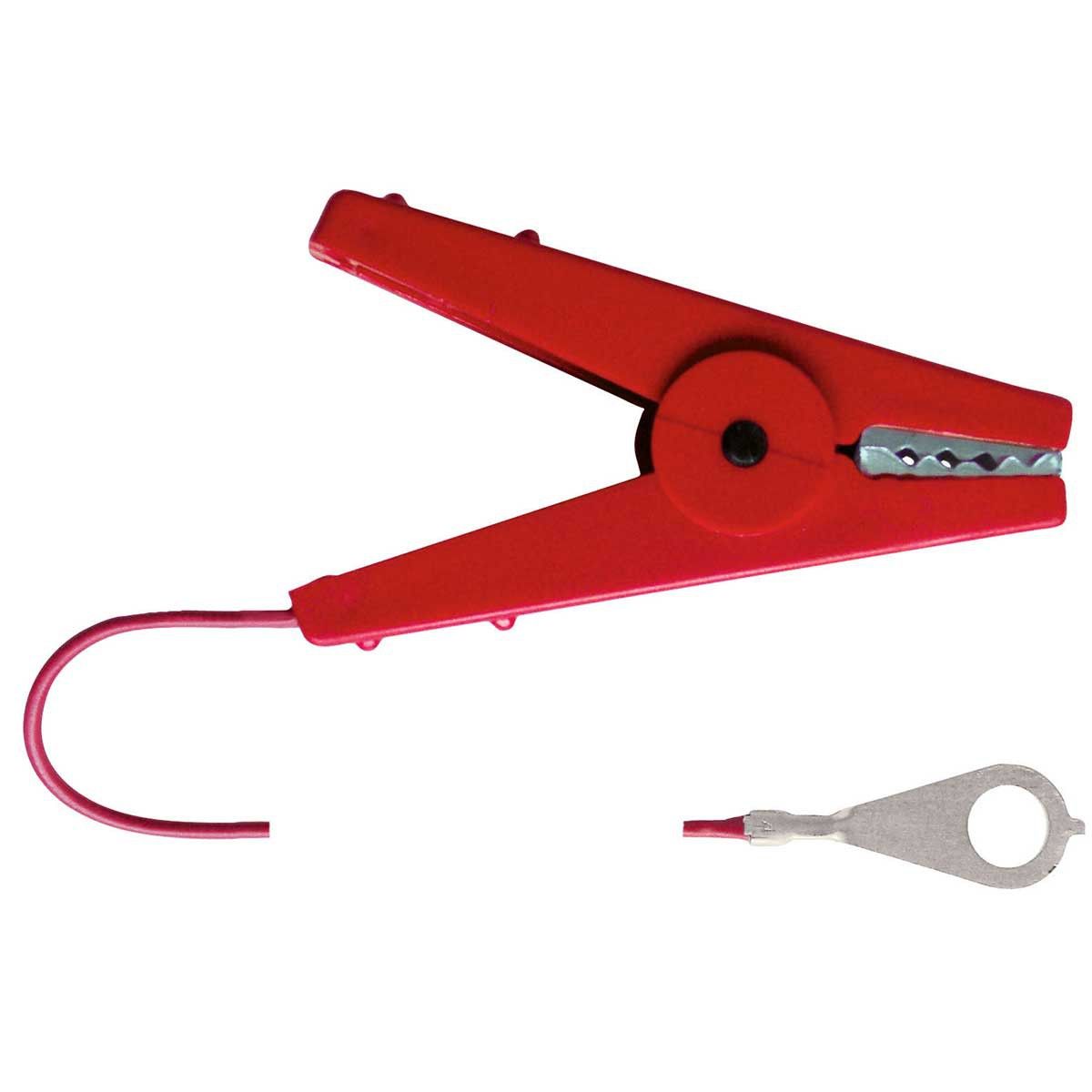

Between the energizer, the fence and the earthing, a short length of cable often decides whether you get full output. A suitable energizer connection cable ensures firm contact and passes the pulses on without loss. Red cables usually lead to the fence and green ones to the earth. With a crocodile clip, heart clamp or eyelet, the cable fits common energizers and conductors.
For Polywire, Polyrope and Polytape

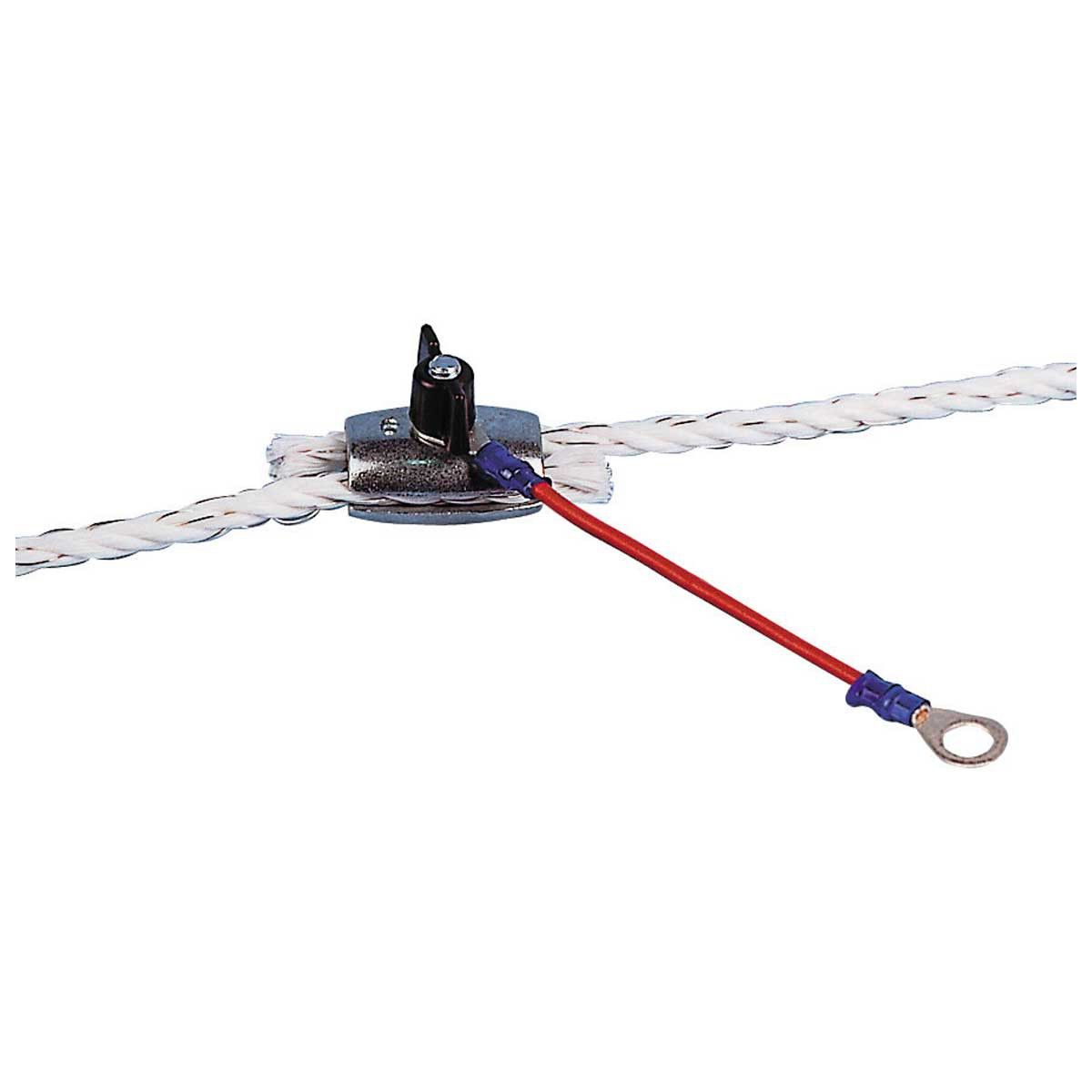

Each type of conductor needs a different connection. A polyrope connection cable is screwed firmly onto the rope, while a tape connection cable clamps wide polytape up to 40 mm across its full width. For polywire and wire, heart clamps or crocodile clips that you can move quickly are ideal. With a screw-on tape connector, you join two ends of polytape so the current flows on cleanly.
Adapters for Other Power Sources

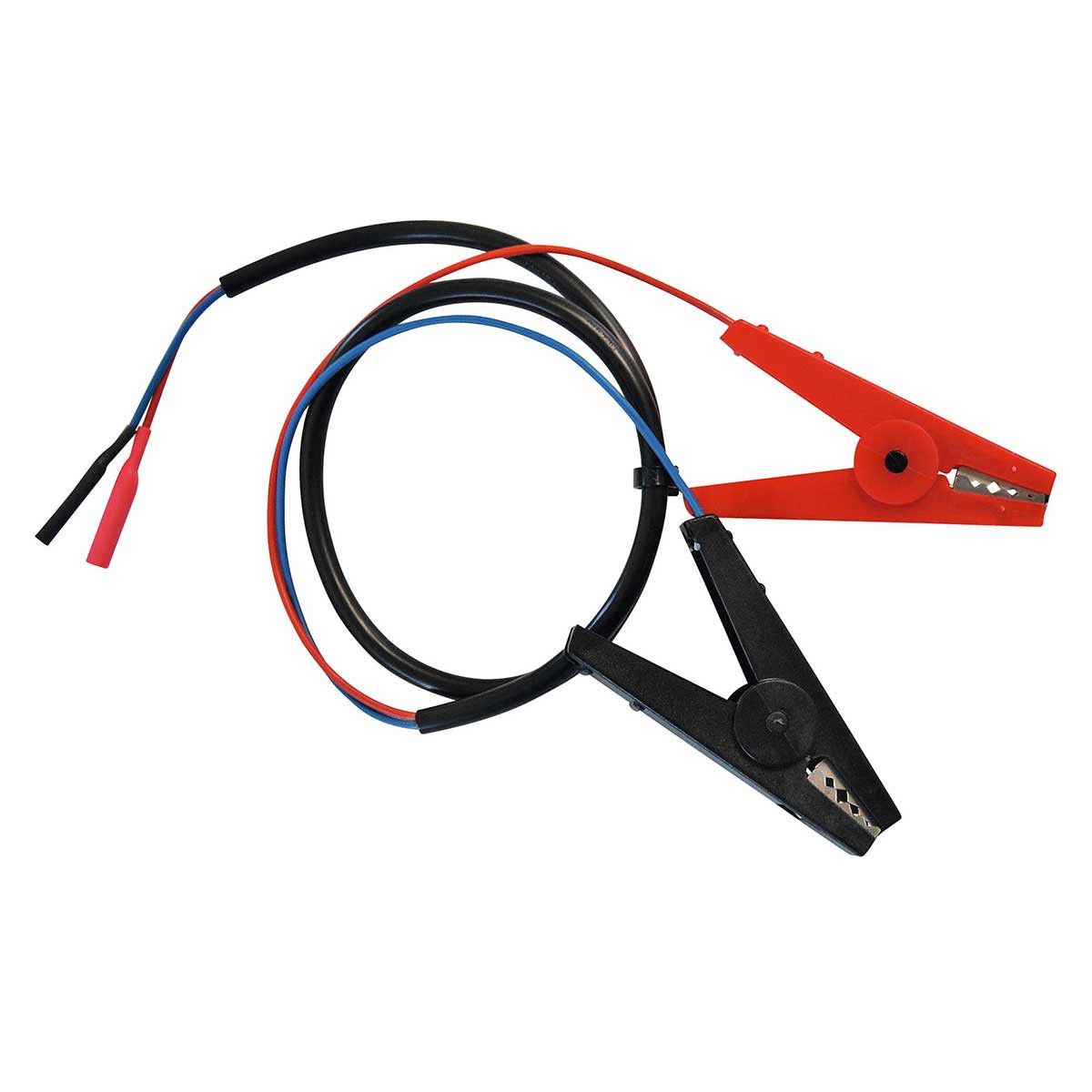

Sometimes a unit needs to run on a different power source than originally intended. With an adapter cable you can run a 9V energizer on a 12V battery, and a special cable connects your unit to a car battery in an emergency. Check beforehand that your energizer is designed for this. Replace cables with brittle insulation or corroded clamps in good time, because poor contacts cost voltage.
Frequently asked questions
Which cable goes to the fence and which to the earth?
The energizer has one terminal for the fence and one for the earth, usually marked red and green. Run the fence cable to the conductor and the earth cable to the earth stakes. Take care not to mix the two up.
Why is my connection cable sparking?
Sparks usually occur at loose or corroded clamps or where the insulation is damaged. Voltage is lost at that point, and conductors can burn through. Tighten the connection or replace the cable.
How do I connect polytape properly?
There are dedicated tape connection cables that clamp the tape across its full width. This spreads the current over all the conductors woven into it. A clamp on just one corner quickly leads to burn-through and loss of voltage.
Cables for Energizer, Fence and Earth

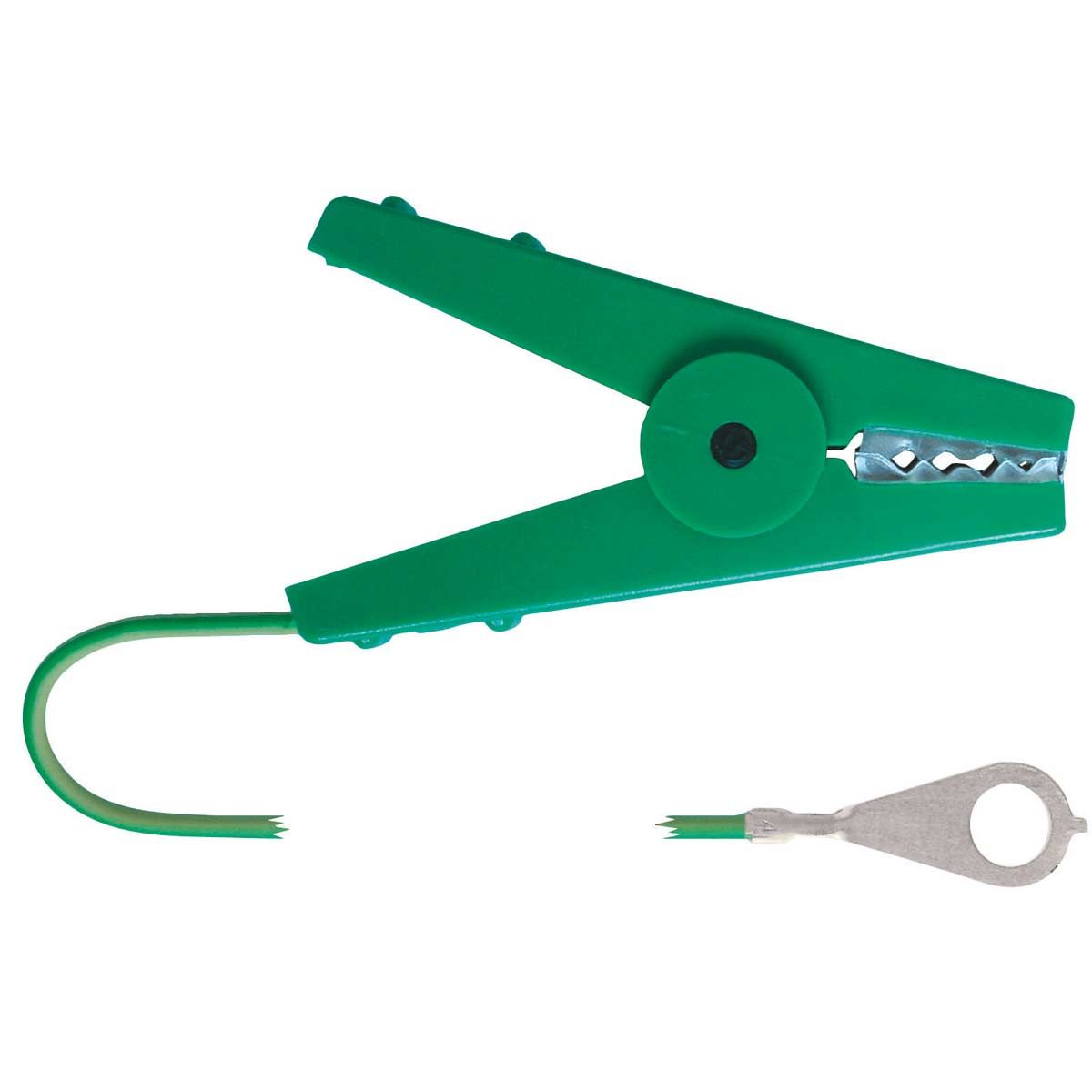

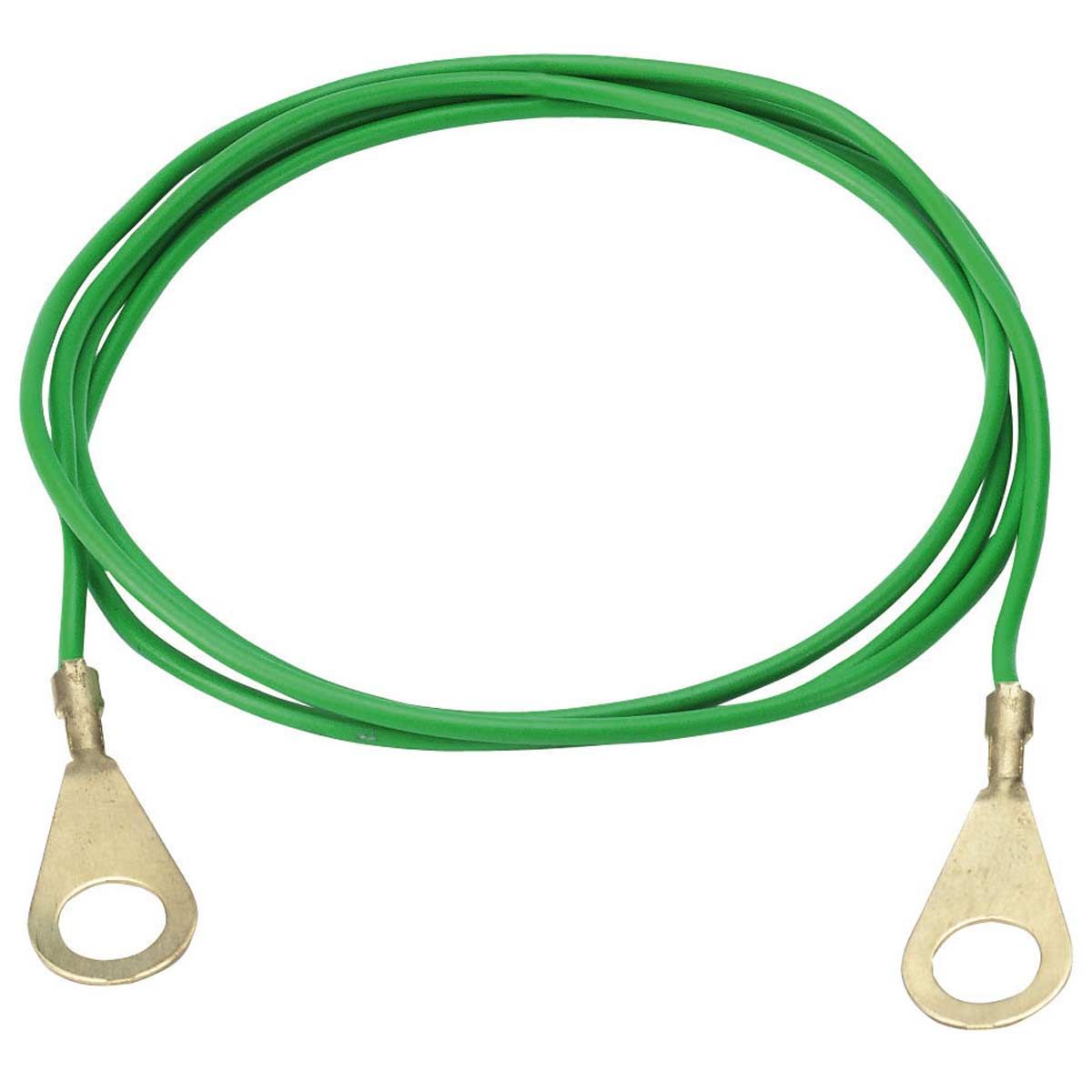

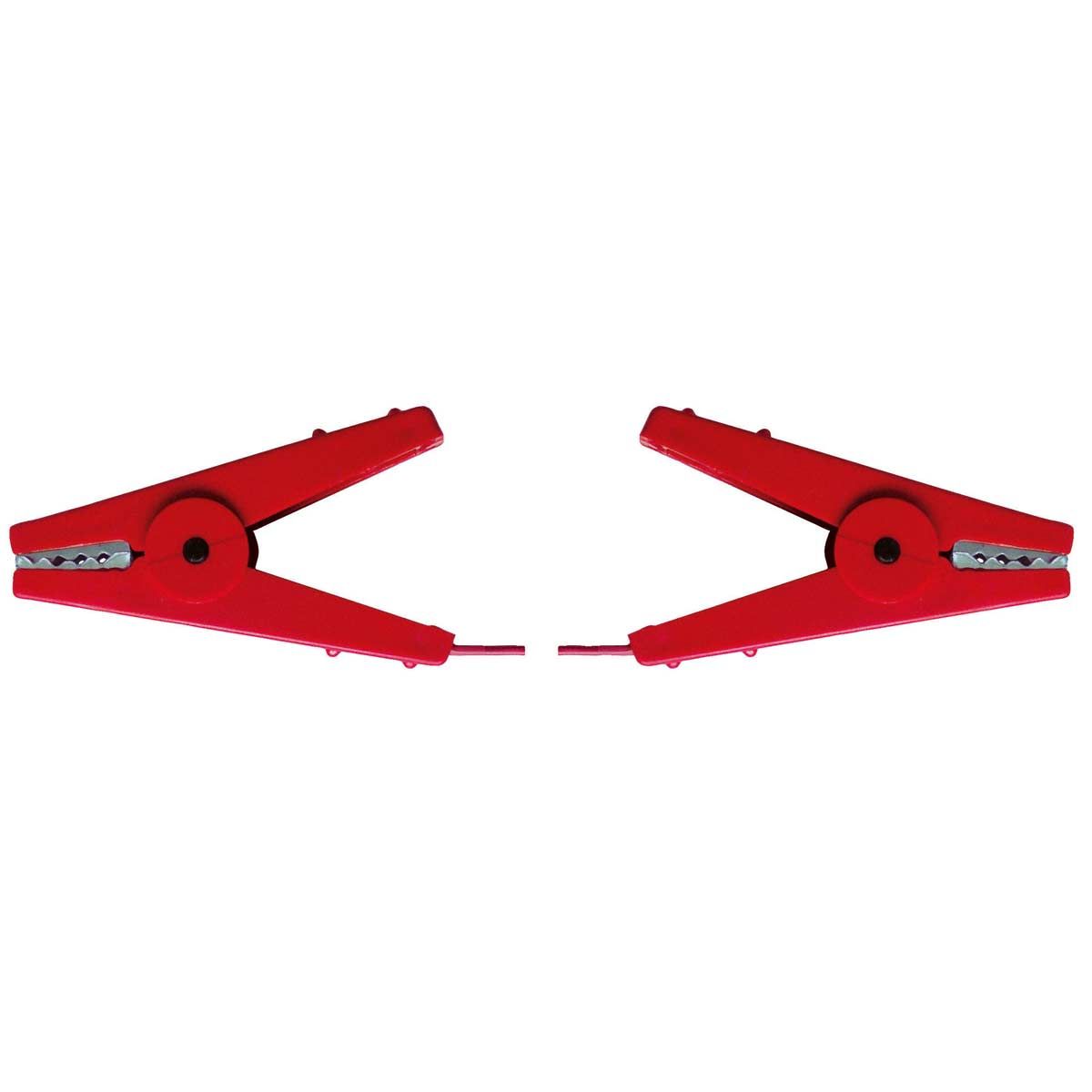

Even the best energizer achieves little if the current gets lost on its way to the fence. Connection cables create the link between the energizer, the conductor and the earth stake, which makes them a small but important part of every installation. With us you will find lead-out cables with a crocodile clip or heart clamp for wire and polywire, polyrope connection cables that screw on and tape connection cables for wide polytape. Green earth leads with an eyelet connect the energizer to the earth stakes. There are also adapter cables that let a 9V unit run on a 12V battery, plus jumper leads for several conductors. Look for intact insulation and firm clamps, and the full voltage will reach the fence. Check the connections especially after winter, when moisture and frost take their toll on the contacts.
