Ring Insulators: The All Rounder for Polywire and Wire on Timber Posts

Ring Insulators: Proven on Almost Any Post

Ring insulators consist of a plastic ring on a metal shank that you screw into the timber post. The conductor runs through the closed ring and cannot jump out, yet slides freely when it expands with changes in temperature. That makes them the first choice for polywire and wire on fixed paddocks. Larger rings such as the BIG models also take rope, so one type covers a lot of fencing jobs.

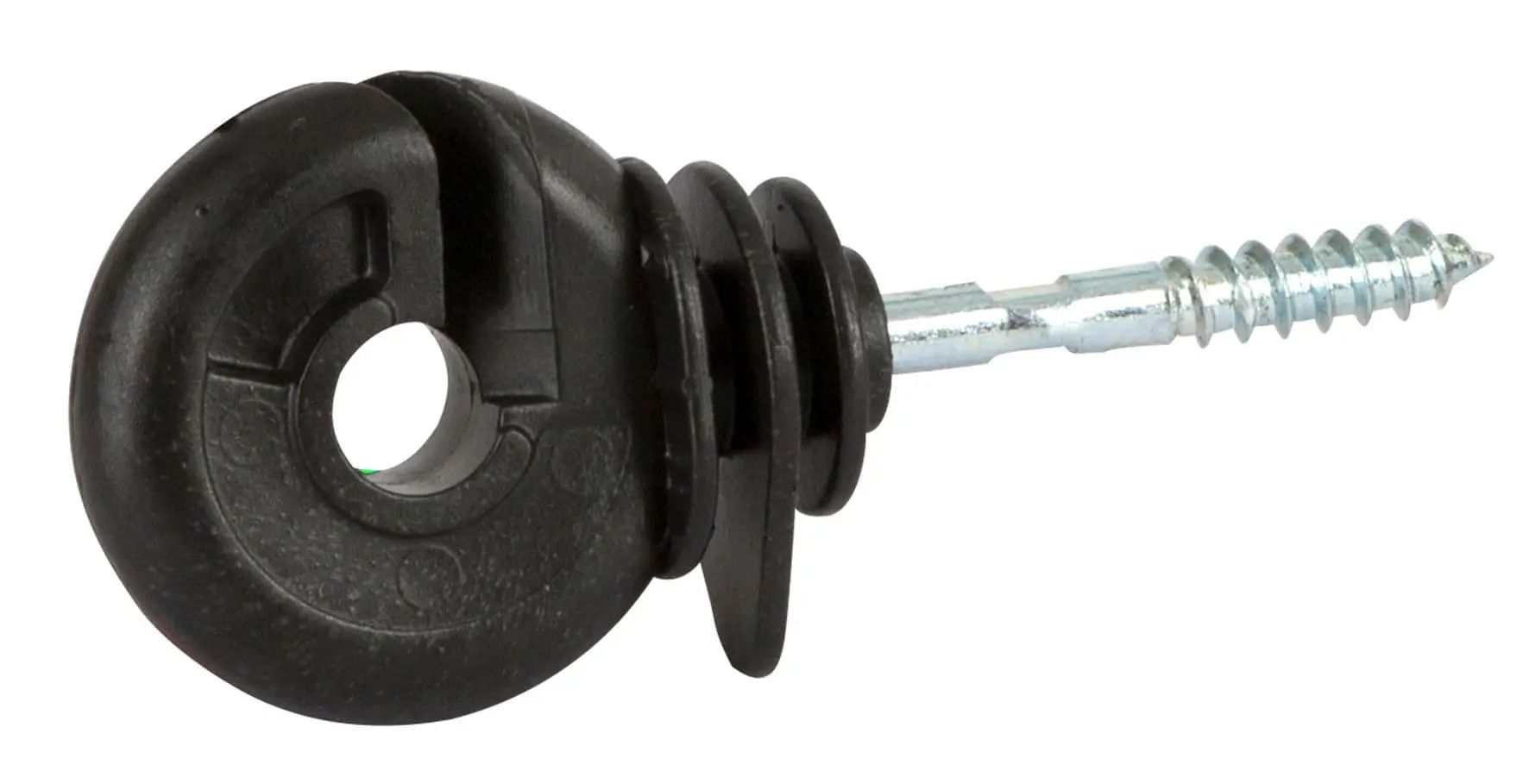

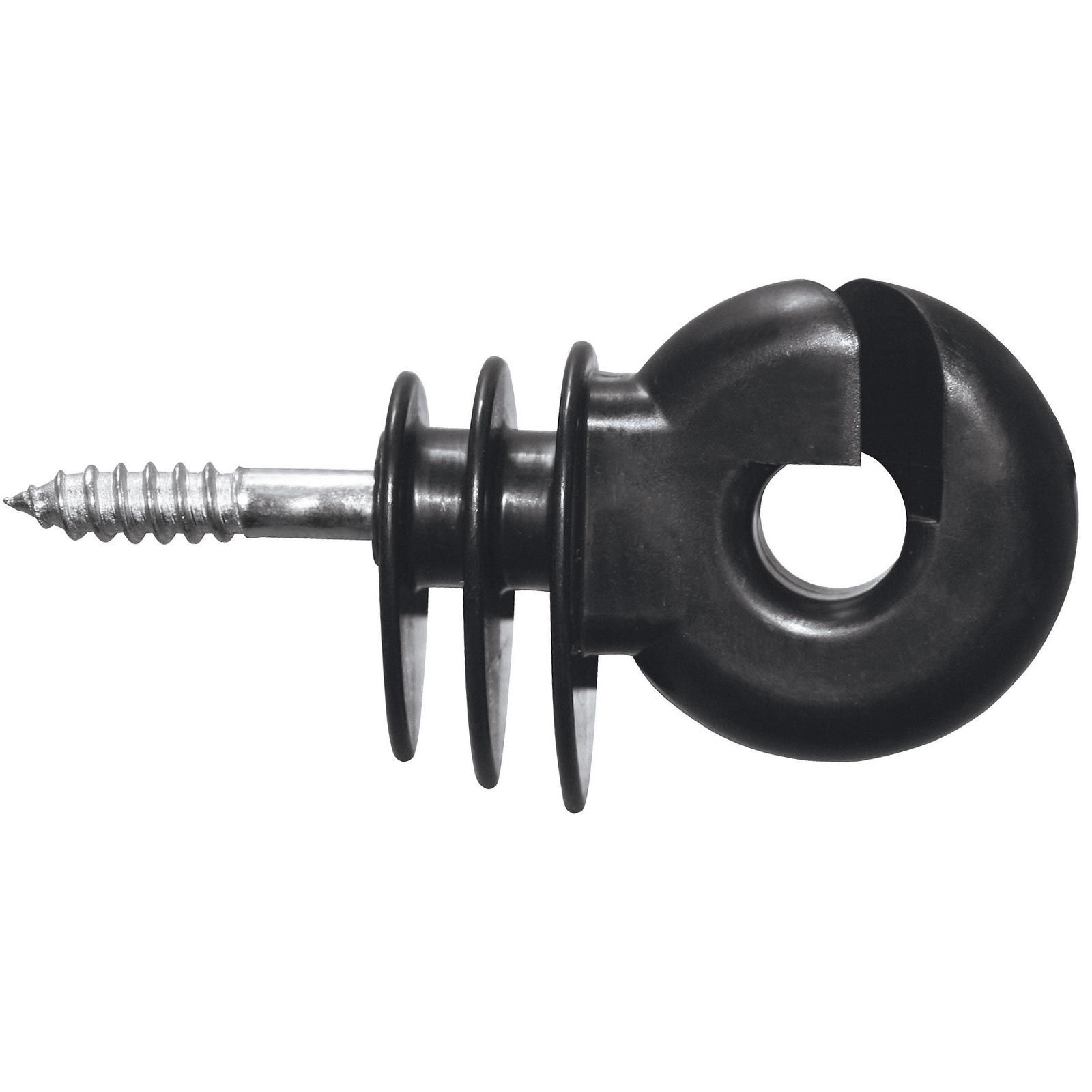

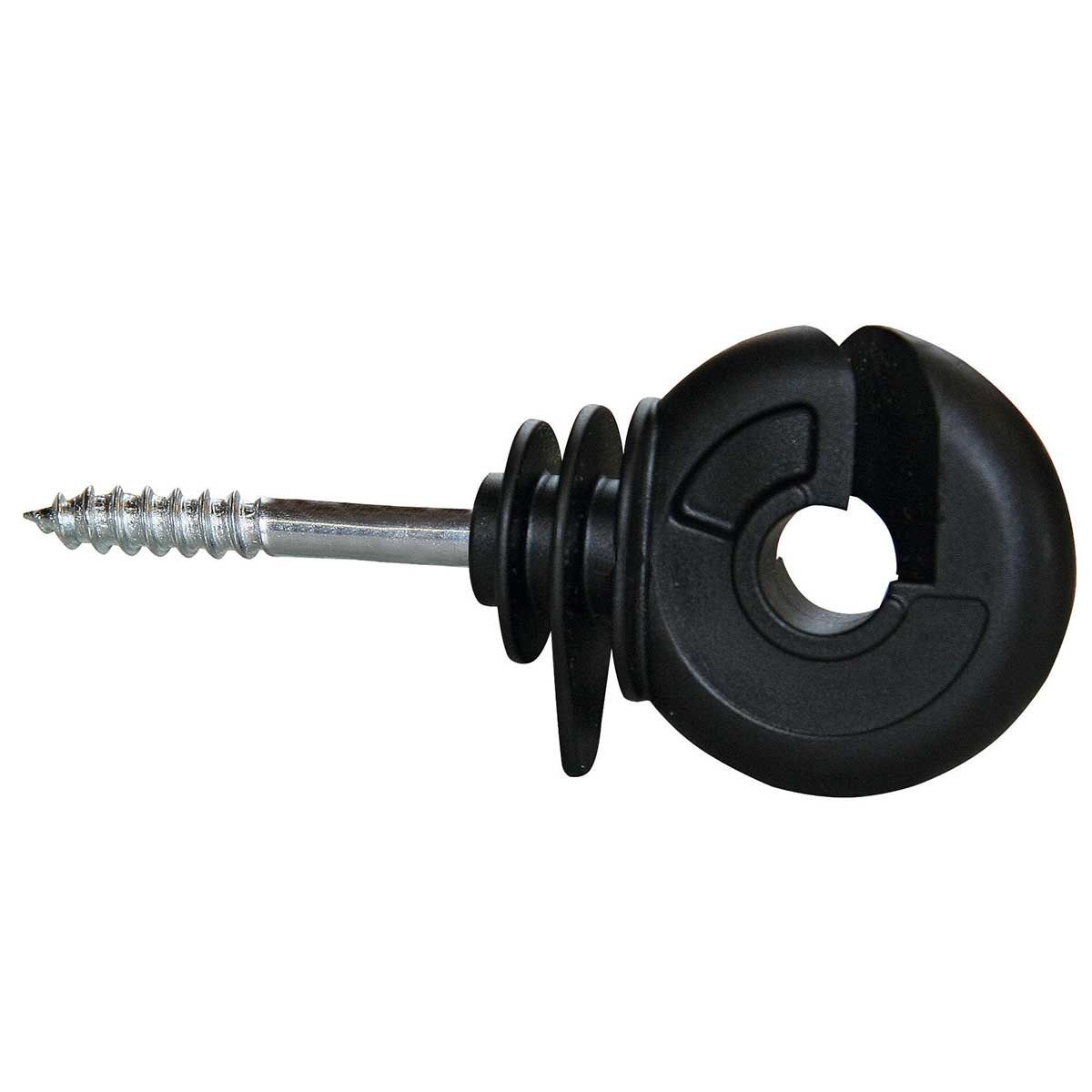

Short or Full Length Shank

On models with a short shank, the ring sits close to the post, which saves material and suits timber posts well. A full length shank reaches into the ring and makes the insulator sturdier, which pays off with tightly tensioned conductors or where livestock push against the fence. Models with a metric thread fit metal posts with a drilled hole, and Easy Drill versions go in within seconds using a cordless drill.

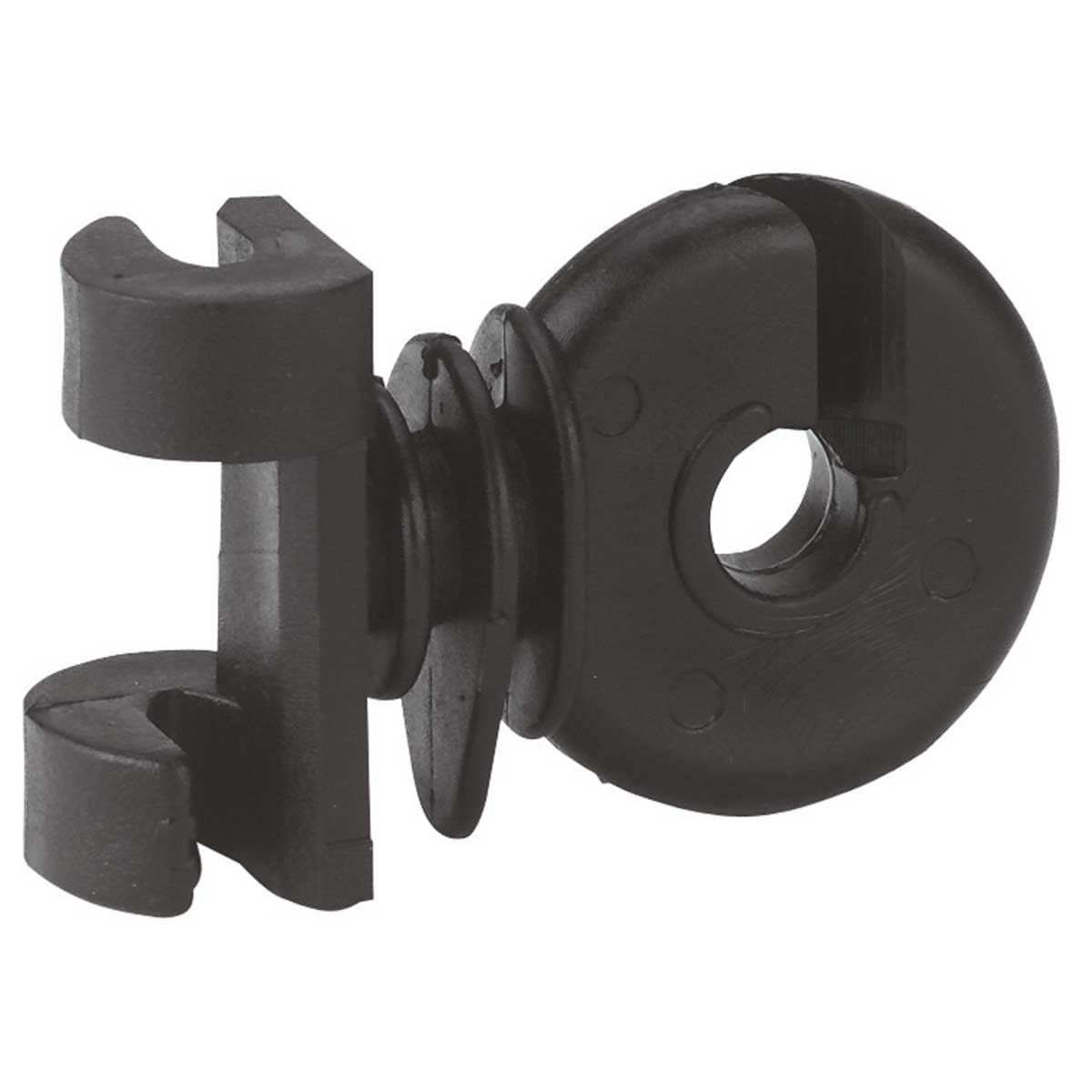

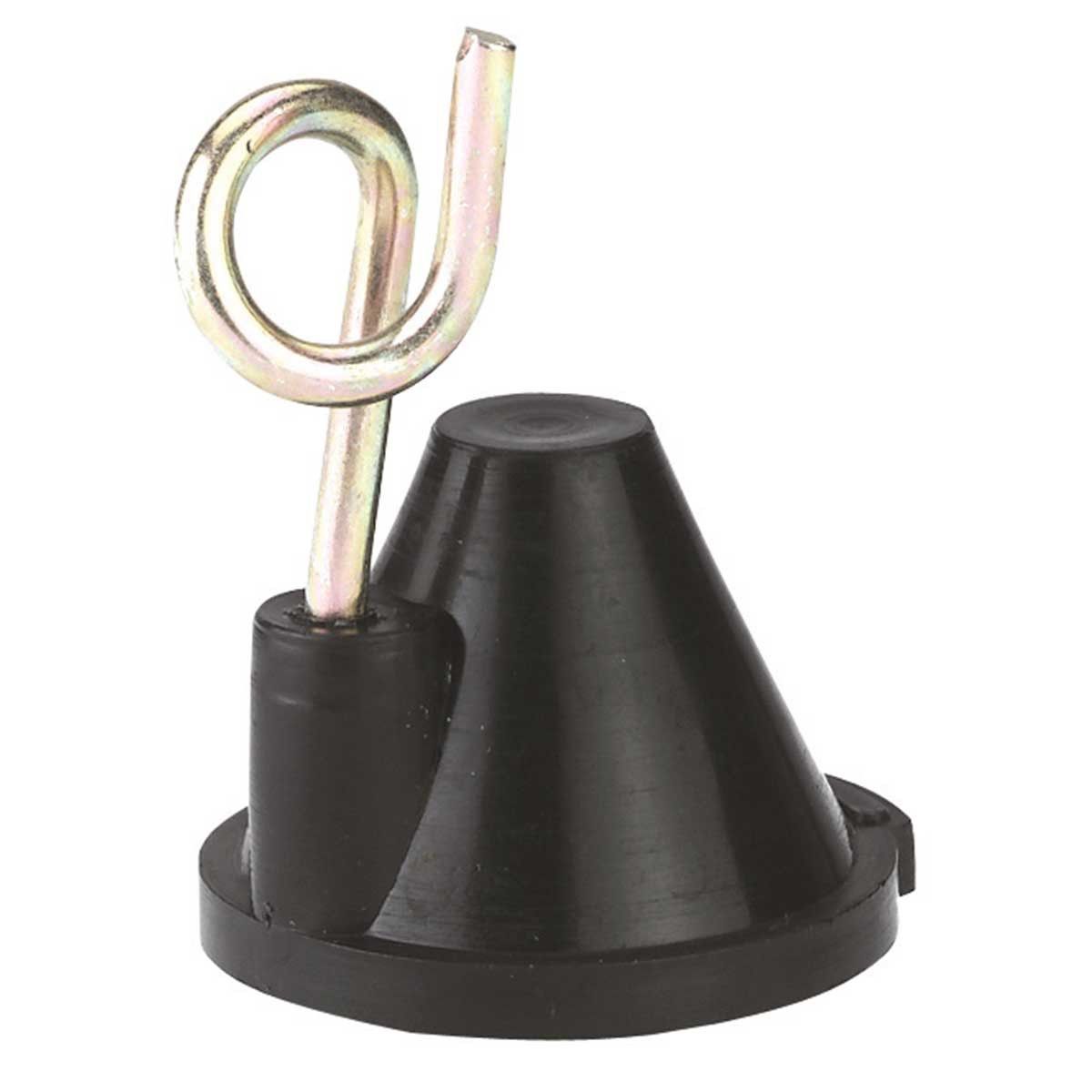

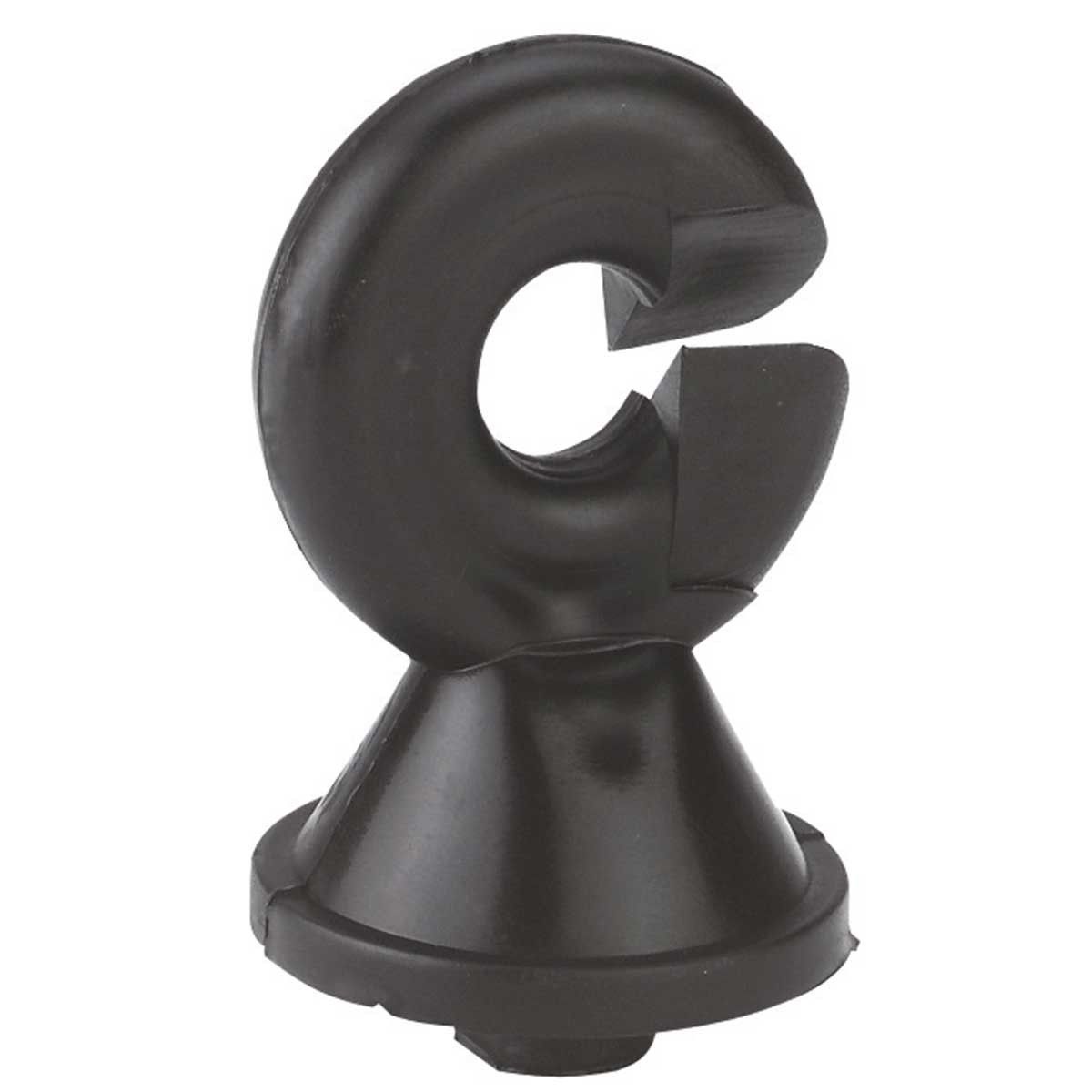

Replacements for Oval and Round Steel Posts

For oval posts and round steel posts there are ring insulators as spare parts that slide straight onto the post. The VARIO ring fits posts from 7 to 19 mm. This lets you replace a damaged insulator quickly without changing the post. Two tone rings also make the fence easier to see. A properly fitted ring often lasts as long as the post itself, and you can replace individual damaged rings later with little effort.

Frequently asked questions

Can I use ring insulators for rope as well?
For thin rope, large rings such as the SUPER BIG or the combination ring insulator are suitable. For rope from about 6 mm, dedicated rope insulators are usually the better choice, as the rope chafes less in them.

What is the quickest way to screw in ring insulators?
With a driver bit for your cordless drill it is much faster than by hand. Pre drilling makes sense in hard wood so that the post does not split.

At what height should I fit the ring insulators?
That depends on the animals. For cattle the top strand sits at about chest height, while for sheep several strands sit closer together and lower down. It is best to measure against one of your animals.
