Heatable float drinking bowl SH30 73W with auxiliary pipe heating 24 V in a nutshell:


  • drinking bowl with integrated heating cable
  • low and high pressure suitable
  • heating cable easily exchangeable
  • integrated frost protection thermostat
  • frost-resistant to approx. -15 ° C

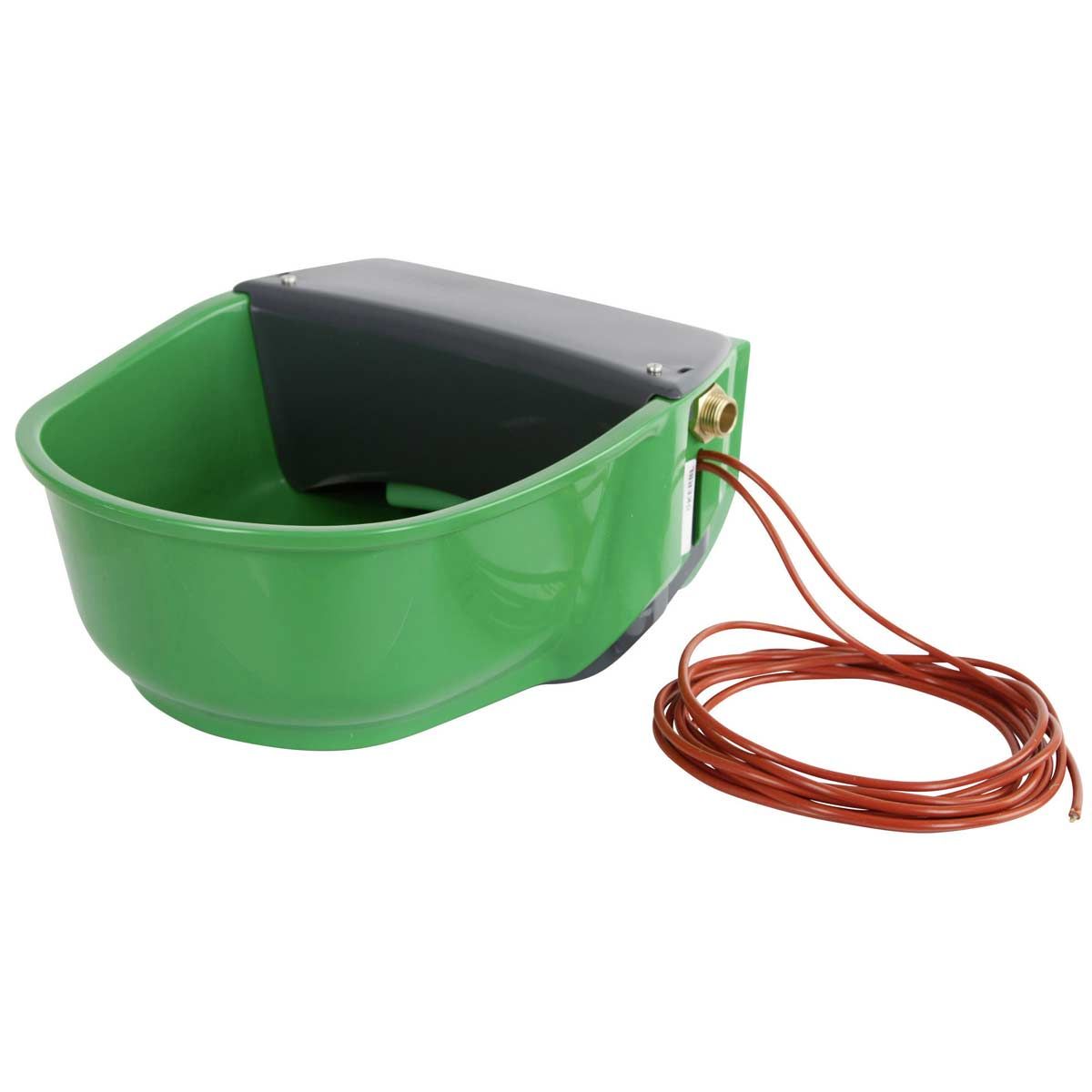

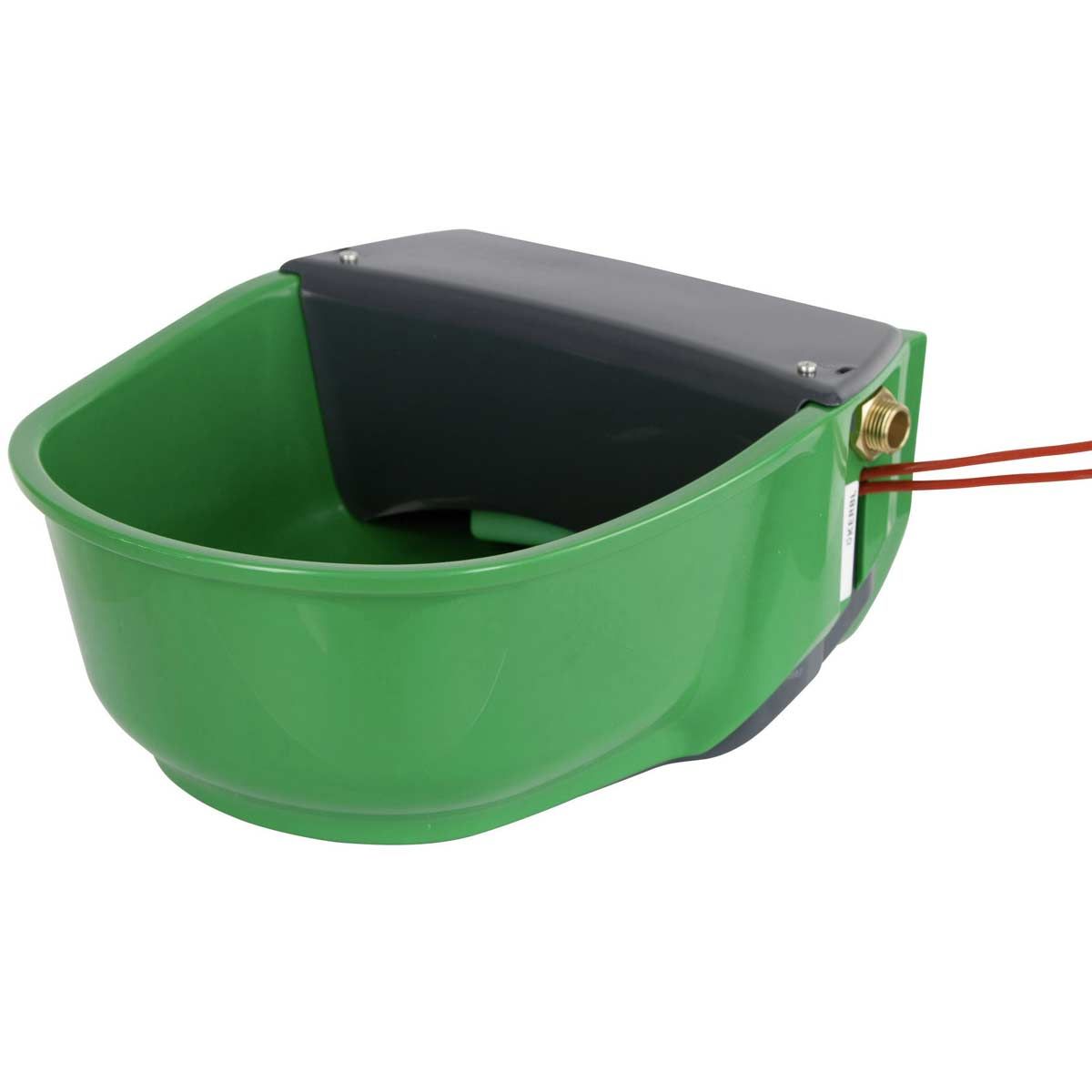

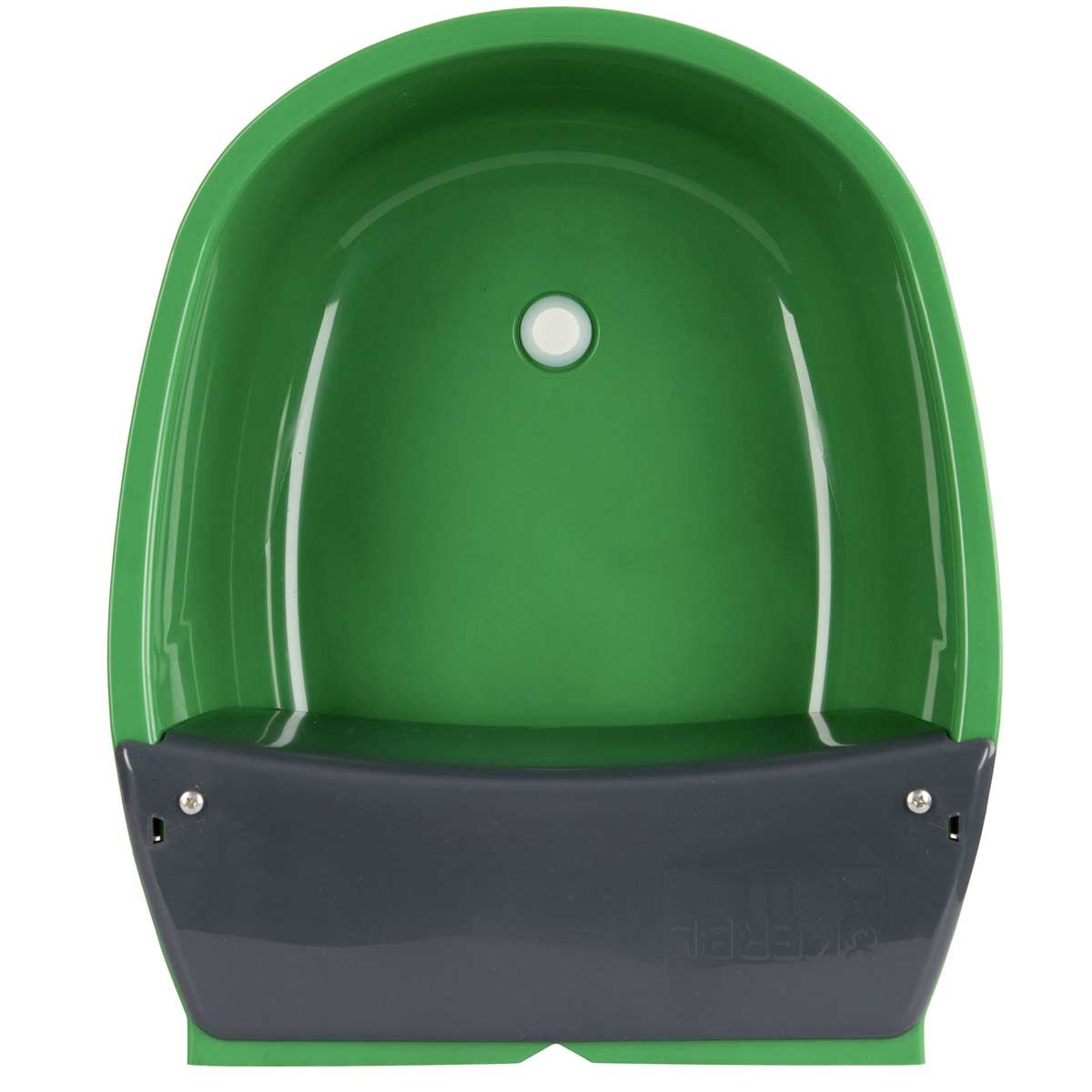

Heatable float drinking bowl SH30 - with integrated heating cable

The heated float bowl can be connected to high and low pressure.

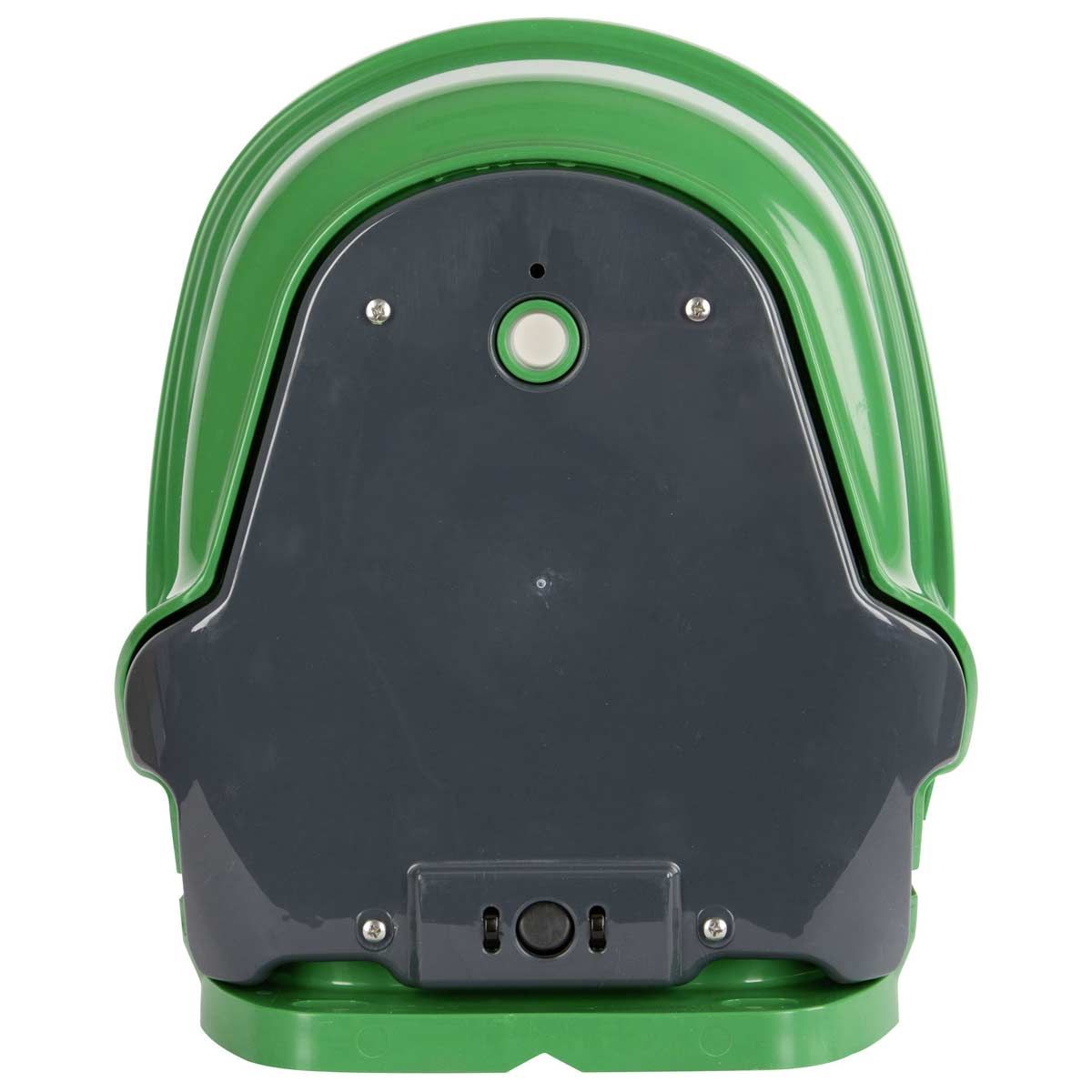

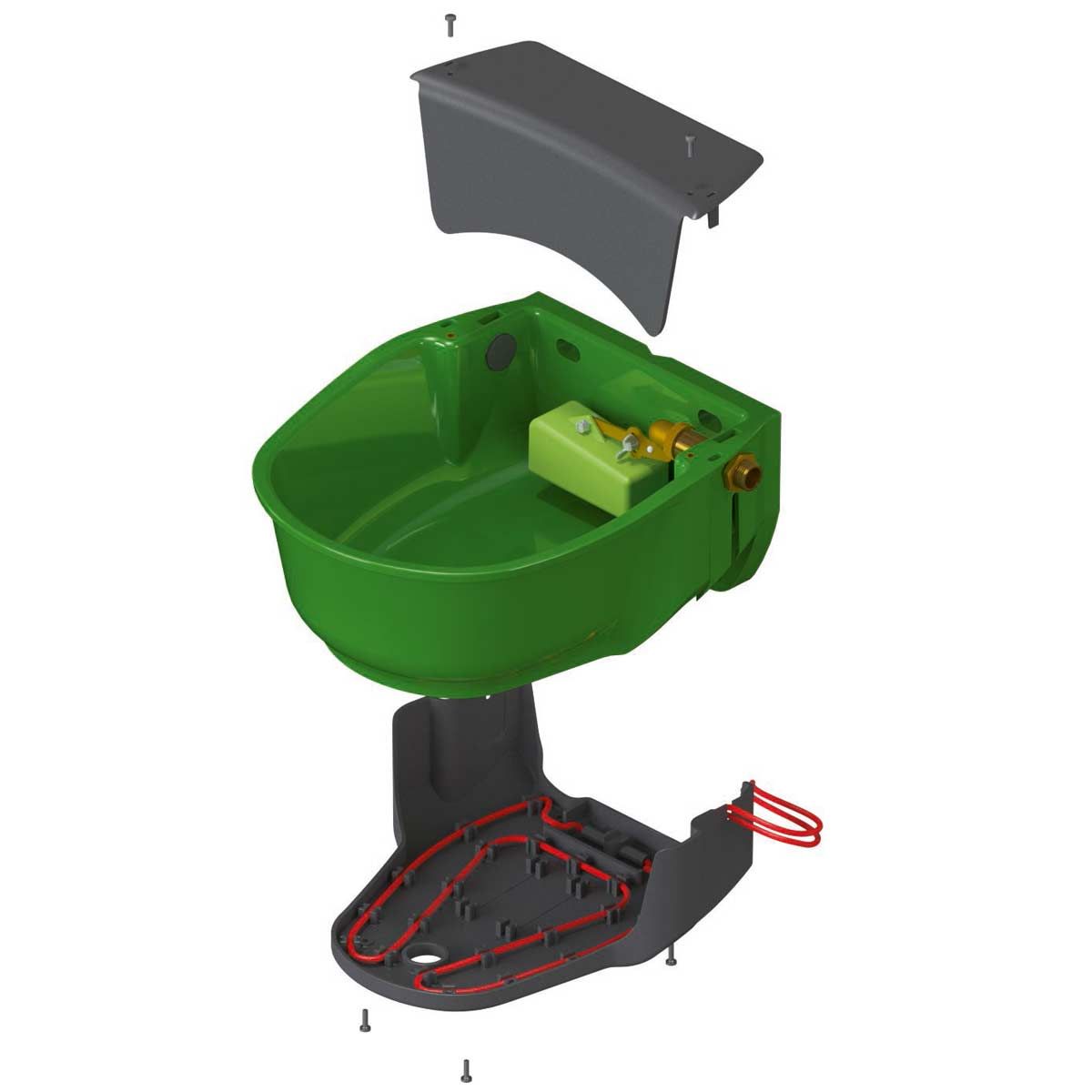

The drinking bowl SH30 is made of high quality plastic and contains an integrated, exchangeable heating cable. Thanks to the practical float valve, the horse and cattle drinker can not only be connected to a normal water pipe, but can also easily be connected to a water tank. The external frost protection thermostat also switches on at +5 ° C and switches off at approx. +13 ° C. The cover on the underside of the basin prevents heat from being released from the heating cable.

The valve cover with snap hooks of the heated animal drinkers ensures quick access and through the drain plug, the self-drains can be cleaned quickly and easily. The drinking bowl with float is suitable for circulation heating systems and has a water flow of 6.5 l / min. Kerbl's self-heating self-drawer has a ½-inch connection on the left and right and is suitable for pipe and wall mounting. The frost-proof float drier is available with two voltages (230 V or 24 V) and optionally with auxiliary pipe heating. The drinking bowl is frost-proof to about -15 ° C.

Overview:

  • drinking bowl made of high quality plastic (PP)
  • integrated frost protection thermostat (switch-on temperature approx. +5 ° C, switch-off temperature approx. +13 ° C)
  • heating cable easily exchangeable
  • suitable for circulation heating systems
  • valve cover with snap hook for quick access
  • volume: 5 l
  • water flow: approx. 6.5 l / min (2-3 bar)

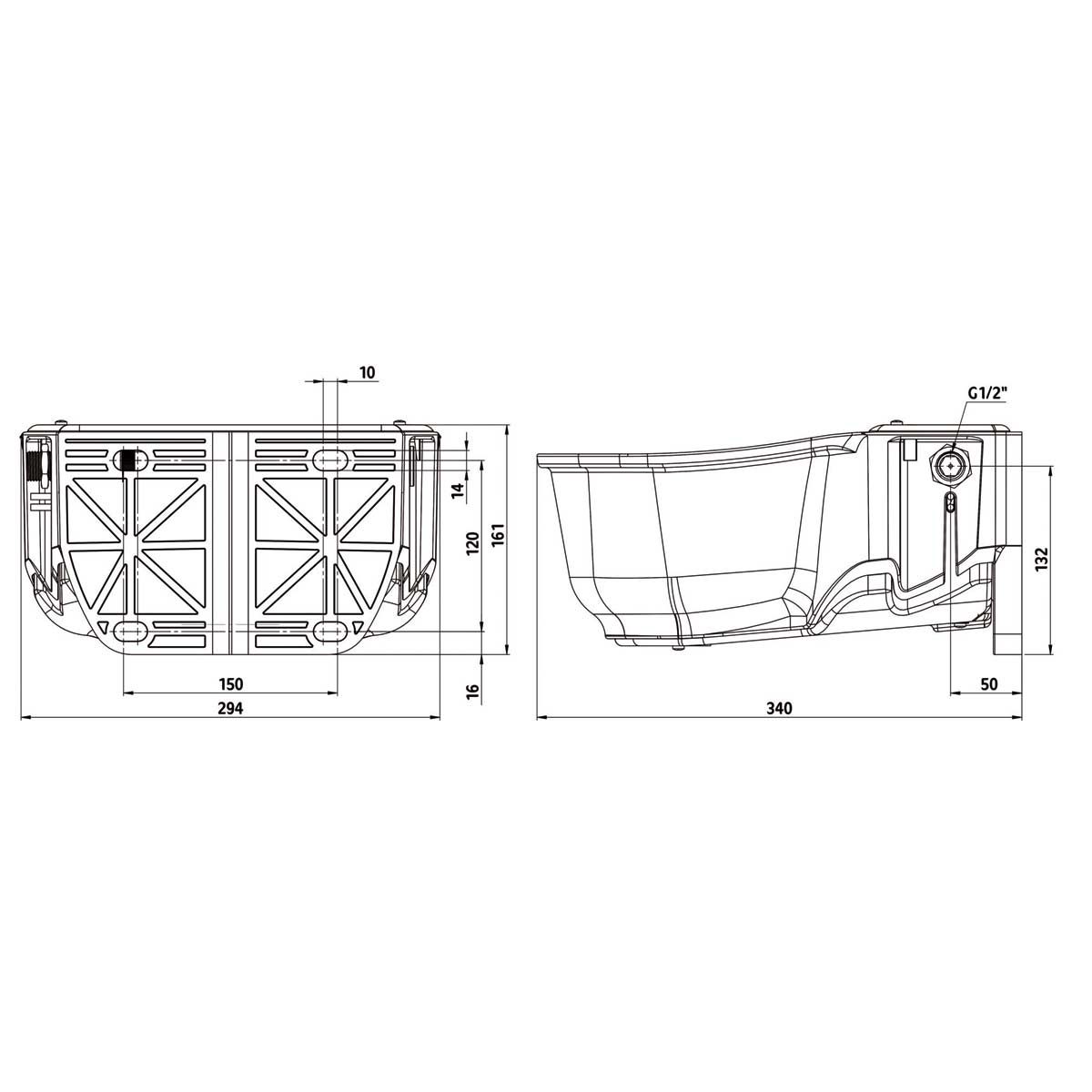

  • sater connection 1/2 "from left and right possible
  • incl. Drain plug for easy cleaning

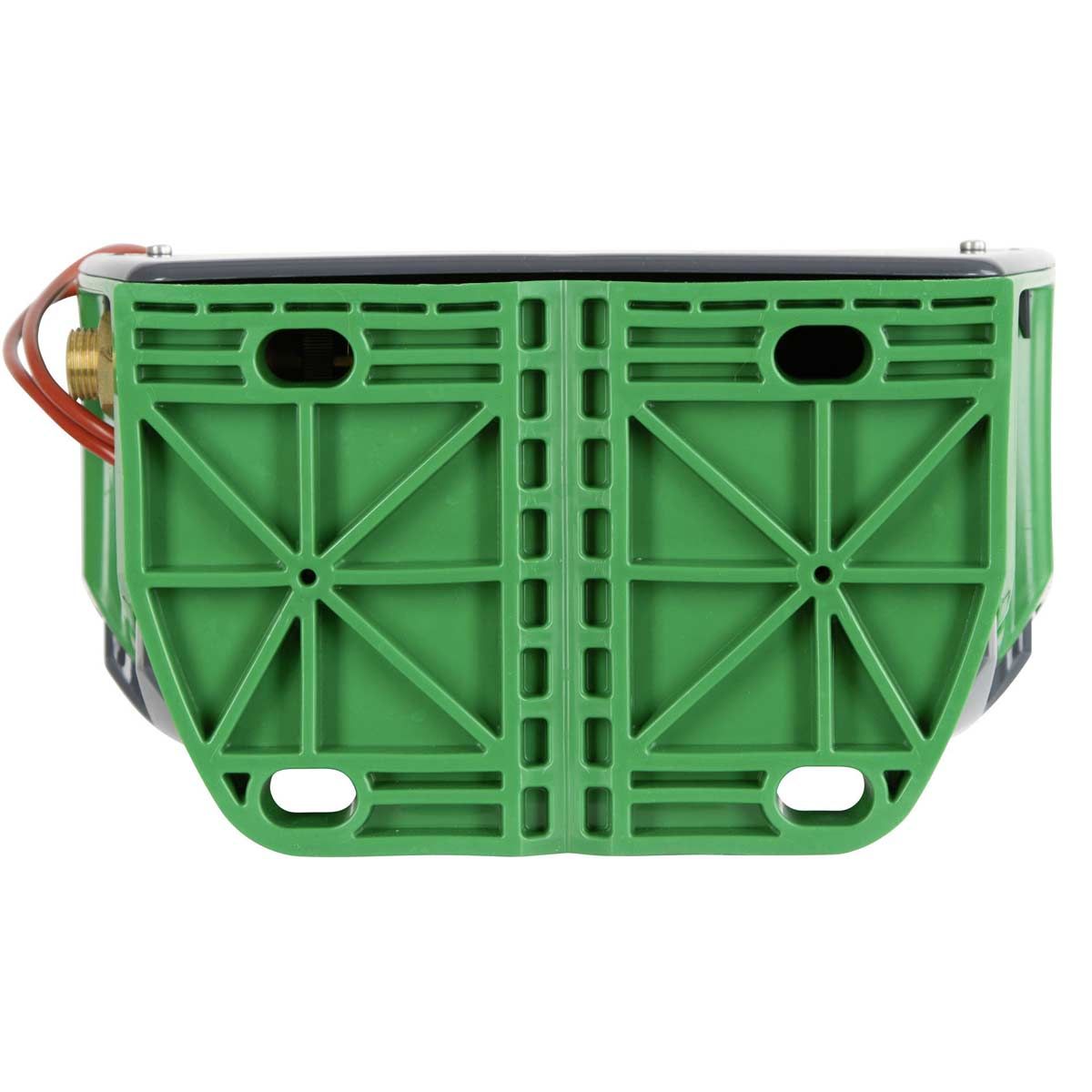

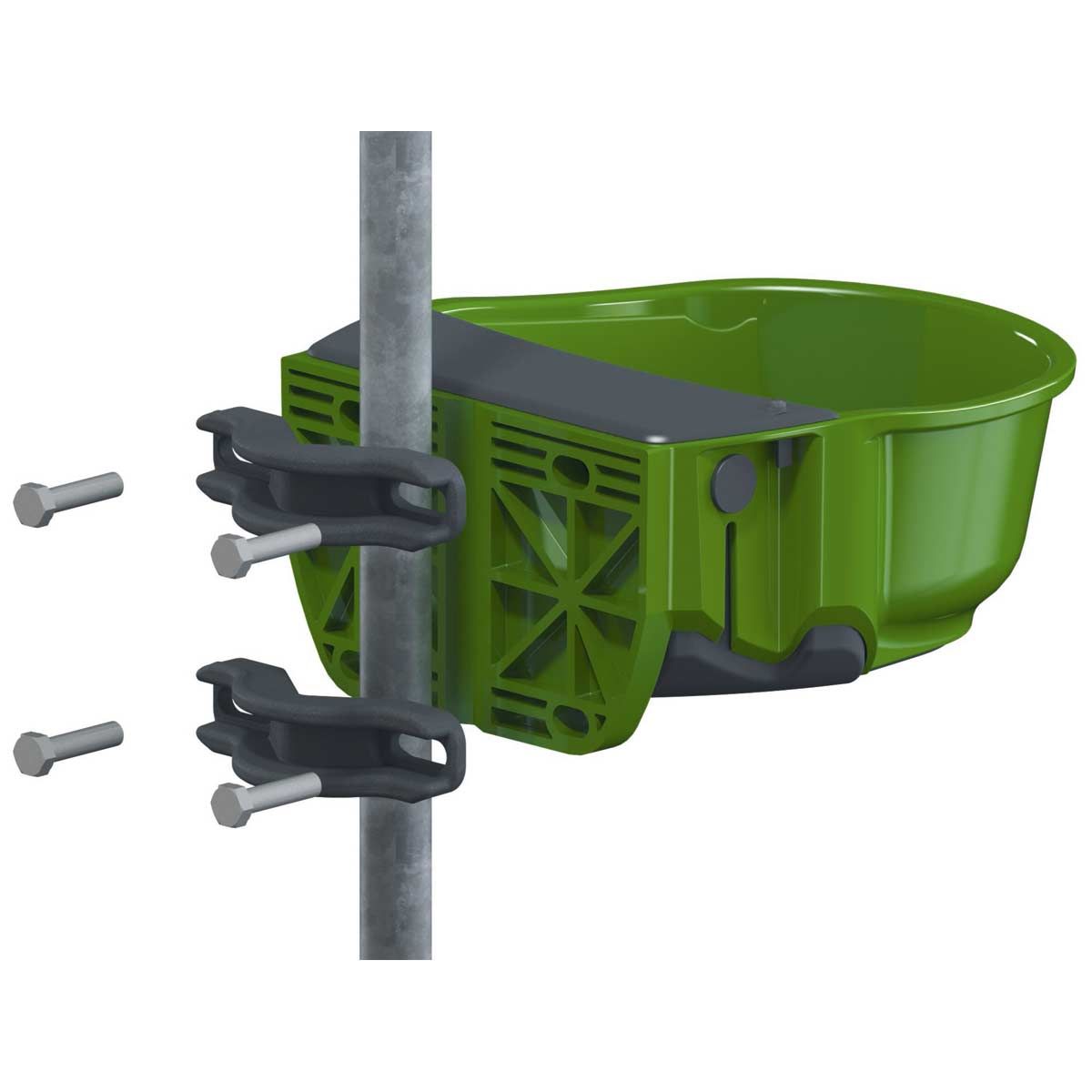

  • suitable for wall and pipe mounting
  • weight: 2.7 kg

Models:

  • drinking bowl with pipe heating, 73 watts, 24 volts
  • drinking bowl with pipe heating, 73 watts, 230 volts
  • drinking bowl without pipe heating, 31 watts, 24 volts
  • drinking bowl without pipe heating, 31 Watt, 230 Volt

Note: For the 24 V version a transformer is required (not included!)

Delivery:

  • 1x heatable float bowl SH30
  • 1x user manual

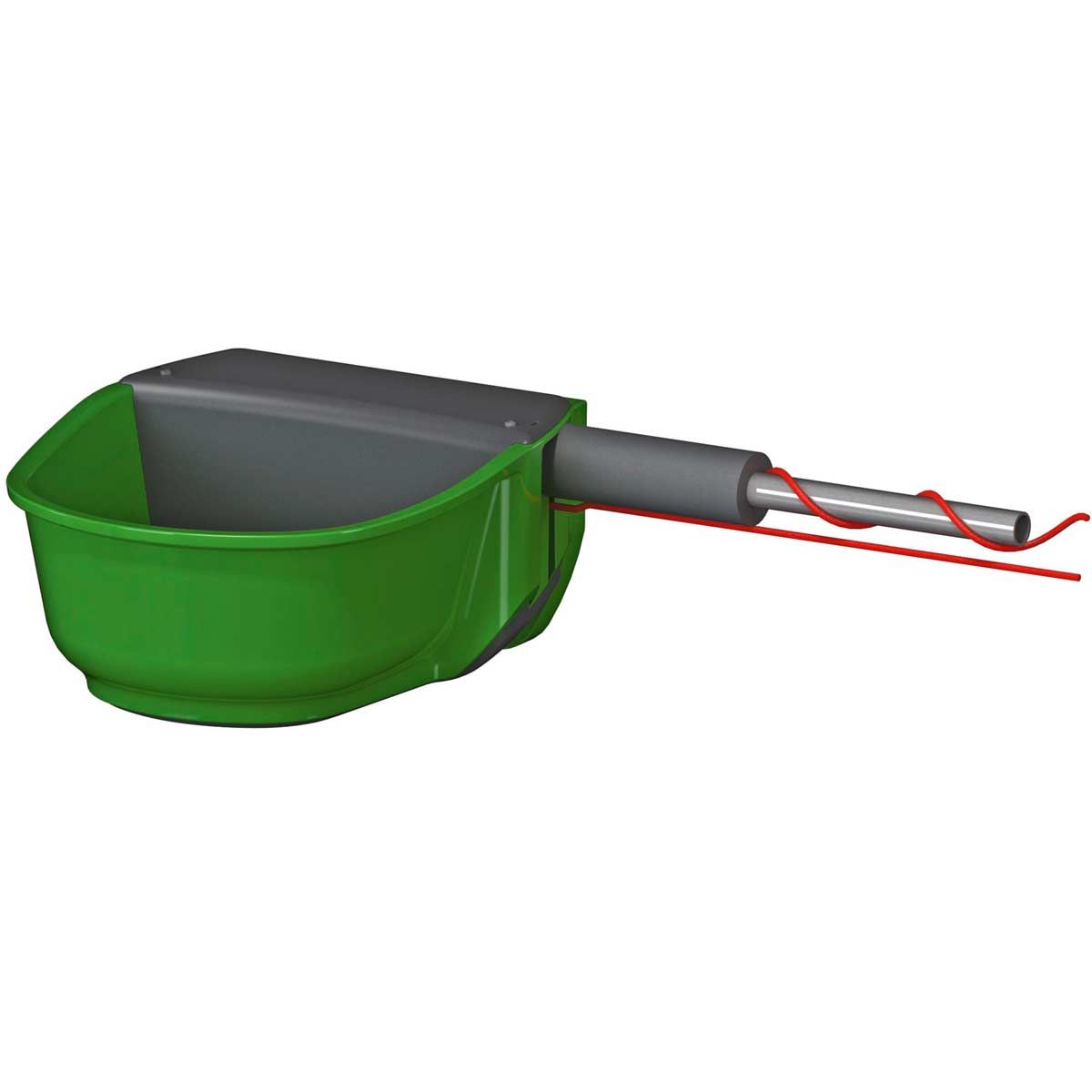

  • Optional: 1x pipe heating (heating cable for approx. 2 meters of pipeline)
Manufacturer "Kerbl"

Kerbl - Tradition Meets Innovation in Agriculture

Kerbl is not just synonymous with decades-long expertise in the field of animal accessories, but also for a deep commitment to Agriculture. As a globally operating company, Kerbl offers an extensive range that spans from agricultural products to equestrian and pet supplies, and even to barn, farmyard, and fencing Supplies. With over 50 years of success story in animal breeding and husbandry, Kerbl continuously strives to simplify the everyday tasks of farmers, breeders, and animal lovers through innovative Solutions. Experience the world of Kerbl - where tradition and progress go hand in Hand.

Country of origin: EU
Capacity: 73 W
Animal species: Cattle, Dog, Horse, Sheep
Material: Plastic
