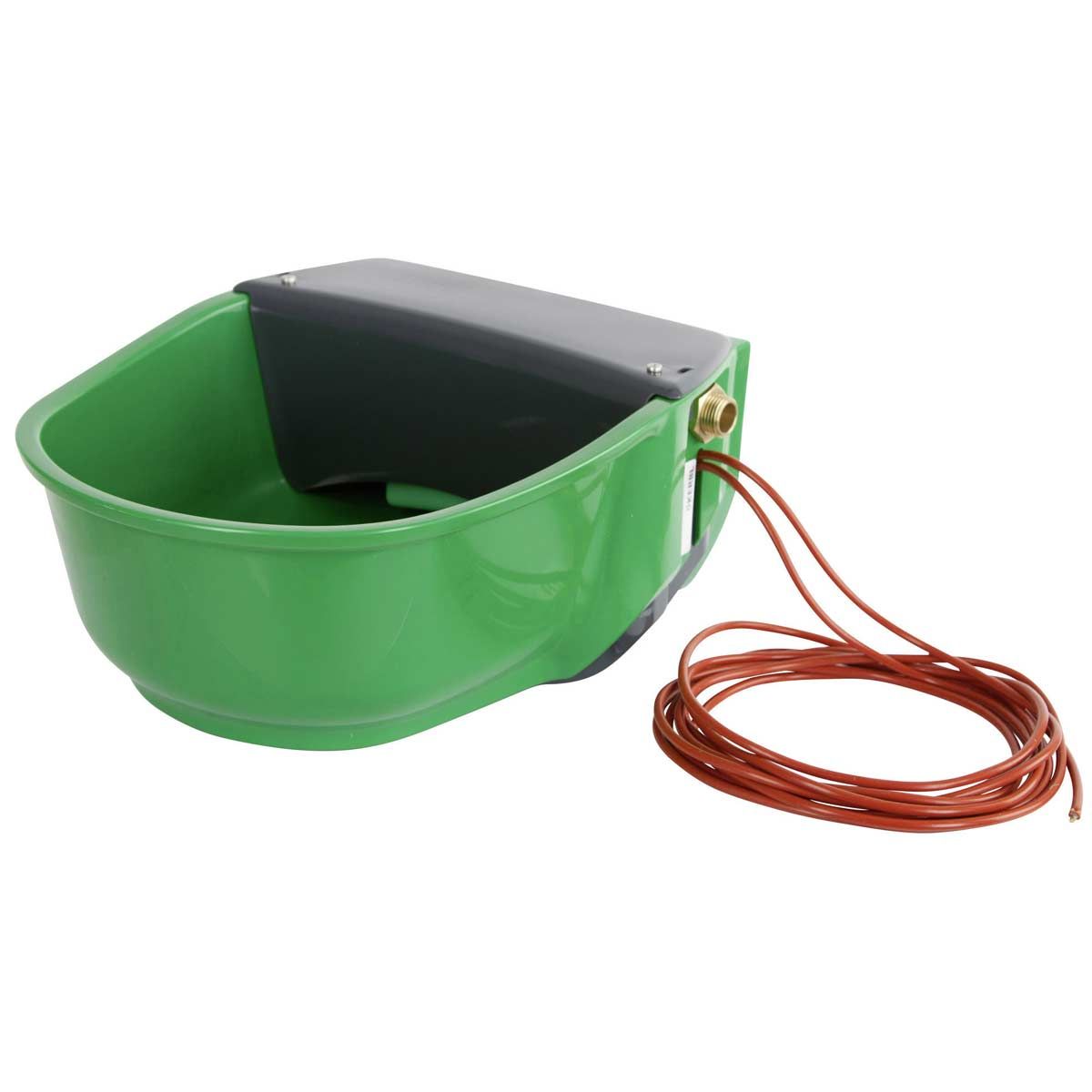

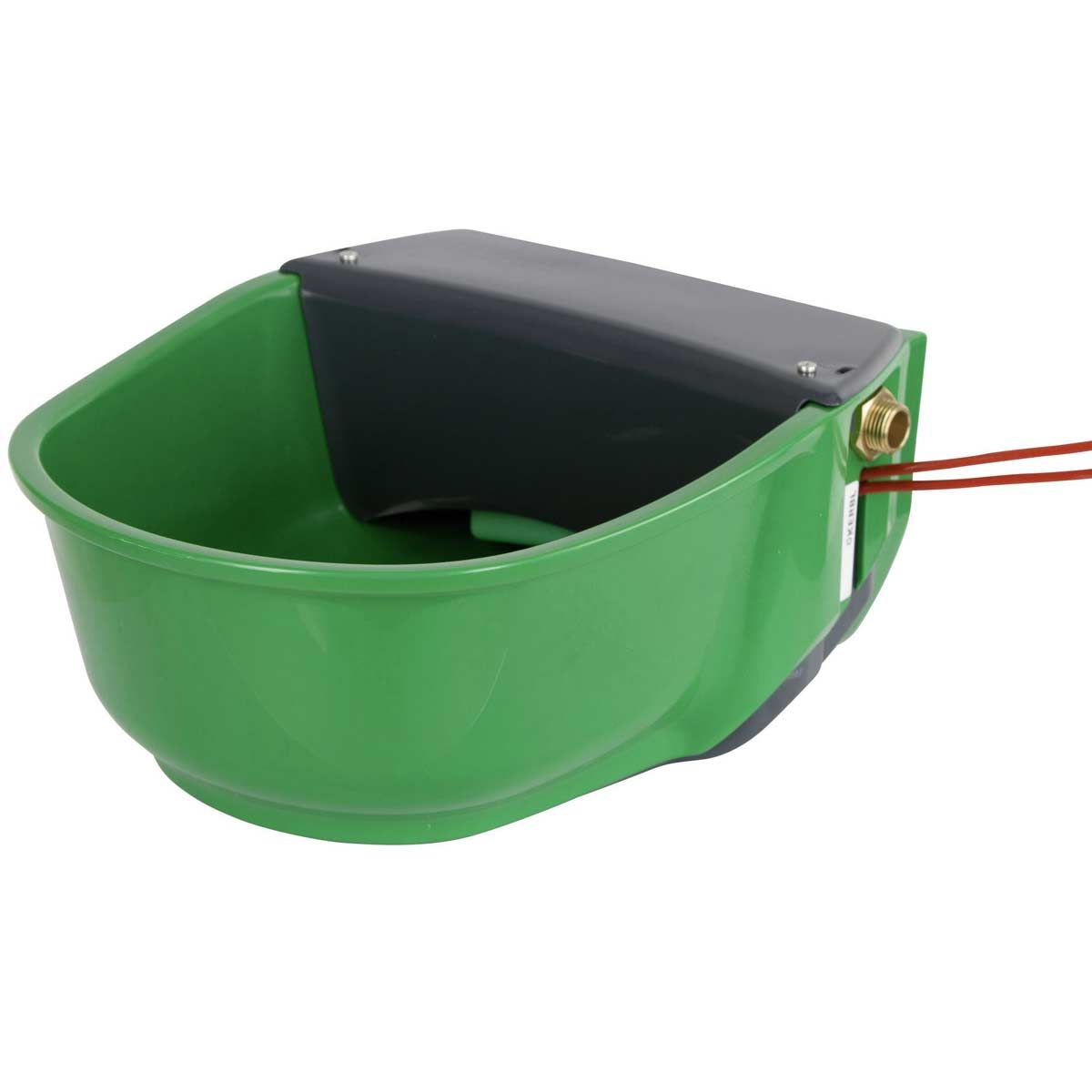

Heatable float drinking bowl SH30 - with integrated heating cable

The heated float bowl can be connected to high and low pressure.

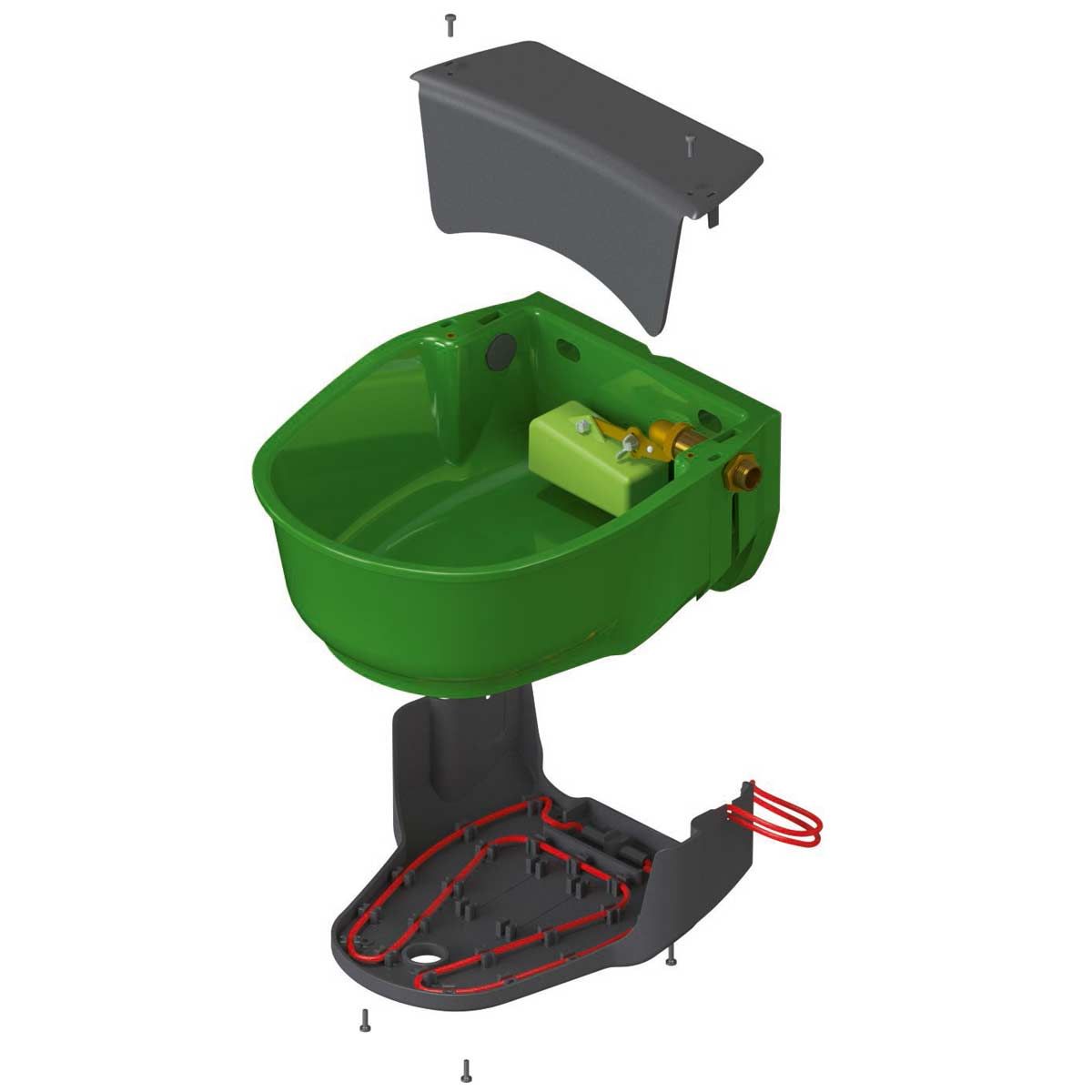

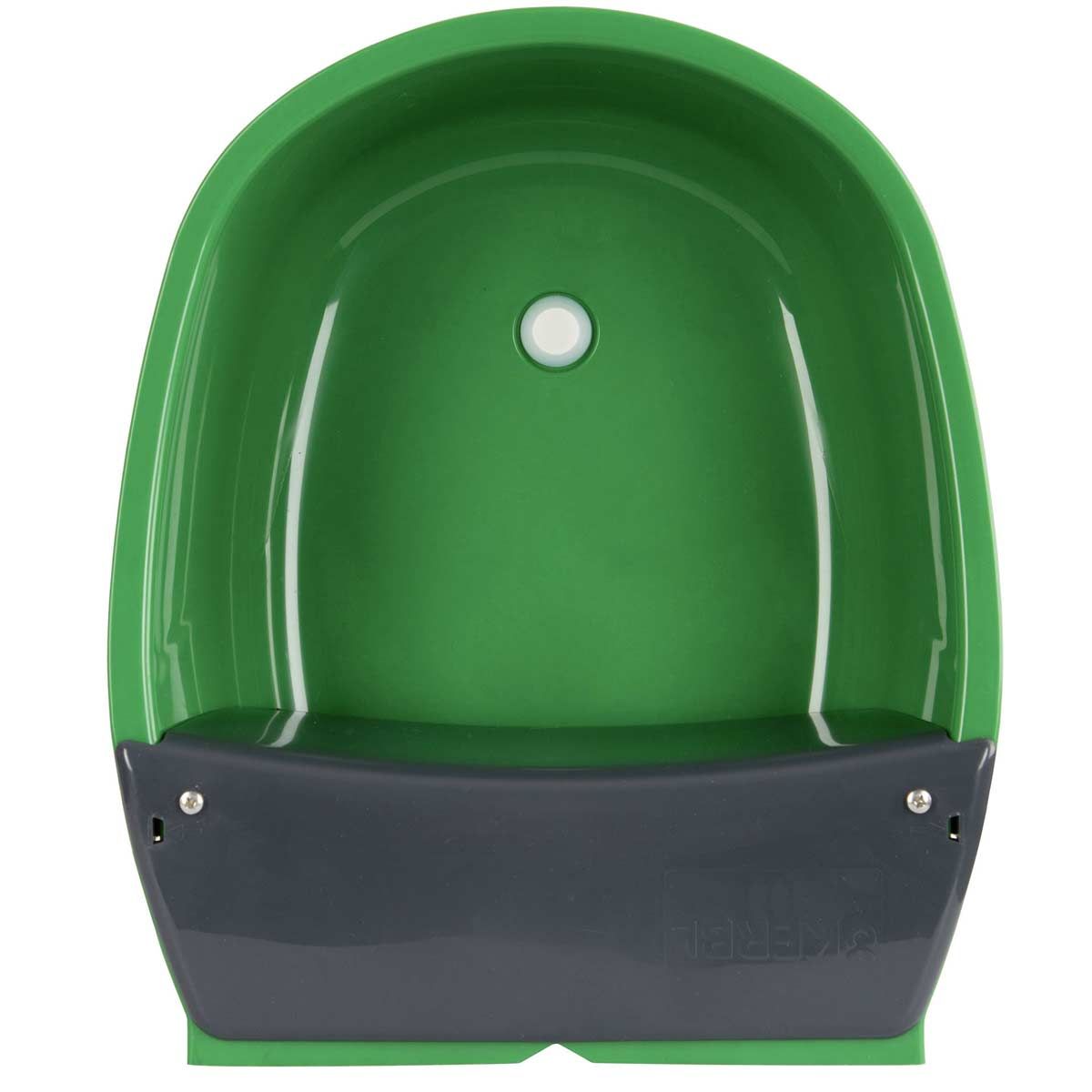

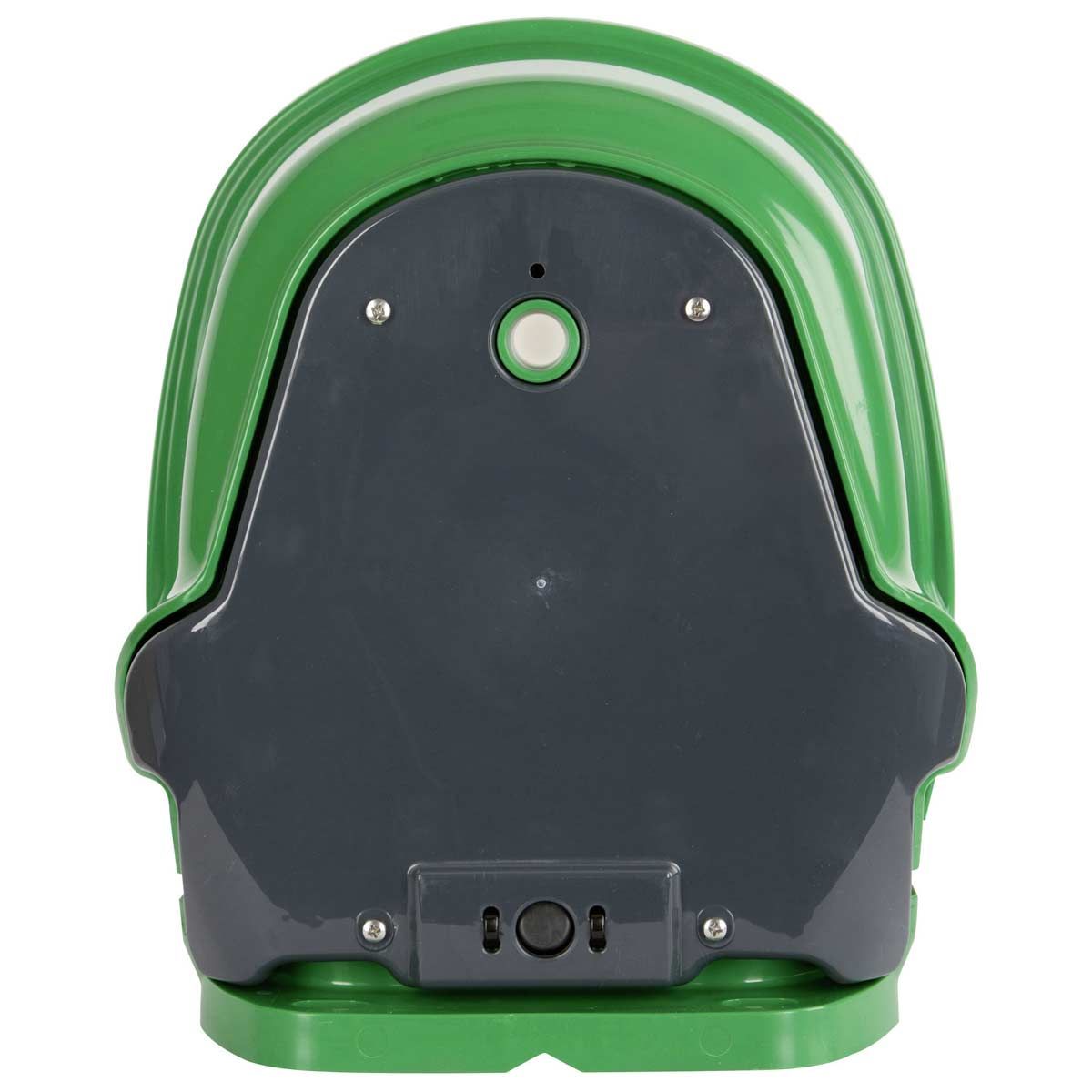

The drinking bowl SH30 is made of high quality plastic and contains an integrated, exchangeable heating cable. Thanks to the practical float valve, the horse and cattle drinker can not only be connected to a normal water pipe, but can also easily be connected to a water tank. The external frost protection thermostat also switches on at +5 ° C and switches off at approx. +13 ° C. The cover on the underside of the basin prevents heat from being released from the heating cable.

The valve cover with snap hooks of the heated animal drinkers ensures quick access and through the drain plug, the self-drains can be cleaned quickly and easily. The drinking bowl with float is suitable for circulation heating systems and has a water flow of 6.5 l / min. Kerbl's self-heating self-drawer has a ½-inch connection on the left and right and is suitable for pipe and wall mounting. The frost-proof float drier is available with two voltages (230 V or 24 V) and optionally with auxiliary pipe heating. The drinking bowl is frost-proof to about -15 ° C.

Overview:

  • drinking bowl made of high quality plastic (PP)
  • integrated frost protection thermostat (switch-on temperature approx. +5 ° C, switch-off temperature approx. +13 ° C)
  • heating cable easily exchangeable
  • suitable for circulation heating systems
  • valve cover with snap hook for quick access
  • volume: 5 l
  • water flow: approx. 6.5 l / min (2-3 bar)

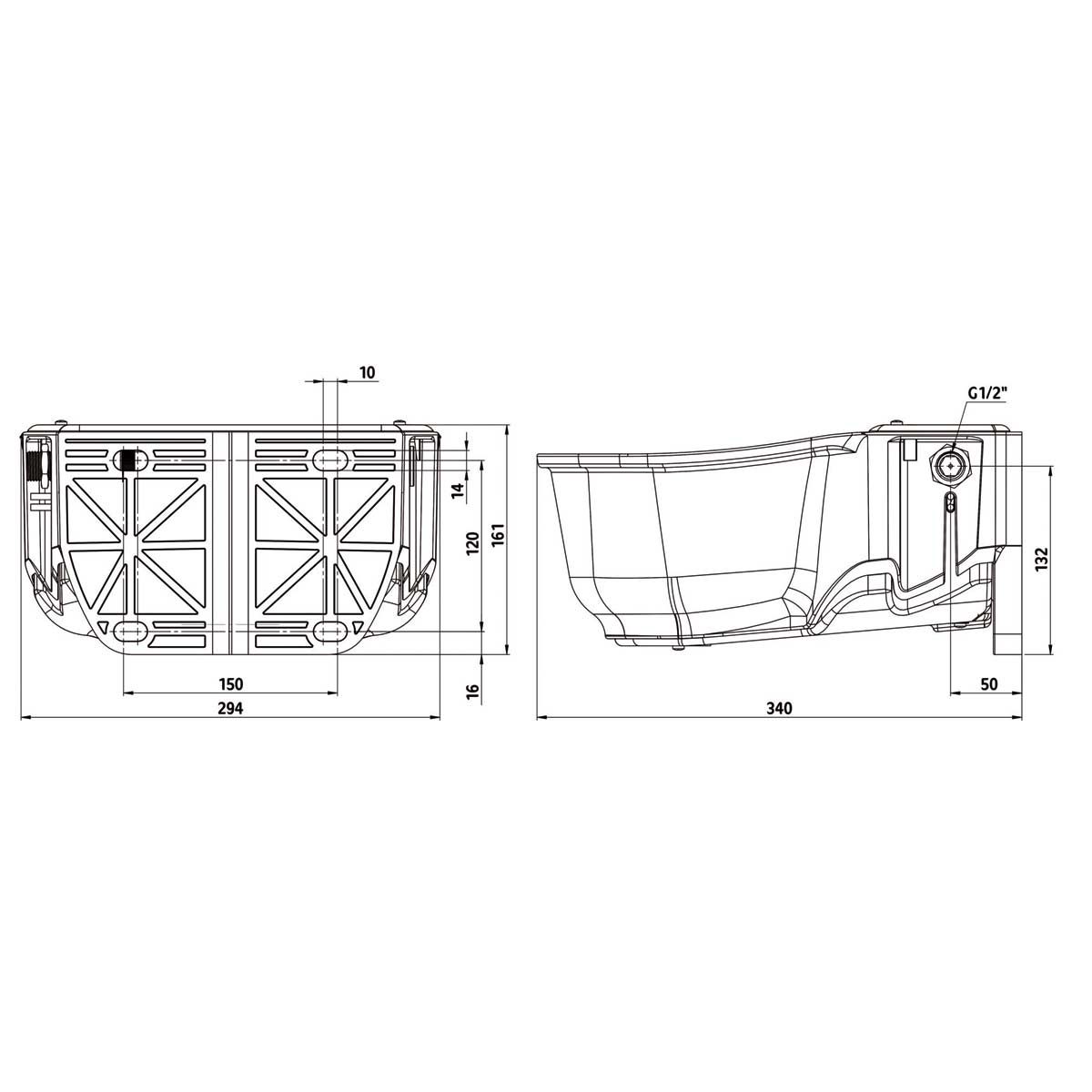

  • sater connection 1/2 "from left and right possible
  • incl. Drain plug for easy cleaning

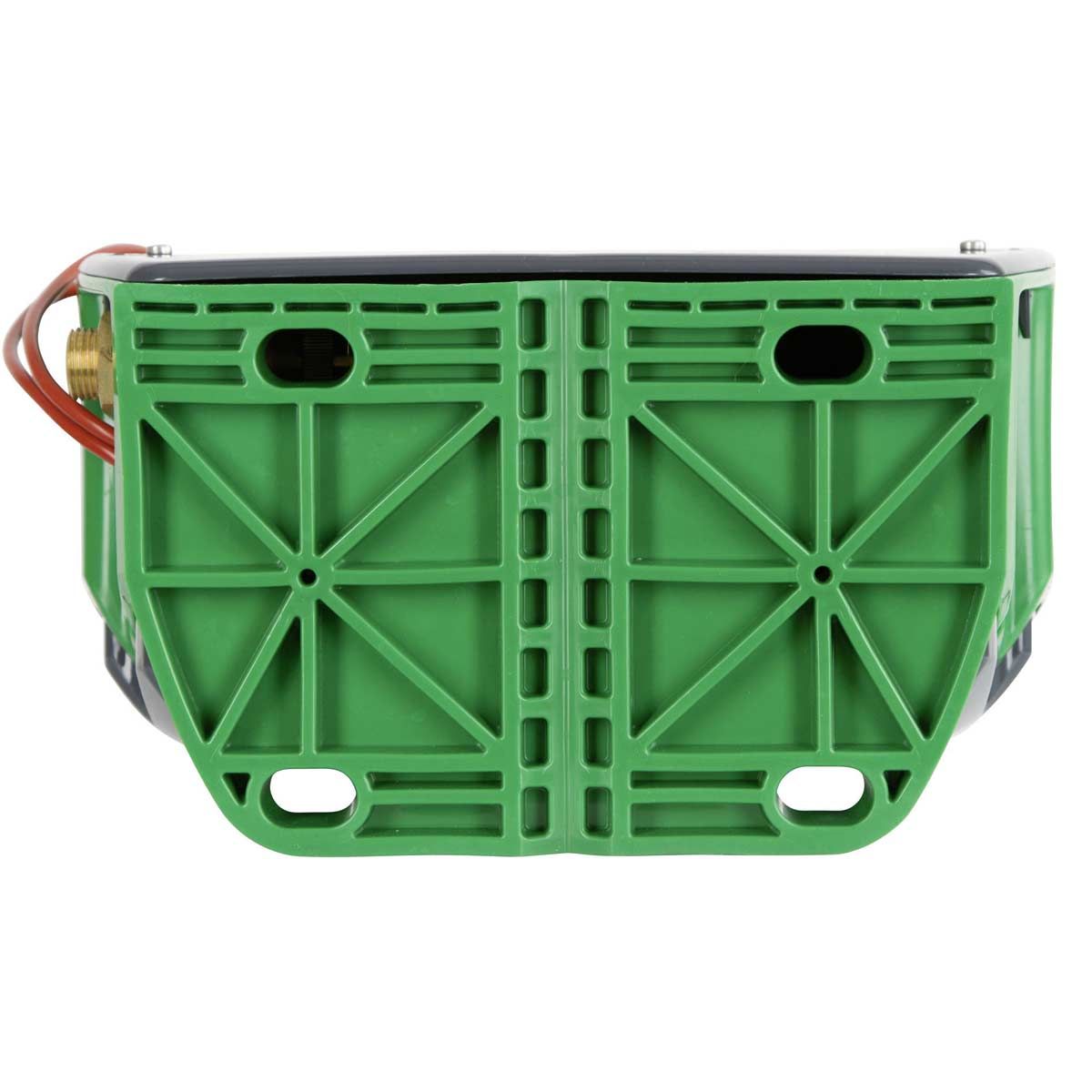

  • suitable for wall and pipe mounting
  • weight: 2.7 kg

Models:

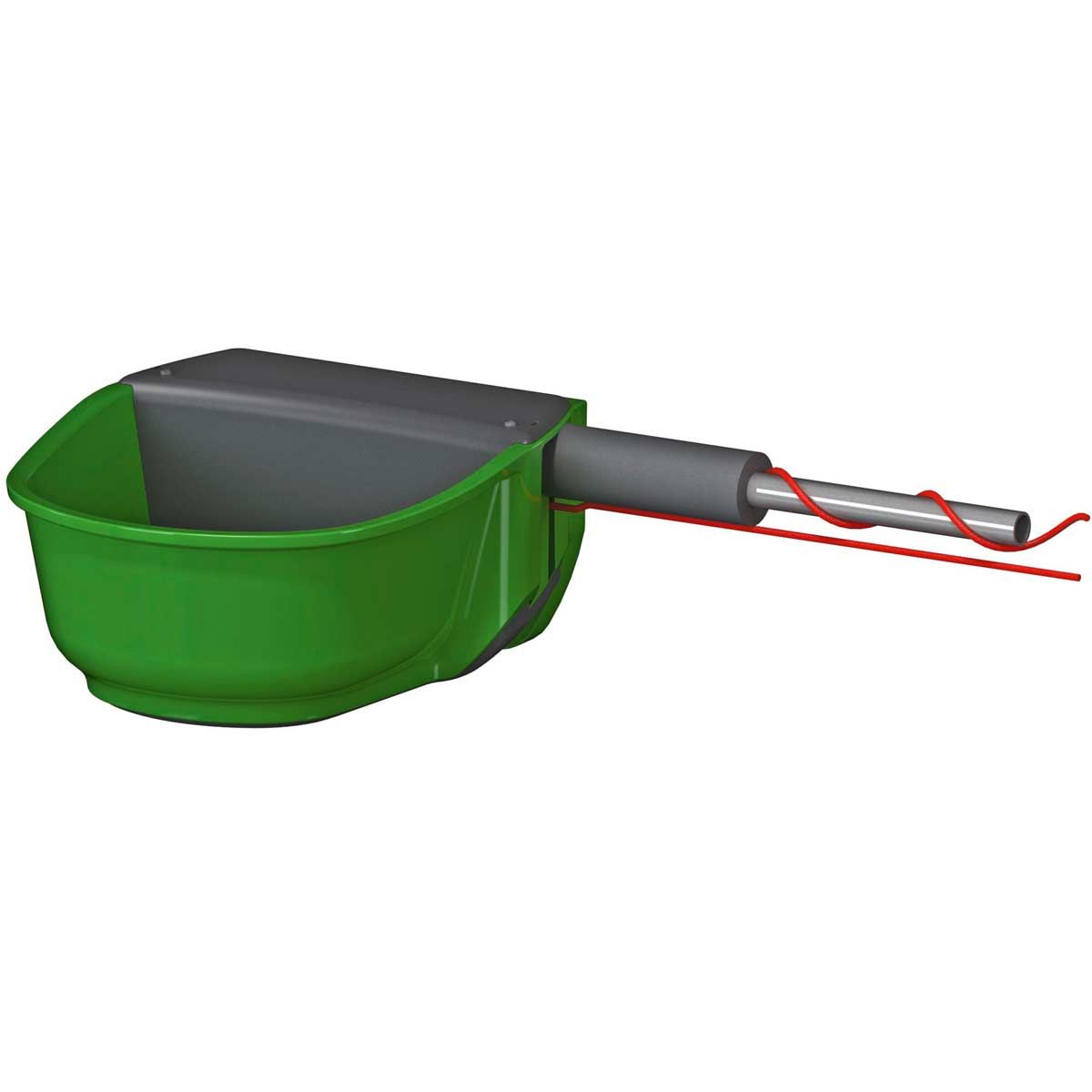

  • drinking bowl with pipe heating, 73 watts, 24 volts
  • drinking bowl with pipe heating, 73 watts, 230 volts
  • drinking bowl without pipe heating, 31 watts, 24 volts
  • drinking bowl without pipe heating, 31 Watt, 230 Volt

Note: For the 24 V version a transformer is required (not included!)

Delivery:

  • 1x heatable float bowl SH30
  • 1x user manual
  • Optional: 1x pipe heating (heating cable for approx. 2 meters of pipeline)
Country of origin: EU
Capacity: 31 W
Animal species: Dog, Horse, Cattle, Sheep
Material: Plastic
Data according to manufacturer. Errors and changes reserved.

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Kerbl combines over 50 years of experience with cutting-edge innovation to offer you high-quality and reliable agricultural products. Whether animal accessories, equestrian and pet supplies or solutions for stables and farms - Kerbl's comprehensive range covers every need. The brand stands for functionality and durability and helps you make your everyday life more efficient. Benefit from tailor-made solutions that impress with expertise and advanced technology.

Manufacturer information

Responsible person

Kerbl

    Choose accessories

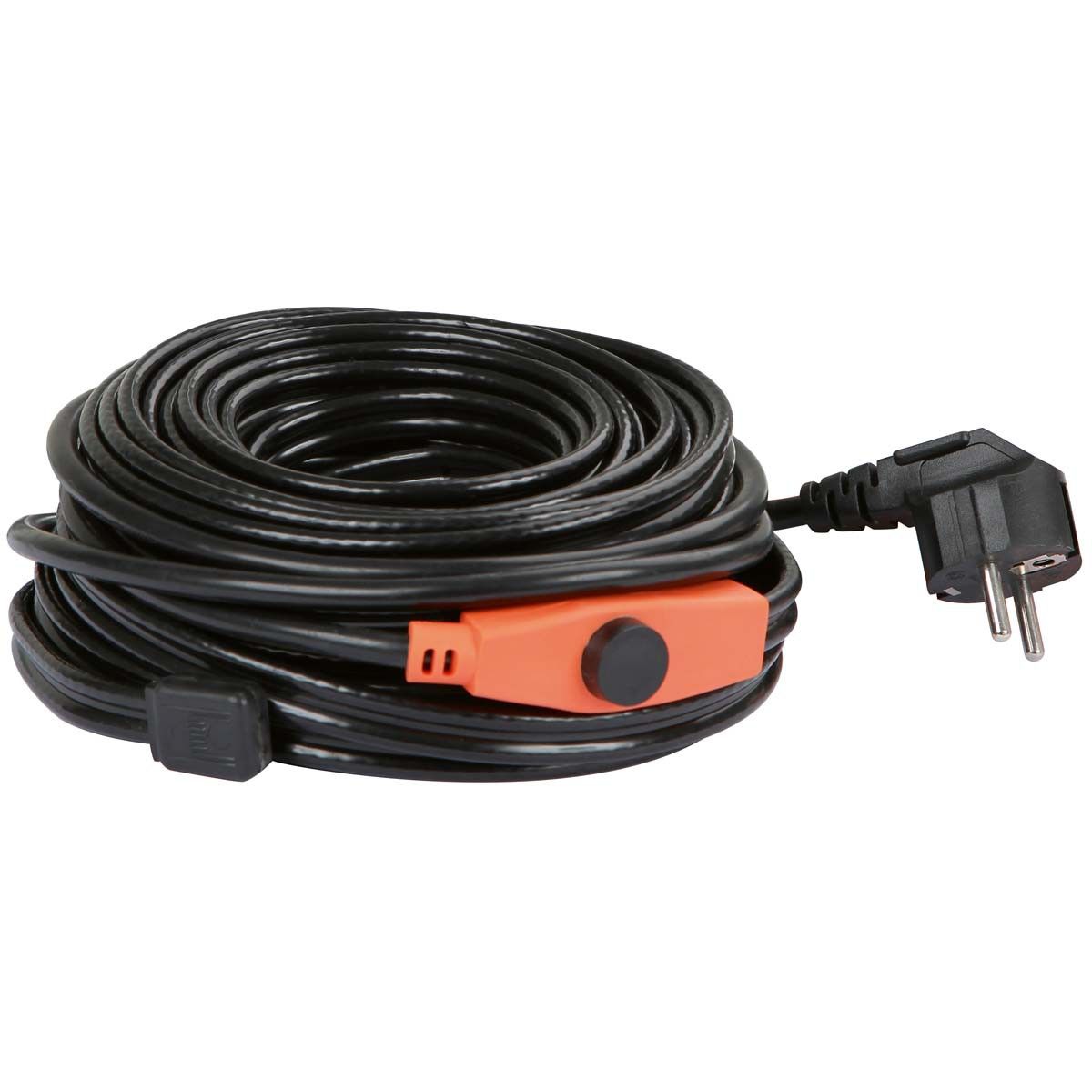

    Frost-protection heating cable with thermostat 230V
    Frost-protection heating cable with thermostat 230V
    Frost protection heating cable with thermostat 230 V Antifreeze heating pipe allows the water to flow in the winter. This antifreeze heating cable with thermostat keeps your water pipe up to max. -45 ° C frost-free. This heating pipe for watering bowls prevents the formation of birds. Protect the area that the animals can nibble on with an additional protection against the bite! This heating cable has an integrated frost protection thermostat (switch-on temperature approx. +5 ° C, switch-off temperature approx. +13 ° C) and is not suitable for heating pipes. For additional insulation do not insulate the thermostat! Overview of frost protection heating cable: Prevent freezing of water piping Thermostat in the heating cable switches on the cable automatically For heating the stub of drinking bowls keeps your water line frost-free to -45 °C  integrated frost-protection thermostat (switch-on temperature approx. +5 °C, switch-off temperature approx. +13 °C)  do not use on heating pipes when insulated additionally, please do not insulate the thermostat Do not mount where animals can reach!  IPX7 VDE tested What should be considered with 230 V heating cables: Always install the heating cable at the bottom of the pipe Water pipe must be earthed 230 V heating cables are ready to plug in and connect to a power supply with circuit breaker (RCCB 30 mA) Heating cables must not be shortened, already ordered in the correct length Rest lengths can be wrapped in turns around the pipe Do not bend the heating cable and set the max. Note bending radius of approx. 50 mm Heating cables can be attached to the pipe with insulating tape or with aluminum tape When used on plastic pipes, the pipe must be wrapped with aluminum tape before laying the heating cable Insulate the pipeline and the heating cable with insulation of min. 13 mm Install the thermostat of the heating cable in the coldest position of the pipe Thermostat may only be moderately insulated Do not use 230V heating cables in the biting area of ??animals Installation must be carried out in accordance with VDE0100 by a qualified specialist Do not mount unprotected in the bite area of ??animals - use only 24 volt heating cables! Heating cable must not be shortened! Length: 1 m, Watt at 0 ° C = 16 W 2 m, watts at 0 ° C = 32 W 4 m, Watt at 0 ° C = 64 W 8 m, watts at 0 ° C = 128 W. 12 m, Watt at 0 ° C = 192 W 14 m, Watt at 0 ° C = 224 W 18 m, Watt at 0 ° C = 288 W 24 m, Watt at 0 ° C = 384 W 37 m, watts at 0 ° C = 592 W. 49 m, watts at 0 ° C = 784 W. Delivery: 1x frost protection heating cable with thermostat, 230 V

    €19.99*

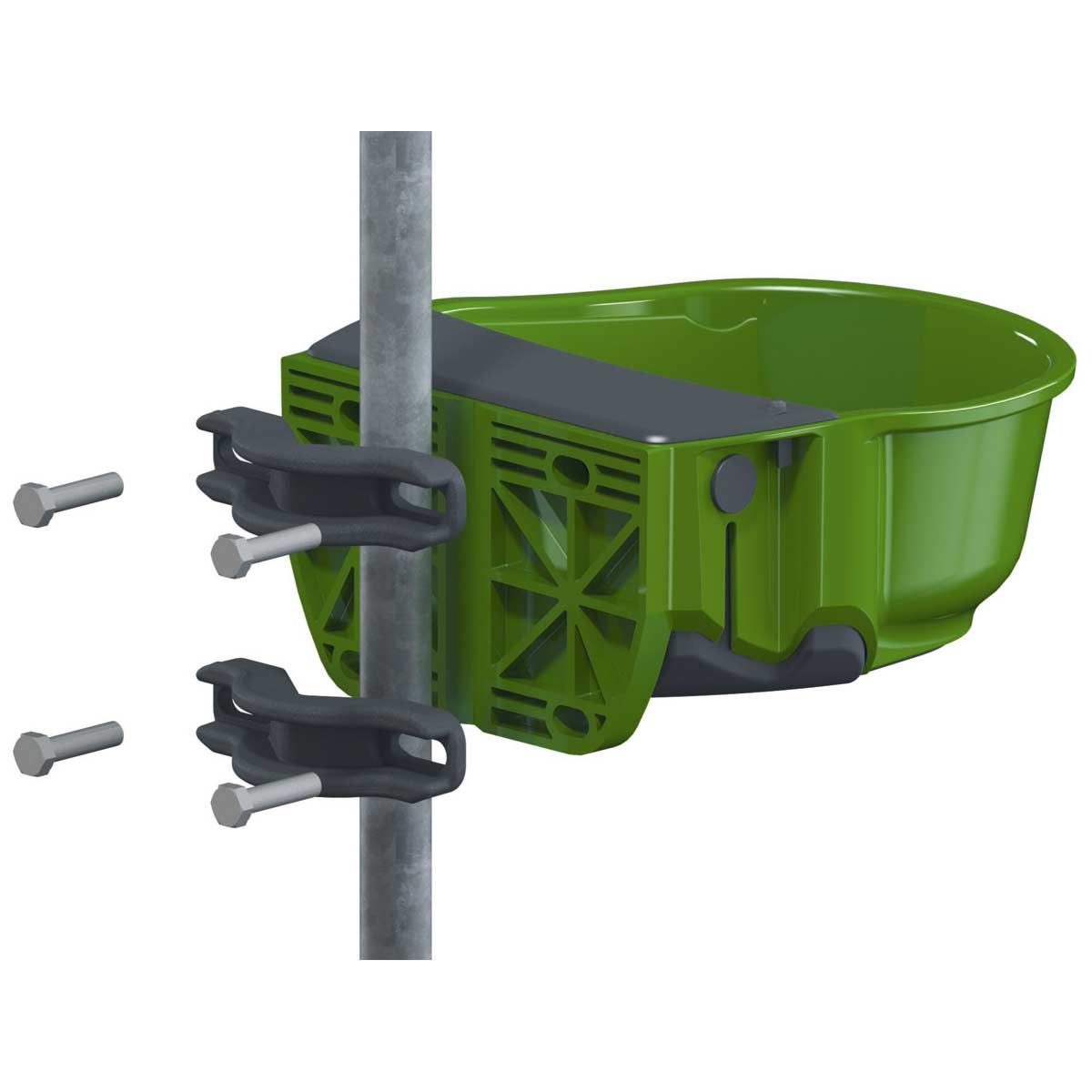

    Mounting brackets for water bowls, in pairs
    Mounting brackets for water bowls, in pairs
    Pipe mounting bracket, in pairs - for Kerbl water bowls With the mounting bracket, the potions can be attached directly to the pipe! The drinking basin can be attached directly to the pipe with the mounting brackets. Due to the different screws included in the scope of supply, the drinking bowl can be attached to pipes with a diameter of 30 to 120 mm. The required nut and washers are included. Overview: mounting bracket, 2 pieces cast iron, enamelled suitable for Kerbl potions diameter from 30 to 120 mm easy screw mounting Delivery: 2x mounting bracket 4x screws, 120 mm 4x screws, 80 mm 4x screws, 50 mm 4x washers 4x stop nuts

    €24.99*
    Replacement low pressure float valve
    Replacement low pressure float valve
    Replacement float valve - for conversion to low pressure Overview: float valve for low pressure connection 1/2 "brass connection water flow 4 liters / min Suitable for the models: S30 S190 S195 S1090 SH30 Drinking trough with float valve Delivery:1x float valve low pressure

    €15.99*

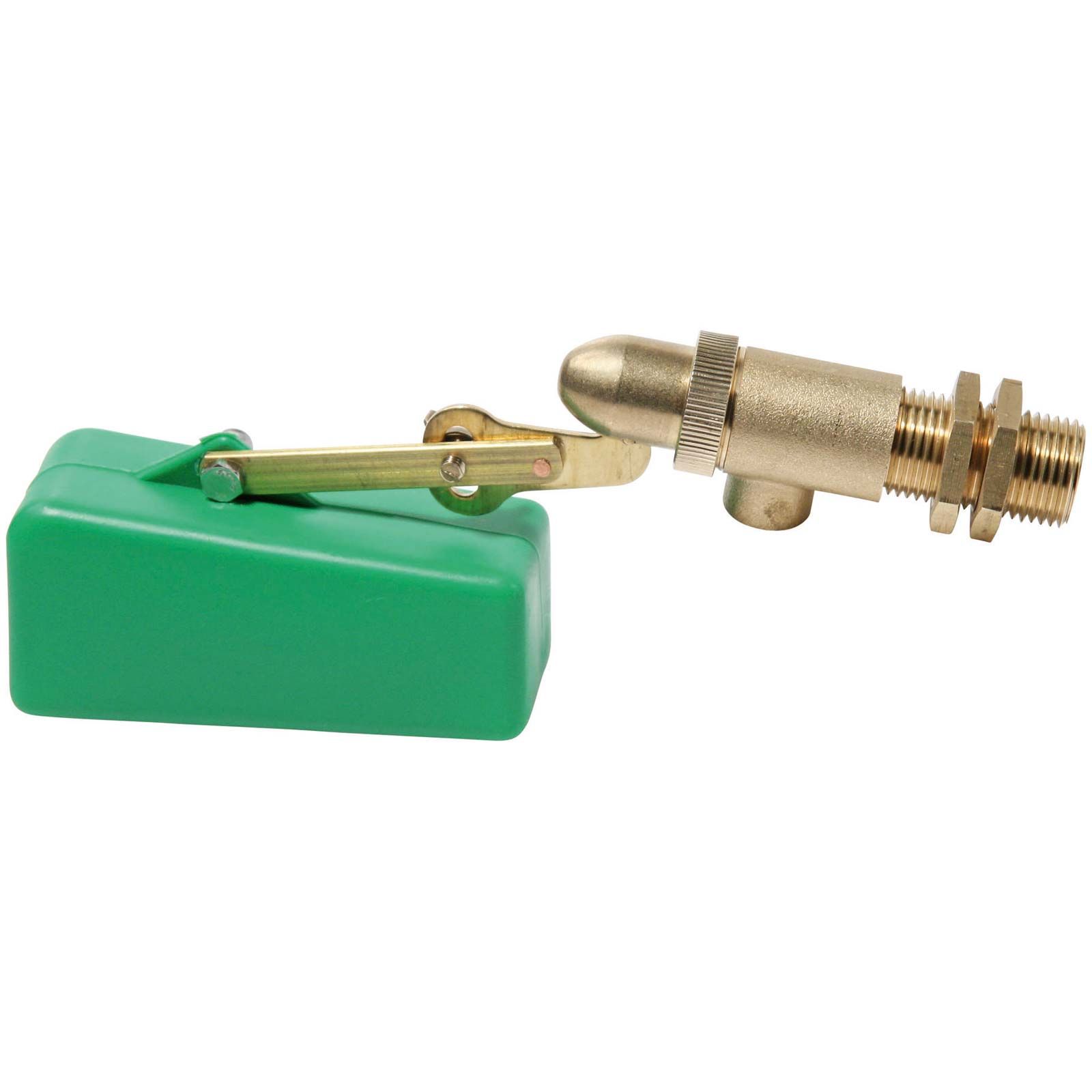

    High pressure replacement float valve
