Kerbl Stainless Steel Tipping Drinker, Wall or Floor Mount, 30 L

Kerbl Stainless Steel Tipping Drinker – hygienic watering made simple

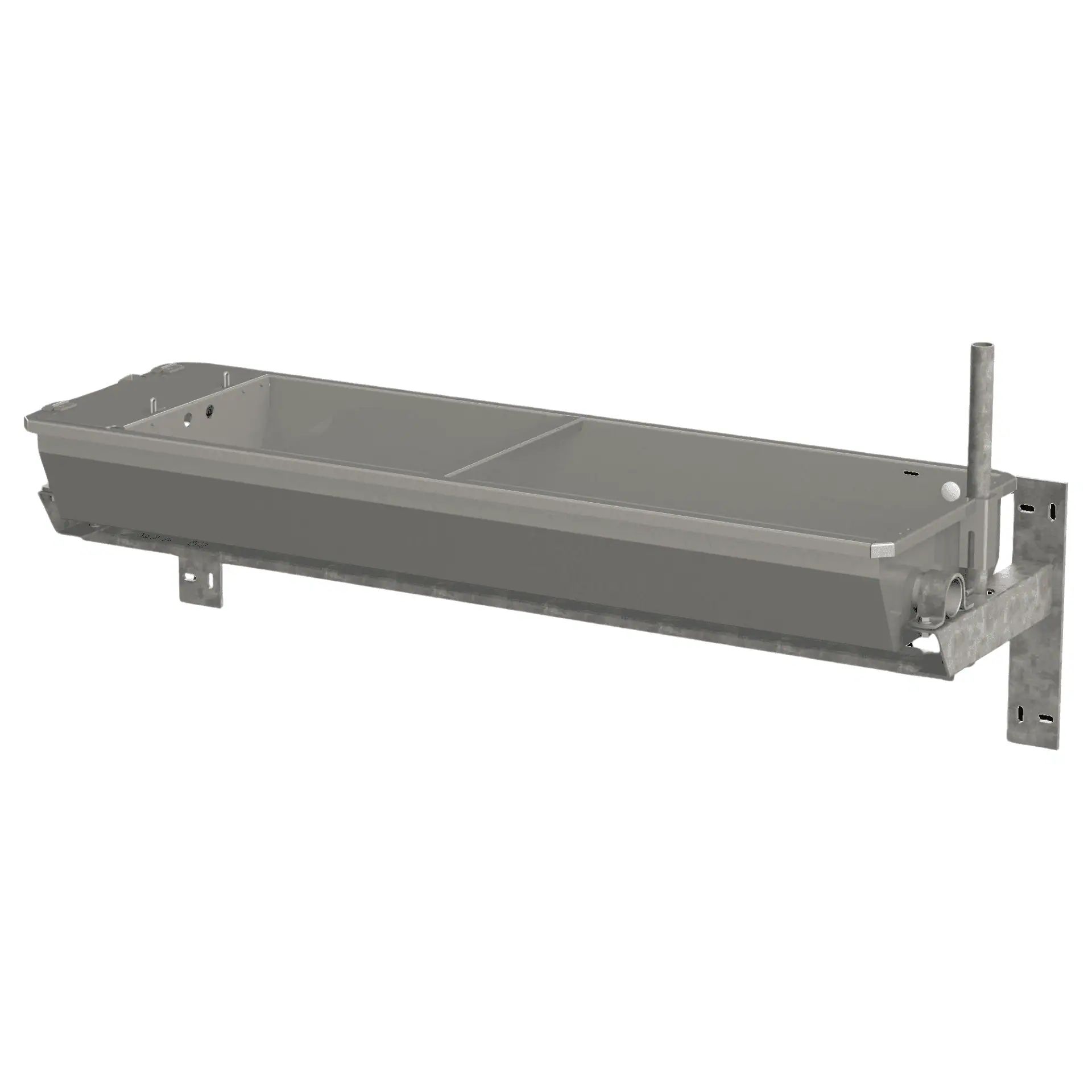

The stainless steel tipping drinker from Kerbl keeps drinking water clean in cattle and horse housing. The flat trough is made from rust-free stainless steel, built for daily use and easy to keep hygienic. Thanks to the practical tilting mechanism, you clean the trough in seconds without extra tools.

The tilting mechanism with foldable float cover makes cleaning fast and hygienic – a real advantage in daily barn routines. The float valve with 1/2“ connection keeps the water level constant and can be used up to 6 bar without a pressure reducer. Water inlet is possible from the left or right, so the drinker fits flexibly into existing pipework. The galvanised wall bracket and base frame add extra corrosion protection for long-term use.

Overview:

• Rust-free stainless steel for long service life and hygienic watering
• Tilting mechanism allows quick cleaning without tools
• Foldable float cover gives easy access to the valve
• Usable up to 6 bar without a pressure reducer – flexible installation
• Water inlet from left or right – adapts to your pipe layout
• Galvanised wall bracket and base frame protect against rust

Technical Data:

• Trough material: rust-free stainless steel
• Bracket/frame material: galvanised steel
• Connection: 1/2“ float valve
• Flow rate: approx. 30 l/min at 3 bar
• Maximum operating pressure: 6 bar (without pressure reducer)

Scope of Delivery:

1x Kerbl stainless steel tipping drinker (as per variant)
1x galvanised wall bracket or floor frame (depending on variant)

FAQ:

Can I mount the drinker on both the wall and the floor?
No, you choose the matching version at purchase – either with wall bracket or with floor frame.

How do I clean the drinker?
Thanks to the tilting mechanism and foldable float cover, you simply tip the trough and clean it without dismantling.

What water pressure is allowed?
The drinker can be used up to a maximum of 6 bar without a pressure reducer.
