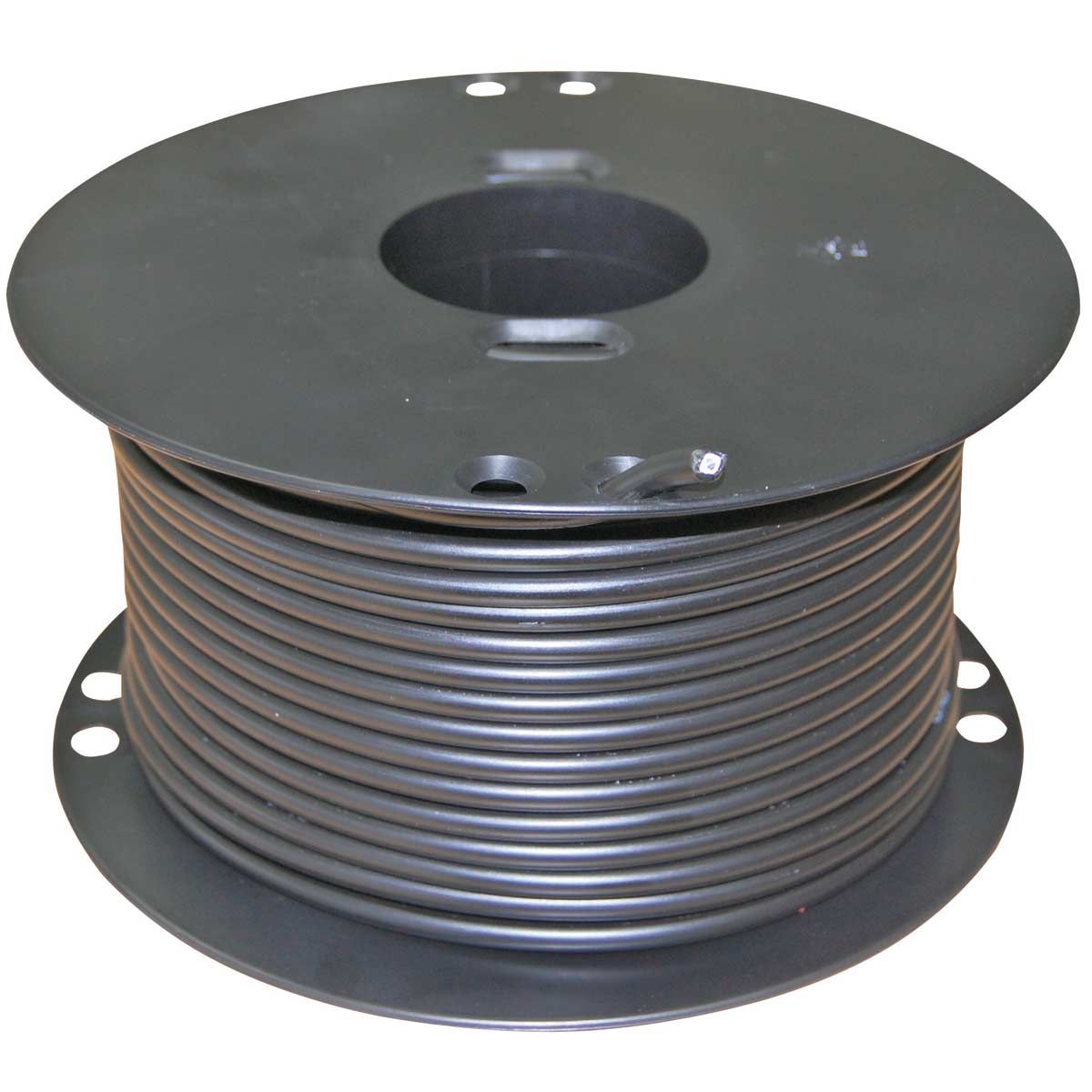

High voltage underground cable 1,6 mm 25 m

High voltage fence and underground cable - double insulated with 1.6 mm conductor diameter

Double-insulated, high-voltage underground cable to connect the fence to the fence and earth pile.

This underground cable is optimally suited for above and below ground connection of fencing equipment to the fence and earth pile.
It serves as a high voltage, fence and underground cable and provides the ideal connection both above ground and underground. This double-insulated, high-voltage cable with galvanized steel wire core provides the ideal connection both above ground and underground

Tip: It is essential to lay the underground cable in a plastic empty pipe to prevent damage to the cable! From a fence supply length of more than 100 m, a cable with a core diameter of 2.5 mm should be selected!

Overview:

• for fence and earth supply lines
• ideal for fixed fence systems
• Core 1.6 mm double insulated
• for above and below ground power supply at gates
• for above and below ground connection from the device to the fence and earth pile

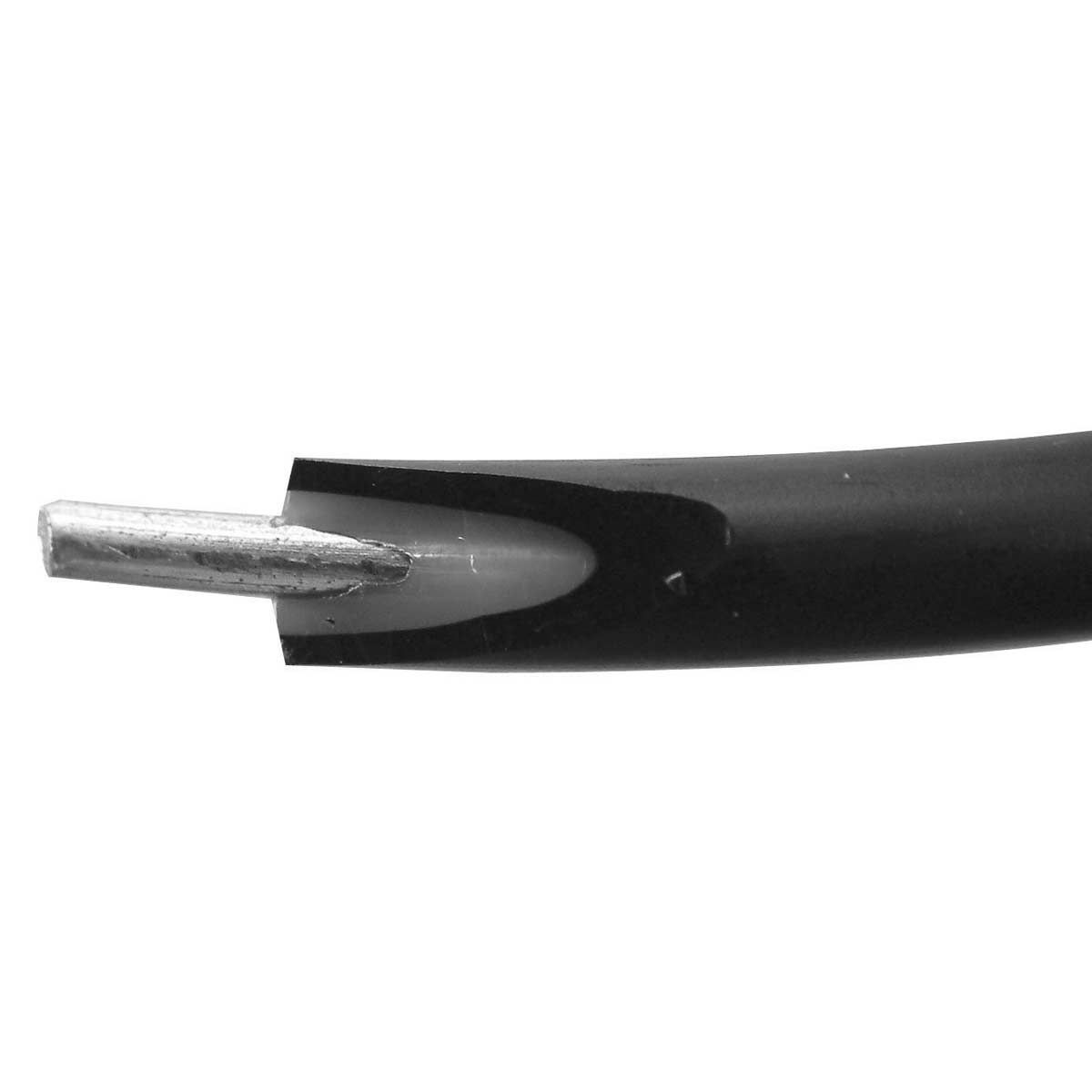

• Ø 1.6 mm steel wire core

Dimensions:

• Conductor diameter: 1.6 mm
• Conductor cross section: 2.0 mm²
• Outer diameter: 6.0 mm
• Resistance ohms / m: 0.070
• Length: 25, 50, 100 m

Delivery:

• 1 x high voltage underground cable core 1.6 mm (in the selected length)
