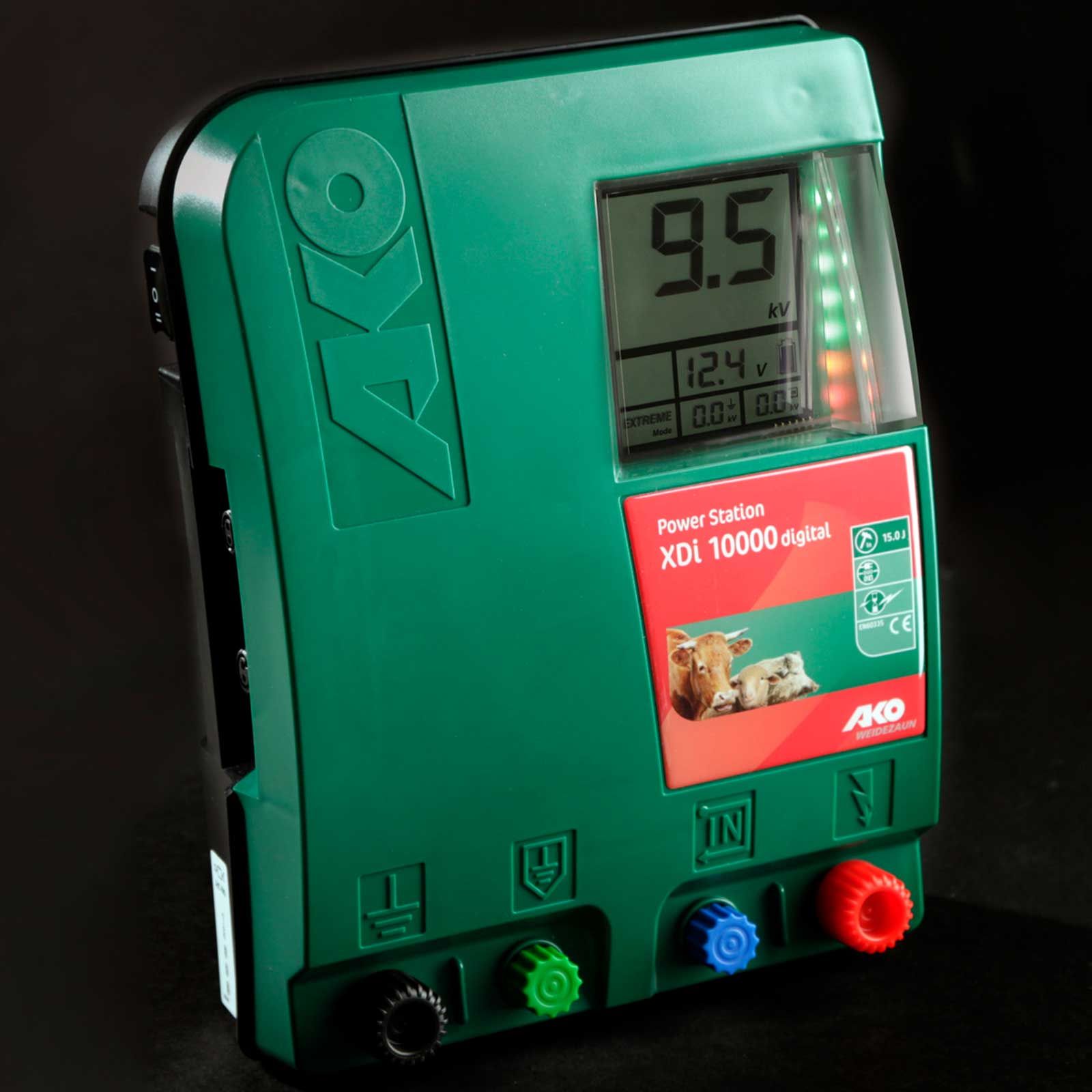

AKO Power Station XDi 10000 digital DUO electric fence energiser, 15 joules

AKO DUO Electric Fence Power Station XDi 10000 digital

Strength, safety and flexibility characterize this Duo energizer - for robust animals such as bulls, cattle and sheep.

The AKO Energizer Power Station XDi 10000 digital is an extremely powerful 12/230 volt DUO energizer for long fences with strong vegetation. The 10,000 volt impact strength and powerful 15 Joule impact power allow a particularly high Hütesicherheit. The animals will respect the fence with this device and also vegetation has no chance with the strong fencer. The Power Station XDi 10000 digital energiser can be operated with mains connection, battery or a solar system and is easy to operate. The device has an extra large, permanently lit digital modern display. The LED bar graph display for quick detection of the current fence condition and monitoring of the device from a distance.

The hybrid energizer has a fence pulse optimally adapted to the fence load; The highest hatching safety with minimum power consumption by AKO-Powertronic.We recommend the powerful fences Energizer XDi 10000 for long fences up to 80 km, but it is also suitable for very long fences up to 300 km in optimal conditions. The two selectable strengths make it possible to guard different species of animals. Both pigs, horses, sheep, deer and cows are optimally protected with the device, but also robust animals such as wild boars, goats and cattle are no problem.

The Power Station XDi 10000 digital is a small powerhouse, which shines with an outstanding price-performance ratio.

Overview:

• for robust animals such as bulls, cattle, sheep and for game defense
• recommended solar module: 375999 (100 W)
• extremely high output voltage, even under heavy load

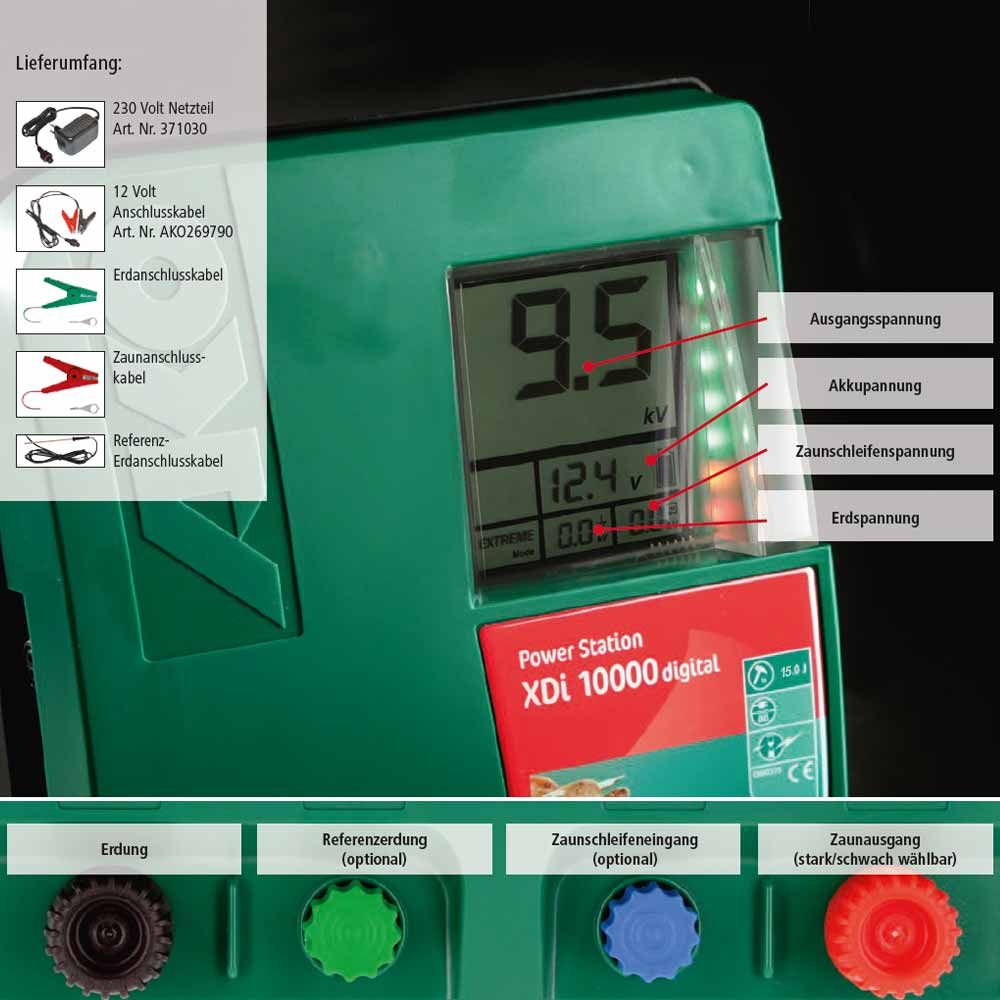

• extra large, clear, permanently illuminated digital display
• LED bar graph display for quick detection of the current fence condition and monitoring of the device from a distance
• Fence impulse optimally adapted to the load of the fence, maximum protection against hatching with minimum power consumption by AKO-Powertronic
• Microcontroller controlled
• high security according to the latest safety standard
• Solar support possible
• High / Low mode - thus also ON / OFF switchable
• Including fence and ground connection cable, 230 volt power supply and 12 volt connection cable
• Suitable for pasture fences with tape, strand, rope and for willow nets

Technical data:

• Max. Voltage: 10,000 V
• Voltage at no-load: 9,000 V
• Voltage at 500 Ohm: 7,200 V
• Max. Charging energy: 15 J
• Max. Discharge energy: 10 J
• Theoretical fence length: 300 km
• Max. Fence length without vegetation: 80 km
• Max. fence length Fence length with medium vegetation: 18 km
• Max. fence length Max. fence length with high vegetation: 10 km
• Power consumption: 240 mA - 700 mA
• Required number of 1 m ground stakes: 5 pcs. or 2 m ground stakes: 3 pcs
• Suitable for willow nets up to: 1.75 km
• For these species: horse, bull, cattle, sheep, goat, wild boar, wolf

Delivery:

1x AKO Power Station XDi 10000 digital DUO Pasture Fence Device, 15 Joule
1x Fence connection cable
1x Earth connection cable
1x Connection cable 12V
1x Power adapter 230V
1x Instruction manual
