AKO Tape Coupling up to 40mm Screwable, 3 Connectors

Reliable tape coupling for stable electric fence connections

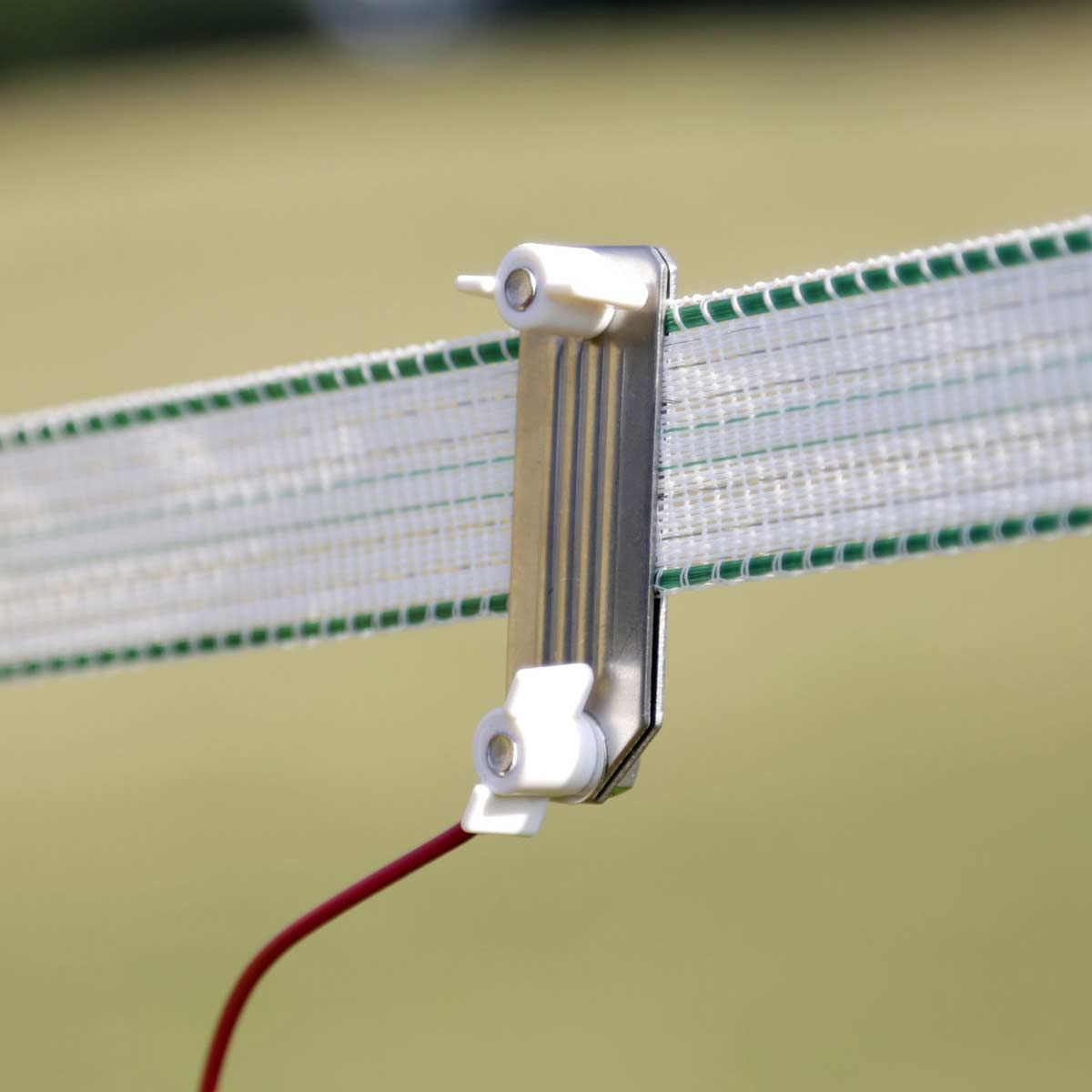

The AKO tape coupling connects your energiser safely to the fence tape or links several tape rows together. This screwable coupling made from three stainless steel clamping plates creates a mechanically and electrically flawless connection for tapes up to 40 mm wide – with no risk of rust.

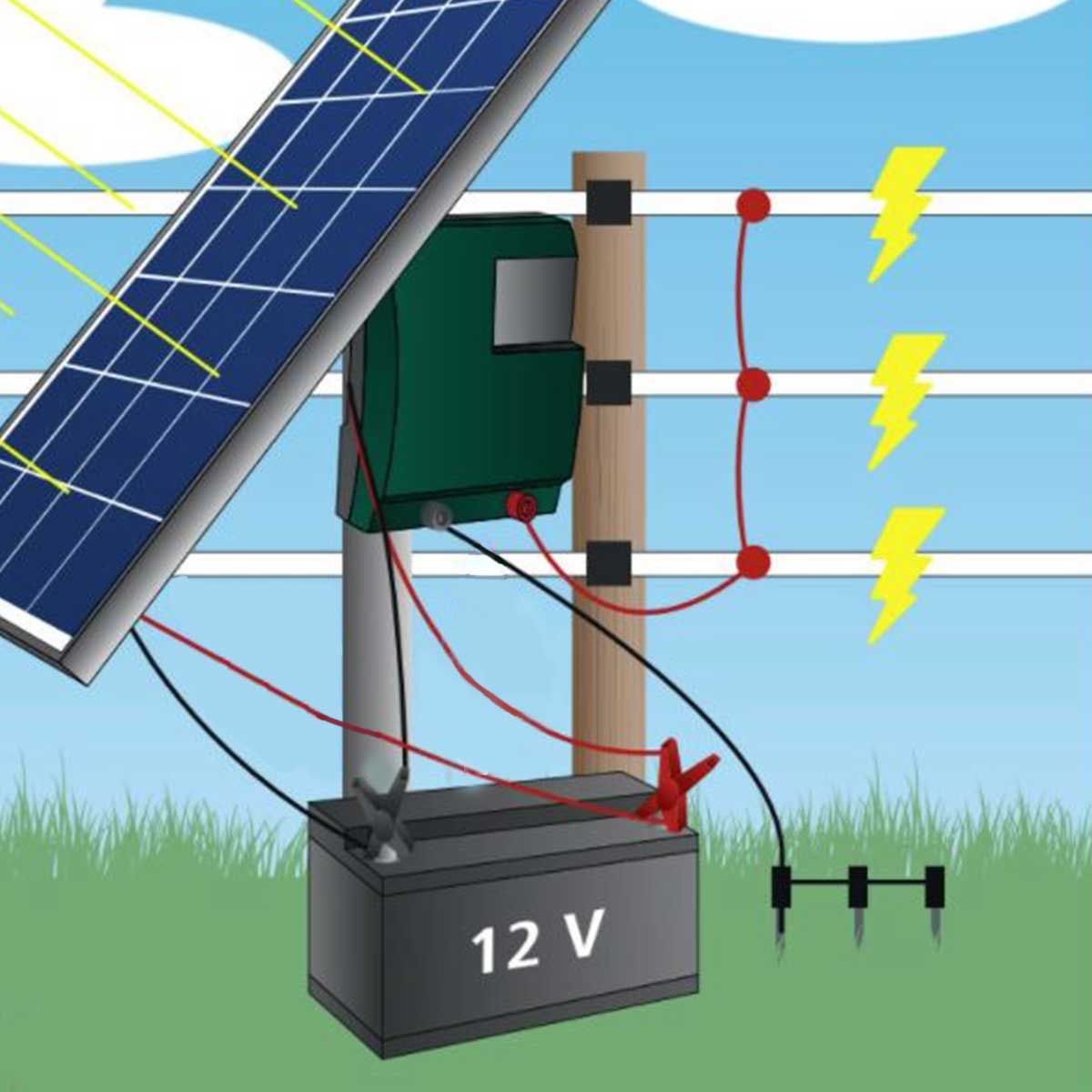

Connecting the individual conductor rows keeps a constant voltage across the whole fence line. Fit connecting cables at regular intervals of 200–400 m, for example at the fence start, fence end or corners. Place the coupling close to a fence post so the conductor material doesn't sag. A practical tip: always join fence tapes with a proper coupling rather than tying a knot – a knot cannot guarantee contact between all conductor wires and will interrupt the current flow.

At a glance:

• Simple assembly, easy handling
• Robust, resilient connection
• Practical fastening via wing screw
• 3 stainless steel clamping plates
• For wide tapes up to 40 mm
• Rust-free stainless steel tape connection

Technical data:

• Cable length: 2 x 60 cm
• Clamping plate material: stainless steel
• Suitable for tape widths up to 40 mm
• Weight: approx. 0.17 kg

Scope of delivery:

1x tape coupling

Questions & Answers:

How often should I fit connecting cables on my fence?
Ideally every 200–400 m, plus at the fence start, end and corners.

Can I just knot fence tapes together instead of using a coupling?
No, a knot cannot guarantee contact between all conductor wires and may interrupt the current – always use a proper coupling instead.

Where's the best place to fit the tape coupling?
Directly next to a fence post, so the conductor material doesn't sag.
