Picture similar to product
AKO Power Station XDi 7500 digital Electric fence energiser DUO 230V / 12V, 11 Joule
€529.99*
% €535.00* (0.94% saved) Content: 1 Piece
Only 1 available
Available, delivery time: 1-3 days
Product number: 27504
EAN: 4035738021450
Highlights
- Robust grazing animals safely fenced in (sheep, cattle, bulls etc. )
- Provides reliable protection against wild animals
- For long fences with heavy vegetation
- DUO Electric fence energiser: 12 V battery or 230 V mains operation
- Large display for digital fence control, 2 power levels
AKO DUO Electric Fence Energiser Power Station XDi 7500 digital
The Power Station XDi 7500 electric fence energiser is a small power pack with an outstanding price-performance ratio and the highest level of herding safety. Ideal for robust animals e.g. bulls, sheep and for game defence.
The AKO Power Station XDi 7500 digital is a very powerful 12 / 230 volt DUO electric fence unit for long fences with heavy vegetation. The 10.000 volt impact strength and powerful 7.5 joules of impact power provide a particularly high level of fence security. The animals will respect the fence with this device and even overgrowth has no chance with the strong electric fence device.
The Power Station XDi 7500 digital electric fence can be operated with a mains connection or battery and is very easy to use. The unit has an extra large, permanently illuminated display for showing the output voltage, battery voltage, earth voltage and fence loop voltage (optional). The LED bar graph display is used for quick recognition of the current fence status and monitoring of the unit from a greater distance. The hybrid pasture fence unit has a fence impulse that is optimally adapted to the fence load, and the proven AKO-Powertronic guarantees maximum fence security with minimum power consumption. The two selectable strengths make it possible to herd different types of animals. Robust sheep, goats, alpacas, lamas or bulls are optimally protected with the device, but herding wild animals is also no problem.
We recommend the powerful XDi 7500 pasture fence unit for long fences of up to 60 km, but it is also suitable for very long fences of up to 235 km in optimal conditions.
At a glance:
- Reliably fence in sheep, cattle, bulls etc.
- Provides reliable protection against wild animals
- For long fences with heavy vegetation
- 12 V battery or 230 V mains operation possible
- High output voltage, even under heavy load
- LED bargraph display & microcontroller controlled
- Fence pulse optimally adapted to the fence load
- Extra large, permanently illuminated digital display
- High/Low mode - thus also ON/OFF switchable
- High safety according to the latest safety standard
- Includes attractive accessories for quick installation
- Suitable for pasture fences with tape, strand, rope and for willow nets
Technical data:
- Dimensions of the unit (LxWxH): approx. 31 x 23 x 13.5 cm
- Max. Voltage: 10.000 V
- Voltage at no-load: 9.850 V
- Voltage at 500 Ohm: 7.500 V
- Max. Charging energy: 11 J
- Max. Discharge energy: 7.5 J
- Theoretical fence length: 235 km
- Max. Fence length without vegetation: 60 km
- Max. Fence length with medium vegetation: 14 km
- Max. Fence length with high vegetation: 7 km
- Current consumption: 346 - 607 mA
- Required number of 1 m ground stakes: 6 pieces
- Suitable for willow nets up to: 1.5 km
- For these species: cattle, sheep, bull, game boar
Scope of delivery:
1x AKO DUO Electric Fence Energiser Power Station XDi 7500 digital
1x 230 Volt Power supply unit
1x 12 Volt Connection cable
1x Fence connection cable
1x Earth connection cable
1x Reference connection cable
1x Warning sign
| Output Energy: | 7,50 Joule |
|---|---|
| Charge energie: | 11,00 Joule |
| Voltage: | 10.000 V |
| Power source: | Cord, Rechargeable battery |
| Animal species: | Cattle, Sheep, Wild boar |
| Fence length no plant cover: | 60 km |
| Fence length strong plant cover: | 7 km |
| Fence length light plant cover: | 14 km |
| Manufacturer warranty: | 5 years |
Data according to manufacturer. Errors and changes reserved.
Available downloads
Login
Trust in over 70 years of experience in electric fence construction with AKO electric fence devices. Manufactured in Germany and carefully tested, these devices offer the highest quality and durability. AKO offers the right solution for every need: from inexpensive entry-level devices from the AKO Classic Series to powerful devices from the AKO Premium Series to flexible AKO Expert devices >. All devices are continuously improved by an in-house development team and come with a 3-year manufacturer guarantee. No matter whether you are looking for a standard solution or a device for extreme conditions - AKO has the right electric fence energizer for you.
Manufacturer information
Responsible person
Choose accessories
Special ground rod 1 m
Special ground rod 1 m made of galvanised T-shaped steel incl. M8 screw (stainless steel) for ground connection cable
€10.39*
Fence/Earth Connection Cable 3 m
with M8 eyelets connects fencer and ground rod excellent connection between indoors energizer to outside ground rod also suitable for connecting several ground rods
€9.49*

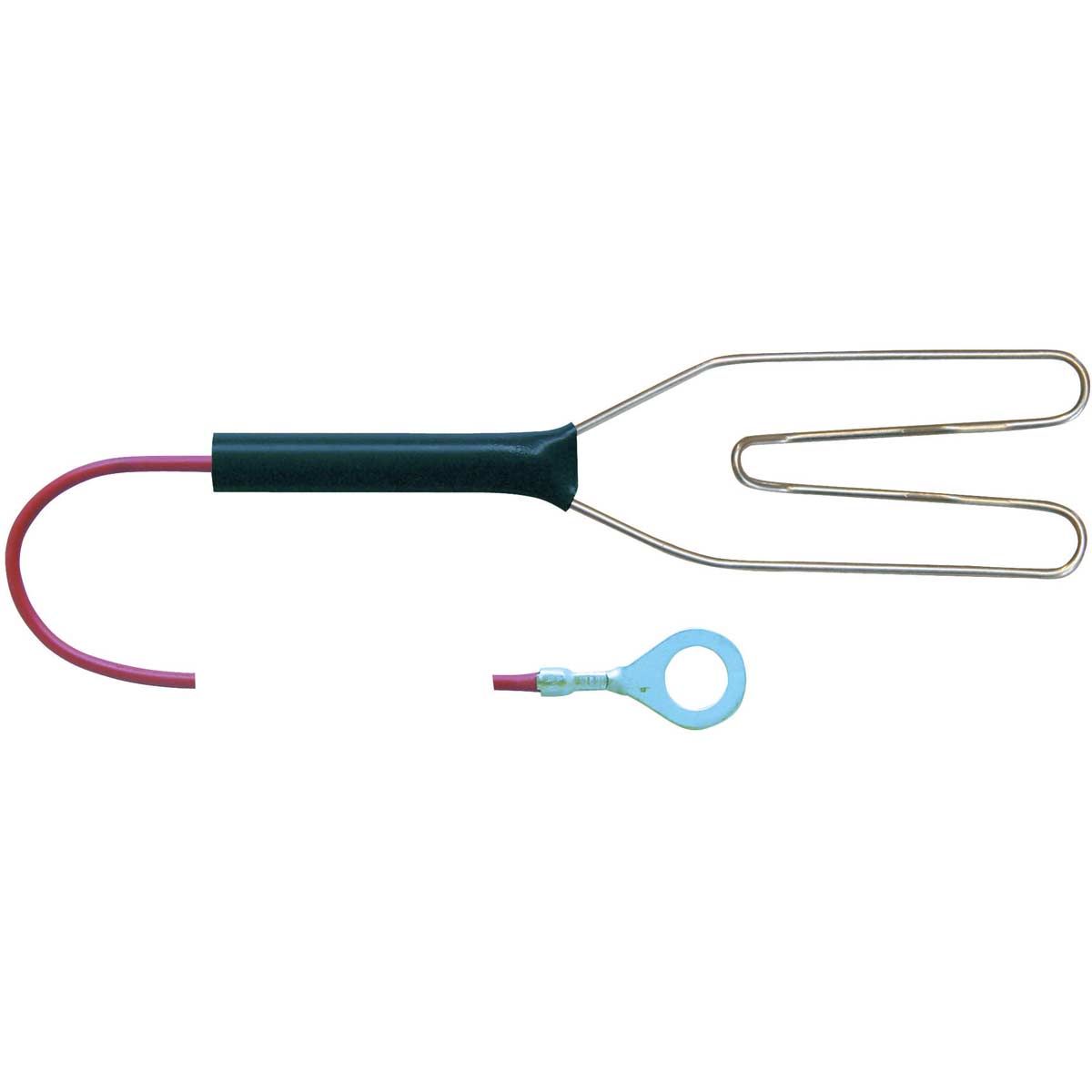

Fence Connecting Cable Heart-shaped Clip
Fence Connecting Cable Heart-shaped Clip connects fencer and wire or polywire lead length 125 cm heart-shaped clip
€3.89*

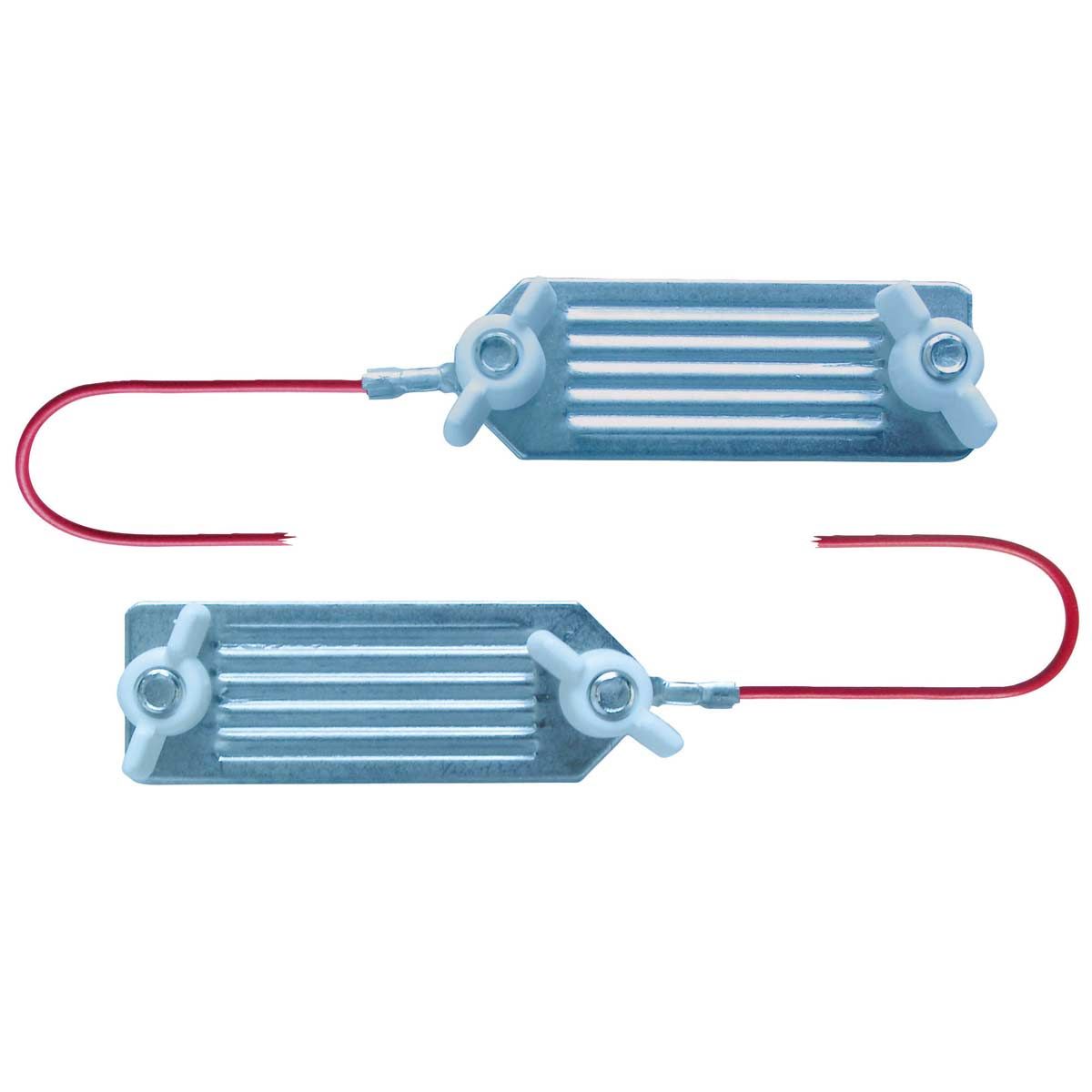

Tape Connector screwable
ideal mechanical and electrical connection between two fencing tapes up to a width of 40 mm 80 cm lead
€6.99*
Free shipping

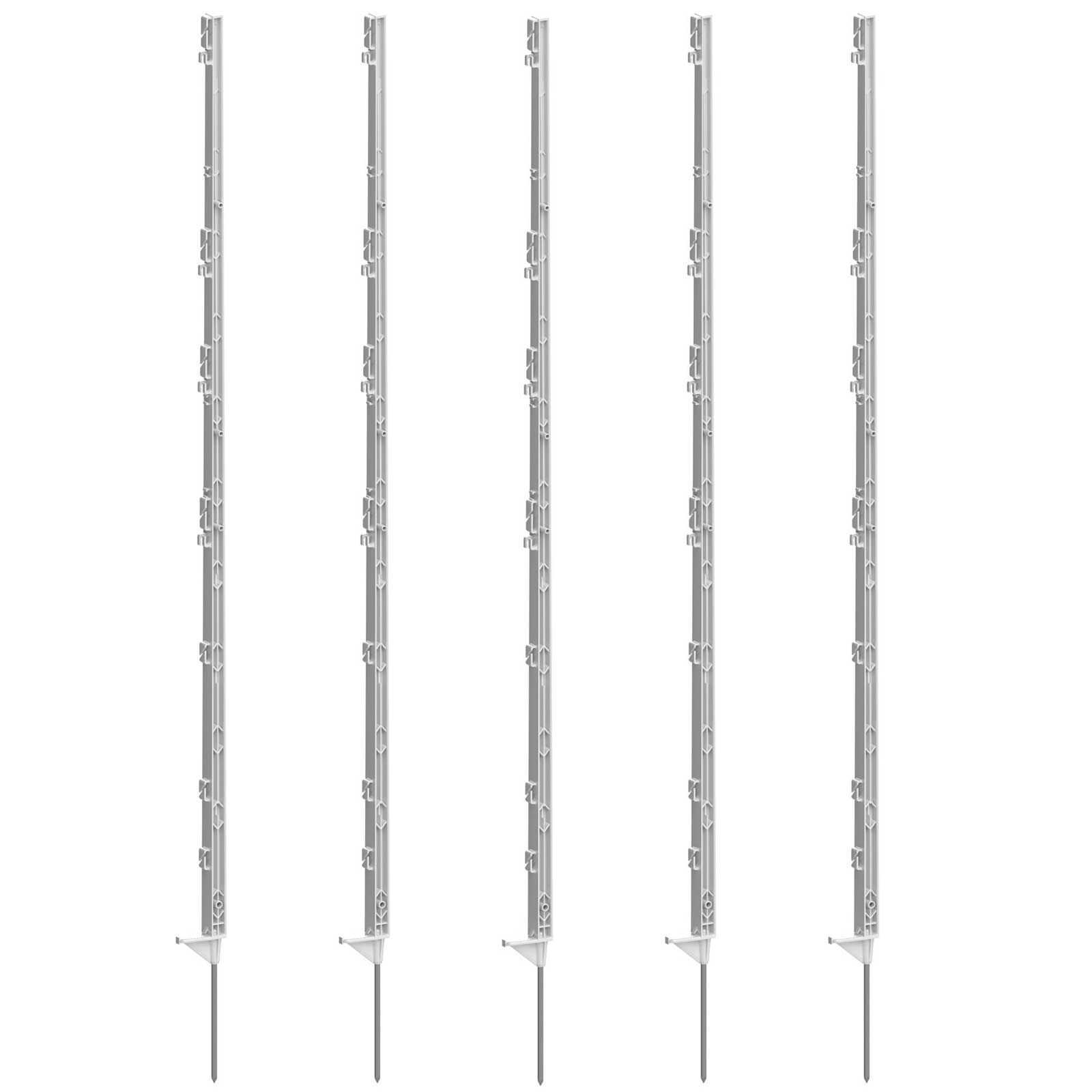

Agrarzone Plastic Post 156 cm, white (30 pcs.)
Agrarzone Plastic Post 156 cm, Singlestep, white, 30 pcs. The pasture fence post is a mobile and robust solution for game defence as well as for fencing horses, sheep and small animals. The plastic post is equipped with ongitudinal bracing for extra stability and durability. Easy entry is an important aspect when creating a pasture fence. For this reason, the plastic post has a wide step that makes stable insertion possible. In addition, a galvanised ground nail with a length of 21 cm is included, which enables single and multiple repositioning due to its stability and robustness. With a total of 4 eyelets for ropes, 3 eyelets for ribbons up to a width of 2cm and 4 eyelets for ribbons up to a width of 4cm, the plastic post offers many possibilities for creating a pasture fence. It is suitable for all common tapes, ropes, strands or wires, making it a versatile choice for any user. The total length of the plastic post is 156 cm, while the length above ground is 135 cm. The plastic post is a reliable and practical fencing solution for animals that needs to be mobile, durable and easy to install. Overview: Mobile pasture fence post plastic For game defence, horse, sheep & small animal fencing For all common tapes, ropes, strands or wires High stability due to additional longitudinal bracing With galvanised ground nail 21 cm Safe entry due to wide step Eyelets: 4x rope, 3x tape up to 2 cm or 4x tape up to 4 cm Weight approx. 0.5 kg (per plastic post) Colour: white Dimensions: Total height: 156 cm Ground nail: 21 cm Scope of delivery: 30x plastic posts, 156 cm, 11 eyelets, white
Content: 30 Piece (€3.00* / 1 Piece)
€89.99*
Agrarzone Sheep Net Classic electrificable, double tip, green 50 m x 90 cm
Size: 50 m x 90 cm
Agrarzone Sheep net Classic electrificable, green Relaxed and safe sheep farming with the Agrarzone Sheep net Classic. The sturdy sheep fence protects against escape and offers effective protection against wolves thanks to optional electrification. With the Agrarzone Sheep Net Classic you no longer need to worry about the safety of your sheep. Thanks to its optimal stability grazing animals such as sheep, goats and lambs can not break out of the fence. A special feature of the sheep net is the possibility to electrify the net. Due to the Electrification the net keeps sheep with thick wool inside the fence, and at the same time it offers effective protection against wolves. Optimal conductivity of the sheep fence is obtained by the use of 5 stainless steel conductors and a tinned copper conductor in the top reinforced strand. Thus the fence has a 20 times higher conductivity to standard nets. The remaining strands are equipped with 3 x 0.20 mm stainless steel conductors. 14 plastic stakes provide a firm stand and prevent sagging of the net. They themselves each contain a head insulator and a ground stopper for fixing the strand. Independent loosening of the strand is thus almost impossible. For additional protection welded nodes and a small mesh size. If the sheep net is too short, you can put several nets in a row and simply connect them together. At a glance: High herding safety for sheep, goats and lambs Optional electrification protects against wolves High stability in earthy or sandy soil 20 times higher conductivity to standard nets Head insulator and ground stopper provide secure hold Reinforced, current-carrying top strand Firmly welded knot points Head insulator & bottom stopper make independent loosening almost impossible Height 90 cm (9 horizontal strands) or 108 cm (10 horizontal strands) Current conduction horizontal with 3 x 0,20 mm stainless steel conductors per strand Simple assembly and disassembly, easy to extend The plastic strands come with a 3-year warranty against UV damage Sizes: 50 m x 90 cm with 14 plastic stakes 50 m x 108 cm with 14 plastic stakes
Content: 50 Meter (€1.98* / 1 Meter)
€98.90*
Agrarzone Warning Sign Hook in
Warning sign for the identification of pasture fence systems A warning sign is used to identify electric fence systems. The yellow information sign warns of touching an electric fence. According to the VDE electric fencing is subject to the labeling requirement. Warning signs must be clearly visible at a distance of approx. 100 m. With the clips, the warning sign is quickly and easily attached to the fence.Excerpt from the safety standard: Any part of an electric fence installed along a public road or path must be marked with warning signs at frequent intervals. These must be securely fastened to the fence posts or firmly clamped to the fence wires. Overview: For easy hanging in bands up to 40 mm, rope, wire and wire no further mounting material needed made of sturdy plastic Dimensions: 260 x 150 mm printed on both sides Delivery: 1 x Agrarzone Warning Sign
€2.59*
%
Ako solar panel 100 watt incl. charge controller
Solar panel 100 watt with charge controller The solar module 100 Watt with charge controller offers you a powerful solution for the power supply of your electric fence device. To ensure an optimal attachment of the solar module to your electric fence device, it is supplied with a high quality stainless steel supplied. This allows for a secure and stable attachment. The solar module is connected directly to the 12 volt battery and is self-regulating as long as it is correctly dimensioned. The solar module for pasture fencing equipment contains an integrated charge controllerwhich monitors and controls the charging process of the connected battery. The charge controller protects the battery from overcharging, deep discharging and overheating, which prolongs the life of the battery. In addition, the charge controller enables more efficient use of solar energy by adjusting the charging current according to the needs of the battery. This is especially important when the electric fence unit has variable power consumption or when solar irradiation fluctuates. In addition, the device has a 5-year performance warranty for the solar panel to give you added peace of mind and reliability. With this high quality solar panel, you are well equipped to run your electric fence unit efficiently and environmentally friendly. overview: Reliable power supply for electric fence equipment Self-regulating (if correctly dimensioned) Power: 100 watts Included charge controller for longer battery life Incl. galvanized holder for metal battery box Environmentally friendly & cost effective power generation Maintenance-free operation from spring to fall Suitable for e.g. AKO XDi 10000, XDi 15000 5 years performance guarantee Dimensions: Width: 66.4 cm Height: 100.0 cm Depth: 3.5 cm Scope of delivery: 1x solar panel 100 Watt incl. charge controller 1x solar cable 200 cm Note: Metal box not included in delivery.
€400.99* €419.00* (4.3% saved)

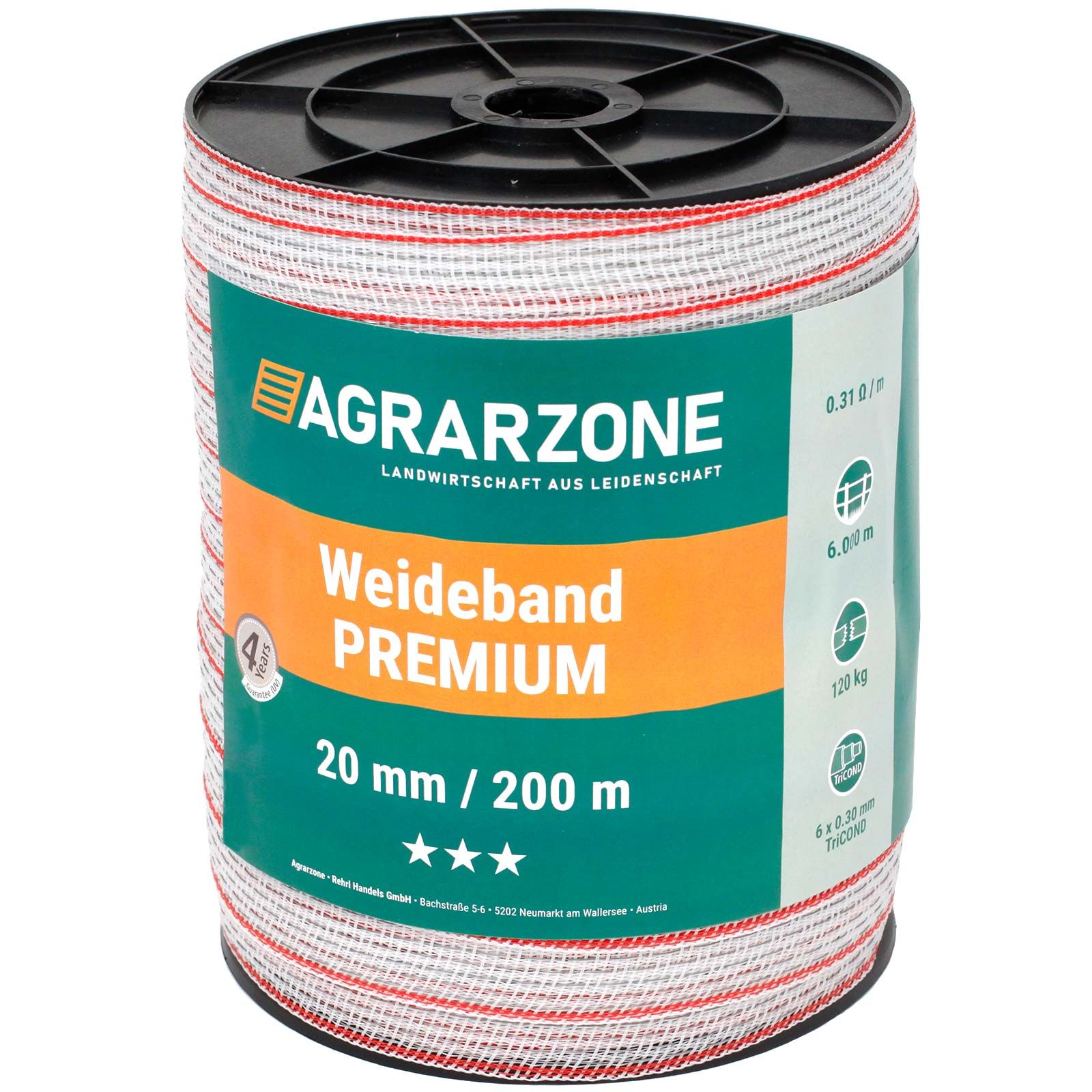

Agrarzone Pasture Fence Tape Premium 0.30 TriCOND, white-red 200 m x 20 mm €39.99*
