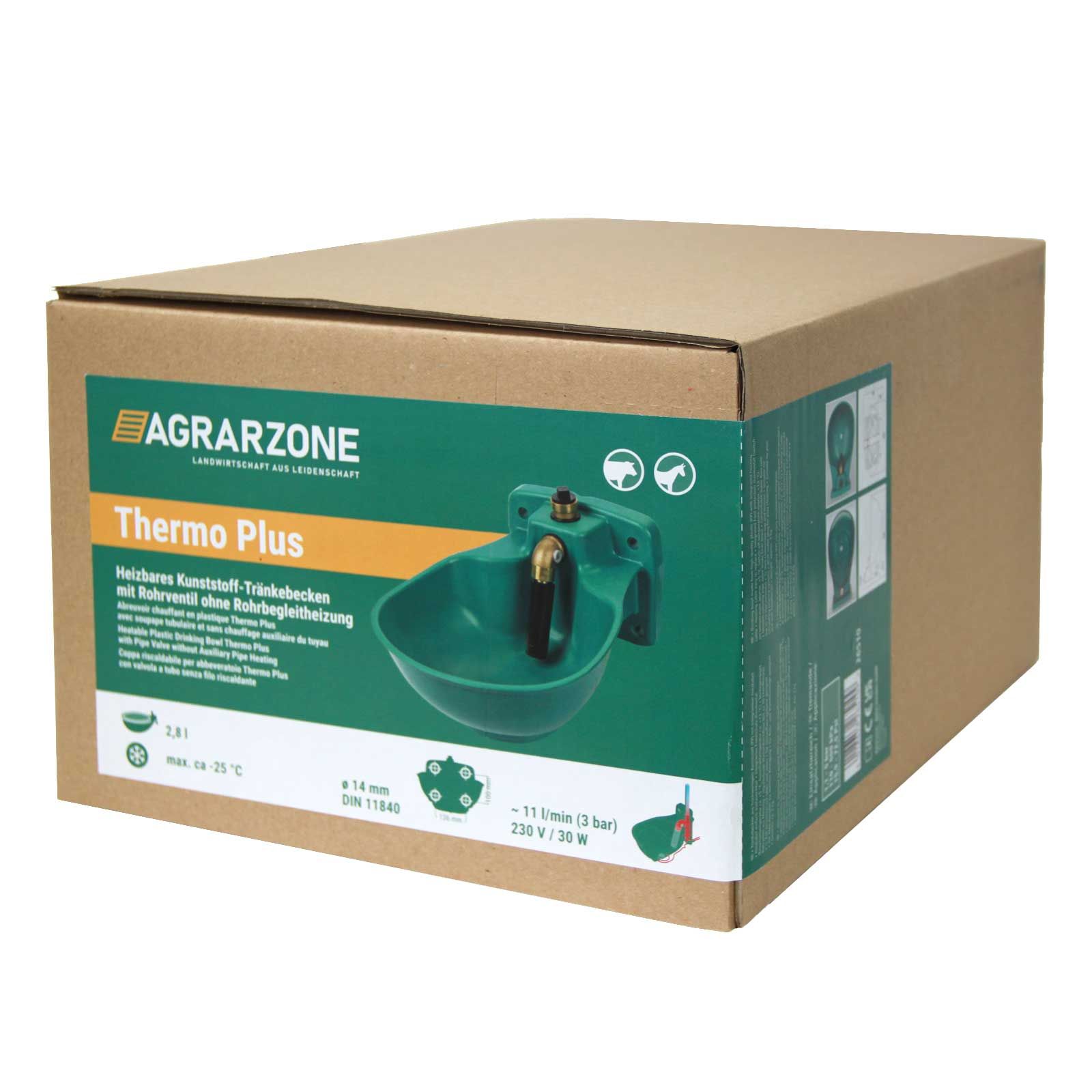

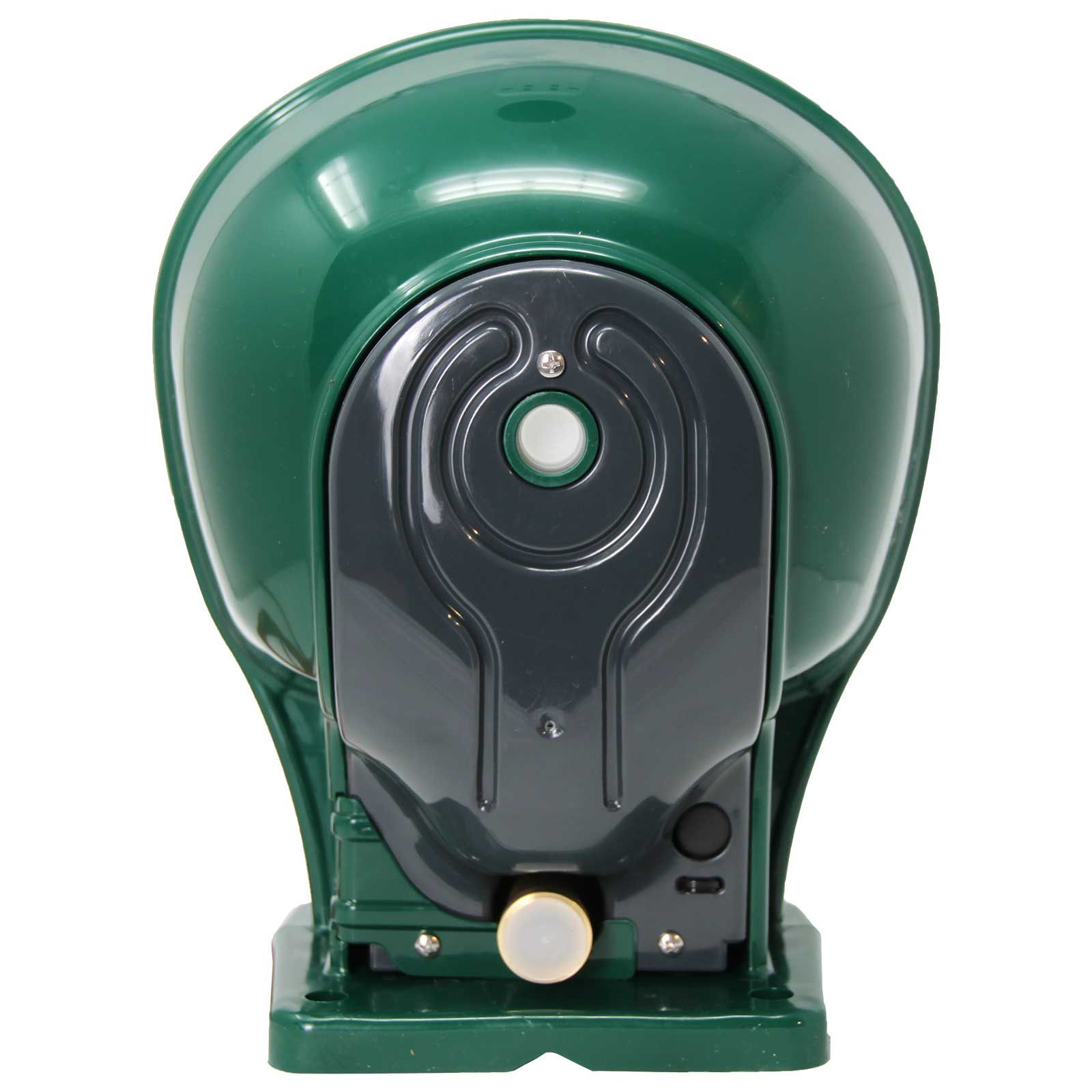

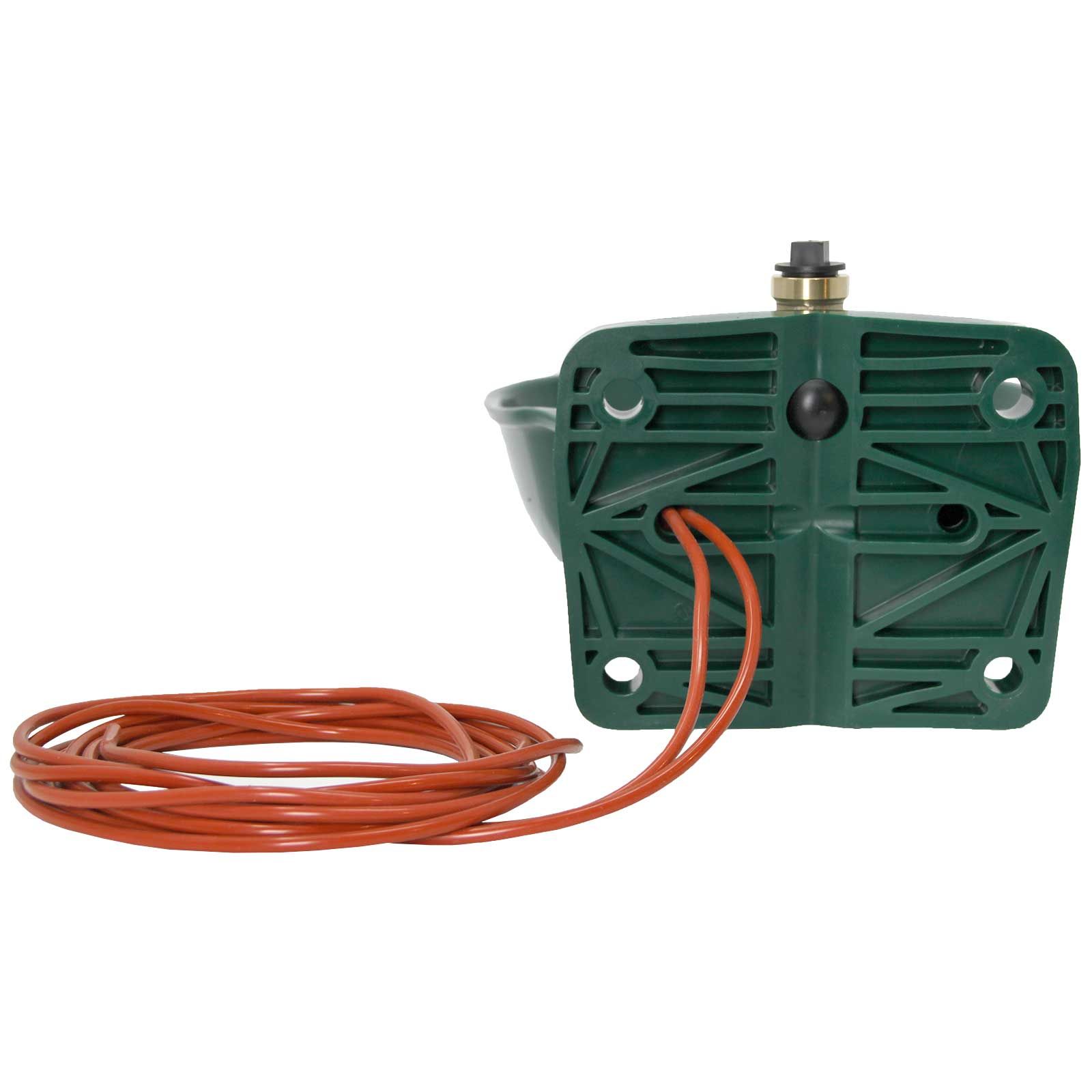

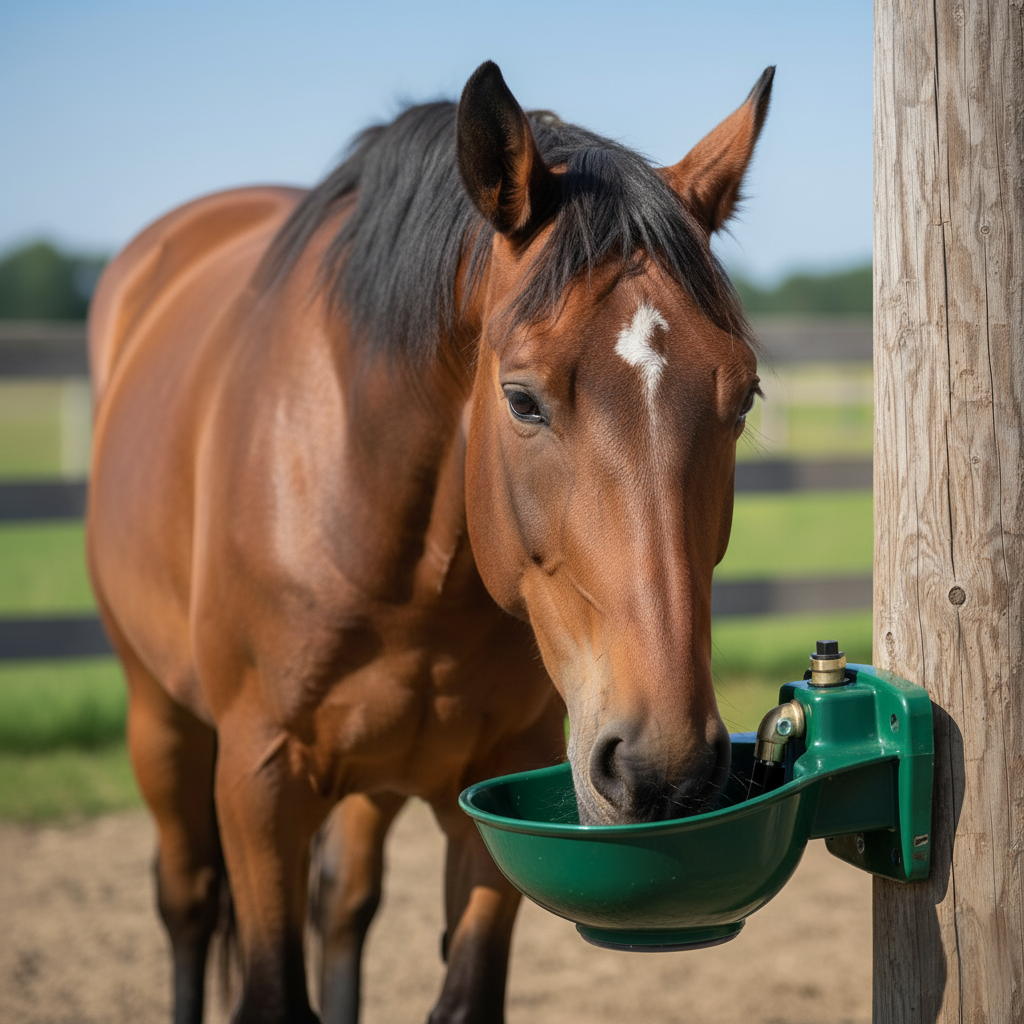

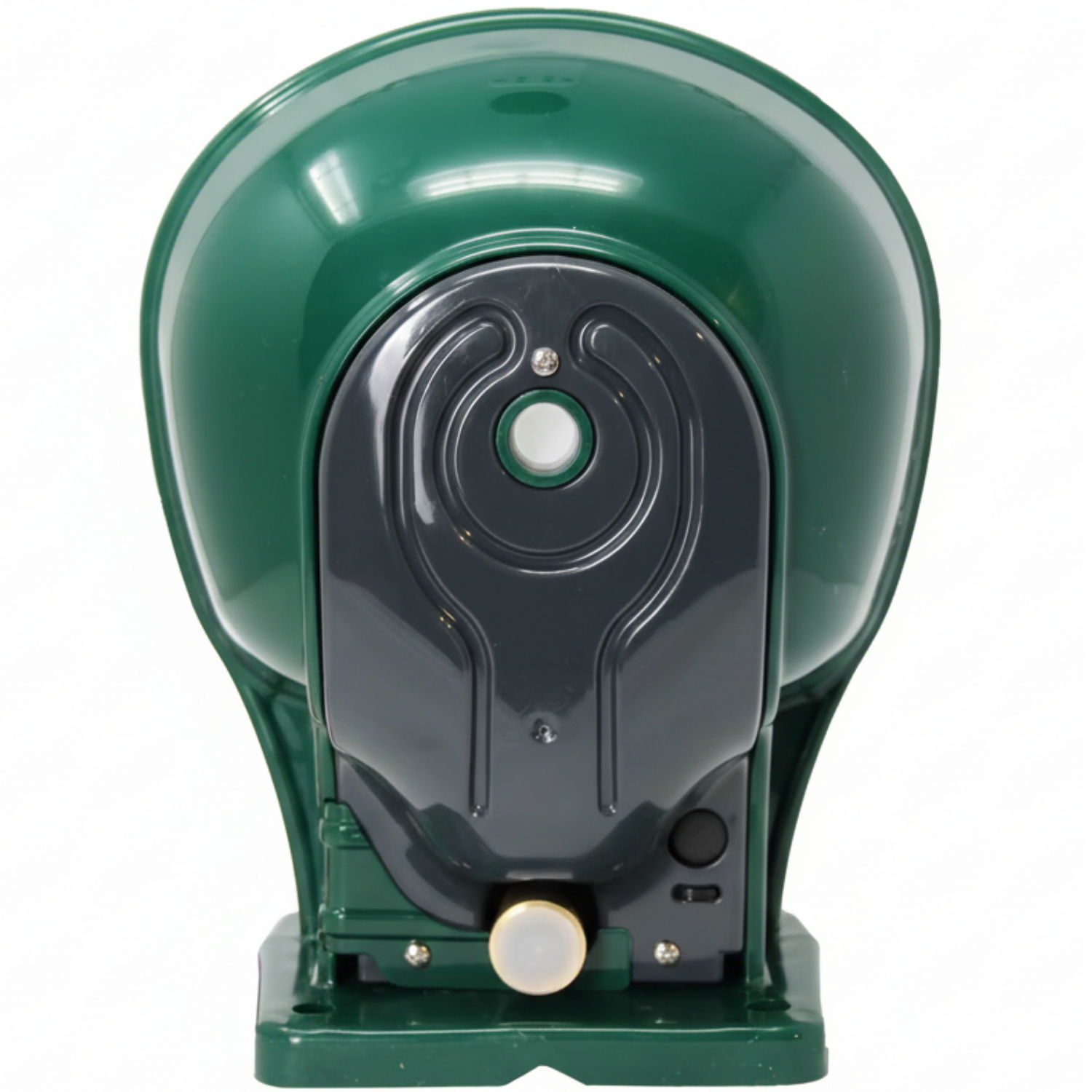

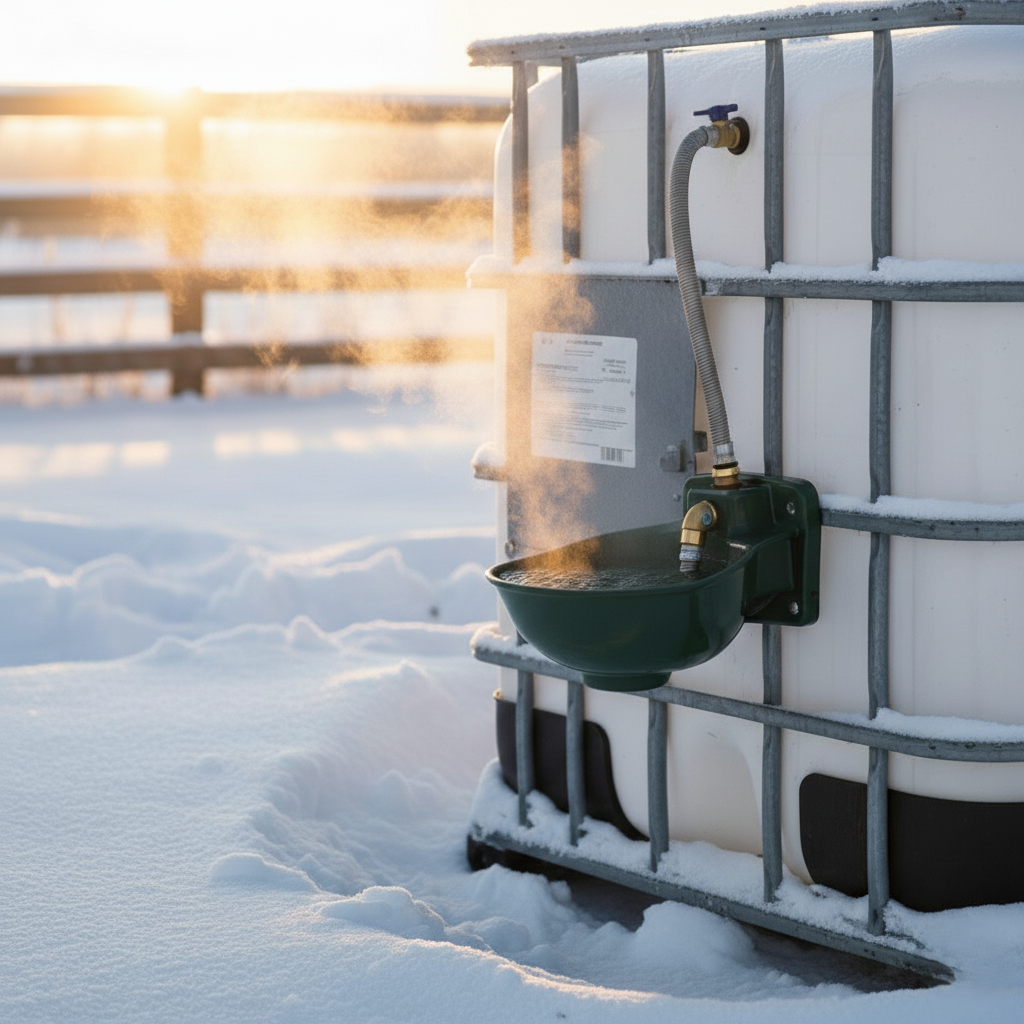

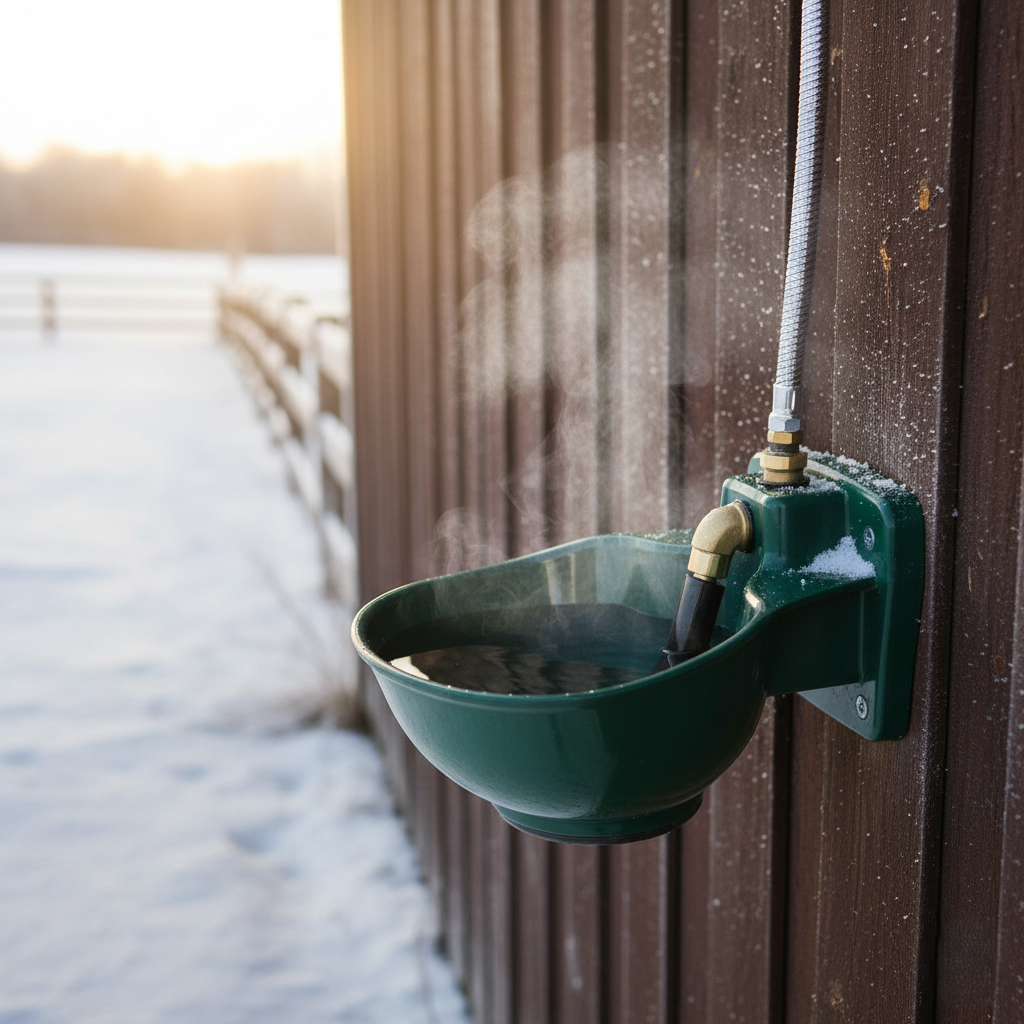

Agrarzone Heated Drinker Thermo Plus 31 W

Protection bracket for water bowls – robust impact protection for barn and pasture Drinking bowls face constant strain in daily farm life – kicks, knocks or restless animals can cause costly damage. The protection bracket for water bowls made from hot-dip galvanised steel tubing reliably prevents this, while also protecting your animals from injury on the sharp edges of a damaged bowl. The solid impact protection is simply screwed directly to the wall and comes in three sizes, so you'll find the right fit for almost any tube valve, tongue valve or float valve drinker. Thanks to its hot-dip galvanised finish, the bracket is weather-resistant and ideal for cattle, horse and sheep housing. At a glance: Prevents damage to the drinking bowl Protects animals from injury Made from solid, hot-dip galvanised steel tube Available in 3 sizes for different drinkers Weather-resistant thanks to hot-dip galvanising Easy wall mounting Technical data: Size S: width 24 cm, depth 30 cm, height incl. mounting plate 20 cm, weight approx. 2.3 kg Size M: width 29 cm, depth 34 cm, height incl. mounting plate 20 cm, weight approx. 2.5 kg Size L: width 41 cm, depth 36.3 cm, height incl. mounting plates 22 cm, weight approx. 2.4 kg Material: solid, hot-dip galvanised steel tube Size S fits Kerbl drinking bowls: 22360, 22375, 22378, 22465, 22466, 22500, 22504, 221000, 221851, 221500, 221600, 221853, 221870, 221871, 221874, 222000, 222005, 222010, 222020, 222030, 222500, 222709 Size M fits Kerbl drinking bowls: 221860, 2218605, 221875, 221876, 222040, 222045, 222050, 222055, 22445, 22355, 225030, 225031, 225032, 225033, 225035, 222070, 222062, 222063, 222064, 222065 Size L fits Kerbl drinking bowls: 222070, 222062, 222063, 222064, 222065, 22195 Scope of delivery: 1x Protection bracket for water bowls made of hot-dip galvanised steel1x Note: Screws are not included in delivery FAQ: Which size fits my drinking bowl?Use the article number of your Kerbl drinking bowl and check the technical data to find the matching bracket size (S, M or L). Are screws included for mounting?No, you'll need suitable screws for your wall surface – these are not included in delivery. Which animals is the bracket suitable for?The bracket is versatile and reliably protects drinking bowls in cattle, horse and sheep housing.

Pipe Mounting Bracket for Secure Water Bowl Installation The pipe mounting bracket from Kerbl lets you fix your water bowl directly and firmly to a pipe – a practical solution when wall mounting isn't an option. Made from enamelled cast iron, the bracket is built to withstand daily use in the barn or field. Thanks to the screws of three different lengths included in the package, the bracket fits pipes with a diameter of 30 to 120 mm. Nuts and washers are also supplied, so no extra hardware is needed for installation. The brackets are suitable for several Kerbl water bowls, including K75, S30, H10, HP20 and SH30. Overview: Secure attachment of water bowls directly to a pipe Ideal when wall mounting isn't possible Fits pipe diameters from 30 to 120 mm Sturdy enamelled cast iron construction Simple screw-on installation, no extra tools needed Compatible with several Kerbl water bowl models Technical Data: Material: enamelled cast iron Diameter range: 30–120 mm Dimensions: approx. 17 x 10.5 x 8.5 cm Weight: approx. 2.79 kg Sales unit: pair (2 brackets) Delivery: 2x mounting brackets4x screws, 120 mm4x screws, 80 mm4x screws, 50 mm4x washers4x stop nuts Questions & Answers: Which water bowls fit this bracket?It is suitable for Kerbl water bowls including K75, S30, H10, HP20 and SH30. What pipe diameter range does it cover?With the different screw lengths included, it fits pipes from 30 to 120 mm in diameter. Do I need extra mounting hardware?No, all required screws, nuts and washers are included in the delivery.

Browsing Protection for Pipelines – reliable protection for drinker pipes This browsing protection for pipelines reliably shields heating cables and insulation on drinker pipework from being gnawed by animals. Cattle, horses and other livestock are prone to nibbling on pipe insulation – this sturdy sheet keeps heating cables and insulation permanently protected and functional. Suitable for all common drinking bowls with cable connections. The galvanised steel sheet is corrosion-resistant, making it reliable even in damp barn or pasture conditions. This helps you avoid costly consequential damage such as leaks or heating failures at the drinker. Installation is simple – just screw it to the wall directly over the pipe. Overview: Reliable protection against gnawing on heating cables and pipe insulation Suitable for all common drinking bowls with cable connection Sturdy, galvanised steel sheet – corrosion-resistant Reduces downtime and consequential damage to the drinker system Simple installation by screwing to the wall Technical Data: Material: galvanised steel Material thickness: 1 mm Dimensions: 100 cm x 13.2 cm x 8 cm (L x W x H) Weight: approx. 1.98 kg Scope of Delivery: 1x browsing protection for pipelines, galvanised Questions & Answers: Which drinker bowls is this protection suitable for?It fits all common drinking bowls with a cable connection, regardless of manufacturer. How is the browsing protection installed?The sheet is simply screwed to the wall directly over the pipe. Is it weather resistant?Yes, thanks to galvanisation it is corrosion-resistant and suitable for use in the barn.
