AKO Sun Power S 500 Solar Electric Fence Energiser 8 Watt 12V, 0.75 Joule

AKO Sun Power S 500 solar electric fence energiser – off-grid pasture protection

The solar electric fence energiser AKO Sun Power S 500 is the ideal choice for normal fences without vegetation and is perfect for horse and cattle pastures. Thanks to its optimised construction it is specially designed for maintenance-free continuous operation over the main grazing season, independent of the mains supply.

Equipped with a High/Low/Off switch and a power-saving circuit when battery voltage drops, this microcontroller-controlled device offers intelligent battery management with deep discharge protection. This guarantees a longer battery life, even during long periods of bad weather. An integrated lightning protection function and a robust, waterproof housing with carrying handle ensure reliable use on the pasture.

Overview:

• Effective solar electric fence energiser for normal fences without vegetation
• Ideal for horse and cattle pastures
• Optimised for maintenance-free continuous operation over the main grazing season
• High/Low/Off switch and power-saving circuit when battery voltage drops
• Microcontroller controlled with intelligent battery management and deep discharge protection
• Integrated lightning protection
• Rugged, weatherproof, waterproof housing with carrying handle

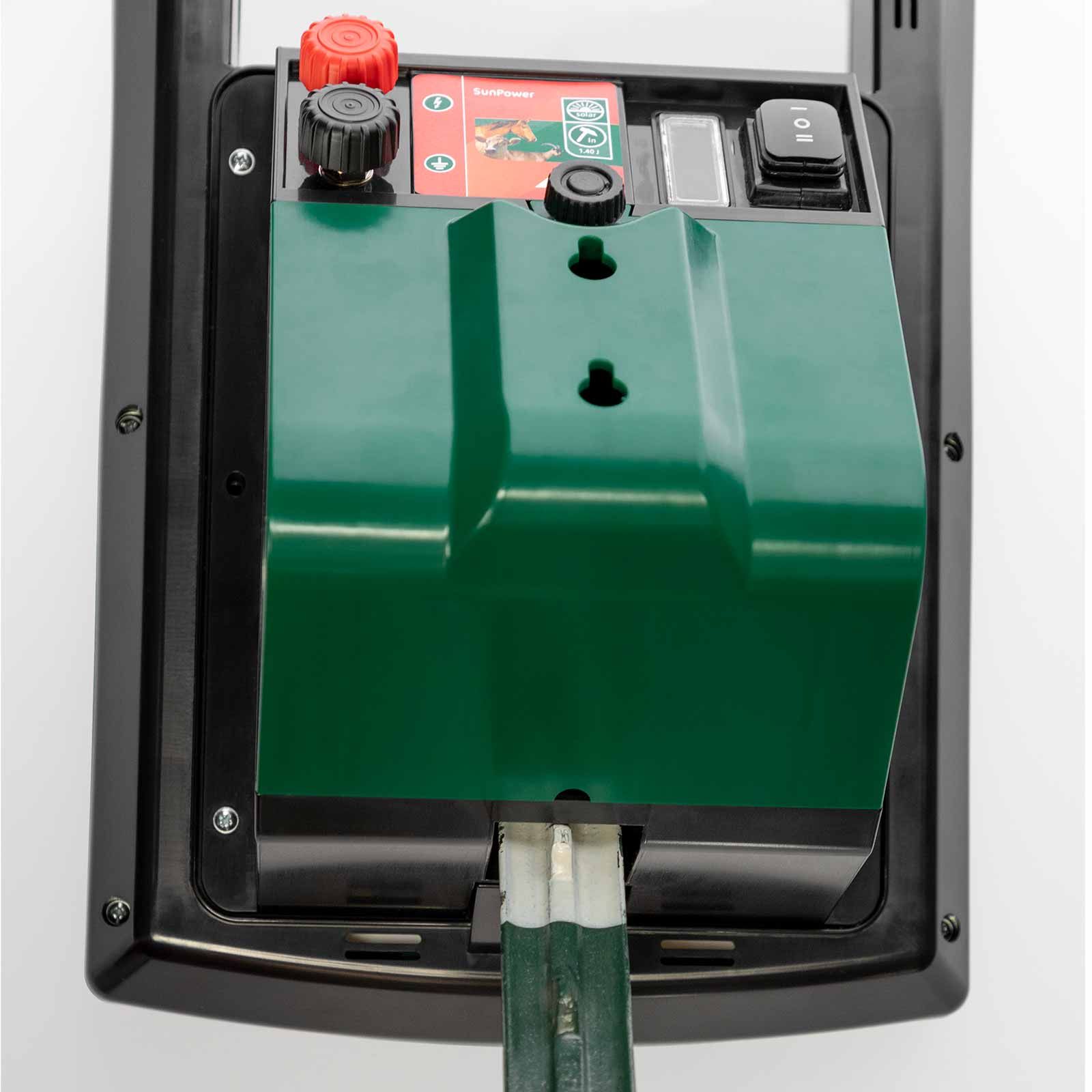

• Function control LED (green), solar operation LED (blue) and battery warning LED (red) for status indication

Technical data:

• Charging energy: 0.75 J
• Max. discharge energy: 0.55 J
• Max. voltage: 11000 V
• Open circuit voltage: 11000 V
• Voltage at 500 Ohm: 4200 V
• Theoretical fence length acc. to VDE: 18 km
• Max. fence length without vegetation: 6 km
• Max. fence length with medium vegetation: 1.7 km
• Max. fence length with high vegetation: 0.2 km
• Number of 1 m grounding stakes: 1
• Current consumption: 29 mA – 50 mA
• Dimensions (L x W x H): 37 x 28 x 27 cm, weight: 6.263 kg
• 5-year performance guarantee on the solar module
• 6-month warranty on the 12 V battery
• Made in Germany

Scope of delivery:

1x High-power compact solar unit Sun Power S 500 (fully assembled)
1x AGM battery, 12 Volt, 7 Ah

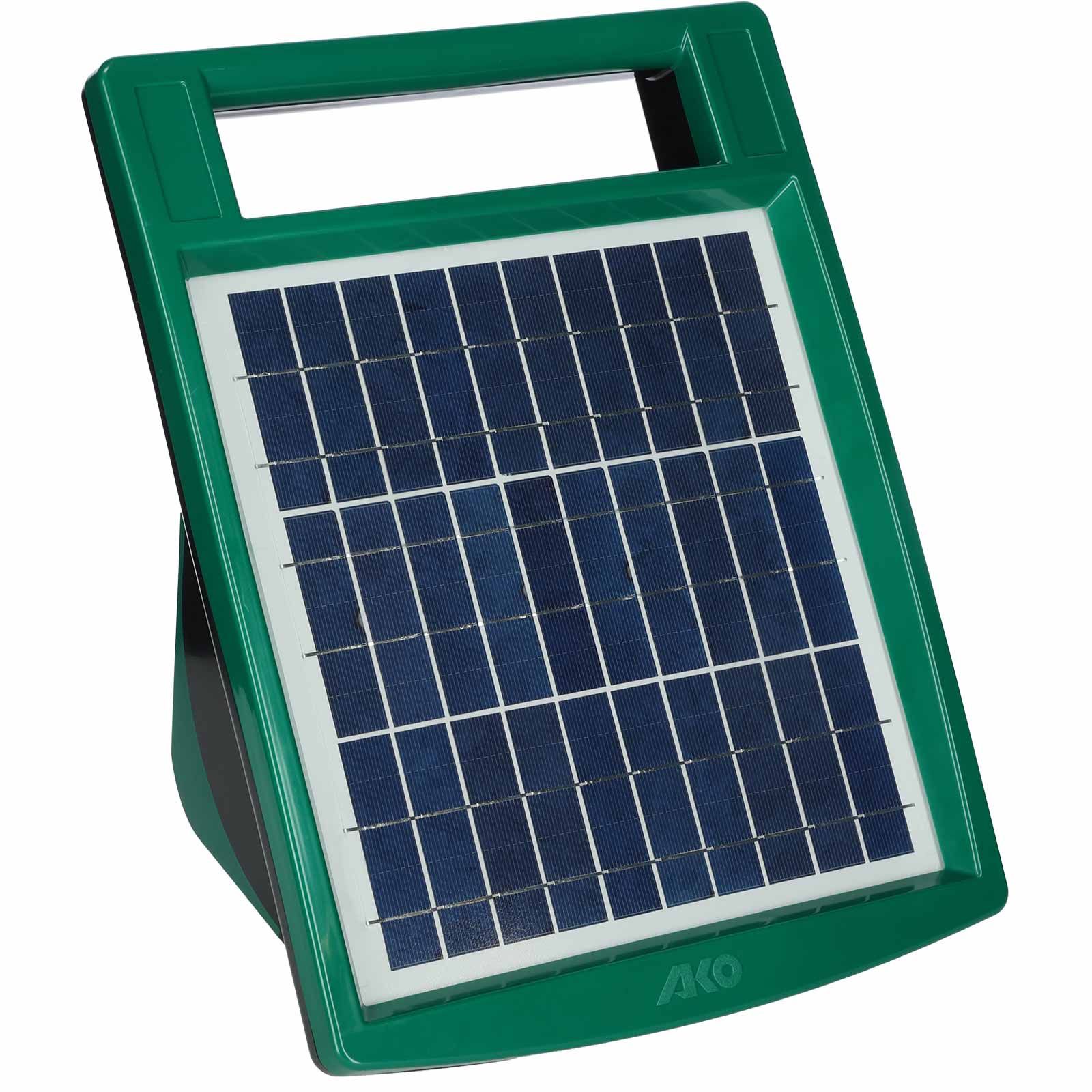

1x fixed mounted crystalline solar module, 12 Volt, 8 Watt
1x 230 Volt battery charger
1x fence connection cable
1x ground connection cable
1x earth/mounting spike, two-part
1x warning sign

Questions & Answers:

Is the included grounding stake enough for dry soil?
No, on dry soil you should always use several additional grounding stakes to ensure full performance.

Can the unit charge reliably in bad weather?
Yes, thanks to the intelligent battery management with deep discharge protection the unit works reliably even during extended bad weather periods.

What fence lengths is the unit suitable for?
Without vegetation it covers up to 6 km, with medium vegetation up to 1.7 km and with high vegetation up to 0.2 km.
