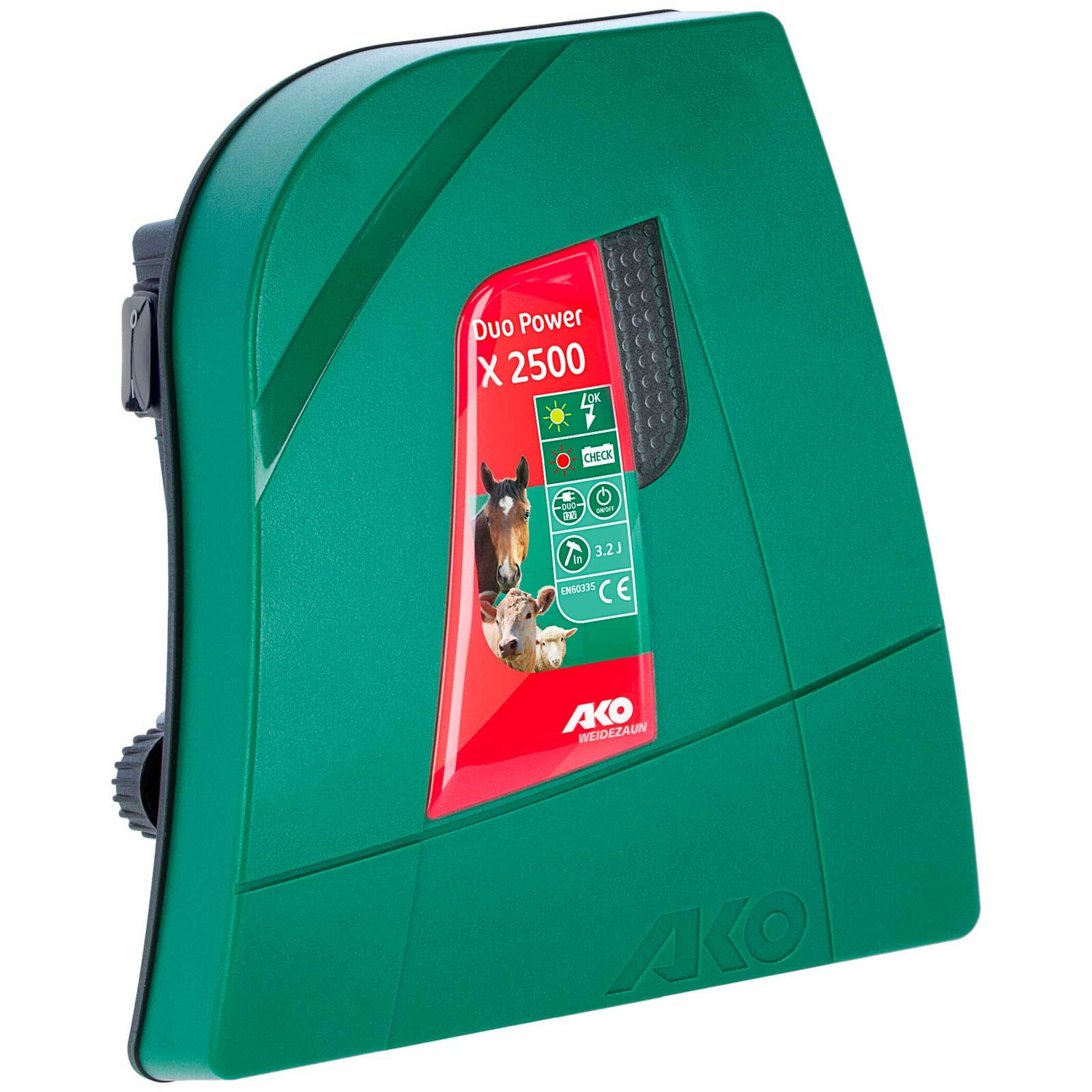

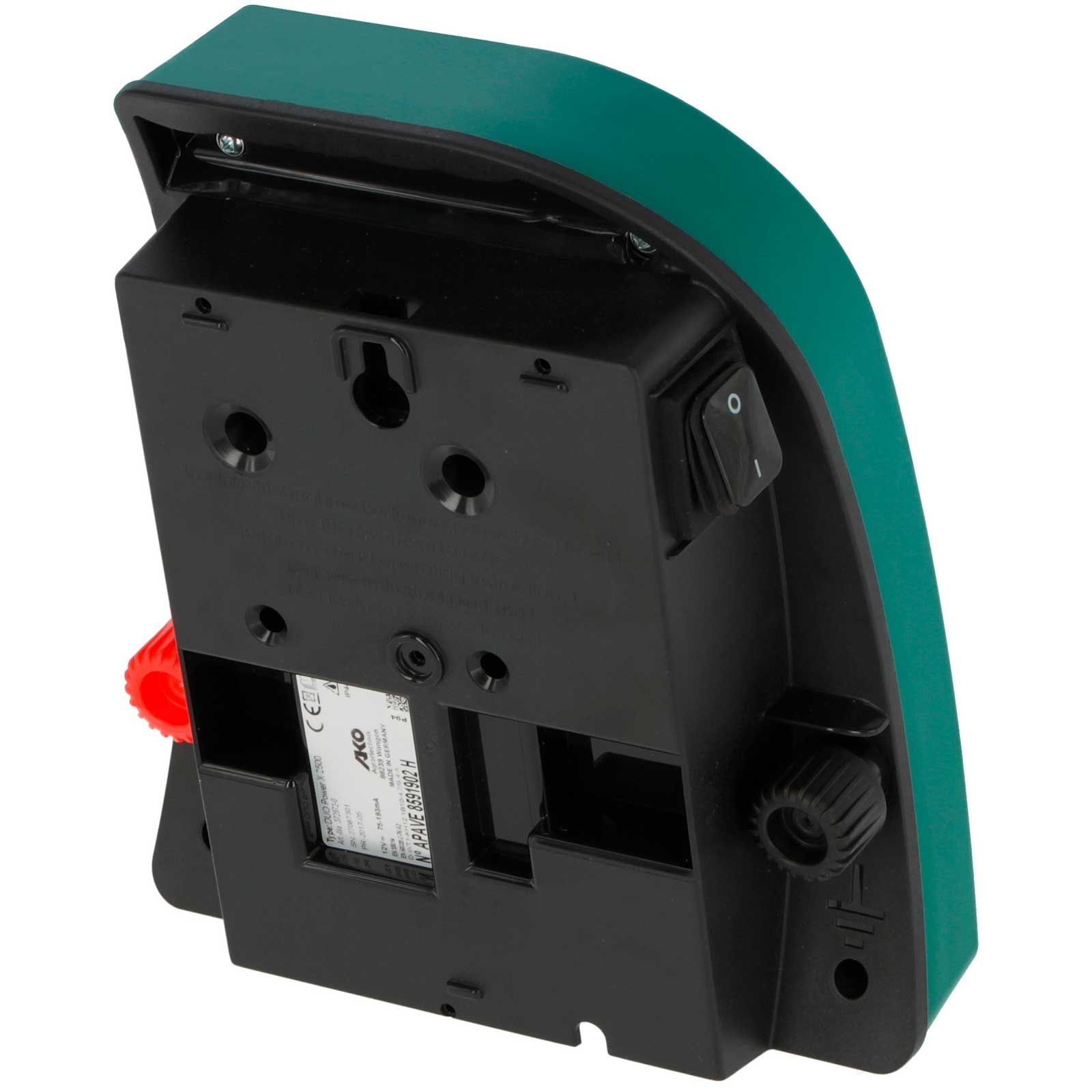

AKO Duo Power X 2500 Electric Fence Energiser 12V/230V, 3.2 Joule
€189.26
Only 1 available
Available, delivery time: 1-3 days
- Flexible mains or battery operation
- Microprocessor-controlled power-saving circuit
- Separate fence and battery monitoring indicators
- Deep discharge protection in 12V mode
- Side ON/OFF switch
- Made in Germany
AKO Duo Power X 2500 Electric Fence Energiser – flexible mains or battery power
The AKO Duo Power X 2500 energiser is a 12V/230V combination unit with high output power, designed for standard fence systems with light vegetation. Thanks to its two power sources, you can run one unit either stationary from the mains or mobile from a 12V battery – ideal for changing pasture layouts.
The microprocessor-controlled circuit optimises power consumption, while the built-in deep discharge protection safeguards your battery during 12V operation. The separate fence and battery monitoring indicators let you check the system status at a glance without walking the fence line. The splash-proof housing is built for outdoor use.
Overview:
- 12V/230V duo unit for stationary and mobile use
- Suitable for standard fences with light vegetation
- Microprocessor-controlled power-saving circuit
- Deep discharge protection safeguards the battery in 12V mode
- Separate fence and battery monitoring indicators
- Side ON/OFF switch for easy operation
- Suitable for fences with tape, wire, rope and for netting
Technical data:
- Max. voltage: 9,600 V
- No-load voltage: 8,300 V
- Voltage at 500 Ohm: 6,100 V
- Max. charging energy: 3.2 Joule
- Max. discharge energy: 2 Joule
- Theoretical fence length: 70 km
- Max. fence length without vegetation: 18 km
- Max. fence length with medium vegetation: 4 km
- Max. fence length with high vegetation: 1.7 km
- Current consumption: 75–193 mA
- Required 1 m ground stakes: 2 pieces
- Suitable for netting up to: 0.4 km
- Suitable for: horses, cattle, sheep, goats, pigs
- Recommended solar module: item no. 375301, 30 Watt
- Dimensions (L x W x H): 33 x 23 x 14 cm
- Weight: 1.9 kg
- Made in Germany
Delivery contents:
1x AKO Duo Power X 2500 energiser 12V/230V
1x Fence connection cable
1x Earth connection cable

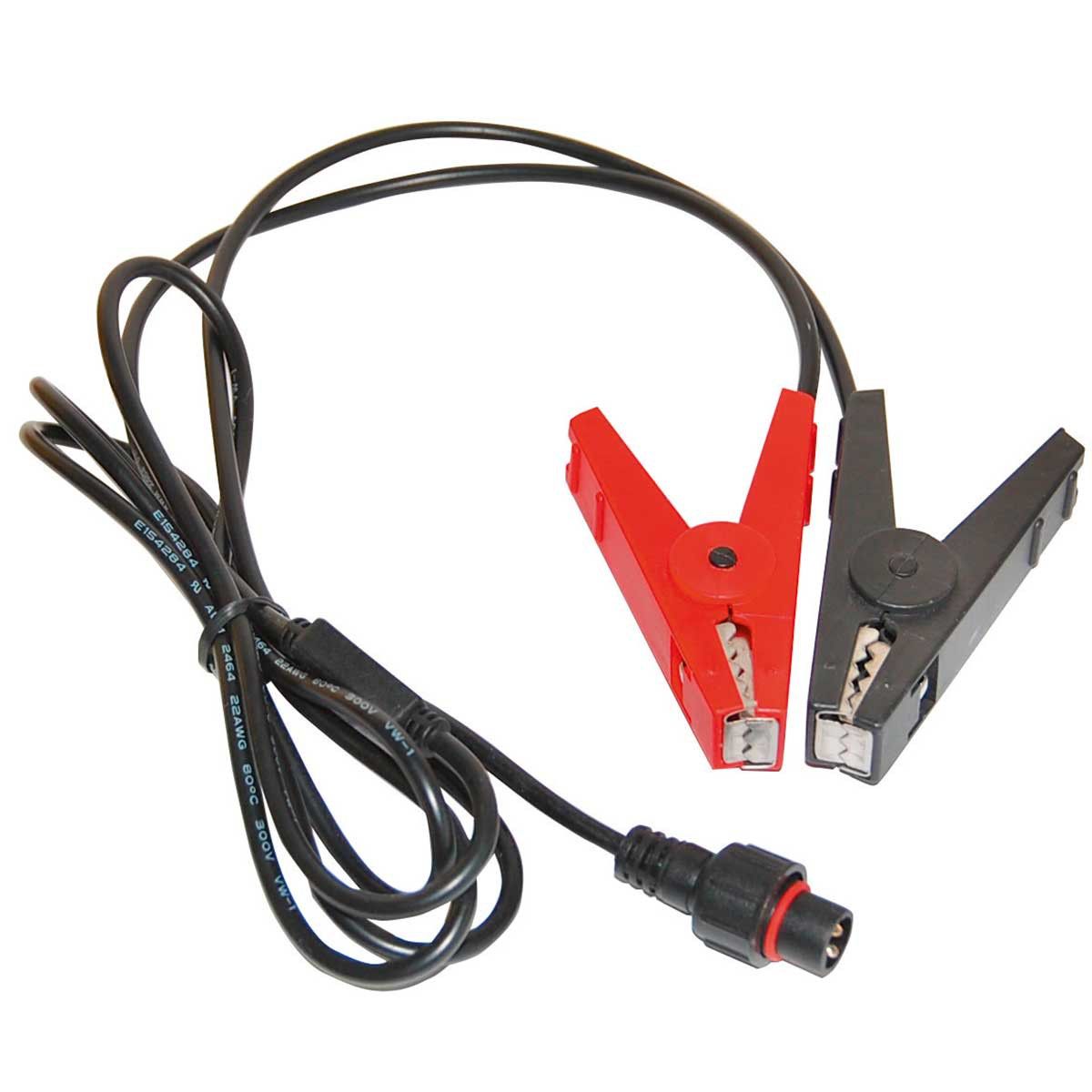

1x 12V connection cable

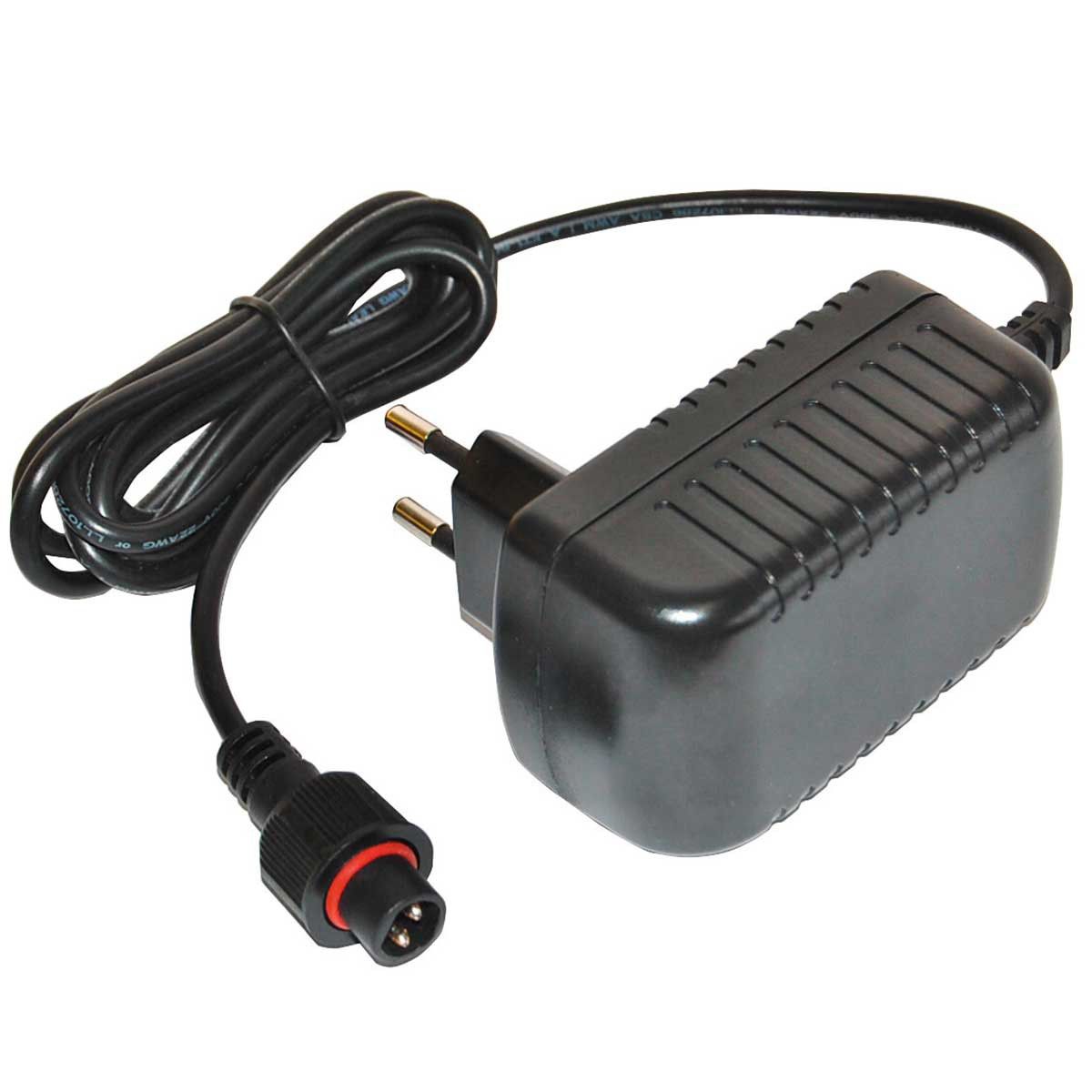

1x 230V mains adapter
1x Instruction manual
FAQ:
Can I use the unit without a mains connection?
Yes, the included 12V connection cable allows mobile operation from a battery.
Which solar module fits this unit?
The recommended AKO solar module has 30 Watt output (item no. 375301) for off-grid battery operation.
Which fence types is the unit suitable for?
It works with tape, wire, rope fences and netting up to 0.4 km in length.
| Max. pulse energy: | 2,00 Joule |
|---|---|
| Charge energie: | 3,20 Joule |
| Voltage: | 9.600 V |
| Power source: | Cord, Rechargeable battery, Solar power |
| Animal species: | Horse, Cattle, Sheep, Pig, Goat |
| Fence length no plant cover: | 18 km |
| Fence length strong plant cover: | 1,7 km |
| Fence length light plant cover: | 4 km |
| Manufacturer warranty: | 3 years |
Vimeo
Trust in over 70 years of experience in electric fence construction with AKO electric fence devices. Manufactured in Germany and carefully tested, these devices offer the highest quality and durability. AKO offers the right solution for every need: from inexpensive entry-level devices from the AKO Classic Series to powerful devices from the AKO Premium Series to flexible AKO Expert devices >. All devices are continuously improved by an in-house development team and come with a 3-year manufacturer guarantee. No matter whether you are looking for a standard solution or a device for extreme conditions - AKO has the right electric fence energizer for you.
Manufacturer information
Responsible person
Choose accessories
Electrifiable Metal Battery Box – Anti-Theft Protection for Electric Fence Units This sturdy metal battery box made from galvanised steel is electrifiable and keeps your electric fence unit and battery safe from theft. It is suitable for Mobil Power units AN 3100 and AN 5500, DUO-X devices, and other 12V fence energisers. The metal carry handle makes transport and mounting on the paddock or fence line easy. The lockable case with spare key keeps your equipment secure even when unattended – ideal for pastures without constant supervision. Overview: Electrifiable galvanised steel case protects against theft and weather Fits Mobil Power AN 3100, AN 5500, DUO-X and other 12V units Lockable with included spare key for extra security Metal carry handle for easy transport and mounting Solid mounting/ground stake included for stable installation Technical Data: Material: galvanised steel External dimensions: 37.5 x 33.5 x 37.5 cm (W x D x H) Space for a battery unit max. 36.5 x 11 x 37 cm Space for a 12V battery max. 36.5 x 21.5 x 21 cm Weight: approx. 8.8 kg Scope of Delivery: 1x metal battery box1x lock1x spare key1x mounting/ground stake (80 cm) FAQ: Is the fence unit and battery included?No, the box is supplied without unit and battery. Can the box itself carry current?Yes, the case is electrifiable for additional security.
Reliable Protection for Battery & Energiser: Metal Battery Case This metal battery case keeps your battery and 12V electric fence energiser safely protected from weather and mechanical damage. It's specifically recommended for Mobil Power AN 3100, AN 5500 and DUO Power X energisers, as well as Cavallo devices, giving you a sturdy, weatherproof housing right at the fence or on a wall. Thanks to its generous interior dimensions, the case comfortably fits batteries up to 130 Ah, so you can run high-capacity batteries for longer autonomy. It's also ideal for use with solar modules, letting you power your fence energiser independently off-grid. The sturdy metal carry handle makes transport easy, while the galvanised housing ensures long-lasting durability outdoors. Overview: Holds batteries up to 130 Ah Ideal for use with solar modules Suitable for AN 3100, AN 5500, DUO Power X and Cavallo devices Space for a battery unit or any 12V device for wall mounting Sturdy galvanised metal case with roof and carry handle Supplied without device and battery Technical details: External dimensions: 38 x 41 x 36 cm (W x H x D) Internal dimensions battery compartment: 36 x 32 x 21 cm (W x H x D) Max. space for battery unit: 36.5 x 37 x 11 cm (W x H x D) Material: galvanised metal Weight: approx. 5 kg Scope of delivery: 1x metal battery case with roof1x Note: fence energiser, battery and solar module are not included FAQ: Does this case fit all AKO devices?It's specifically designed for Mobil Power AN 3100, AN 5500, DUO Power X and Cavallo devices, and also suits wall mounting of any 12V unit. Can I connect a solar module directly?Yes, the case is ideal for use with solar modules, allowing off-grid operation of your energiser. Is there an anti-theft option?An anti-theft kit is available separately to secure the case, device and battery further.

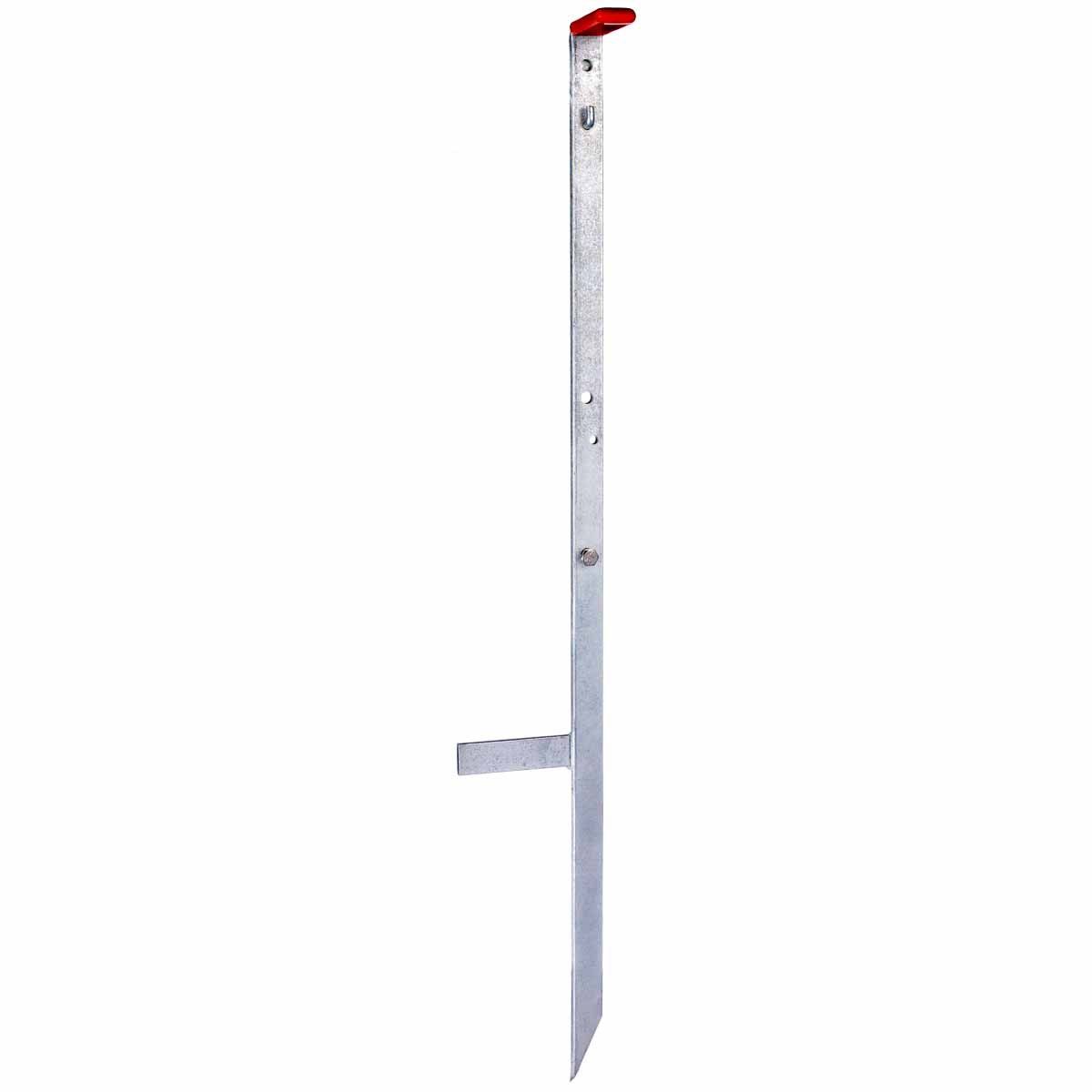

Earth/Support Rod for Electric Fence Energisers – Reliable Earthing and Secure Mounting This AKO earth rod serves a dual purpose: it acts as a sturdy support rod for your electric fence energiser while providing the essential earth connection to close the circuit of your electric fence. Without proper earthing, the deterrent shock won't reach the animal reliably, so a good earth rod is key to effective containment. Made from galvanised metal, the rod is easy to drive into the ground and keeps your energiser securely mounted right at the fence line. The durable galvanised finish resists weathering and maintains conductivity season after season, while installation requires no tools at all. Overview: Dual function as earth rod and support rod Compatible with AKO Compact Power B40, Duo-X and Power A energisers Secure mounting directly at the fence Weather-resistant galvanised finish Tool-free installation Reliable earthing for consistent shock delivery Technical Data: Material: galvanised metal Length: approx. 75 cm Width: approx. 9 cm Height: approx. 8.5 cm Weight: approx. 0.7 kg Included: 1x AKO earth/support rod for electric fence energiser Note: energiser not included FAQ: Which energisers is this earth rod compatible with?It fits AKO Compact Power B40, AKO Duo-X units and AKO Power A units, among others. What is the earth rod used for?It earths your electric fence energiser and doubles as a support rod so the unit can be securely mounted at the fence.
