AKO Duo Power X 4000 Electric Fence Energiser 12V/230V, 4.5 Joules
€251.99
Only 1 available
Available, delivery time: 1-3 days
- Very high output power for long fence lines
- Multi-colour LED bargraph for voltage and battery
- High/Low/Off switch for two power levels
- Ideal for tough livestock and wild boar deterrence
- Robust UV-resistant housing with wall mount
- Microprocessor-controlled with deep discharge protection
AKO Duo Power X 4000 – powerful energiser for long fence lines
The AKO Duo Power X 4000 is a 12/230V DUO fence energiser delivering very high output power, making it suitable for longer fence lines, even with vegetation. With two power sources to choose from, you can run it either on mains supply at a fixed location or on a 12V battery for mobile grazing setups.
The multi-colour LED bargraph display keeps you informed on output voltage and battery status at a glance, while the High/Low/Off switch lets you select between two output power levels depending on your needs. The impact-resistant, UV-stable and weatherproof housing includes a built-in wall-mounting bracket, making the unit ideal for tougher livestock and for deterring wild boar and wolves.
Overview:
- 12/230V DUO unit with very high output power
- Suitable for longer fences, also with vegetation
- Multi-colour LED bargraph for output voltage and battery monitoring
- High/Low/Off switch for two output power levels
- Ideal for tough livestock and deterring wild boar and wolves
- Microprocessor-controlled with optimised power consumption and deep discharge protection
- Robust, UV-resistant housing with wall-mount bracket
Technical data:
- Max. voltage: 9,600 V
- No-load voltage: 8,300 V
- Voltage at 500 Ohm: 6,300 V
- Max. charging energy: 4.5 Joules
- Max. discharge energy: 3 Joules
- Theoretical fence length: 95 km
- Max. fence length without vegetation: 35 km
- Max. fence length with medium vegetation: 12 km
- Max. fence length with heavy vegetation: 5 km
- Power consumption: 77–300 mA
- Required 1m ground stakes: 3 pieces
- Suitable for willow nets up to: 0.6 km
- Suitable for horses, cattle, sheep, goats, wild boar, wolves
- Made in Germany
Delivery contents:
1x AKO Duo Power X 4000 fence energiser 12V/230V, 4.5 Joules
1x Fence connection cable
1x Earth connection cable

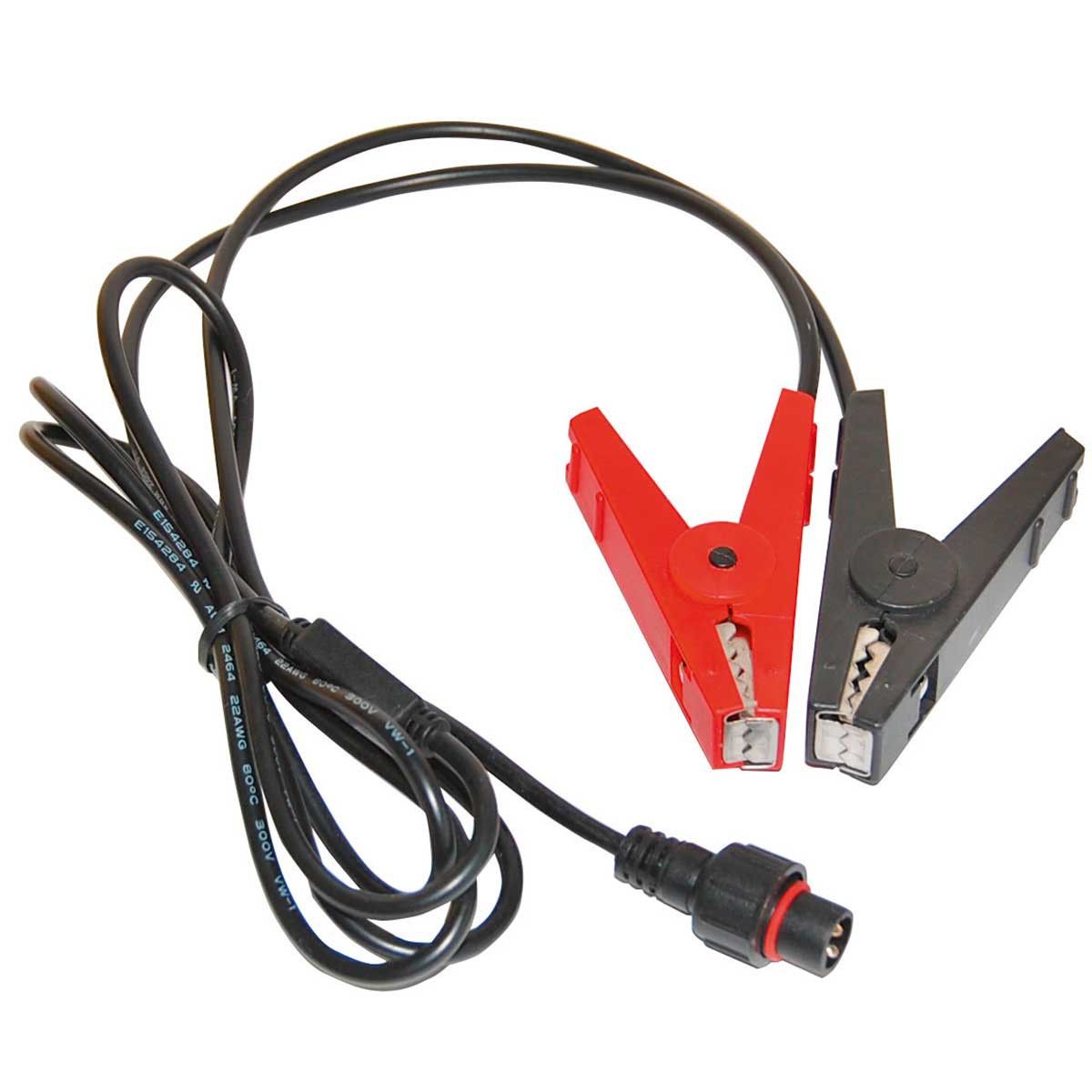

1x 12V connection cable

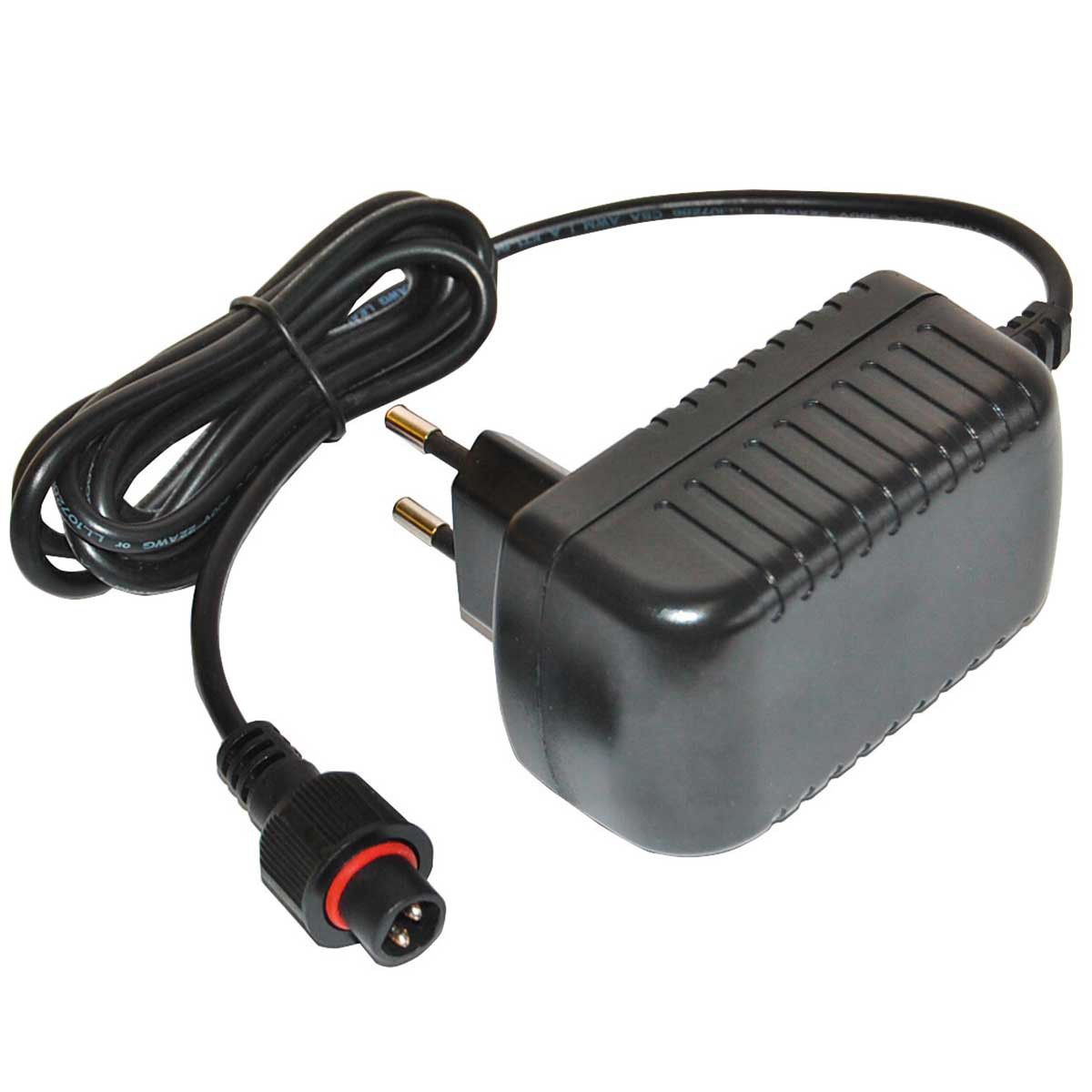

1x 230V mains adapter
1x Instruction manual
Notice: Battery not included!
Questions & Answers:
Can I run this energiser on both battery and mains power?
Yes, the Duo Power X 4000 can run either on a 12V battery or via the included 230V mains adapter.
Which solar panel is recommended?
A 25-watt solar panel is recommended for self-sufficient mobile operation.
Is the unit suitable for outdoor use?
Yes, the housing is weatherproof and splash-proof; however, the 230V mains adapter must be connected in a dry, protected location.
| Max. pulse energy: | 3,00 Joule |
|---|---|
| Charge energie: | 4,50 Joule |
| Voltage: | 9.600 V |
| Power source: | Cord, Rechargeable battery, Solar power |
| Animal species: | Horse, Cattle, Sheep, Wild boar, Wolf, Goat |
| Fence length no plant cover: | 35 km |
| Fence length strong plant cover: | 5 km |
| Fence length light plant cover: | 12 km |
| Manufacturer warranty: | 3 years |
Trust in over 70 years of experience in electric fence construction with AKO electric fence devices. Manufactured in Germany and carefully tested, these devices offer the highest quality and durability. AKO offers the right solution for every need: from inexpensive entry-level devices from the AKO Classic Series to powerful devices from the AKO Premium Series to flexible AKO Expert devices >. All devices are continuously improved by an in-house development team and come with a 3-year manufacturer guarantee. No matter whether you are looking for a standard solution or a device for extreme conditions - AKO has the right electric fence energizer for you.
Manufacturer information
Responsible person
Choose accessories
AKO Premium AGM Battery 12V 88Ah – reliable power for your electric fenceThe AGM battery is a powerful 12-volt fleece battery designed for mobile use on horse and cattle fences. Thanks to AGM fleece technology, there's no need to handle battery acid – simply connect it and your fence energiser is ready to go.Compared with standard batteries, this AGM battery offers significantly lower self-discharge and excellent cycle resistance, even with short charge/discharge cycles such as solar charging. The leak-proof double lid with safety valve, gas recombination and anti-flashback protection keeps the battery maintenance-free and safe on the field.Overview:Rechargeable AGM fleece battery, filled and chargedReady for immediate use – no battery acid handling requiredLower self-discharge than standard batteriesMicro-cycle resistant – good charging behaviour even on short cycles (e.g. solar)Storable for at least 9 monthsOriginal equipment manufacturer (OEM) qualityTechnical Data:Capacity: 88Ah (C100, 100-hour standard discharge)Voltage: 12VDimensions: 27.5 x 17.5 x 19 cm (L x W x H)Weight: 20.7 kgConstruction: double lid with safety valve, gas recombination and anti-flashback protectionOrigin: Slovenia (EU)Included:1x AGM Battery 12V 88AhFAQ:Do I need to add battery acid before first use?No, the AGM battery is already filled and charged, so it's ready for immediate use.What happens if I open the battery?AGM batteries are a closed system – opening the battery voids any warranty claim.Is this battery suitable for solar charging?Yes, thanks to its low self-discharge and micro-cycle resistance it's well suited for solar charging.
Electrifiable Metal Battery Box – Anti-Theft Protection for Electric Fence Units This sturdy metal battery box made from galvanised steel is electrifiable and keeps your electric fence unit and battery safe from theft. It is suitable for Mobil Power units AN 3100 and AN 5500, DUO-X devices, and other 12V fence energisers. The metal carry handle makes transport and mounting on the paddock or fence line easy. The lockable case with spare key keeps your equipment secure even when unattended – ideal for pastures without constant supervision. Overview: Electrifiable galvanised steel case protects against theft and weather Fits Mobil Power AN 3100, AN 5500, DUO-X and other 12V units Lockable with included spare key for extra security Metal carry handle for easy transport and mounting Solid mounting/ground stake included for stable installation Technical Data: Material: galvanised steel External dimensions: 37.5 x 33.5 x 37.5 cm (W x D x H) Space for a battery unit max. 36.5 x 11 x 37 cm Space for a 12V battery max. 36.5 x 21.5 x 21 cm Weight: approx. 8.8 kg Scope of Delivery: 1x metal battery box1x lock1x spare key1x mounting/ground stake (80 cm) FAQ: Is the fence unit and battery included?No, the box is supplied without unit and battery. Can the box itself carry current?Yes, the case is electrifiable for additional security.

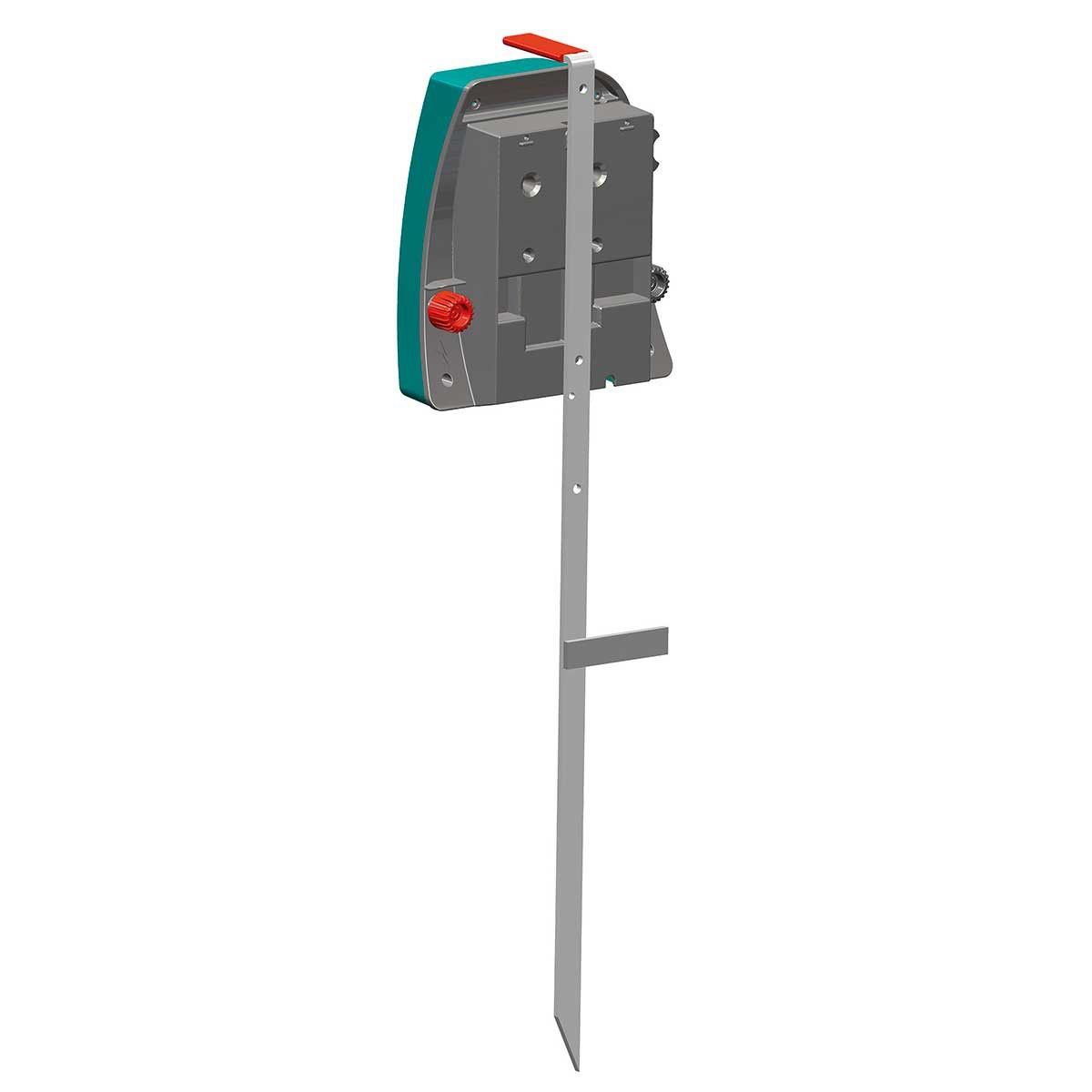

Earth/Support Rod for Electric Fence Energisers – Reliable Earthing and Secure Mounting This AKO earth rod serves a dual purpose: it acts as a sturdy support rod for your electric fence energiser while providing the essential earth connection to close the circuit of your electric fence. Without proper earthing, the deterrent shock won't reach the animal reliably, so a good earth rod is key to effective containment. Made from galvanised metal, the rod is easy to drive into the ground and keeps your energiser securely mounted right at the fence line. The durable galvanised finish resists weathering and maintains conductivity season after season, while installation requires no tools at all. Overview: Dual function as earth rod and support rod Compatible with AKO Compact Power B40, Duo-X and Power A energisers Secure mounting directly at the fence Weather-resistant galvanised finish Tool-free installation Reliable earthing for consistent shock delivery Technical Data: Material: galvanised metal Length: approx. 75 cm Width: approx. 9 cm Height: approx. 8.5 cm Weight: approx. 0.7 kg Included: 1x AKO earth/support rod for electric fence energiser Note: energiser not included FAQ: Which energisers is this earth rod compatible with?It fits AKO Compact Power B40, AKO Duo-X units and AKO Power A units, among others. What is the earth rod used for?It earths your electric fence energiser and doubles as a support rod so the unit can be securely mounted at the fence.
