Kerbl Cattle Stunner Blitz ESS9 Captive Bolt Device

Cattle Stunner Blitz ESS9 – Precise and Safe Stunning for Your Farm

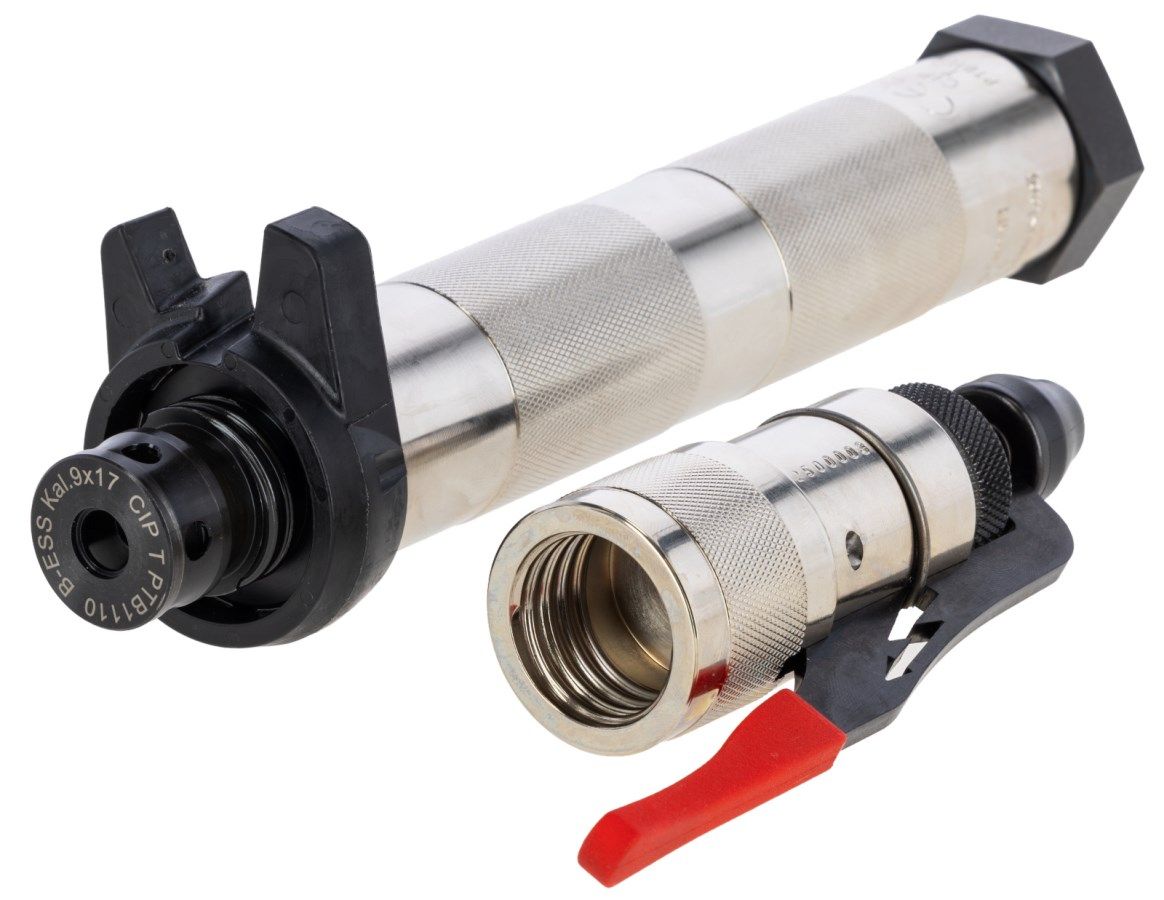

With the Cattle Stunner Blitz ESS9, you're choosing the proven quality of the Blitz series, further developed for even more efficiency. This captive bolt device was designed to ensure fast and painless stunning: when triggered, a cartridge releases a powerful burst of gas, and the penetration of the bolt creates an additional pressure wave, resulting in immediate and reliable stunning.

Operation is easier and faster than ever. Thanks to the innovative mechanical locking of the trigger mechanism, the previously required roll bar is no longer necessary, speeding up loading. The annoying extraction hook for cartridges is also a thing of the past. A hexagonal housing further prevents the device from accidentally rolling away during use.

Overview

• Advanced development of the proven Blitz Kerner captive bolt stunner
• Approved by the Federal Physical and Technical Institute (PTB No. 1011)
• Fast, safe, and painless stunning due to the pressure wave effect
• Easy and fast operation thanks to innovative locking mechanics
• Robust and durable steel design for heavy-duty use
• Versatile use for piglets, pigs, sheep, goats, horses, and cattle up to 650 kg
• Hexagonal housing prevents the device from rolling

Technical Data

• Length: 34.4 cm
• Weight: 2.23 kg
• Caliber: 9 x 17 mm centrefire
• Bolt exit: approx. 82 mm
• Gas discharge when triggered: up to 1450 bar
• Material: hardened stainless steel
• Approval: PTB No. 1011
• Made in Germany

Scope of Delivery

1x Cattle Stunner Blitz ESS9

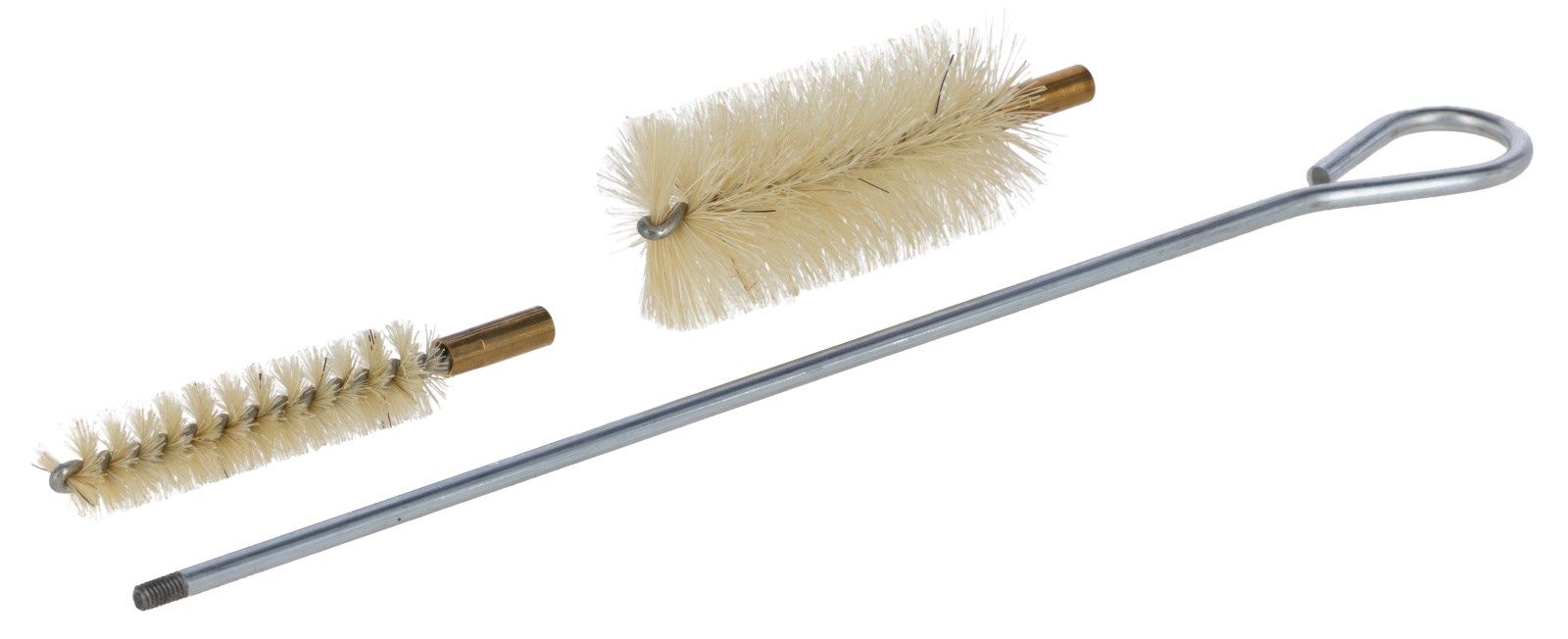

1x Cleaning brush set
1x Operating instructions

Questions & Answers

Is the Cattle Stunner Blitz ESS9 certified?
Yes, it is certified and approved by the Federal Physical and Technical Institute (PTB No. 1011).

Which animal species is the device suitable for?
It is ideally suited for stunning piglets, pigs, sheep, goats, horses, and cattle up to 650 kg.

Which cartridges do I need?
The device uses centrefire cartridges in 9 x 17 mm caliber; the appropriate charge strength depends on the species and weight.
