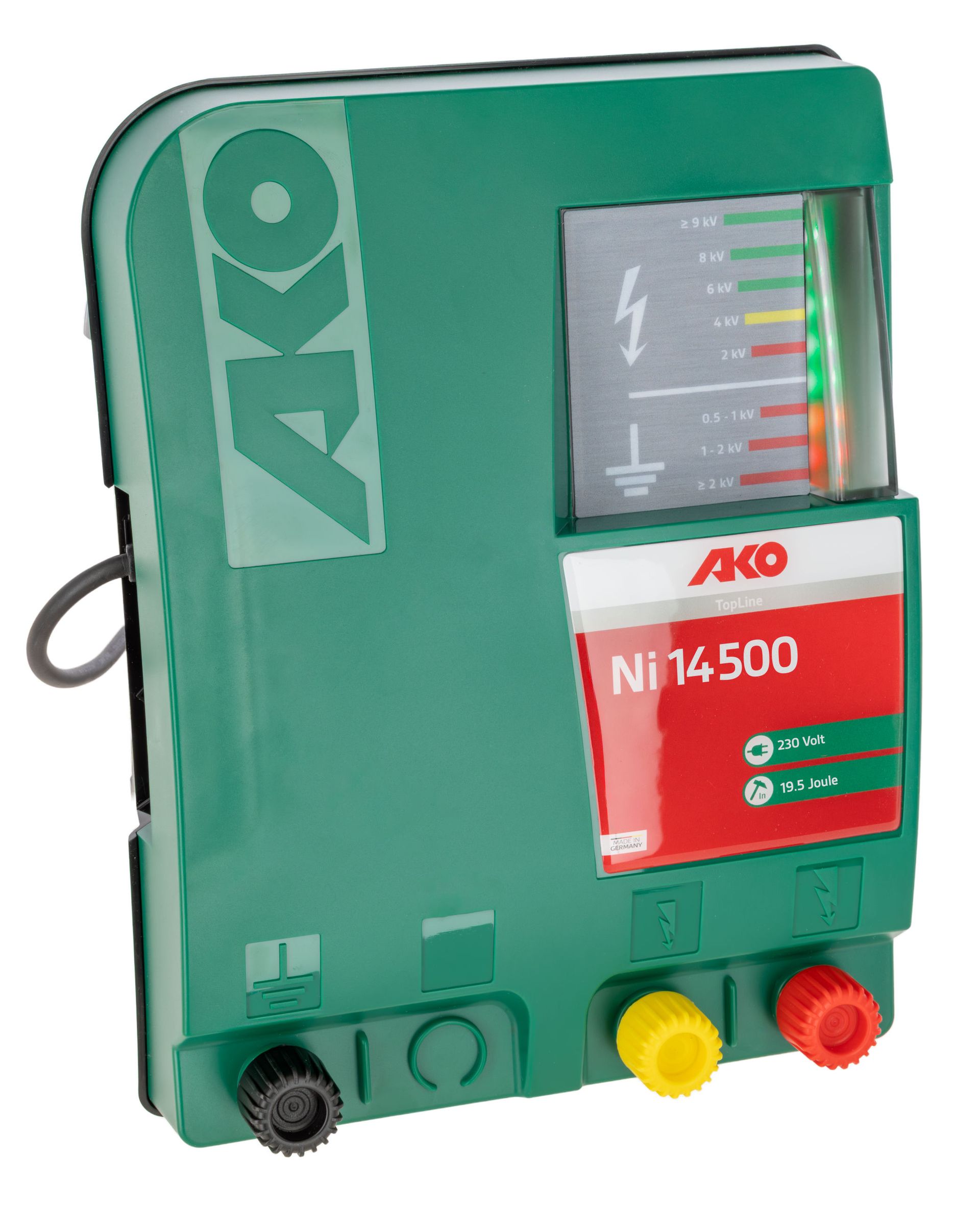

AKO Ni 14500 Pasture Fence Energizer 230 V, ultra powerful for long fences

AKO Ni 14500 Pasture Fence Energizer 230 V – Maximum herd security for demanding fence systems

With the AKO Ni 14500 pasture fence energizer, you're getting an extremely powerful mains unit specifically developed for very long fences and robust animal species such as bulls, sheep, or for wolf defence. Thanks to the enormous shock power of 14.5 Joules of discharge energy, it provides reliable herding security even with heavy vegetation over distances of up to 80 kilometres without growth. This way, you can rest assured that your animals stay safely fenced in and uninvited wildlife is effectively kept away.

Operation is particularly convenient and safe for you, as the device automatically adjusts to the current fence condition thanks to modern microprocessor control, always delivering the most efficient performance. A special safety feature is the integrated alarm function with delayed shock strength adjustment, which not only gives a visual and acoustic warning in the event of continuous contact with the fence but also slows down the pulse sequence to protect both humans and animals.

Overview

• Ultra-powerful 230 volt mains unit for the highest demands
• Specifically suitable for robust animal species such as horses, cattle, sheep, goats, and for wildlife defence
• Two fence outputs (high/low) for flexible power adjustment
• Intelligent adjustment to fence conditions via microprocessor control
• Integrated alarm function for continuous fence contact
• Multi-colour LED bargraph display for precise voltage monitoring
• 5-year warranty for long-term reliability

Technical Data

• Model: Ni 14500
• Charging energy: 19.5 J
• Max. discharge energy: 14.5 J
• Max. voltage: 11200 V
• Open circuit voltage: 10200 V
• Voltage at 500 Ohm: 8800 V
• Theoretical fence length according to VDE: 440 km
• Max. fence length without vegetation: 80 km
• Max. fence length with medium vegetation: 22 km
• Max. fence length with heavy vegetation: 14 km
• Number of nets: 40
• Number of required 1 m grounding stakes: 6
• Power consumption: 16.4 W
• Country of origin: Germany

Scope of delivery

1x Pasture fence energizer
1x Warning sign

FAQ

Which animal species can I use the device for?
The device is ideal for horses, bulls, cattle, sheep, goats, as well as for deterring wild boar and wolves.

How does the alarm function work?
The alarm function permanently monitors the fence, triggers an alarm in case of continuous contact, and simultaneously slows down the pulse sequence to increase safety.

Can the device be mounted outdoors?
While the housing is weatherproof and UV-resistant, the device must be additionally protected from direct rain and extreme sunlight when mounted outside.
