Frost-protection heating cable with thermostat 230V 2 m

Frost protection heating cable with thermostat 230 V

Antifreeze heating pipe allows the water to flow in the winter.

This antifreeze heating cable with thermostat keeps your water pipe up to max. -45 ° C frost-free. This heating pipe for watering bowls prevents the formation of birds. Protect the area that the animals can nibble on with an additional protection against the bite! This heating cable has an integrated frost protection thermostat (switch-on temperature approx. +5 ° C, switch-off temperature approx. +13 ° C) and is not suitable for heating pipes. For additional insulation do not insulate the thermostat!

Overview of frost protection heating cable:

• Prevent freezing of water piping
• Thermostat in the heating cable switches on the cable automatically
• For heating the stub of drinking bowls
• keeps your water line frost-free to -45 °C
• integrated frost-protection thermostat (switch-on temperature approx. +5 °C, switch-off temperature approx. +13 °C)
• do not use on heating pipes
• when insulated additionally, please do not insulate the thermostat
• Do not mount where animals can reach!
• IPX7
• VDE tested

What should be considered with 230 V heating cables:

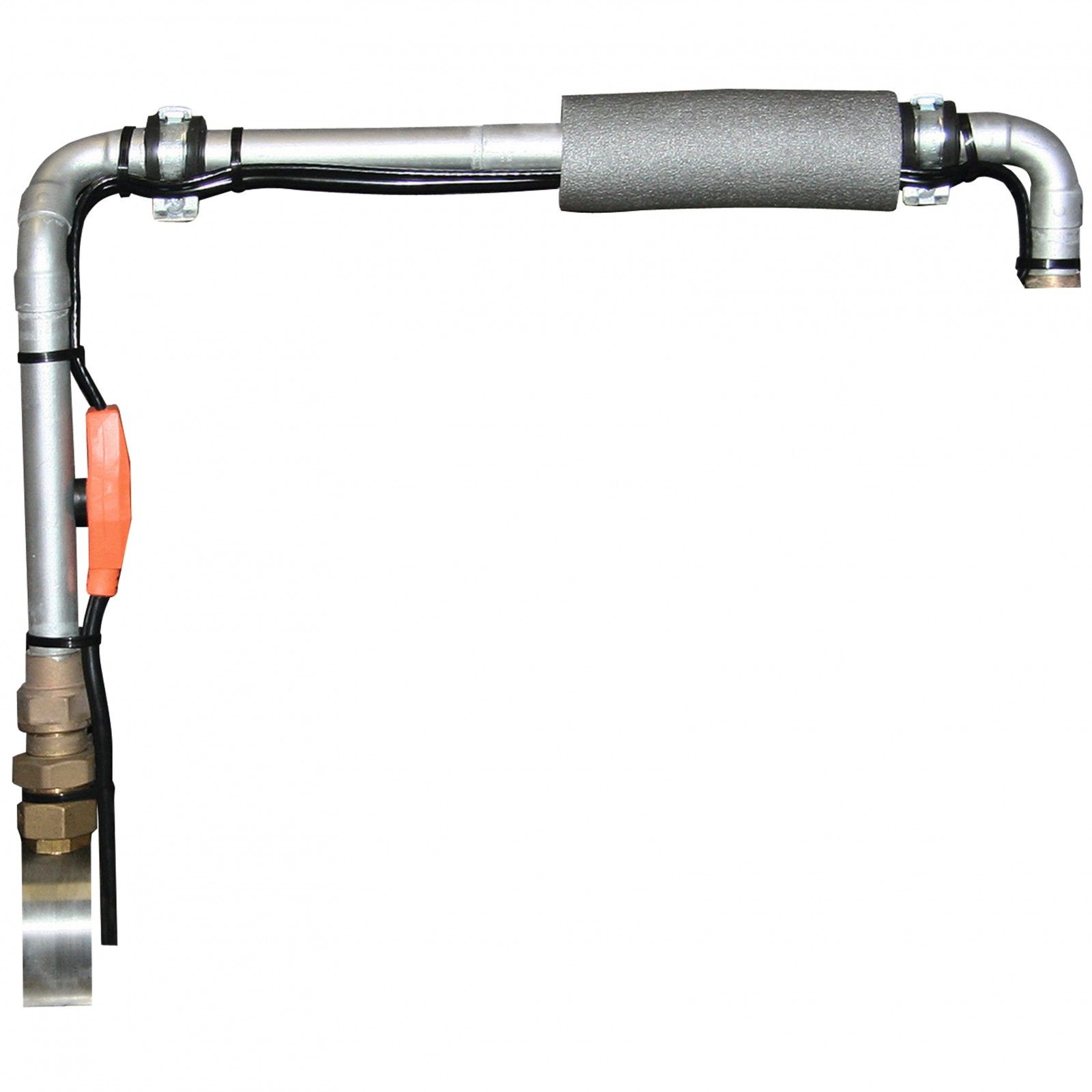

• Always install the heating cable at the bottom of the pipe
• Water pipe must be earthed
• 230 V heating cables are ready to plug in and connect to a power supply with circuit breaker (RCCB 30 mA)
• Heating cables must not be shortened, already ordered in the correct length
• Rest lengths can be wrapped in turns around the pipe
• Do not bend the heating cable and set the max. Note bending radius of approx. 50 mm
• Heating cables can be attached to the pipe with insulating tape or with aluminum tape
• When used on plastic pipes, the pipe must be wrapped with aluminum tape before laying the heating cable

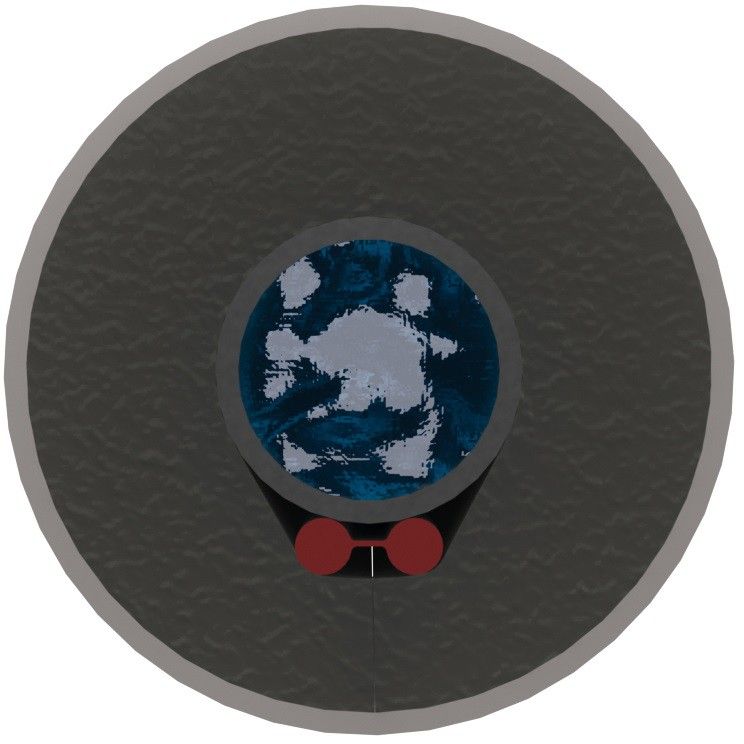

• Insulate the pipeline and the heating cable with insulation of min. 13 mm
• Install the thermostat of the heating cable in the coldest position of the pipe
• Thermostat may only be moderately insulated
• Do not use 230V heating cables in the biting area of ??animals
• Installation must be carried out in accordance with VDE0100 by a qualified specialist
• Do not mount unprotected in the bite area of ??animals - use only 24 volt heating cables! Heating cable must not be shortened!

Length:

• 1 m, Watt at 0 ° C = 16 W
• 2 m, watts at 0 ° C = 32 W
• 4 m, Watt at 0 ° C = 64 W
• 8 m, watts at 0 ° C = 128 W.
• 12 m, Watt at 0 ° C = 192 W
• 14 m, Watt at 0 ° C = 224 W
• 18 m, Watt at 0 ° C = 288 W
• 24 m, Watt at 0 ° C = 384 W
• 37 m, watts at 0 ° C = 592 W.
• 49 m, watts at 0 ° C = 784 W.

Delivery:

1x frost protection heating cable with thermostat, 230 V
