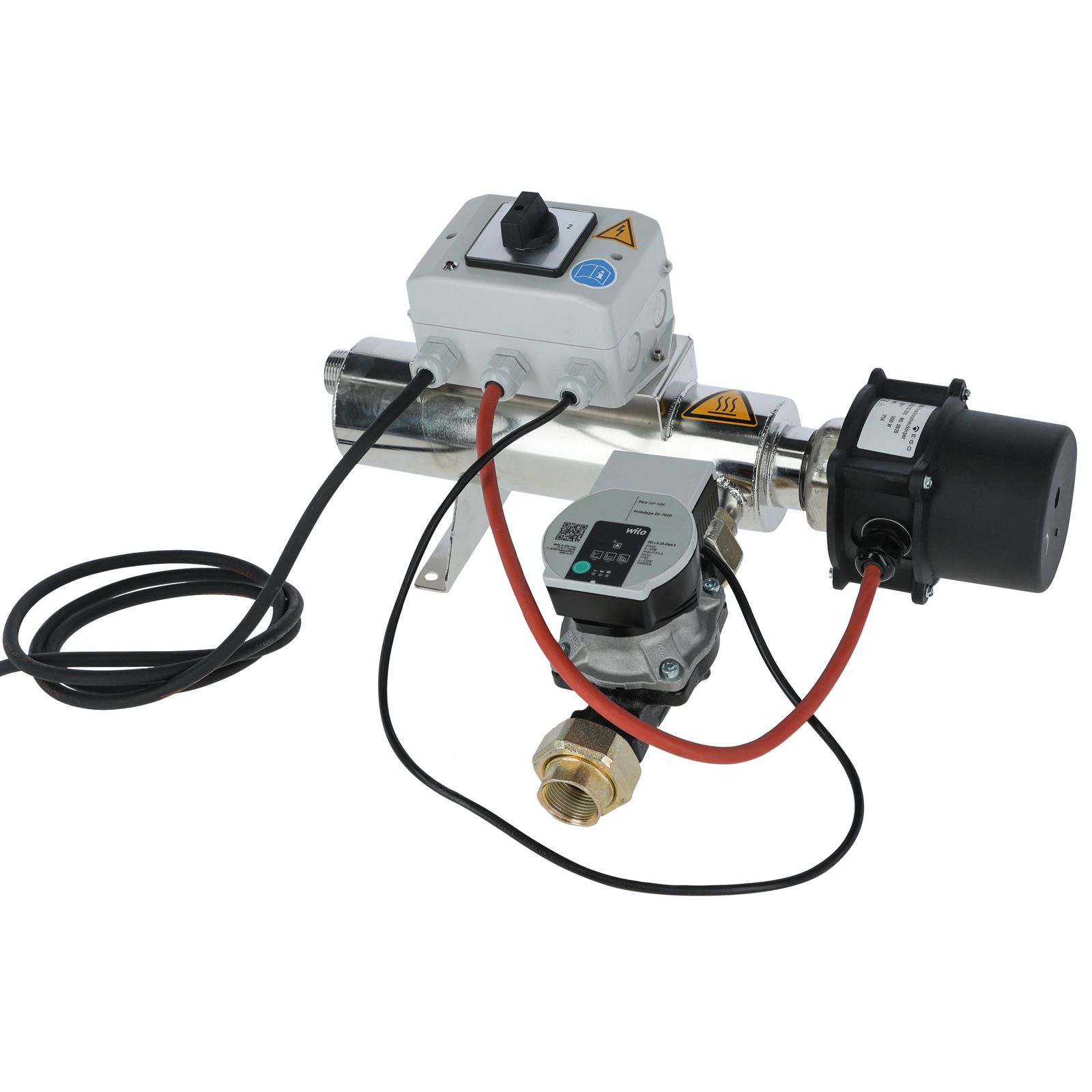

Circulation pump AQUALINE C10 with heating unit

Circulation pump Aqualine circulation pump C10 with heating unit

With the Aqualine circulation pump the water can flow even in winter!

The Aqualine circulation pump C10 is a circulation pump with heating unit. The heat pump is the ideal solution for supplying your grazing animals with well-tempered water. It offers safe frost protection for grazing troughs even at very low temperatures. The pump is ideal for drinkers, which are connected to a ring line. The circulation pump reliably prevents water from freezing in lines with max. 250 m ring line length. The constant water movement and the switchable heater provide double freeze protection.

Due to a 3-stage switching (0 = off, 1 = circulation mode, 2 = circulation and heating mode) you can adjust the pump individually. A led on the control box indicates whether the heating element is switched on and heating. in case of overheating, the circulation pump switches off automatically. Due to its compact design, the heat pump requires very little space and is very easy to maintain, the components can be quickly disconnected and disassembled. The assembly is best done by an authorized specialist.

At a glance:

• Well-tempered water for your animals all year round
• Provides safe frost protection in winter
• For drinking systems with a ring pipe length of max. 250 m (with pipe diameter ¾")
• Circulating pump with three different speed levels:
• 0 = Off, 1 = Circulation mode, 2 = Circulation and heating mode
• Automatic regulation of the set water temperature
• Automatic safety shutdown in case of overheating
• Led on the control box indicates whether the heating element is switched on and heating
• Quick exhaust valve on the heater
• Very easy to maintain + small space requirement due to compact design
• Components can be quickly disconnected and disassembled
• Easy installation by authorized specialist
• Durable stainless steel housing

Technical data:

• Dimensions (l x w x h): 52 x 41,5 x 26,5 cm
• Pump power: 50 W
• Heating power: 3.000 W
• Voltage: 230 V
• Water connection: 1"
• Ring line length: max. 250 m (with pipe diameter ¾")

Scope of delivery:

1x Circulation pump
1x Flow pipe with integrated heating element
1x Check valve
1x Quick vent valve
1x Pressure relief valve
1x Pump screw connection g 1 ½" - Rp. 1" for circulation pump
