Tie Ring: The Point Everything Hangs On

A tether is only as safe as its fixing point. That is what these rings, manger rings and crib fittings in galvanised steel are for, mounted firmly to a manger bar, crib, wall or post. They take the pull that a rising animal generates and give the chain or rope one defined place where it is allowed to run.

Mounting types compared

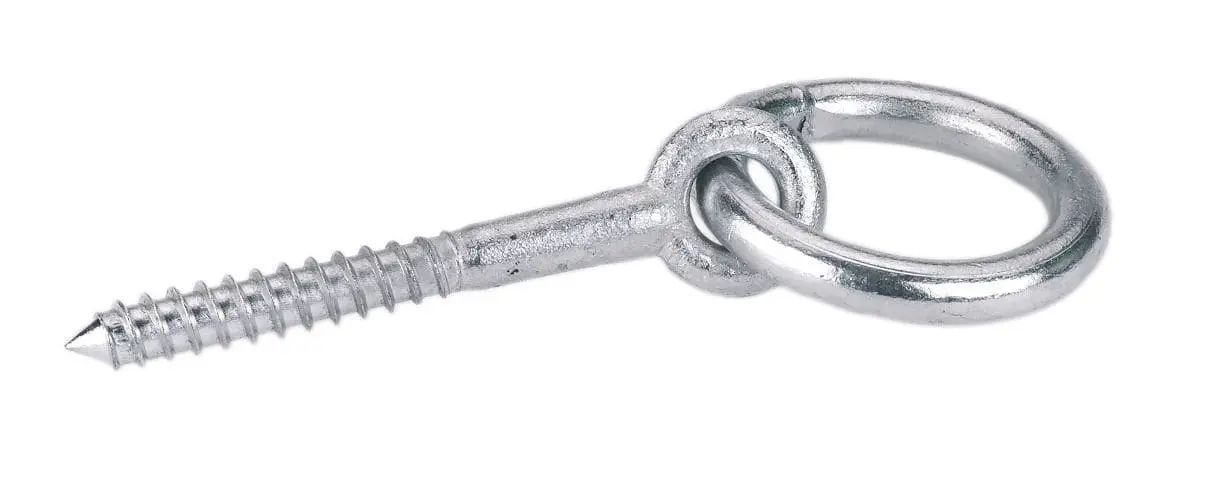

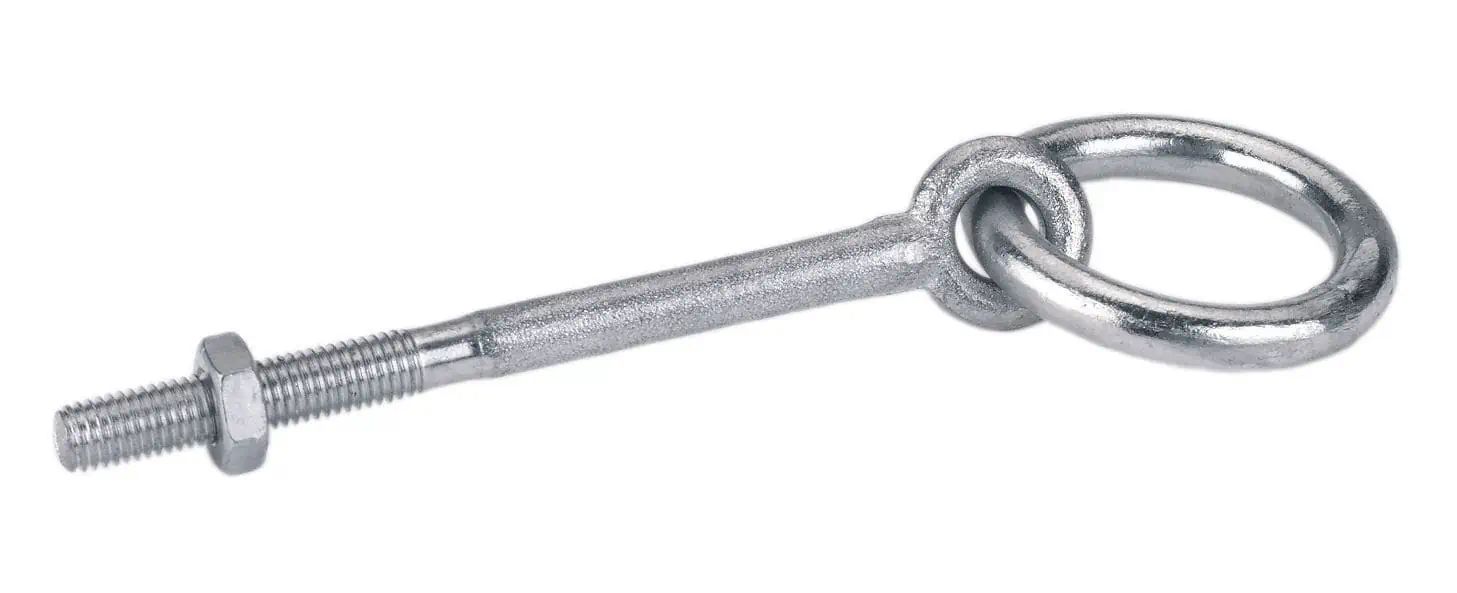

The manger ring with bolt and nut is pushed through and screwed down on the back. That is the strongest solution and works wherever you can reach both sides. The manger ring with a wood screw is the quicker option for timber beams and mangers where the back is covered. The crib fitting is a manger part without a swivel and comes in 5, 6, 7 and 8 mm link thickness, so it matches the chain you already have. Hanging rings with a fork connect directly to a chain link and are quick to swap when a fitting is worn.

Choosing and checking

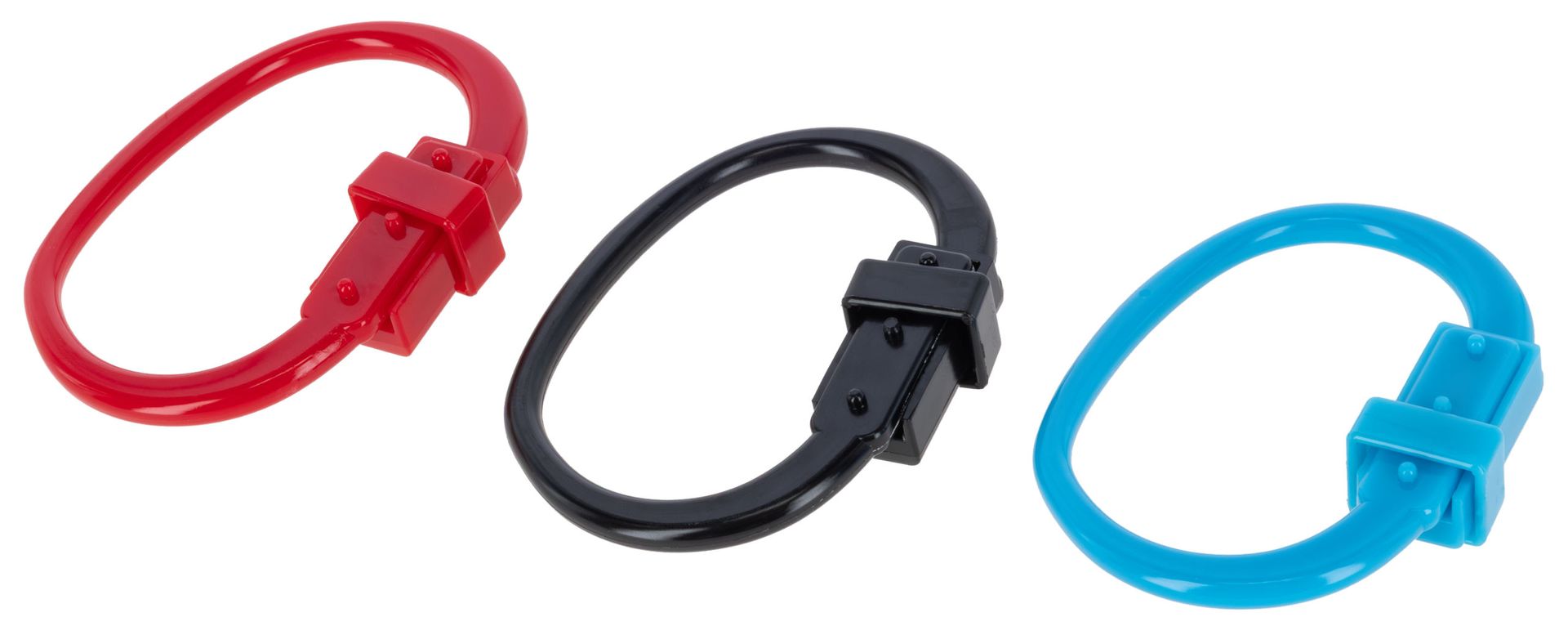

The strength of the ring should always match the chain. An 8 mm link on a thin ring only moves the weak point instead of removing it. Check screwed connections once a season, because timber moves with humidity and nuts work loose. For horse boxes we also stock safety tie rings in nylon that give way deliberately under heavy pull and so help prevent injuries. Whichever type you pick, mount it into solid timber or concrete and never into cladding, because that is where a fixing point pulls out first.

Frequently Asked Questions

Bolt and nut or wood screw?
If you can reach the back of the beam, take the bolt and nut version, because it holds considerably more. The wood screw is the answer for covered backs and lighter loads.

Which link thickness does my crib fitting need?
It follows the chain you clip in. Measure one chain link and choose the same thickness, with 5 to 8 mm being the usual range.

Why a safety ring for horses?
Horses react to a fright by pushing backwards hard. A ring that gives way in a controlled manner stops the halter or rope injuring the animal. It also protects the beam the ring is mounted on.
